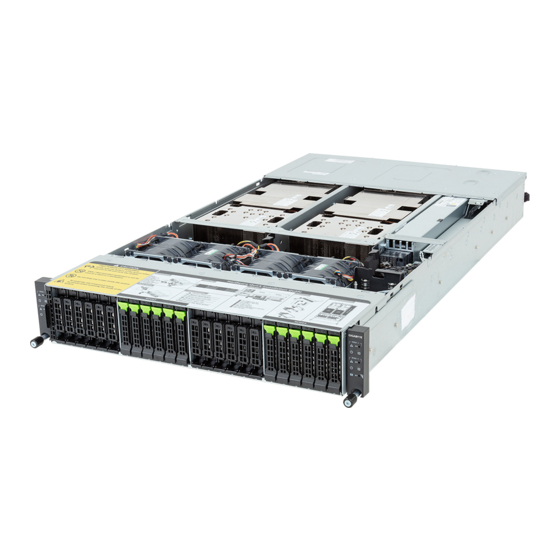

Gigabyte H223-V10-AAW1 User Manual

Hpc/ai arm server nvidia grace hopper superchip 2u 2-node 8-bay gen5 nvme
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H223-V10-AAW1
HPC/AI Arm Server
NVIDIA Grace Hopper Superchip
2U 2-Node 8-Bay Gen5 NVMe
User Manual
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H223-V10-AAW1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigabyte H223-V10-AAW1

Summary of Contents for Gigabyte H223-V10-AAW1

  • Page 1 H223-V10-AAW1 HPC/AI Arm Server NVIDIA Grace Hopper Superchip 2U 2-Node 8-Bay Gen5 NVMe User Manual Rev. 1.0...
  • Page 2 For GIGABYTE distributors and resellers, additional sales & marketing materials are available from our reseller portal: http://reseller.b2b.gigabyte.com For further technical assistance, please contact your GIGABYTE representative or visit https://esupport.gigabyte.com/ to create a new support ticket For any general sales or marketing enquiries, you may also message GIGABYTE server directly by email: server.grp@gigabyte.com...
  • Page 3 Conventions The following conventions are used in this user's guide: NOTE! Pieces of additional information related to the current topic. CAUTION! Precautionary measures to avoid possible hardware or software problems. WARNING! Alerts to any damage that might result from doing or not doing specific actions.
  • Page 4 Server Warnings and Cautions Before installing a server, be sure that you understand the following warnings and cautions. WARNING! To reduce the risk of electric shock or damage to the equipment: • Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
  • Page 5 Electrostatic Discharge (ESD) CAUTION! ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP AT- TACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER WHEN HANDLING PARTS.
  • Page 6 Installing or removing jumpers: A jumper is a small plastic encased conductor that slips over two jumper pins. Some jumpers have a small tab on top that can be gripped with fin-gertips or with a pair of fine needle nosed pliers. If the jumpers do not have such a tab, take care when us- ing needle nosed pliers to remove or install a jumper;...

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 Hardware Installation ..................9 Installation Precautions ..................9 Product Specifications ..................10 System Block Diagram ................... 15 Chapter 2 System Appearance ..................16 Front View ...................... 16 Rear View ....................... 17 Front Panel LED and Buttons ................ 18 Rear System LAN LEDs .................
  • Page 8 5-2-6 USB Configuration ....................61 5-2-7 Network Stack Configuration ..................62 5-2-8 IP Configuration Settings ..................63 5-2-9 NVMe Configuration ....................64 5-2-10 Graphic Output Configuration .................65 5-2-11 Power Restore Configuration .................66 5-2-12 Tls Auth Configuration ....................67 5-2-13 RAM Disk Configuration ..................68 5-2-14 Intel(R) Ethernet Controller X550 ................69 5-2-15 MAC IPv4 Network Configuration ................71 5-2-16 MAC IPv6 Network Configuration ................72 5-2-17 Driver Health ......................73...

  • Page 9: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user manual and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 10: Product Specifications

    Product Specifications NOTE: We reserve the right to make any changes to the product specifications and product-related information without prior notice. Security Server Socket Operating Properties System Š 2U 4-Node - Rear access Dimension Š 440 (W) x 87.5 (H) x 850 (D) mm System fan Power Supply Superchip...
  • Page 11 Storage Per node: 4 x 2.5" Gen5 NVMe hot-swappable bays, from PEX89048 Š Total: Socket Security Server Operating Properties 8 x 2.5" Gen5 NVMe hot-swappable bays, from CPU Š Expansion Slots Per node: Superchip System fan Power Supply PCIe Cable x 2 : *1 x PCIe x16 (Gen5 x16) FHHL slot (Dual slot), from CPU Š...
  • Page 12 Internal I/O Per Node: 1 x TPM header Š Front I/O Per node: 1 x Power button with LED Š Socket Security Server Operating Properties 1 x ID button with LED Š 1 x Status LED Superchip System fan Power Supply Š...
  • Page 13 Š +12.2V/ 245.9A Š +12.2Vsb/ 3A NOTE: The system power supply requires C19 type power cord System Aspeed® AST2600 management controller Š Management GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Š Dashboard Š Security Server Operating Properties HTML5 KVM Š...
  • Page 14 Security Server Operating Properties Operating Operating temperature: 10°C to 35°C Š Operating humidity: 8-80% (non-condensing) Properties Š Superchip System fan Power Supply Non-operating temperature: -40°C to 60°C Š Non-operating humidity: 20%-95% (non-condensing) Š Hardware Installation - 14 -...

  • Page 15: System Block Diagram

    System Block Diagram NVIDIA Grace Hopper Superchip Grace Hopper NVLink C2C 900GB/s OCP 3.0 slot PCIe 5.0 x16 FHHL slot (dual-slot) PCIe5.0 x16 PCIe5.0 x16 Dual ROM NCSI SPI 64MB PCIe 5.0 x16 FHHL slot (single-slot) PCIe5.0 x16 SPI 64MB PCIe2.0 x1 Intel FPGA...

  • Page 16: Chapter 2 System Appearance

    Chapter 2 System Appearance Front View NODE2 NODE4 Decription Front Panel LEDs and buttons • Please Go to Chapter 2-3 Front Panel LED and Buttons for detail description of function LEDs. System Appearance - 16 -...

  • Page 17: Rear View

    Rear View PSU2 SLOT3 SLOT2 PSU3 PSU1 SLOT1 Decription Full-Height Dual Slot Full-Height Single Slot Mini DP Port 2 x USB 3.2 Gen1 2 x 1GbE LAN Port BMC Server Management LAN Port OCP 3.0 Slot (SFF Type) CMC LAN Port System Appearance - 17 -...

  • Page 18: Front Panel Led And Buttons

    Front Panel LED and Buttons NODE1 NODE3 NODE2 NODE4 No. Name Color Status Description Green Solid On System is operating normally. Critical condition, may indicate: Solid On System fan failure System temperature Amber Non-critical condition, may indicate: System Redundant power module failure Blink Status LED Temperature and voltage issue...

  • Page 19: Rear System Lan Leds

    Rear System LAN LEDs 2 3 4 3 Name Color Status Description Yellow 1Gbps data rate 1GbE Green 100 Mbps data rate Speed LED 10 Mbps data rate Link between system and 1GbE Green network or no access Link/ Blink Data transmission or receiving is occurring Activity LED No data transmission or receiving is occurring...

  • Page 20: Power Supply Unit Led

    Power Supply Unit LED PSU LED State Description No AC power to all power supplies 1Hz Green Blinking AC present / only standby on / Cold redundant mode 2Hz Green Blinking Power supply firmware updateing mode AC cord unplugged or AC power lost; with a second power supply in parallel still with AC input power Amber Power supply critical event causing shut down:...

  • Page 21: Hard Disk Drive Leds

    Hard Disk Drive LEDs LED #1 HDD Present HDD Access No HDD Green BLINK (*1) LED #2 HDD Locate Fault Green BLINK (*1) Yellow NOTE: *1: Blink cycle depends on HDD's activity signal. System Appearance - 21 -...

  • Page 22: Chapter 3 System Hardware Installation

    Chapter 3 System Hardware Installation Pre-installation Instructions Computer components and electronic circuit boards can be damaged electrostatic discharge. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself.

  • Page 23: Installing The Hard Disk Drive

    Installing the Hard Disk Drive Read the following guidelines before you begin to install the Hard disk drive: • Take note of the drive tray orientation before sliding it out. • The tray will not fit back into the bay if inserted incorrectly. •...

  • Page 24: Removing The Node

    Removing the Node Read the following guidelines before you begin to replace a node: • To make sure the system operates normally, please power off only the node that will be replaced or reconfigured. Follow these instructions to remove a node: Press the release latch while simultaneously pushing down the tray handle for the node.

  • Page 25: Removing Chassis Cover

    Removing Chassis Cover Before you remove or install the system cover • Make sure the system is not turned on or connected to AC power. Follow these instructions to remove the system cover: Loosen and remove the six screws securing the back cover. Slide the cover to the rear of the system and remove the cover in the direction of the arrow.

  • Page 26: Installing The Pci Expansion Card

    Installing the PCI Expansion Card • The PCI riser assembly does not include a riser card or any cabling as standard. To install a PCI card, a riser card must be installed. Follow these instructions to install the PCI Expansion card: Remove the screw on the riser bracket.
  • Page 27 System Hardware Installation - 27 -...

  • Page 28: Installing The Mezzanine Card

    Installing the Mezzanine Card 3-5-1 Installing the OCP 3.0 Mezzanine Card Use of the following type of OCP 3.0 NIC is recommended: • OCP 3.0 SFF with pull tab • OCP 3.0 SFF with ejector latch Follow these instructions to install an OCP 3.0 Mezzanine card: Remove the one screw securing the OCP 3.0 card slot cover.

  • Page 29: Replacing The Fan Assembly

    Replacing the Fan Assembly • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered-down and all power sources have been disconnected from the server prior to replacing a system fan.

  • Page 30: Replacing The Power Supply

    Replacing the Power Supply Follow these instructions to replace the power supply: Pull up the power supply handle and press the retaining clip on the right side of the power supply along the direction of the arrow. At the same time, pull out the power supply by using its handle. Insert the replacement power supply firmly into the chassis.

  • Page 31: Installing The M.2 Device

    Installing the M.2 Device Follow these instructions to install the M.2 device: Remove the screws securing the M.2 riser. Remove the M.2 riser from the system. Insert the M.2 SSD module into the slot. Secure it with the screw, tightening as necessary to fasten the M.2 SSD module in place. System Hardware Installation - 31 -...

  • Page 32: Cable Routing

    Cable Routing Motherboard: FP_1 Front IO Board: FP_1 Front Panel LEDs and Buttons Cable Front IO Board: FP_1 System Hardware Installation - 32 -...
  • Page 33 Middle Board: N1_U2_B Top Middle Board to HDD Back Plane Board Cable (NVMe/Node1) Front HDD Board: N1 U.2 A Top Middle Board to HDD Back Plane Middle Board: N1_U2_A Front HDD Board: N1 U.2 B Board Cable (NVMe/Node1) Top Middle Board to HDD Back Plane Middle Board: N3_U2_B Board Cable (NVMe/Node3) Front HDD Board: N3 U.2 A...
  • Page 34 Middle Board: N2_U2_B Bottom Middle Board to HDD Back Plane Board Cable (NVMe/Node2) Front HDD Board: N2 U.2 A Bottom Middle Board to HDD Back Middle Board: N1_U2_A Front HDD Board: N2 U.2 B Plane Board Cable (NVMe/Node2) Bottom Middle Board to HDD Back Middle Board: N4_U2_B Plane Board Cable (NVMe/Node4) Front HDD Board: N4 U.2 A...
  • Page 35 Middle Board: N1_SATA Top Middle Board to HDD Back Plane Board Signal Cable Front HDD Board: N1 SATA Top Middle Board to HDD Back Plane Middle Board: N3_SATA Board Signal Cable Front HDD Board: N3 SATA Bottom Middle Board to HDD Back Middle Board: N2_SATA Plane Board Signal Cable Front HDD Board: N2 SATA...
  • Page 36 Motherboard: AIC_PWR1 Riser: Cable Motherboard: AIC_PWR0 Riser: Cable PCIe Riser Power Cable Motherboard: AIC_PWR1 Riser: Cable Motherboard: AIC_PWR0 Riser: Cable System Hardware Installation - 36 -...
  • Page 37 Riser: Cable PCIe Riser Signal Cable (Top Node) Motherboard: U2_P0_PE1 Riser: Cable PCIe Riser Signal Cable (Bottom Node) Motherboard: U2_P0_PE0 Riser: Cable PCIe Riser Signal Cable (Top Node) Motherboard: U2_P0_PE1 Riser: Cable PCIe Riser Signal Cable (Bottom Node) Motherboard: U2_P0_PE0 System Hardware Installation - 37 -...
  • Page 38 CG1 Module: -- Motherboard: 12VHPWR1 CG1 Module: -- Motherboard: 12VHPWR0 CG1 Module Power Cable CG1 Module: -- Motherboard: 12VHPWR1 CG1 Module: -- Motherboard: 12VHPWR0 System Hardware Installation - 38 -...

  • Page 39: Chapter 4 Motherboard Components

    Chapter 4 Motherboard Components Motherboard Components NVIDIA GRACE Hopper Superchip 2 3 4 5 6 10 11 Item Description OCP 3.0 Connector (PCIe Gen5 x16) Serial Cable Connector BMC Readiness LED BMC Flash ROM #1 BMC Flash ROM #2 TPM Module Connector MCIO Connector (U2_P0_PE2/PCIe Gen5) PCIe Power Connector (AIC_PWR_0) Power Connector for GH Superchip...

  • Page 40: Jumper Setting

    Jumper Setting NVIDIA GRACE Hopper Superchip Default Enable Clear CMOS 1 2 3 CLR_CMOS Motherboard Components - 40 -...

  • Page 41: Backplane Board Storage Connector

    Backplane Board Storage Connector 4-3-1 CBPH7O1 Item Description SlimLine SAS Connector (N1 U.2 A) SlimLine SAS Connector (N1 U.2 B) SlimLine SAS Connector (N2 U.2 A) SlimLine SAS Connector (N2 U.2 B) SlimLine SAS Connector (N3 U.2 A) SlimLine SAS Connector (N3 U.2 B) SlimLine SAS Connector (N4 U.2 A) SlimLine SAS Connector (N4 U.2 B) Proprietary PCIe Slot (x8 slot/ GF_HDD)

  • Page 42: Chapter 5 Bios Setup

    Chapter 5 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 43  Main This setup page includes all the items of the standard compatible BIOS.  Advanced This setup page includes all the items of AMI BIOS special enhanced features. (ex: Auto detect fan and temperature status, automatically configure hard disk parameters.) ...

  • Page 44: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter other sub-menu. Main Menu Help The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
  • Page 45 Parameter Description BIOS Information Displays the current access level depending on the type of password protection used. (If no password is set, the default will display as Administrator.) The Administrator level Access Level allows you to make changes to all BIOS settings;...
  • Page 46 Processor Information CPU Brand String/ Max CPU Speed Displays the technical information for the installed processor(s). Memory Information (Note2) Total Memory Displays the total memory size of the installed memory. Memory Frequency Displays the installed memory frequency information. Memory Slot Information Press [Enter] for advanced items.

  • Page 47: Advanced Menu

    Advanced Menu The Advanced Menu displays submenu options for configuring the function of various hardware components. Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 47 -...

  • Page 48: Trusted Computing

    5-2-1 Trusted Computing Parameter Description Configuration Enable/Disable BIOS support for security device. OS will not show security device. TCG EFI protocol and INT1A interface will not be Security Device Support available. Options available: Disable, Enable. Default setting is Enable. BIOS Setup - 48 -...

  • Page 49: Uefi Variables Protection

    5-2-2 UEFI Variables Protection Parameter Description Control he NVRAM Runtime Variables protection through System Password protection of Runtime Admin Password. Variables Options available: Disable, Enable. Default setting is Enable. BIOS Setup - 49 -...

  • Page 50: Serial Port Console Redirection

    5-2-3 Serial Port Console Redirection Parameter Description Console redirection enables the users to manage the system from a COM1 Console remote location. Redirection (Note) Options available: Enabled, Disabled. Default setting is Disabled. Press [Enter] to configure advanced items. Please note that this item is configurable when COM1 Console Redirection is set to Enabled.
  • Page 51 Parameter Description Parity Š – A parity bit can be sent with the data bits to detect some transmission errors. – Even: parity bit is 0 if the num of 1's in the data bits is even. – Odd: parity bit is 0 if num of 1's in the data bits is odd. –...
  • Page 52 Parameter Description Serial Port for Out-of-Band Management / Windows EMS console redirection allows the user to configure Console Redirection Emergency Management Settings to support Out-of-Band Serial Port management. Services (EMS) Console Options available: Enabled, Disabled. Default setting is Disabled. Redirection (Note) Press [Enter] to configure advanced items.

  • Page 53: Pci Subsystem Settings

    5-2-4 PCI Subsystem Settings BIOS Setup - 53 -...
  • Page 54 Parameter Description PCI Bus Driver Version Displays the PCI Bus Driver version information. OCP3_1_A ROM When enabled, this setting will initialize the device expansion (Note1) U2_P0_PE1_A ROM ROM for the related PCI-E slot. (Note1) U2_P0_PE2_A ROM (Note1) Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the onboard LAN controller.
  • Page 55 5-2-4-1 PCI Express Device Register Settings Parameter Description PCI Express Device Register Settings Press [Enter] for configuration of advanced items. Enable/Disable PCI Express Device Relaxed Ordering feature. Relaxed Ordering Options available: Enabled, Disabled. Default setting is Enabled. When this feature is enabled, the system will allow device to use 8-bit Tag field as are requester.
  • Page 56 Parameter Description PCI Express Link Register Settings Set the ASPM level Force L0s - Force all links to L0s Sate. ASPM Support Options available: Auto, Disabled, L0s. Default setting is Disabled. When this feature is enabled, the system will allow generation of Extended Synchronization patterns.
  • Page 57 5-2-4-2 PCI Express GEN 2 Settings BIOS Setup - 57 -...
  • Page 58 Parameter Description PCI Express GEN2 Device Register Settings Completion Timeout Š – In device Functions that support Completion Timeout programmability, allows system software to modify the Completion Timeout value. 'Default' 50us to 50ms. If 'Shorter' is selected, software will use shorter timeout ranges supported by hardware.
  • Page 59 Parameter Description PCI Express GEN2 Device Register Settings IDO Request Enable Š – If supported by hardware and set to 'Enabled', this permits setting the number of ID-Based Ordering (IDO) bit (Attribute[2]) requests to be initiated. Options available: Enabled/Disabled. Default setting is Disabled. IDO Completion Enable Š...

  • Page 60: Info Report Configuration

    5-2-5 Info Report Configuration Parameter Description Info Report Configuration Post report enabled/disabled. Post Report Options available: Enabled, Disabled. Default setting is Enabled. Delay Time Press <+>/<-> to configure the value. Error Message Report Enable/Disable the POST Error Message support. Info Error Message Options available: Enabled, Disabled.

  • Page 61: Usb Configuration

    5-2-6 USB Configuration Parameter Description USB Configuration USB Module Version Displays the USB module version information. USB Controllers Displays the supported USB controllers. USB Devices: Displays the USB devices connected to the system. Enable/Disable the XHCI Hand-off support. XHCI Hand-off Options available: Enabled, Disabled.

  • Page 62: Network Stack Configuration

    5-2-7 Network Stack Configuration Parameter Description Enable/Disable the UEFI network stack. Network Stack Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 PXE feature. Ipv4 PXE Support Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 HTTP feature. Ipv4 HTTP Support Options available: Enabled, Disabled.

  • Page 63: Ip Configuration Settings

    5-2-8 IP Configuration Settings Parameter Description Allows user to set IP. Auto Configuration Options available: Disabled, Every Boot, On Demand. Default setting is Disabled. BIOS Setup - 63 -...

  • Page 64: Nvme Configuration

    5-2-9 NVMe Configuration Parameter Description NVMe Configuration Displays the NVMe devices connected to the system. BIOS Setup - 64 -...

  • Page 65: Graphic Output Configuration

    5-2-10 Graphic Output Configuration Parameter Description Selects output device type. Output Device Type Options available: First loaded Device, Onboard Device, External Device, Specific Device. Default setting is Onboard Device. Selects OS graphic output. OS graphics output Options available: Controlled by OS. Default setting is Controlled by OS. BIOS Setup - 65 -...

  • Page 66: Power Restore Configuration

    5-2-11 Power Restore Configuration Description Parameter Specify what state when power is re-applied after a power failure (G3 state). Power Restore Options available: Last State/Power On/Power Off. Default setting is Last State. BIOS Setup - 66 -...

  • Page 67: Tls Auth Configuration

    5-2-12 Tls Auth Configuration Parameter Description Press [Enter] for configuration of advanced items. Enroll Cert Š – Press [Enter] to enroll a certificate • Enroll Cert Using File • Cert GUID Server CA Configuration Input digit character in 1111111-2222-3333-4444-1234567890ab format. –...

  • Page 68: Ram Disk Configuration

    5-2-13 RAM Disk Configuration Parameter Description Specifies the type of memory to use from available memory pool in system to create a disk. Disk Memory Type Options available: Boot Service Data, Reserved. Default setting is Boot Service Data. Creates a raw RAM disk. Size (Hex) Š...

  • Page 69: Intel(R) Ethernet Controller X550

    5-2-14 Intel(R) Ethernet Controller X550 BIOS Setup - 69 -...
  • Page 70 Parameter Description Press [Enter] to configure advanced items. Link Speed Š – Allows for automatic link speed adjustment. – Options available: Auto Negotiated/10 Mbps Half/10 Mbps Full/100 Mbps Half/100 Mbps Full. Default setting is Auto Negotiated. NIC Configuration Wake On LAN Š...

  • Page 71: Mac Ipv4 Network Configuration

    5-2-15 MAC IPv4 Network Configuration Parameter Description Indicates whether network address is configured successfully or not. Configured Options available: Enabled, Disabled. Default setting is Disabled. Options available: Enabled, Disabled. Default setting is Disabled. Enable DHCP (Note) Local IP Address Press [Enter] to configure local IP address. (Note) Press [Enter] to configure local NetMask.

  • Page 72: Mac Ipv6 Network Configuration

    5-2-16 MAC IPv6 Network Configuration Parameter Description Press [Enter] to configure advanced items. Displays the MAC Address information. Š Interface ID Š – The 64 bit alternative interface ID for the device. The string is colon separated. e.g. ff:dd:88:66:cc:1:2:3. DAD Transmit Count Š...

  • Page 73: Driver Health

    5-2-17 Driver Health Parameter Description Driver Health Displays driver health status of the devices/controllers if installed BIOS Setup - 73 -...

  • Page 74: Chipset Menu

    Chipset Menu Chipset Setup menu displays submenu options for configuring the function of Platform Controller Hub(PCH). Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 74 -...
  • Page 75 5-3-1 NVIDIA Configuration BIOS Setup - 75 -...

  • Page 76: Nvidia Configuration

    Description Parameter Press [Enter] to configure advanced items. Serial Port Configuration Š – Used to select serial port configuration. NVIDIA Configuration • Option available: Console Enabled -SBSA, Port Disabled, Serial Deebug Enabled -SBSA. Default setting is Console Enabled -SBSA. Press [Enter] to configure advanced items. Enable ACPI Timer Š...

  • Page 77: Server Management Menu

    Server Management Menu Parameter Description Enable/Disable interfaces to communicate with BMC. BMC Support Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable FRB-2 timer (POST timer). FRB-2 Timer Options available: Enabled, Disabled. Default setting is Enabled. FRB-2 Timer (Note1) Configures the FRB2 Timer timeout. The value is between 1 to 30 minutes. timeout Default setting is 6 minutes.
  • Page 78 Parameter Description System Event Log Press [Enter] to configure advanced items. View FRU Press [Enter] to view the FRU information. Information BMC self test log Press [Enter] to configure advanced items. BMC VLAN Press [Enter] to configure advanced items. Configuration BMC network Press [Enter] to configure advanced items.

  • Page 79: System Event Log

    5-4-1 System Event Log Parameter Description Enabling / Disabling Options Change this item to enable or disable all features of System Event SEL Components Logging during boot. Options available: Enabled, Disabled. Default setting is Enabled. Erasing Settings Choose options for erasing SEL. Options available: No, Erase SEL Yes, On next reset,...

  • Page 80: View Fru Information

    5-4-2 View FRU Information The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable. (Note) The model name will vary depends on the product you purchased BIOS Setup - 80 -...

  • Page 81: Bmc Self Test Log

    5-4-3 BMC self test log Description Parameter Options available: No/Yes, On next reset/Yes, On every reset. Erase Log Default setting is No. Configuration for reactions to a full log. Option available: Do not log any more/Clear Log. When Log is full Default setting is Do not log any more.

  • Page 82: Bmc Vlan Configuration

    5-4-4 BMC VLAN Configuration Description Parameter BMC VLAN Configuration Select to configure BMC VLAN ID. The valid range is from 0 to 4094. When BMC VLAN ID set to 0, BMC VLAN ID will be disabled. Select to configure BMC VLAN Priority. The valid range is from 0 to 7. BMC VLAN Priority When BMC VLAN ID is set to 0, BMC VLAN Priority will not be selected.

  • Page 83: Bmc Network Configuration

    5-4-5 BMC Network Configuration Parameter Description BMC network configuration Select NCSI and Dedicated Options available: Do Nothing, Model1(Dedicated), Model2(NCSI), Mode3(Failover). Default setting is Do Nothing. Lan Channel 1 Selects to configure LAN channel parameters statically or dynamically (DHCP). Configuration Address source Options available: Unspecified, Static, DynamicBmcDhcp.

  • Page 84: Ipv6 Bmc Network Configuration

    5-4-6 IPv6 BMC Network Configuration Parameter Description IPv6 BMC network configuration IPv6 BMC Lan Channel 1 Enable/Disable IPv6 BMC LAN channel function. When this item is disabled, the system will not modify any BMC network during BIOS IPv6 BMC Lan Option phase.

  • Page 85: Security Menu

    Security Menu The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords. There are two types of passwords that you can set: • Administrator Password Entering this password will allow the user to access and change all settings in the Setup Utility. •...

  • Page 86: Boot Menu

    Boot Menu The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable. Parameter Description Boot Configuration Number of seconds to wait for setup activation key. 65535 (0xFFFF) Setup Prompt Timeout means indefinite waiting.
  • Page 87 Parameter Description FIXED BOOT ORDER Priorities Press [Enter] to configure the boot order priority. By default, the server searches for boot devices in the following sequence: Hard drive. Boot Option #1 / #2 / #3 / #4 / #5 CD-COM/DVD drive. USB device.

  • Page 88: Save & Exit Menu

    Save & Exit Menu The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press <Enter>. Parameter Description Save Options Saves changes made and closes the BIOS setup. Save Changes and Exit Options available: Yes, No.
  • Page 89 Parameter Description Default Options Loads the default settings for all BIOS setup parameters. Setup Defaults are quite demanding in terms of resources consumption. If you are using low-speed memory chips or other kinds of low-performance components Restore Defaults and you choose to load these settings, the system might not function properly.

  • Page 90: Bios Recovery

    BIOS Recovery The system has an embedded recovery technique. In the event that the BIOS becomes corrupt the boot block can be used to restore the BIOS to a working state. To restore your BIOS, please follow the instructions listed below: Recovery Instruction: 1.

  • Page 91: Bios Post Beep Code (Ami Standard)

    BIOS POST Beep code (AMI standard) 5-9-1 PEI Beep Codes # of Beeps Description Memory not Installed. Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available...
