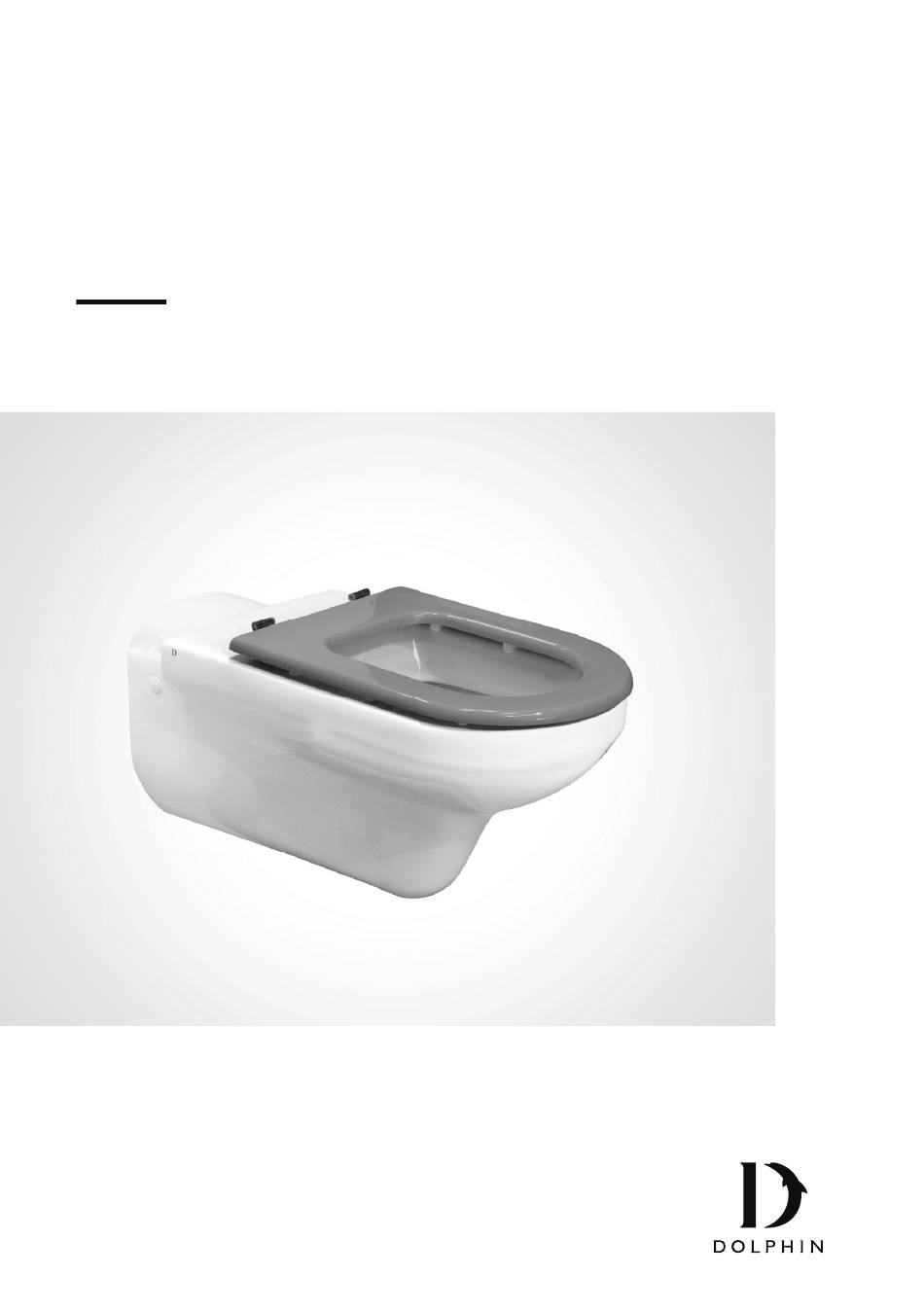

- Page 1 DC1300 DOLPHIN WALL MOUNTED DOC M WC PAN AND SEAT I N S T R U C T I O N M A N U A L May 2024...
-
Page 2: This Package Contains
34 mm ≤ X ≤ 41 mm 42 mm ≤ X ≤ 47 mm Choose the correct funnels based on the thickness 'X' of the ceramic: white for X between 34 and 41 mm, black for X between 42 and 47 mm. 1300 Dolphin... - Page 3 'X' - 33 mm. X-33 mm Step 5 Orient the cavities of the sleeves laterally towards the outside. If there are no lateral holes on the sanitary fixture, orient the cavities of the sleeves 1300 Dolphin...
- Page 4 (A). If the sanitary fixture does not have lateral holes, rotate the WB9 B until the threaded insert is facing upwards (B). Step 8 Insert the sanitary fixture, ensuring that the sleeves are inside the funnels. 1300 Dolphin...
- Page 5 Once tightened, insert the two hole cover caps. (Max 6 Nm). If there are no lateral holes, screw in the two WB9 B devices from above. (Max 6 Nm). MAX 6 Nm MAX 6 Nm 1300 Dolphin...
- Page 6 Dolphin Solutions Ltd Southpoint, Compass Park, Bodiam, Robertsbridge,TN32 5BS Tel: +44 (0)1424 20 22 24 Fax: +44 (0)1424 205 200 info@dolphinsolutions.co.uk www.dolphinsolutions.co.uk...
