5V Solar Panel

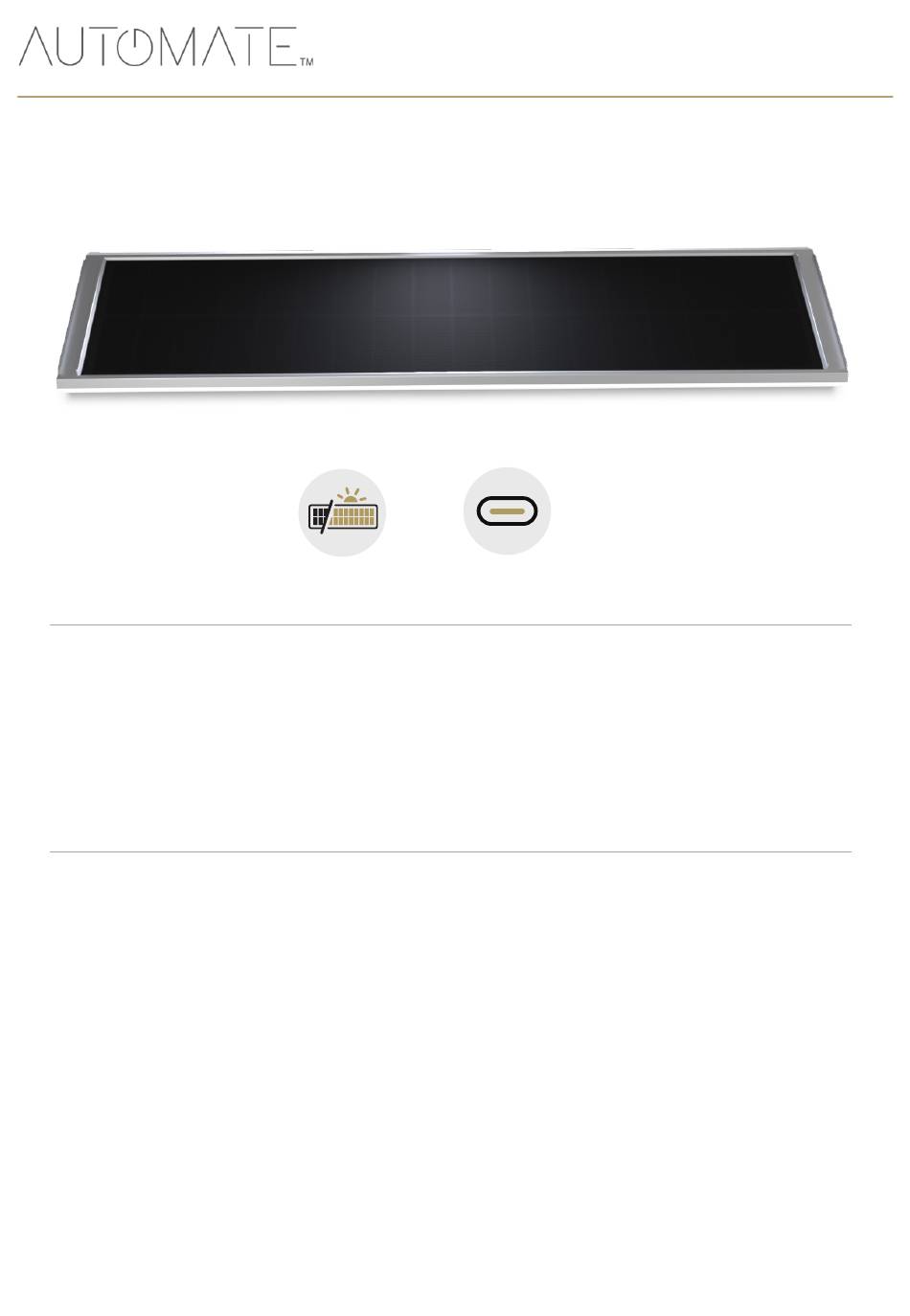

AUTOMATE | Solar Panel provides supplemental power to all 5v Li-ion wirefree motors or rechargeable
battery packs. The monosilicon/crystal solar panel provides power in varied conditions including low light
situations.
FEATURES:
• Plug n' play for all 5V AUTOMATE Li-ion motors & rechargeable battery packs
• Sleek design allows for unobtrusive placement behind most headrails
• Monosilicon/crystal technology allow for up to 50% more efficiency than standard Solar panel
material altenatives
• Low light harvesting technology supports power generation in varied conditions
• Panel charges when partially charged
INSTR. MT03-0302-067002 V1.0 OCT 2023
SOLAR
POWERED
CHARGE
USB-C
A division of Rollease Acmeda

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5V Solar Panel and is the answer not in the manual?

Questions and answers

Summary of Contents for Automate 5V Solar Panel

  • Page 1 USB-C SOLAR POWERED CHARGE AUTOMATE | Solar Panel provides supplemental power to all 5v Li-ion wirefree motors or rechargeable battery packs. The monosilicon/crystal solar panel provides power in varied conditions including low light situations. FEATURES: • Plug n’ play for all 5V AUTOMATE Li-ion motors & rechargeable battery packs •...
  • Page 2: Table Of Contents

    4.1 Sun’s seasonal declination differences 4.2 Sun’s seasonal performance 4.3 Light Transmission INSTALLATION 5.1 Mounting Options 5.2 Installation Process 5.3 Connecting Solar Panel 5V with Motor 5.4 Solar Panel Assessment Instructions DIMENSIONS TROUBLE SHOOTING 2 | Automate Programming Instructions | MT03-0302-067002 ™...
  • Page 3: Compliance Statement

    • 4. Connector Cable: Male USB-C to Male Micro USB • 5. Alcohol Wipe Cloths (Twin Pack) • 6. Dual Lock Type 250 fastener • 7. Slot & Screw Cover Stickers/Label Set (2+1) A division of Rollease Acmeda Automate Programming Instructions | MT03-0302-067002 | 3 ™...
  • Page 4: Safety Instructions

    Keep Solar Panel away from children. • Frequently inspect for improper operation. Do not use if repair or adjustment is necessary. Do not dispose of in general waste. Please recycle batteries and damaged electrical products appro- 4 | Automate Programming Instructions | MT03-0302-067002 ™...
  • Page 5: Solar Panel Installation Location Guide

    SOUTHERN HEMISPHERE SOUTHERN HEMISPHERE NORTHERN HEMISPHERE SOUTHERN HEMISPHERE Dec 21 (summer solstice) Mar 21, Sep 21 (equinox) June 21 (winter solstice) (90° - Local Latitude) Avoid Shadowing A division of Rollease Acmeda Automate Programming Instructions | MT03-0302-067002 | 5 ™...
  • Page 6: Sun's Seasonal Performance

    4.2 Sun’s seasonal performance NORTHERN HEMISPHERE NORTHERN HEMISPHERE SOUTHERN HEMISPHERE NORTHERN HEMISPHERE SOUTHERN HEMISPHERE 6 | Automate Programming Instructions | MT03-0302-067002 ™...
  • Page 7 NORTHERN HEMISPHERE SOUTHERN HEMISPHERE SOUTHERN HEMISPHERE NORTHERN HEMISPHERE SOUTHERN HEMISPHERE A division of Rollease Acmeda Automate Programming Instructions | MT03-0302-067002 | 7 ™...
  • Page 8: Light Transmission

    Overcast weather serves as an instance of an unpredictable and uncontrollable hindrance. Nonetheless, there are other factors to contemplate before the installation of a solar panel, such as: NOT ACCEPTABLE ACCEPTABLE Vegetation Awnings Deep Eaves Insect Screen Blocking Light 8 | Automate Programming Instructions | MT03-0302-067002 ™...
  • Page 9: Installation

    ## Title Installation 5.1 Mounting Options OPTION A. Attaching Mounting Bracket to Window Frame OPTION B. Attaching Solar Panel via Velcro Strip to a Window or surface A division of Rollease Acmeda Automate Programming Instructions | MT03-0302-067002 | 9 ™...
  • Page 10 (vertical orientation). ACCEPTABLE NOT ACCEPTABLE Keep the solar panel as close to the window as Solar panel should not be too far from the possible. window because the performance will be reduced. 10 | Automate Programming Instructions | MT03-0302-067002 ™...
  • Page 11: Installation Process

    Fix Solar panel to mounting bracket using screw. iii. Apply stickers onto the Solar Panel to seal unused mounting holes. Screw Stickers Possible Orientations Top Fix Side Fix A division of Rollease Acmeda Automate Programming Instructions | MT03-0302-067002 | 11 ™...
  • Page 12 Press firmly onto fixing surface. Apply hand pressure for 5 seconds and check if firmly attached. IMPORTANT! Any partial or total covering of any solar panel cell will degrade solar panel performance. 12 | Automate Programming Instructions | MT03-0302-067002 ™...
  • Page 13: Connecting Solar Panel 5V With Motor

    PARTS DESCRIPTION MT03-0302-xxx909 Male USB-C Connector or Equivalent MT03-0301- 5V USB CHARGING CABLE 069013 EXTENDER 48”” /1200MM MT03-0301- 5V USB CHARGING CABLE 069014 EXTENDER 8”” / 210MM A division of Rollease Acmeda Automate Programming Instructions | MT03-0302-067002 | 13 ™...
  • Page 14: Solar Panel Assessment Instructions

    Step 6: Supplementary Charging: It’s important to note that the solar panel is designed to extend the battery life of the motor. Depending on usage and weather conditions, you may also use a USB charger to directly charge your motor as needed. NOT ACCEPTABLE ACCEPTABLE 14 | Automate Programming Instructions | MT03-0302-067002 ™...
  • Page 15: Dimensions

    Parameters Value Max Output Power 3.0W (Under 1 SUN - 1000W/m²) USB-C Connector Imax 600mA IP Rating IP40 Temperature Working Range 32°F to 140°F (0°C to 60°C) A division of Rollease Acmeda Automate Programming Instructions | MT03-0302-067002 | 15 ™...
  • Page 16: Trouble Shooting
