Summary of Contents for EcoNet BULLDOG EVC300
- Page 1 BULLDOG EVC300 QUICK START BULLDOG EVC300 CONTROLLER USE &CARE GUIDE Bulldog EVC300 Controller Use and Care Guide - Rev_F.docx...
-
Page 2: Basic Controller Functions

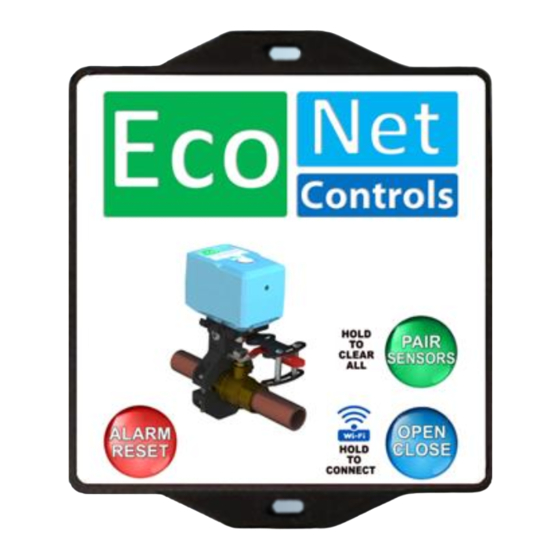

Bulldog EVC300 Controller Use & Care Guide CONTROLLER Basic Controller Functions Wired Leak Sensor 1/8” Pair / Clear Jack Sensors Open/Close & Wi-Fi Reset Leak Alarm... - Page 3 Bulldog EVC300 Controller Use & Care Guide Bulldog Valve Robot Status LED • (Green): Bulldog Valve Robot is in the open position. • (Red): Bulldog Valve Robot is in the closed position. • (Green, Red): Bulldog Valve Robot is not fully closed, not fully open, or the Bulldog motor control wire is not connected.
- Page 4 Bulldog EVC300 Controller Use & Care Guide Controller Command LED • (Red): Controller is set to open. • (No Colour): Controller is set to close.
-
Page 5: Wi-Fi Status Led
Bulldog EVC300 Controller Use & Care Guide Wi-Fi Status LED • (Solid Blue): Your Bulldog Controller is connected to Wi-Fi. • (Blinking Blue): Your Bulldog Controller is not connected to Wi-Fi. NOTE: To connect your controller to Wi-Fi, please see... -
Page 6: Device Pairing
Bulldog EVC300 Controller Use & Care Guide Device pairing NOTE: All devices included with your Starter Kit have already been paired with your Bulldog Controller. Pairing Leak Sensors 1. Click the button. (Do not hold) 2. Place a leak sensor on a wet paper towel and allow it to go through 2-3 beep cycles. -
Page 7: Unpairing Devices
Bulldog EVC300 Controller Use & Care Guide Pairing Optional Remote Button or Emergency Stop Button 1. Click the button. (Do not hold) 2. Press and hold the Remote button. Unpairing Devices All paired devices can be removed by pressing and... - Page 8 Bulldog EVC300 Controller Use & Care Guide MAINTENENCE Maintenance should be performed every 6 months to ensure your device is armed and in working order. Check Leak Sensor Battery NOTE: Testing a Leak Sensors will trigger a leak alert. 1. Set your leak sensor on a wet paper towel.
- Page 9 Bulldog EVC300 Controller Use & Care Guide Replace Leak Sensor Battery 1. Twist the leak sensor lid counterclockwise and lift. NOTE: There are vertical alignment marks on both halves. Note their positions to aid in reassembly. 2. Replace the battery with Type A23 12 Volt only.
- Page 10 Bulldog EVC300 Controller Use & Care Guide Check Bulldog Functionality 1. Close your bulldog water valve using the button. 2. Turn on the water at highest point in the building and observe water flow after 10 seconds. • Water stops: o Success.
- Page 11 Bulldog EVC300 Controller Use & Care Guide How to Manually Move The Bulldog Valve Control Arm 1. Unplug the Control Module Power Connector, or disconnect the Control Module from the Bulldog Motor. 2. Depress and hold the Clutch Button as shown below while moving the valve handle by hand.
- Page 12 Use & Care Guide SUPPORT Econet Support Email: support@econetcontrols.com Econet Support Phone: (888) 320-9188 Leak Sensor Range Support Link: https://www.econetshop.com/PDF/ SensorRange.pdf Additional Support Page Link: https://www.econetshop.com/ index.php/support/ Leak Sensor Pairing Video Link: https://www.youtube.com/ watch?v=otzdhZbWBp4&t=146s Bulldog EVC300 Controller Use and Care Guide - Rev_F...
