Pakketo 318-000012 Assembling Instruction

Hide thumbs

Advertisement

Quick Links

Download this manual
318-000012
Assembling instruction
452
294
180 MIN
1058
max
8
kg
392
max
20
kg
max
+
kg
40
463
1796
EN.Follow the manufacturer's assembly instructions, otherwise danger may occur.
1/45

Advertisement

loading
Need help?

Need help?

Do you have a question about the 318-000012 and is the answer not in the manual?

Questions and answers

Related Manuals for Pakketo 318-000012

Summary of Contents for Pakketo 318-000012

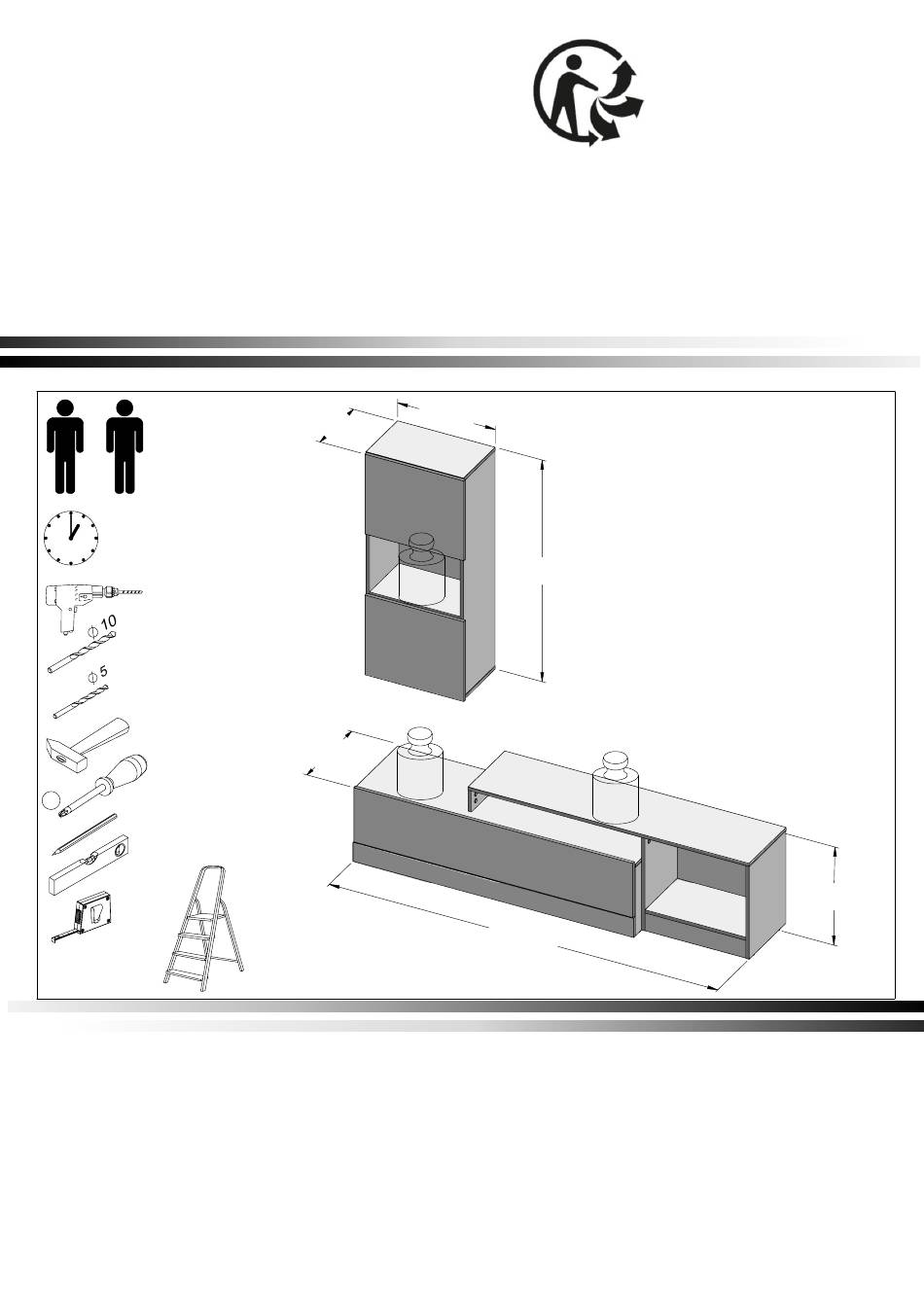

  • Page 1 318-000012 Assembling instruction 180 MIN 1058 1796 EN.Follow the manufacturer’s assembly instructions, otherwise danger may occur. 1/45...
  • Page 2 2/45...
  • Page 3 � �� � 3/45...
  • Page 4 4/45...
  • Page 5 - EN – Furniture containing wood-based panels (particle board, fibreboard, plywood etc.) may emit into indoor air inconsiderable amounts of substances used in the production processes. The level of this emission is examined and it meets the applicable standards. After assembling the furniture, it is advised to regularly ventilate the room where the furniture stands, which should last about four weeks or until the smell is...
  • Page 6 337477 144919 022709 337478 633806 337477 144919 337473 144909 337474 231316 022706 144912 144920 022707 337471 144911 337479 633807 537252 144916 537251 144915 6/45...
  • Page 7 CODE DIMENSIONS 022706 477x363x2 022707 1277x248x2 022709 1038x430x2 144909 100x323x15 144911 443x323x15 144912 328x376x15 144915 443x323x15 144916 328x376x15 144919 1028x278x15 144920 228x337x15 231316 787x100x15 337471 1267x337.5x15 337473 1301x324x15 337474 1299x376.5x15 337477 452x278.5x15 337478 420x258x15 337479 467x284x15 537251 467x85x15 537252 1298x90x15 633806 381x457x15 633807...
  • Page 8 S70969 S30211 S30212 S30106 Ø8x28 Ø15x12 Ø3.5x15 S31298-14 S30174 S30111 S31299 Ø4x14 Ø4x27 Ø6,3x13 Ø1,6x30 24x + 8x S30978 S30558 S3zzzz S3xxxx Ø10 S35658 S37526 S30577 S20557N S33077 S36628-80 Ø10x50, Ø5x80 S36628 100120-N Ø10x50, Ø5x60 100121-N S36627 S32892-N S38121 S3-S31841 S30001 8/45...
  • Page 9 100120-N 100120-N 144919 S30212 S3zzzz S30211 S70969 S30212 337478 9/45...
  • Page 10 337478 S30212 S31298-14 S32892-N 144919 337478 337478 10/45...
  • Page 11 S30212 100121-N 100121-N 144919 S30211 S3zzzz S70969 337478 144919 337478 11/45...
  • Page 12 S30211 337477 337477 144919 144919 12/45...
  • Page 13 337477 022709 a = b 13/45...
  • Page 14 S30978 S31299 14/45...
  • Page 15 Before suspending or fixing furniture to the -EN- wall (in order to prevent falling over), check the type and strength of the wall. Select wall plugs and screws appropriate for the given type of the wall. In the case of doubts, contact a specialist. The installation must performed...
  • Page 16 1029 + S36627 S36628 16/45...
  • Page 17 17/45...
  • Page 18 10mm 18/45...
  • Page 19 S3xxxx S30001 633806 19/45...
  • Page 20 633806 20/45...
  • Page 21 S30212 337471 S70969 S30211 S30212 144920 21/45...
  • Page 22 144920 337471 S30558 144912 S30212 S30211 S70969 22/45...
  • Page 23 S30558 144916 S30212 S30211 S70969 144916 144912 337471 23/45...
  • Page 24 337474 S31298-14 S32892-N S30211 337474 144916 144920 144912 24/45...
  • Page 25 537252 25/45...
  • Page 26 337471 537252 S30111 S37526 S33077 S30106 26/45...
  • Page 27 022707 a = b 27/45...
  • Page 28 S30978 S31299 7,5 mm 28/45...
  • Page 29 S30211 S35658 S30212 337479 S70969 29/45...
  • Page 30 537251 S70969 S30558 144911 S30212 S30211 S70969 30/45...
  • Page 31 337479 537251 144911 S30558 144915 S30212 S30211 S70969 31/45...
  • Page 32 144915 337479 337479 S30111 537251 S37526 32/45...
  • Page 33 337473 S30211 144915 144911 337473 33/45...
  • Page 34 022706 a = b 34/45...
  • Page 35 S30978 S31299 7,5 mm 35/45...
  • Page 36 231316 S30212 337473 231316 36/45...
  • Page 37 144909 S30212 S70969 337473 144909 37/45...
  • Page 38 337473 337474 S30174 38/45...
  • Page 39 S3xxxx S30577 39/45...
  • Page 40 -EN- Before suspending or fixing furniture to wall (in order to prevent falling over), check the type and strength of the wall. Select wall plugs and screws appropriate for the given type of the wall. In the case of doubts, contact a specialist.
  • Page 41 EN -To prevent the piece of furniture from falling over, please attach it permanently to the wall. 10mm 41/45...
  • Page 42 633807 S3-S31841 633807 42/45...
