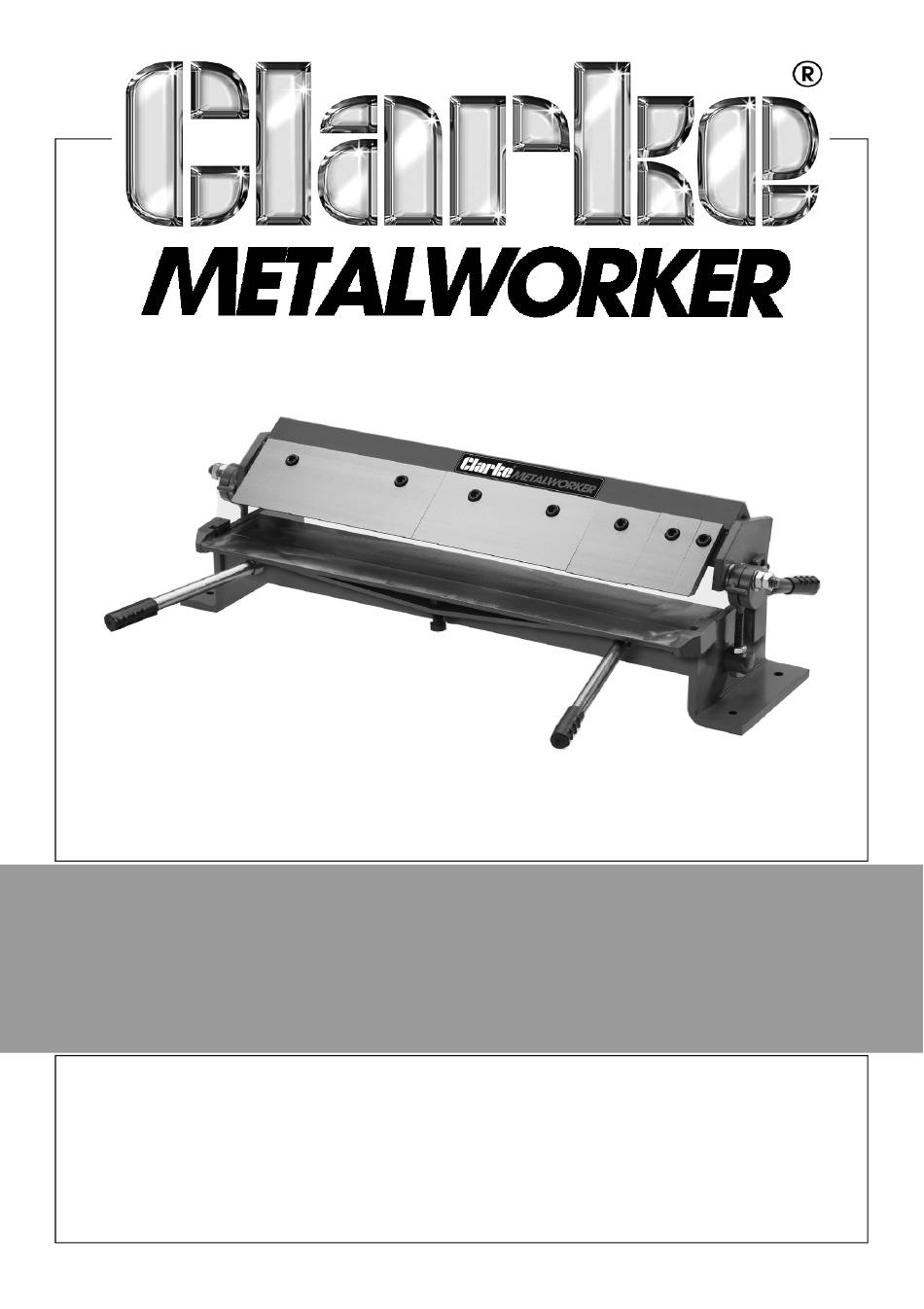

- Page 1 WARNING: Read these instructions before using the product BOX & PAN FOLDER MODEL NO: CBPF1 PART NO: 7627906 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC09/23...
-
Page 2: Product Specifications
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use it please read this manual and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can also look forward to the product giving you long and satisfactory service. -
Page 3: Safety Precautions
• ALWAYS check for signs of structural damage before starting work. DO NOT use if damage is found. Have repairs made only by a CLARKE service centre. • ALWAYS ensure the workpiece is secure and properly positioned before applying pressure. -
Page 4: Parts Identification
2 x Handles • 1 x 17mm /19mm spanner • 1 x 5mm hex key • 1 x 8mm hex key If any items are missing contact your Clarke dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 5 WORKING COMPONENTS Refer to the following figures and descriptions to become familiar with the components of this device. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when using this product.
- Page 6 PREPARATION/CLEANING The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well but it will take a little time to clean. Be patient and clean the machine thoroughly. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.
- Page 7 CLEANING THE FINGERS Although rust preventative was applied only to the visible surfaces of the clamping fingers (see Figure 3), some may have worked in between and underneath them. We recommend you remove all clamping fingers and thoroughly clean them. To remove the clamping fingers, move the clamping handles toward back of the machine to raise the clamping leaf,...
-
Page 8: Bench Mounting
BENCH MOUNTING WORKBENCH LOAD Refer to the product specification on page 2 for the weight and footprint specifications of your machine. Some workbenches may require additional reinforcement to support the weight of the machine and workpiece materials. PLACEMENT LOCATION Consider anticipated workpiece sizes and additional space needed for auxiliary stands, work tables, or other machinery when establishing a... - Page 9 Another option is a "direct mount" (see example) where the machine is secured directly to the workbench with lag screws and washers. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 10 SPACING THE FINGERS The clamping fingers can be spaced apart for clearance when making pans or boxes. This requires removing one or more of the fingers so that you can space the others to match the inside width of your pan or box. TOOLS NEEDED Hex wrench 8mm TO SPACE CLAMPING FINGERS:...
- Page 11 ALIGNING THE CLAMPING FINGERS To help ensure the bend is even along its length, the clamping fingers must be parallel with the clamping surface and bending block. TOOLS NEEDED Hex wrench 8mm TO ALIGN CLAMPING FINGERS: 1. Lower the clamping leaf until the clamping fingers are just touch the clamping surface (see Figure 9) 2.
-
Page 12: Adjusting Setback
ADJUSTING SETBACK NOTE: Include the thickness of folded edges or joints when determining the proper setback or the equipment may be damaged. Before you begin any bending operation, consider the differences of sheet metal gauges when trying to achieve either sharp or rounded bends and allow for the differences by adjusting the setback. - Page 13 ADJUSTING CLAMPING PRESSURE Clamping pressure must be properly adjusted for different workpiece thicknesses. The ideal pressure will have medium resistance at the clamping handles and will lock the workpiece into position easily. Pressure is adjusted by rotating the adjustment nuts on the clamping pressure adjustment rods (see Figure 12).
-
Page 14: Component Parts
COMPONENT PARTS Part Description Part Description Hex nut M12 Cap screw M10 Flat washer 12mm Roll Pin Clamping handle (right) Setback Wheel Clamping pressure adjusting rod (right) Pivot shaft Flat washer 12mm Stand Cap screw M6 Swivel rod block Clamping leaf Bending leaf Clamping pressure adjusting rod (left) Bending handle... - Page 15 SHEET METALWORKING FROM THE CLARKE RANGE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
