OBSBOT 3-in-1 USB 3.0 Hub User Manual

User Guide

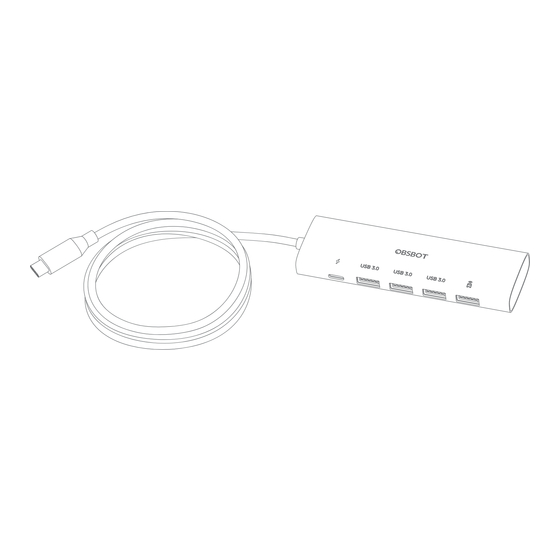

Parts Info
2
1
1. USB-C to USB-A 3.0 Adapter
2. USB-C Data Cable
3. USB-C Power In (PD Supported)
Specifications
Transfer Rate: 5Gbps
Cable Length: 1m
Power Input Port (USB-C): 5V 2.5A/3A
⚠ If necessary, you can plug the USB receiver into USB-A input port to control
the OBSBOT webcam via remote controller. Tiny/Meet series remote
controllers need to be purchased separately on http://www.obsbot.com.
⚠ If you need to use three webcams simultaneously, only Tiny 2 supports
connecting three at the same time.
When using, please connect the USB-A/C data cable of the hub to the
computer first, and then power the hub through the USB-C power input port
to ensure that the hub is powered adequately, preventing the device from
malfunctioning due to insu cient power supply. Finally, connect the camera
that supports the UVC protocol.
3 4 5
4. USB-A 3.0 Input
(Connect to cameras via UVC protocol)
5. USB-A Input
(Insert OBSBOT remote receiver)
2
