PORTABLE POWER STATION

User manual

MODEL: MT-CN320

Table of Contents

Need help?

Do you have a question about the MT-CN320 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alpha Digital MT-CN320

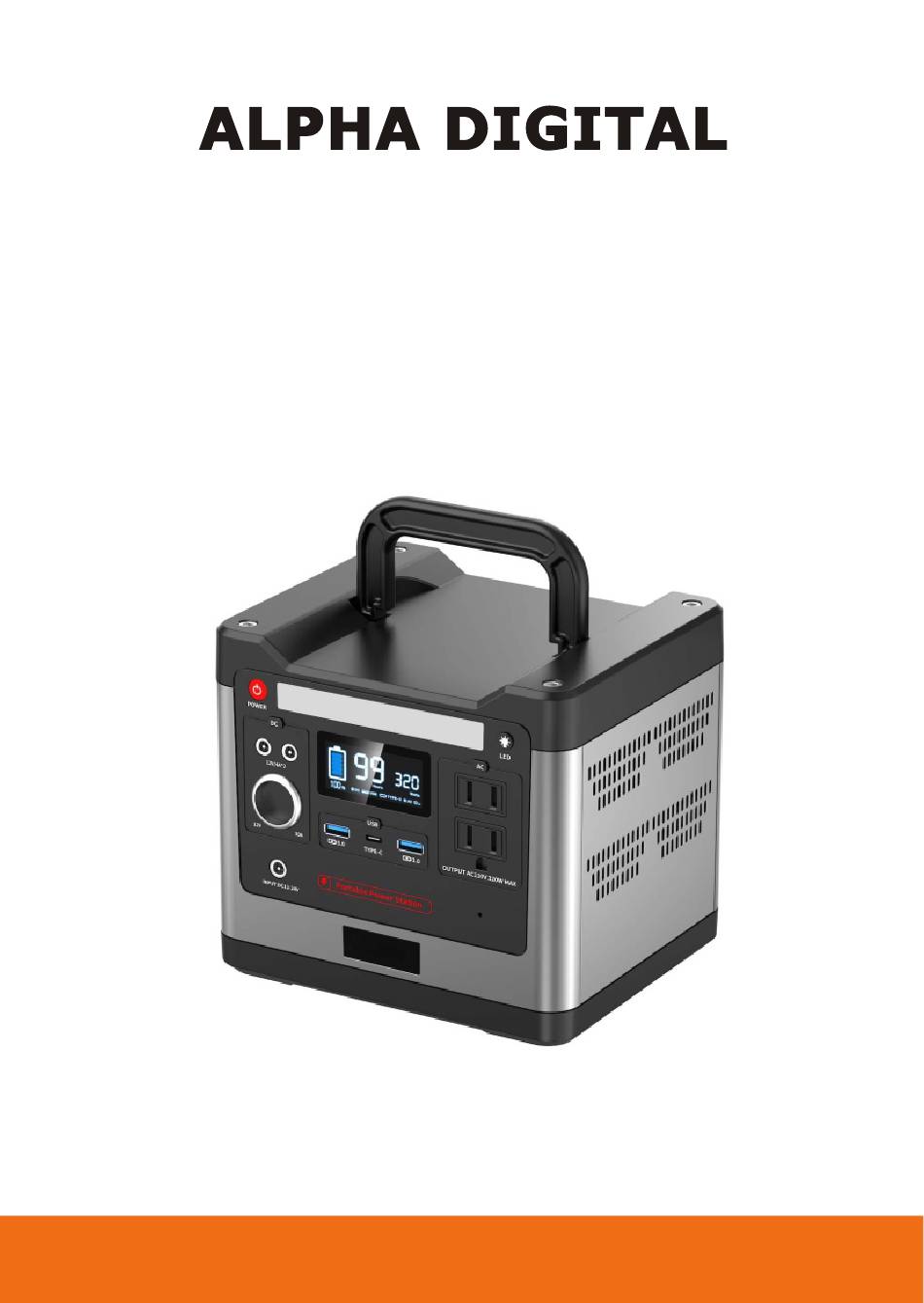

Page 1 PORTABLE POWER STATION User manual MODEL: MT-CN320...
Page 2: Table Of Contents
CONTENTS Important Safety Instructions Important Safety Instructions..........1 About the Product What’s in the box..............3 Product Introduction.............4 Spectiﬁcations..............5 LCD Battery Display.............6 Overtemperature Indicator Display........6 Radiator Indicator Display.............6 Using the Product Charging................6 Battery Life................7 Buttons Opeartion..............7 Output Ports................8 Customer Management Statement................11 Product Storage and Maintenance........11 Trobleshooting..............12 Warranty................12 FCC and Safety Information..........12...
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please be sure to observe the following for safe use It indicates that attention should be paid to ﬁre, rupture and high temperature when operating the product. Speciﬁc attention is described in the ﬁgure. This means that this behavior is prohibited when operating a product.
Page 4 WARNING Please keep the place clean for use and storage. Power or small metal contact terminal may cause short circuit, accidents such as smoke or ﬁre. Be sure to check before use. In case of any abnormality such as breakage, crack, leakage, fever and AC line breakage, please stop using the product immediately.
Page 5: About The Product
ABOUT THE PRODUCT WHAT’S IN THE BOX 1 x 298Wh Portable Power Station 1 x AC Adaptor ( Including AC Charging Cable) 1 x Cigarette Lighter Cable 1 x DC to MC 4 Cable 1 x User Manual 1 x Warranty Card Note: Picture is for reference only, take the actual packed product as standard.
Page 6: Product Introduction
ABOUT THE PRODUCT PRODUCT INTRODUCTION LED Light Power ON/OFF LCD Screen DC Power Button LED Light Button AC Power Button DC 12V Output Port DC 12V Car Cigarette AC Outout Port Lighter Output Port Charging Port (DC Input) Reset Hole USB Power Button USB Output Port (QC3.0) USB Output Port (QC3.0)
Page 7: Spectifications
ABOUT THE PRODUCT SPECTIFICATIONS OUTPUT Rated Voltage AC110V 10% Rated Power 320W Peak Power 640W Output Waveform Sine Wave AC Output Overload Capability 320W<load<420W Frequency 50/60Hz (Adjustable) Rated Voltage DC 12V Output (Cigarette Lighter) Rated Current Rated Voltage DC 12V Output Rated Current Quick Charge Compatible with most...
Page 8: Lcd Battery Display
ABOUT THE PRODUCT LCD BATTERY DISPLAY The LCD Battery Display indicates the charge level and the remaining capacity. When Charging it, you will notice a battery segment blinking with 1 second interval. This indicates the current charge status and the number under INPUT shows the real-time charging power.
Page 9 USING THE PRODUCT (1). Connect the product and power putlet with the AC adaptor includer in the package. (2). Please unplug the charge when charging completed. (It takes about 5~6 hours to fully charge the product with the included power adaptor) (3).
Page 10: Charging
USING THE PRODUCT 3. Use Solar Panel (not included) to Charge the Product Please note: Solar panels need to be purchased separately from Sungale.com. (1). Choose a suitable solar panel (Voltage 12~24V / Max.(100W) ) (2). Put the solar panel under direct sunshine, face the sun straigtly. (3).
Page 11: Battery Life
USING THE PRODUCT BATTERY LIFE The product is designed to retain up to 80% of its original capacity at 2000 complete charge cycles when operating under normal conditions. BUTTONS OPERATION 1. Power ON/OFF the Product Power on: Press and hold the power button and the LCD screen lights up. Power of : Press and hold the power button, the LCD screen will be of .
Page 12: Output Ports
USING THE PRODUCT 6. Adjust LCD Screen Brightness Double click the power button to switch the LCD screen between the LCD screen between always bright or dim power saving mode. 7. Adjust AC Output Frequency Press and release the power and AC button together, to switch between 50 Hz and 60Hz.
Page 13: Customer Management
USING THE PRODUCT 5. AC Output Port To be used for laptops, cameras, TV, monitor, power tools, breathing machine, electric blanket and other AC power equipment. Each AC port maximum power output is 320W Note: AC output works with electrical products with power below 320W or peak power below 640W .
Page 14: Warranty
CUSTOMER MANAGEMENT TROUBLESHOOTING If the product cannot charge or power a device, please check according to following steps: 1. Make sure the 'POWER' button is turned on. 2. Make sure the AC, DC or USB button is on. 3. Check the battery capacity, if it’s lower than 10%, please recharge the product as soon as possible.
