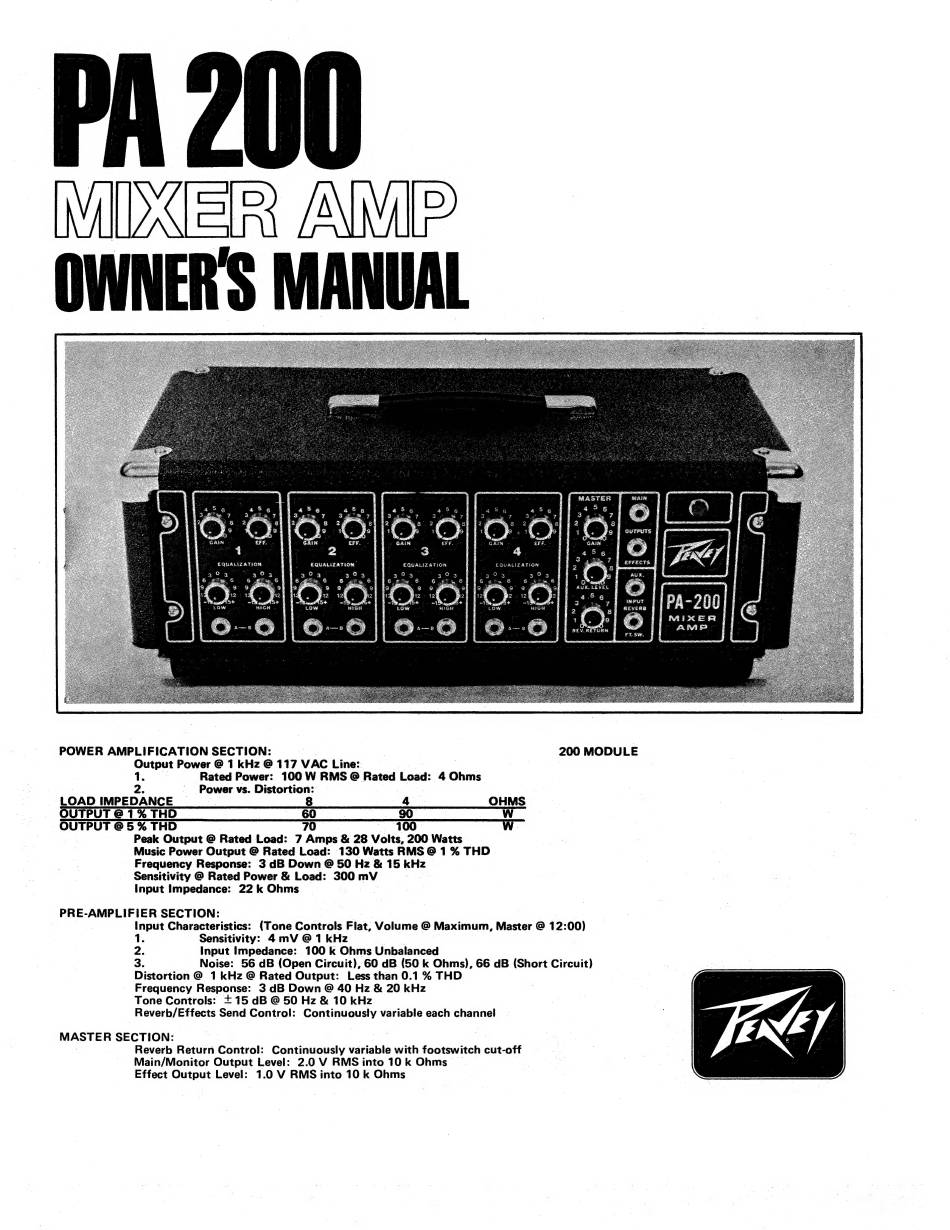

Peavey PA 200 Owner's Manual

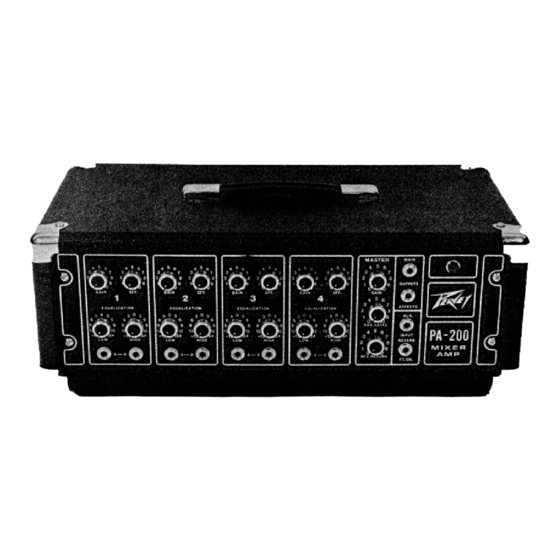

PA 200
IR PUT
REVERS
POWER AMPLIFICATION SECTION: | | 200 MODULE
Output Power @ 1 kHz @ 117 VAC Line:.
1. Rated Power: 100 W RMS @ Rated Load: 4 Ohms
2. ` Power vs. Distortion:
LOAD IMPEDANCE — 8 | 4 . OHMS
OUTPUT @ 1% THD . 60 | i 90 WwW
OUTPUT @5% THD 70 100-
Peak Output @ Rated Load: 7 Amps & 28 Volts, 200 Watts
Music Power Output @ Rated Load: 130 Watts RMS @ 1% THD
Frequency Response: 3 dB Down @ 50 Hz & 15 kHz
Sensitivity @ Rated Power & Load: 300 my
Input Impedance: 22 k Ohms
PRE-AMPLIFIER SECTION:
Input Characteristics: (Tone Controls Flat, Volume @ Maximum, Master @ 12:00)
1. Sensitivity: 4 mV @ 1 kHz
2. Input Impedance: 100 k Ohms Unbalanced
3. Noise: 56 dB (Open Circuit), 60 dB (50 k Ohms), 66 dB (Short Circuit)
Distortion @ 1 kHz @ Rated Output: Less than 0.1% THD
Frequency Response: 3 dB Down @ 40 Hz & 20 kHz
Tone Controls: + 15 dB @ 50 Hz & 10 kHz
Reverb/Effects Send Control: Continuously variable each channel
MASTER SECTION:
Reverb Return Control: Continuously variable with footswitch cut-off
Main/Monitor Output Level: 2.0 V RMS into 10k Ohms _
Effect Output Level: 1.0 V RMS into 10 k Ohms
