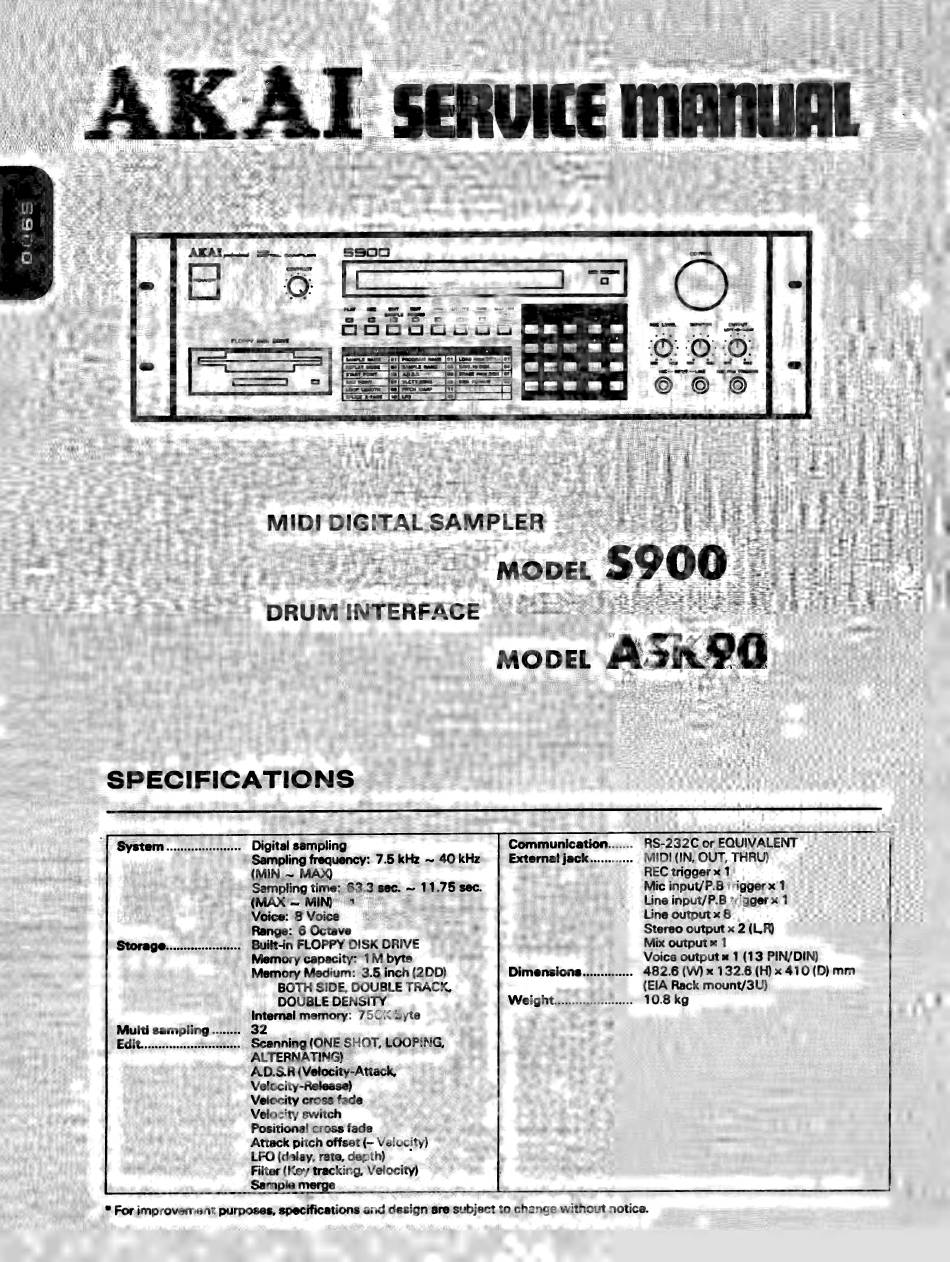

Akai S900 Service Manual

AKAT Service MANUAL
MIDI DIGITAL SAMPLER
MODEL $900
MODEL ASK9O
DRUM INTERFACE
SPECIFICATIONS
Sampling frequency: 7.5 kHz ~ 40 kHz External jack............ MIDI (IN, OUT, THRU)
(MIN ~ MAX) REC trigger x 1
Sampling time: 63.3 sec. ~ 11.75 sec. Mic input/P.B trigger x 1
(MAX ~ MIN) * Line input/P.B trigger x 1
Voice: 8 Voice Line output x 8
Range: 6 Octave Stereo output x 2 (LR)
Storage.............--0000 Built-in FLOPPY DISK DRIVE Mix output x 1
Voice output x 1 (13 PIN/DIN)
Dimensions............... 482.6 (W) x 132.6 (H) x 410 (D) mm
(EIA Rack mount/3U)
Memory capacity: 1M byte
Memory Medium: 3.5 inch (2DD)
BOTH SIDE, DOUBLE TRACK,
DOUBLE DENSITY S N E saxcecisecscerccsasnce
Internal memory: 750K byte
Multi sampling ........ 32
BAG sivctctssciesinisieesines Scanning (ONE SHOT, LOOPING,
ALTERNATING)
AD.S.R (Velocity-Attack,
Velocity-Release)
Velocity cross fade
Velocity switch
Positional cross fade
Attack pitch offset (— Velocity)
LFO (delay, rate, depth)
Filter (Key tracking, Velocity)
* For improvement purposes, specifications and design are subject to change without notice.
