Leon Terra SUB-10 Installation Instructions Manual

Outdoor in-ground subwoofer
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

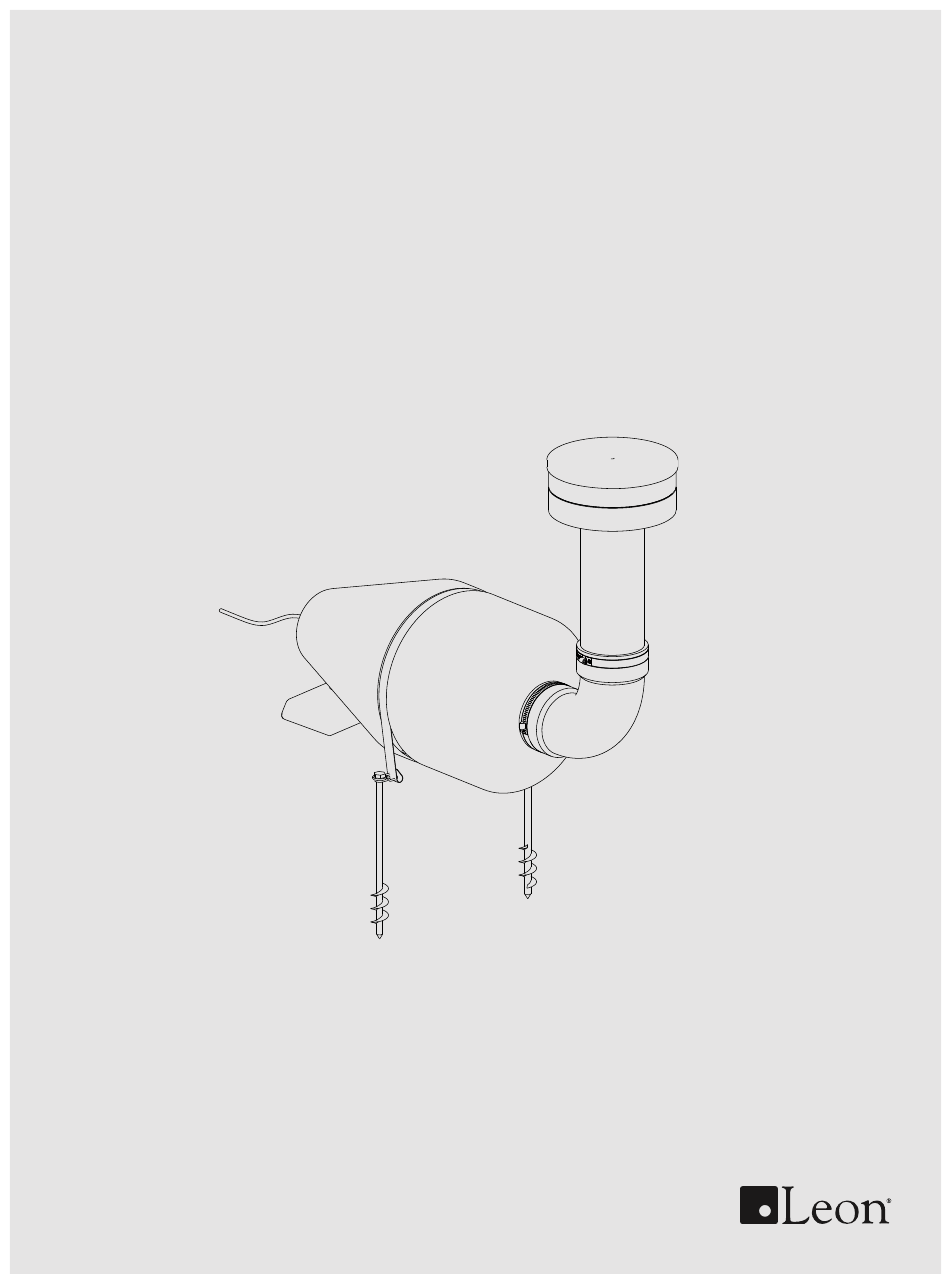

Terra SUB-10 Outdoor
In-Ground Subwoofer
Installation Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terra SUB-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Leon Terra SUB-10

  • Page 1 Terra SUB-10 Outdoor In-Ground Subwoofer Installation Instructions...

  • Page 2: Installation Tips

    What’s Included Tools Required Shovel Flathead Screwdriver Additional Hardware Ground Anchor Screw Subwoofer Cabinet Port Tube Assembly BVS-2 Connector 14mm Hex Socket 12/2 Direct Burial Assembly (14mm hex) & Drill Cable Spool Drawings not to scale Tools not included Installation Tips Wire Connections Choose an installation location free of physical obstructions.
  • Page 3 Step 1 Burial Hole Excavation ~8-10” ~20” Dig a roughly 40” by 17” hole approximately 20” deep, or deep enough to allow the port tube (B) to ~40” protrude 8 to 10” from the ground. Run speaker wire to the hole. 12/2 direct burial wire is recommended.
  • Page 4 Step 4 ~8-10” Hole Confirmation Confirm the subwoofer assembly fits in the hole. Confirm vent location, stability, and port tube assembly location from ground. The port tube assembly (B) should be apporximately 8” to 10” from the ground. When you have confirmed fitment, remove the subwoofer assembly from the hole and proceed to step 5.

  • Page 5: Making The Connection

    Step 7 Making the Connection Make speaker wire connections with the provided waterproof connectors (D). (Direct for 8 Ohm. If using a 70V Transformer, wire it near the subwoofer now. Please see page 2 for connector instructions.) Test the audio now. Step 8 Backfill the Hole If used, bury the optional 70V...
  • Page 6 Leon Speakers (“Leon”) warrants to the first end-user purchaser that this Leon product (“Product”), when purchased from an authorized Leon Dealer, will be free from defective workmanship and materials for the period stated herein. Leon will at its option and expense during the warranty period, either repair the defect or replace the Product with a new or remanufactured Product or a reasonable equivalent.
  • Page 7 FO R A S S I S TA N C E C A L L 1 ( 8 8 8 ) 2 1 3 - 5 0 1 5 | M O N - F R I 8 A M - 6 P M E S T...
  • Page 8 Questions? For additional support, call customer service 1 (888) 213-5015 | Mon - Fri 8 am-6 pm EST Leon is a registered trademark of Leon Speakers, Inc ©2023 REF-25-050_TrSUB-10_20230601...
