Beacon BTA66 Instructions

BTA66 Instructions
Anti-static handling guidelines
Make sure that electrostatic handling precautions are taken immediately before handling PCBs and
other static sensitive components.
Before handling any static-sensitive items, operators should get rid of any electrostatic charge by
touching a sound safety earth. Always handle PCBs by their sides and avoid touching any
components.
1 Connections

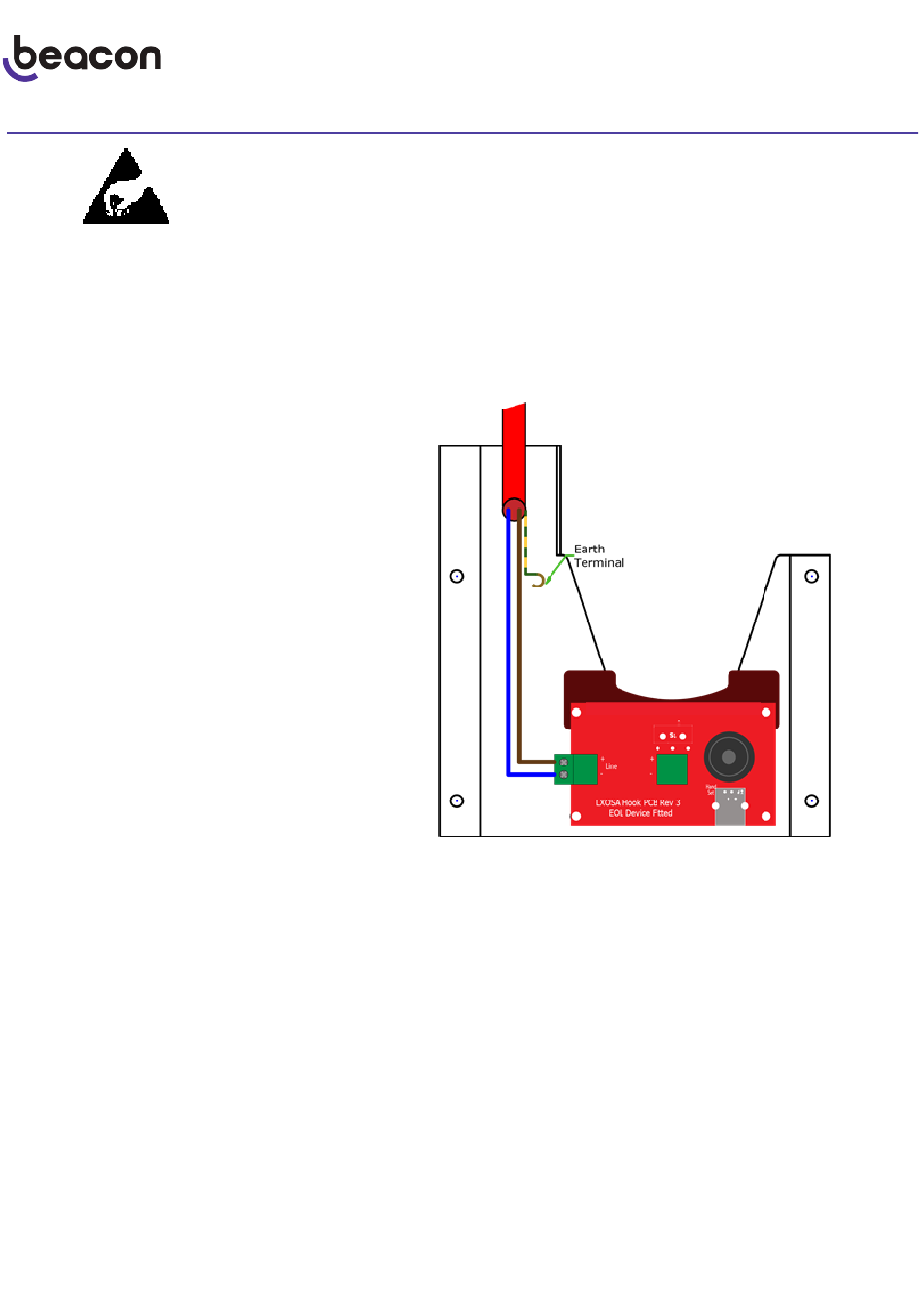

The 2 core Enhanced cable should be
connected to the Line + and – terminals as
shown (the connector is a two part one so it
can be removed and terminated before
being plugged onto the board).
The Earth should be connected to the Earth
terminal in the back box.
The end of line resistor is fitted internally so
the 10k EOL supplied with the Master
Station is not required for correct operation
and monitoring.
The phone plate can be reassembled, and
the phone plugged into the grey connector
(care should be taken when plugging this in
to ensure it is the correct way round)
When the phone is correctly wired the confidence LED lights dimly when the phone is on hook.
2 Operation
To call from the Type A phone simply remove the phone from the hook switch, this will cause all
masters programmed for this line to ring. The call can be ended by placing the phone back on the
hook switch (the confidence LED also lights again)
When the master calls the Type A outstation, the ringer sounds and the confidence LED flashes, to
answer the phone remove the handset from the cradle and speech can take place- To end simply
place the phone on the hook switch.
