Summary of Contents for VALPRO VP60G

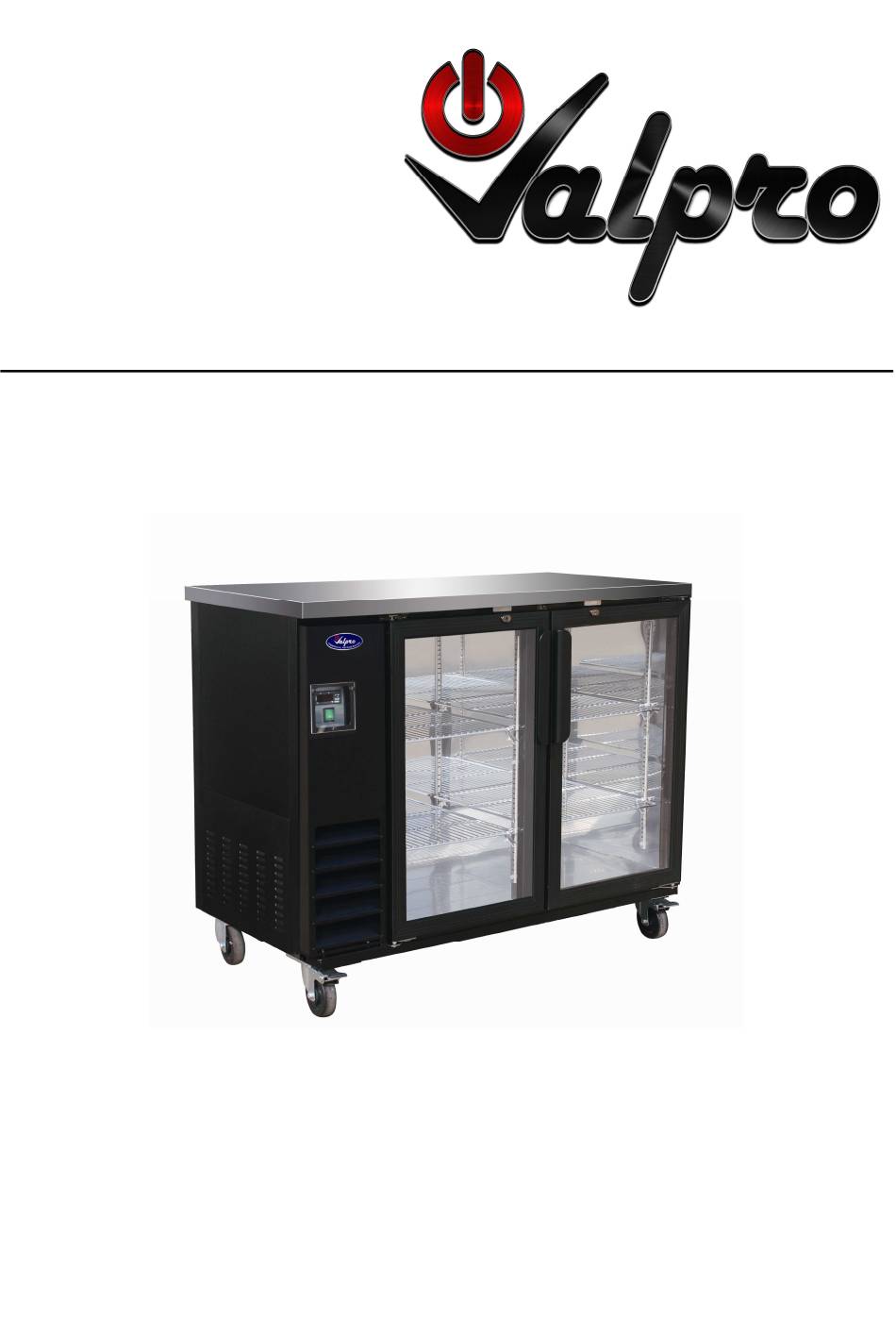

- Page 1 Back Bar Bottle Cooler Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
- Page 2 Service and Installation Manual COMMECIAL REFRIGERATOR SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. Our product instructions will be uploaded on our company official website. This is the Safety Alert Symbol.
- Page 3 Service and Installation Manual The appliance use flammable insulation blowing gas C5H10, disposal of the appliance shall in accordance with the regulations of local authorities. The key for appliance electric box should be safe kept by qualified persons in order to avoid a hazard WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
-
Page 4: Serial Number Information
RECEIVING AND INSPECTING THE EQUIPMENT All Valpro Commercial Refrigeration products undergo a rigorous multipoint inspection process prior to packaging and shipping to assure our products are received in perfect condition and working order .Even though our equipment is packaged to prevent damage in transit, if goods have been shipped via 3rd party merchandise must be inspected before accepting shipment. -
Page 5: Specification
BACK BAR BOTTLE COOLER STORAGE SHIP CAPACITY CHARGE WEIGHT NEMA Cu-ft MODEL# V/Hz/Ph AMPS PLUG VP48G 115/60/1 10.45 1155 3.88 5-15P VP60G 115/60/1 14.16 1155 3.88 356.4 5-15P VP72G 115/60/1 17.26 1771 4.59 415.8 5-15P For warranty service, call 1-888-VALPRO8 / 1-813-502-0300... -
Page 6: Installation
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. -
Page 7: Operation
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. Refrigerators: The factory setting for temperature range is 34°F - 38°F Light Switch: An light switch is located next to on/off switch on the front of the bottom shroud. - Page 8 Service and Installation Manual 1.2 Function of LEDS Symbol Function LED Mode LED Indication LED Indicator Fans enabled. Indicates the fans are running. ① Flashing Fans delay after defrost in progress Defrost enabled. DEFROST Defrost status. Programming phase ( Indicators flashing) ②...
- Page 9 Service and Installation Manual 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value; 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again. 2.2 HOW TO CHANGE THE SETPOINT 1.
- Page 10 Service and Installation Manual MAINTENANCE The power switch must be turned to OFF and the unit disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner.
- Page 11 Service and Installation Manual MAINTENANCE NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS! Cleaning solutions need to be alkaline based or non-chloride cleaners. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are also commonly found in hard water, salts, and household and industrial cleaners.
- Page 12 Service and Installation Manual MAINTENANCE Swing Door Replacement and Adjustment 1. Open the bottom shroud and hold the door, then loose bottom hinge’s screws and take off the old door; 2. Prepare new door, insert top pin into top hinge, get one bottom hinge to hold the door by the bottom pin , then fasten bottom hinge securely to the door frame with three screws;...
-
Page 13: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM Model: VP48G/VP60G Model:VP72G For warranty service, call 1-888-VALPRO8 / 1-813-502-0300... - Page 14 Service and Installation Manual WIRING DIAGRAM Model: VP48G/VP60G For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 15 Service and Installation Manual WIRING DIAGRAM Model: VP72G For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 16 Service and Installation Manual For warranty service, call 1-888-VALPRO8 / 1-813-502-0300...
- Page 17 Valpro Commercial Refrigeration 203 Kelsey Ln., Building G, Tampa Florida 33619 Email: info@valpromail.com http://www.valprorefrigeration.com...
