Pomona
MATERIALS:
Body and Fittings: Brass per QQ-B-626, Alloy 360 ½ H. Tarnish resistant plating
Center Contact: Brass per QQ-B-626, Alloy 360 ½ H. Tarnish resistant plating
Outer Contact: Gold Plated Beryllium Copper per QQ-C-530, Cond. HT.
Dielectric: PTFE
Finish:
Body and Fittings: Non-tarnish
Outer and Center Contacts: Gold Flash per MIL-G-45204 over silver plate per QQ-S-365
ORDERING INFORMATION: Model 3600

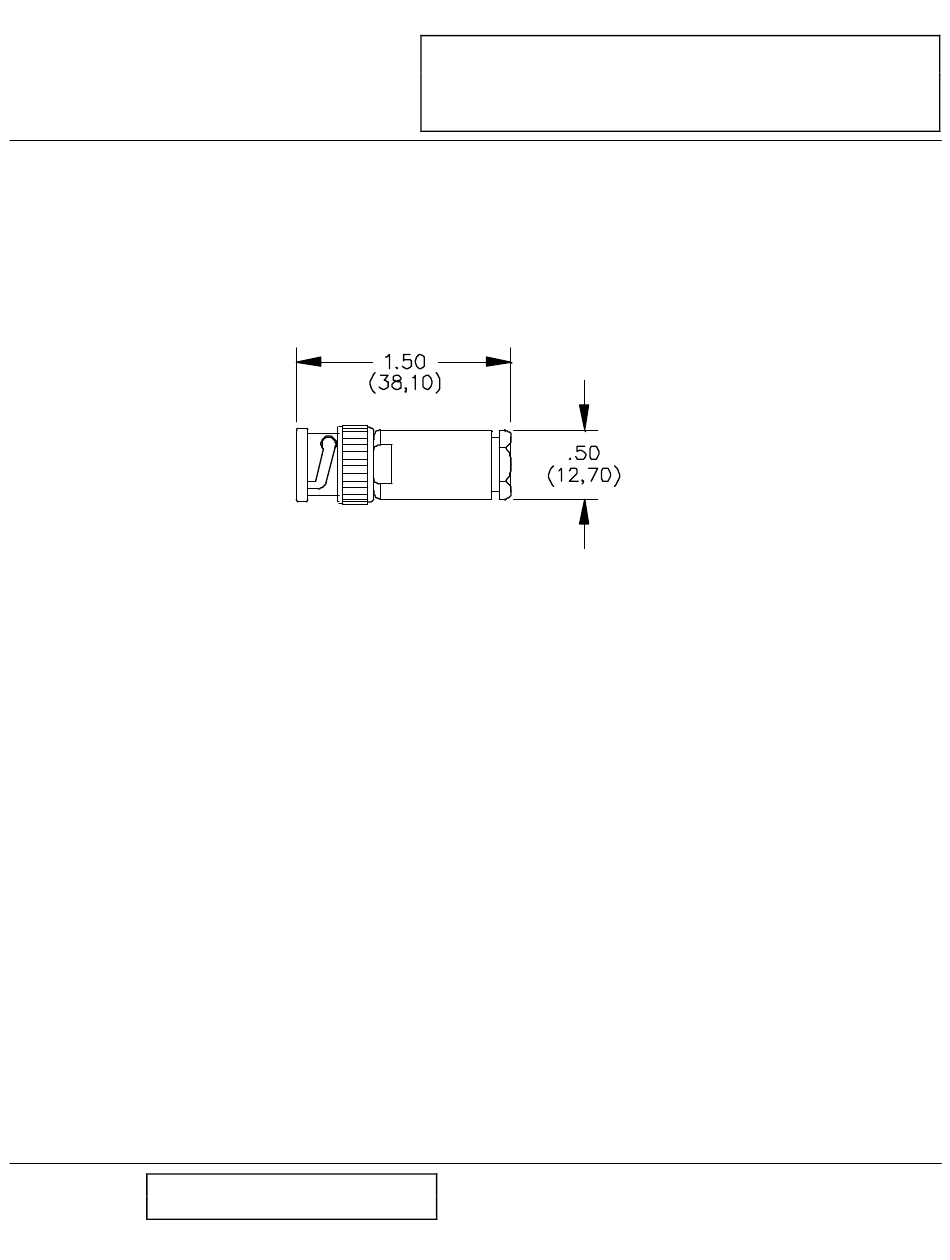

All dimensions are in inches. Tolerances (except noted): .xx = ±.02" (,51 mm), .xxx = ± .005" (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
6/9/99
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
SY/EH/LS
S:\Engineering \Release\DataSheets\FlukeDataSheet\d_AI_3600_1_01.doc
®
Model 3600 & Assembly Instructions
Triaxial Cable Plug
PomonaACCESS 90100 (800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Made in USA
Page 1 of 3
Advertisement
Summary of Contents for ebm-papst Pomona 3600
- Page 1 Pomona ® Model 3600 & Assembly Instructions Triaxial Cable Plug MATERIALS: Body and Fittings: Brass per QQ-B-626, Alloy 360 ½ H. Tarnish resistant plating Center Contact: Brass per QQ-B-626, Alloy 360 ½ H. Tarnish resistant plating Outer Contact: Gold Plated Beryllium Copper per QQ-C-530, Cond. HT. Dielectric: PTFE Finish: Body and Fittings: Non-tarnish...
- Page 2 Pomona ® Model 3600 & Assembly Instructions Triaxial Cable Plug FIGURE #1 A. Cut cable. B. Slide clamp nut, flat washer and clamp gasket over cable. C. Strip jacket. FIGURE #2 D. Fold back braid and trim cable filler. Slide braid clamp over braid so that its inner shoulder butts against cable jacket. Fan out braid wires, fold back over braid clamp, trim off excess braid as shown.
- Page 3 Pomona ® Model 3600 & Assembly Instructions Triaxial Cable Plug Caution: Do Not Over Heat! FIGURE #5 Slide Teflon contact sleeve over center contact. M. Slide outer finger contact over Teflon contact sleeve. N. Wrap blue wire around outer finger as shown and solder. FIGURE #6 O.
