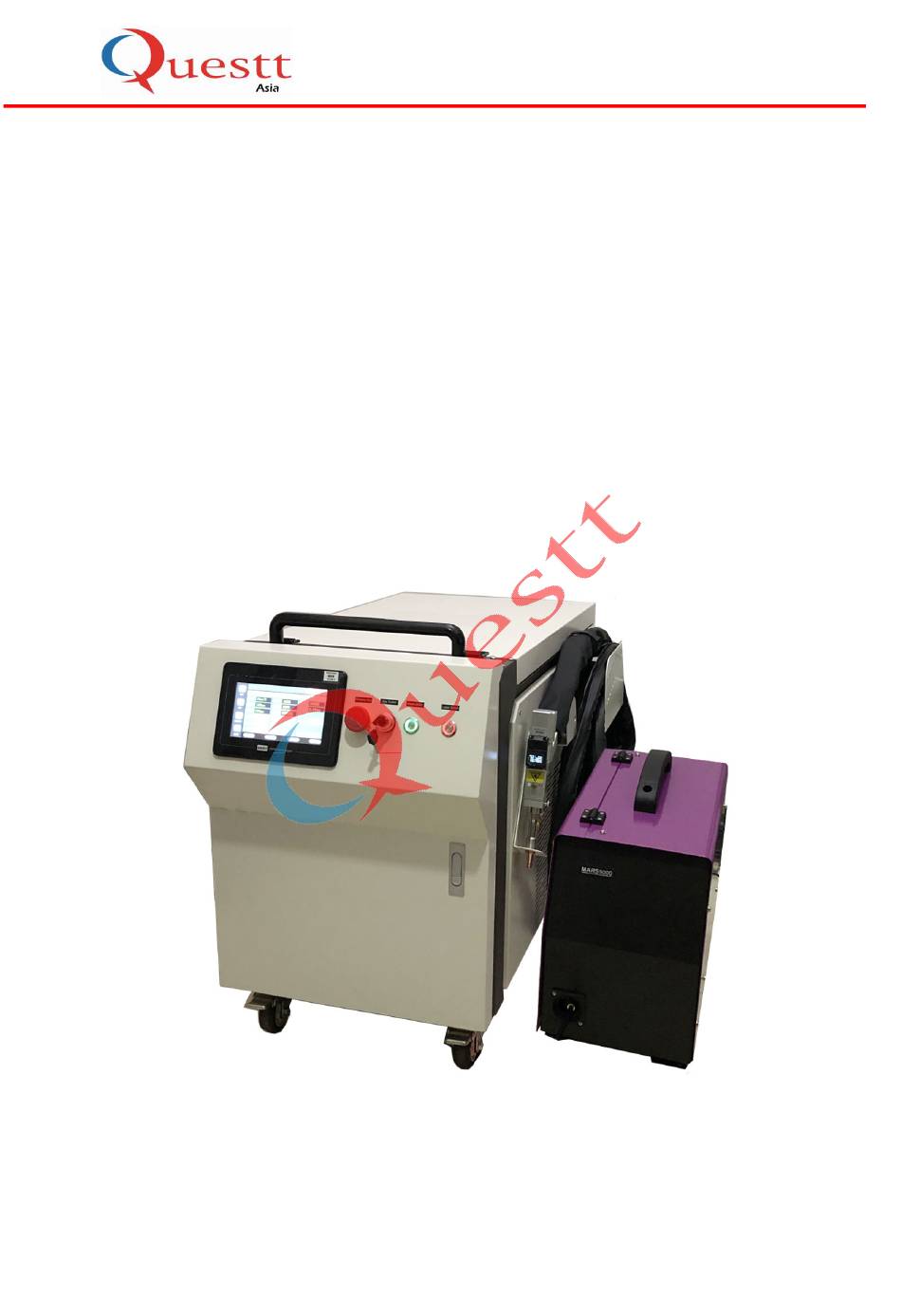

- Page 1 Wuhan Questt Asia New Technology .,LTD Operation Manual QA-LWF1500H Handheld Fiber Laser Welding Machine Wuhan Questt Asia New Technology .,LTD...
-
Page 2: Table Of Contents
Wuhan Questt Asia New Technology .,LTD Catalogue 1 Laser Safety introduction ..................I 1.1 Caution for the Operation Safety .............I 1.2 Laser safety information ................. II 1.3 Laser Class ..................... III 2 product description....................1 2.1 Equipment characteristics and implementation standards ....... 2 2.2 Operating environment and related parameters ........ -
Page 3: Laser Safety Introduction
This document contains proprietary information which is protected by ⚫ copyright and all rights are reserved by Questt Asia. No part of this document may be reproduced, copied, translated or incorporated in any other material, graphic, electronic, mechanical or otherwise, or given out to any third party, without the prior written consent of Questt Asia. -
Page 4: Laser Safety Information
Warning：The power supply must be attached with the ground wire. Caution：The maintenance should be operated by the qualified professional person form Questt Asia. Don’t open the laser enclosure or destroy the label on the machine. Otherwise, the machine will not be warranted. -
Page 5: Laser Class
Wuhan Questt Asia New Technology .,LTD 1.3 Laser Class This laser is manufactured according to the standard of 21 CFR 1040.10（or IEC60825） ， belongs to the class IV laser product. It can emit 20 Watts of laser at the wavelength of 1060nm. It is harmful to the human eyes and skin. Although the laser beam is invisible, it will cause the injury to the retinal and the corneal. -
Page 6: Product Description
The laser handheld welding equipment produced by Wuhan QUESTT is a new generation of laser welding products. It is easy to install, simple to operate, and can be used for welding processing by turning on the power and turning on the equipment. -
Page 7: Equipment Characteristics And Implementation Standards
Wuhan Questt Asia New Technology .,LTD 2.1 Equipment characteristics and implementation standards （1）Features ◎ Ergonomic design, light weight of the hand-held head, good grip feel, and greatly reduced operating labor intensity; ◎ The welding head is integrated with the speed control board, which is simple and compact;... - Page 8 Wuhan Questt Asia New Technology .,LTD long-term processing laser. （2）Product performance standards Wuhan QUESTT has passed ISO 9001 international quality management system certification, and formed a quality assurance system for the design, production and service of small and medium power laser processing equipment.
-
Page 9: Operating Environment And Related Parameters
Wuhan Questt Asia New Technology .,LTD 2.2Operating environment and related parameters Operating environment Content Parameters Single-phase 220V ± 10%, 50 / 60Hz AC Supply voltage Machine power consumption Less than 6000W (water-containing chiller) 10℃～35℃ Working temperature Working environment ≤70% humidity... -
Page 10: Product Structure And Dimensions
Wuhan Questt Asia New Technology .,LTD 2.3Product structure and dimensions （1）Machine picture Image 2.2 QA-LWF1500H laser handheld welding machine... -
Page 11: Lwf1500-Hlw Common Setting
Wuhan Questt Asia New Technology .,LTD (2) welding head Figure 2.3 LWF1500-HLW laser welding head 2.4 QA-LWF1500H common setting... -
Page 12: Configuration List
Wuhan Questt Asia New Technology .,LTD 2.5 configuration checklist Table 2.1 Configuration list of LWF1500H laser welding equipment Quantit Name Model specifications Remark Laser handheld LWF1500H welding host Laser protective glasses This is a consumable and is not Protective lenses... -
Page 13: Steps
Wuhan Questt Asia New Technology .,LTD 3.1 Operation Steps Step 1: Pump in water to water chiller. Stop pump in when the water leval between green and yellow part. If need to set temperature, just opereate on the panel of the water chiller. See attached... - Page 14 Wuhan Questt Asia New Technology .,LTD Step 2: Connect the gas pipe with your protection gas tank. Best Argon. Must offer gas during welding. Step 3: Take out the external power cord to energize, power on the laser welding machine. Turn on the...
- Page 15 Wuhan Questt Asia New Technology .,LTD Step 4: Click the "Home" button Click the "controller config" button to enter the controller configuration interface: Check "enable" to turn on the wireless control function of the welding head. The wireless communication address needs to be consistent with the communication address of the...
- Page 16 Wuhan Questt Asia New Technology .,LTD Step 5: Put on laser protective glasses, clamp the safety loop protection clip equipped with the handheld welding head on the workpiece (make sure it is conductive), contact the workpiece with the workpiece to be welded, press the metal spring button on the handle of the handheld head. The tip of the gun can then be used for welding.
-
Page 17: Welding Parameter Setting
Wuhan Questt Asia New Technology .,LTD 3.2 Welding parameter setting Communication status: (status: normal\disconnected) Shows whether the wireless connection is successful. "Normal" means that the wireless communication is connected, and "disconnected" means that the wireless communication is not connected. Light emitting mode: (status: spot shooting\continuous\scaly figure) Corresponding to the touch screen "light mode"... -
Page 18: Instructions For Handheld Welding Wireless Control Module
Wuhan Questt Asia New Technology .,LTD 3.3 Instructions for Handheld Welding Wireless Control Module Operating Instructions for Wireless Communication Module Display screen Left Right 1. . Display screen: displays the man-machine interaction interface such as parameter functions. 2. . OK key: Short press to enter the parameter editing state, each time you press, the next parameter item is selected, the selected parameter flashes, and the parameter is set by the left or right button;... - Page 19 Wuhan Questt Asia New Technology .,LTD Manual for adjusting the spot size of the handheld laser welding head 1） Set "scanning frequency". The larger the parameter setting, the faster the spot swing frequency. 2） Set "Scan width". The larger the parameter setting, the greater the swing amplitude of the spot.
-
Page 20: Welding Machine Use And Maintenance Instructions
Wuhan Questt Asia New Technology .,LTD 3.4 Welding machine use and maintenance instructions (1) Cracks occur during laser welding 1)The protective gas flow is too large, it can be solved by reducing the protective gas flow. 2)The cooling speed of the workpiece is too fast. The temperature of the cooling water on the fixture should be adjusted to increase the water temperature. -
Page 21: Precautions For Using Welding Machine
Wuhan Questt Asia New Technology .,LTD 2) It is recommended to turn off the Wobble function when not used for a long time; （6）Handheld head protection lens replacement instructions 1) Disassemble the air nozzle and air tube shown in the figure;... - Page 22 Wuhan Questt Asia New Technology .,LTD that the equipment is in a power-off state. f) During the operation, wear labor protection articles according to regulations. Wear protective glasses in accordance with regulations near the laser beam. g) When the laser welding machine is powered on, do not look directly at the laser output head.
-
Page 23: Before And After Sales
Wuhan Questt Asia New Technology .,LTD 4 Pre-sales and after-sales services 4.1 Pledge We, Wuhan QUESTT adhere to the customer as the center, fully understand customer needs, and provide customers with comprehensive and personalized installation, commissioning, training, maintenance and other pre-sales and after-sales services. -
Page 24: Limitation Of Warranty
Wuhan Questt Asia New Technology .,LTD ⚫ Operation and use of laser welding equipment ⚫ Operation and use of laser welding equipment ⚫ Maintenance of laser welding equipment （4）After-sales commitment ⚫ Free one-year warranty for equipment (excluding human damage and fiber breakage) ⚫... -
Page 25: Technical Support And Product Maintenance
Wuhan QUESTT technicians. If any failure occurs during the use of the product, the technician in Wuhan QUESTT shall be notified in time, and the product shall be dealt with by troubleshooting.
