PORTO ECKSOFA

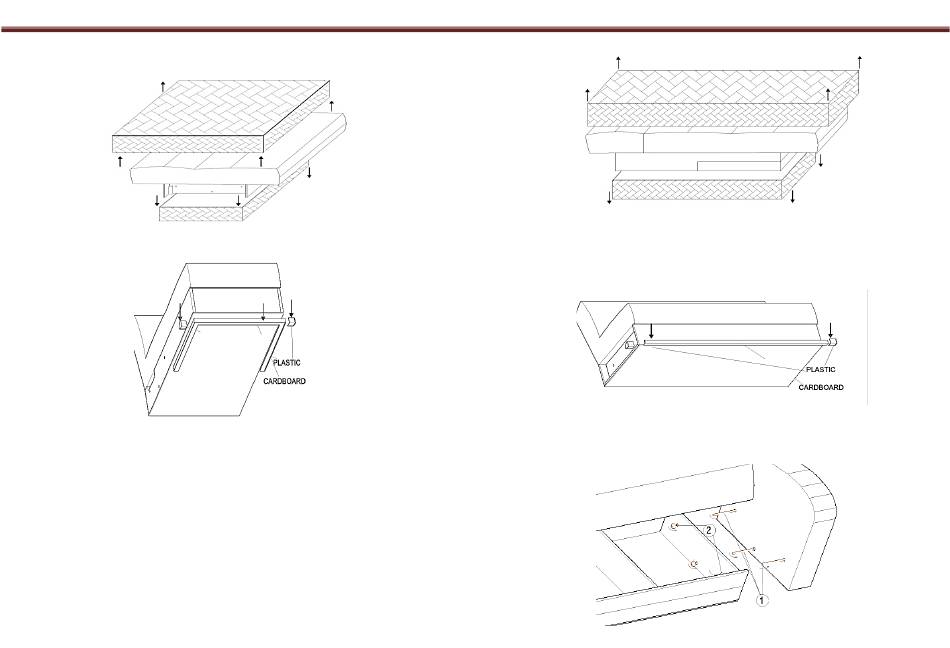

A)REMOVING THE PACKAGING
OTTOMAN
2 SEATER
REMOVE THE PACKAGING AS SHOWN WITH THE ARROW SIGN.
B) REMOVING PLASTICS
2 SEATER
OTTOMAN
REMOVE PLASTIC AS SHOWED BY ARROW SIGN.
C)MONTAGE OF CASE AND ARMRESTS
1)FIX THE CONNECTION APPARATUS (1) WITH THE SCREW HOLES ON THE ARMRESTS
2)ATTACH THE ARMREST TO THE CASE WITH CONNECTION APPARATUS FROM THE SCREW HOLES
3)MONTAGE THE WING NUTS(THUMBSCREWS) TO THE CONNECTION APPARATUS (2)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Porto Sofa and is the answer not in the manual?

Questions and answers

Summary of Contents for Seats and Sofas Porto Sofa

  • Page 1 PORTO ECKSOFA A)REMOVING THE PACKAGING OTTOMAN 2 SEATER REMOVE THE PACKAGING AS SHOWN WITH THE ARROW SIGN. B) REMOVING PLASTICS 2 SEATER OTTOMAN REMOVE PLASTIC AS SHOWED BY ARROW SIGN. C)MONTAGE OF CASE AND ARMRESTS 1)FIX THE CONNECTION APPARATUS (1) WITH THE SCREW HOLES ON THE ARMRESTS 2)ATTACH THE ARMREST TO THE CASE WITH CONNECTION APPARATUS FROM THE SCREW HOLES 3)MONTAGE THE WING NUTS(THUMBSCREWS) TO THE CONNECTION APPARATUS (2)
  • Page 2 PORTO ECKSOFA 2)PUT THE SOFABED CORRESPONDING WITH THE HOLES ON THE RESTINGPART AND FIX WITH WING NUTS(THUMBSCREWS) (2) D)MONTAGE OF LEGS FOR SOFABED PART (2 SEATER) 1)PUT THE LEGS AS IN THE PICTURE (5) AND FIX WITH THE SCREWS (4) 2)FIND THE HOLES FOR FIXING MIDDLE LEGS (6) AND FIX THEM WITH TURNING.
