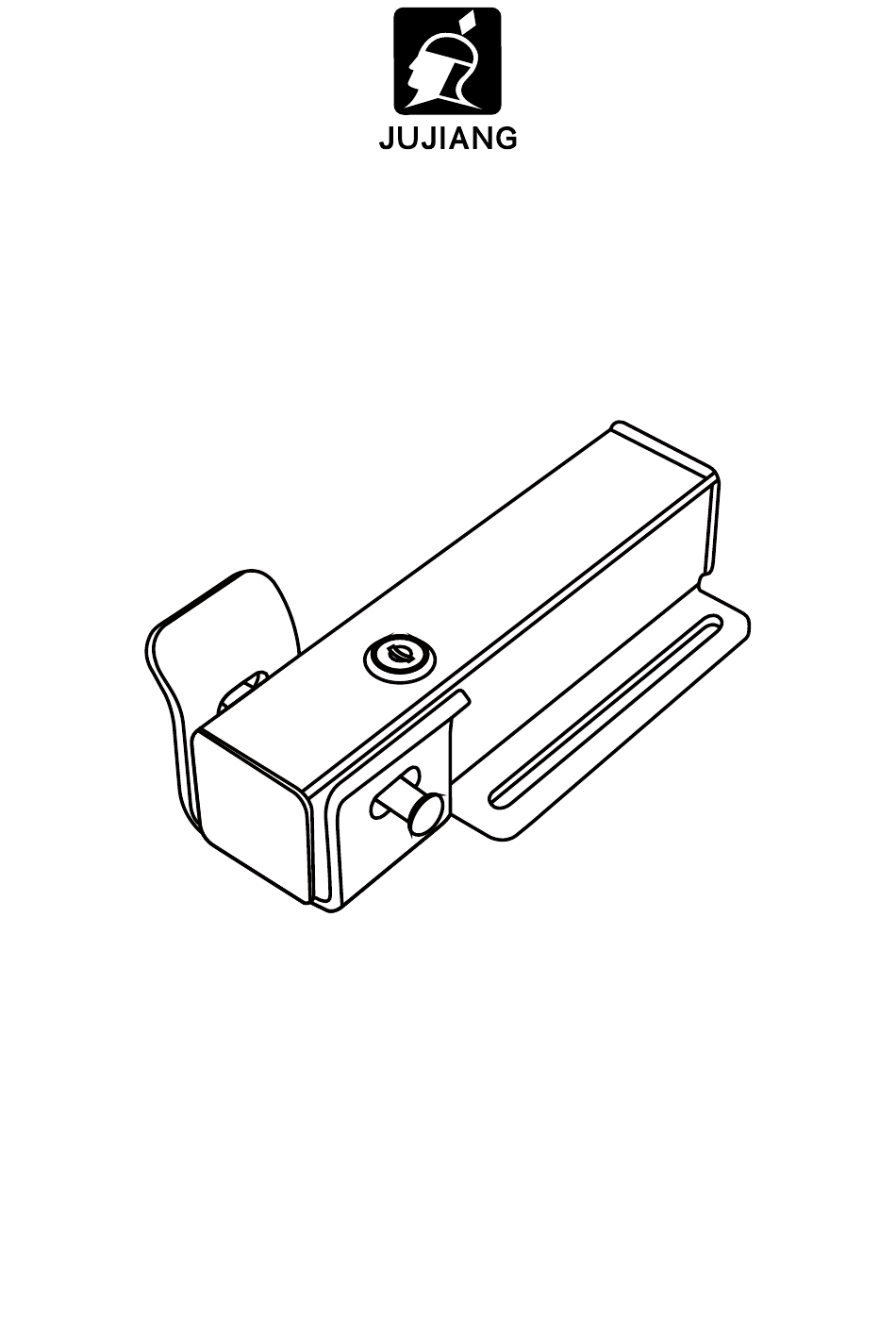

Automatic Gate Lock
User Manual
Model: DS-02
PLEASE NOTE : Because of the various mounting applications, no mounting
hardware is provided with the Automatic Gate Lock. All necessary mounting
hardware can be obtained from your local hardware store; all other hardware
is provided.This manual shows two examples of the most common installations,
and should provide insight into most other application
Customer Service: JUJIANGservice@outlook.com
Advertisement
Summary of Contents for Jujiang DS-02
- Page 1 Automatic Gate Lock User Manual Model: DS-02 PLEASE NOTE : Because of the various mounting applications, no mounting hardware is provided with the Automatic Gate Lock. All necessary mounting hardware can be obtained from your local hardware store; all other hardware is provided.This manual shows two examples of the most common installations,...
- Page 2 Package List A - Lock with 20' of low voltage wire B - Lock Receiver C - Clevis Pin D -Lock Keys (for manual release) E -DS-33A Manual Lock Release The JUJUANG automatic gate lock can be manually released. If the electric release is disabled for any reason and the gate cannot be opened, simply use the manual key to manually open the door Installing The Gate Lock...
- Page 3 Illustration A Lock and receiver must be level and aligned with opener. Receiver pin hole and lock slot must line up. Check alignment with pin out of receiver. Illustration B Iron or Aluminum Tube Fence and Gate Installation Remember to check the alignment and mark positions before drilling holes in fence post and gate.
- Page 4 Illustration C Illustration D Chain Link Fence and Gate Installation Locklng Cap Assembly Remember to check the alignment and mark positions before drilling holes in fence post Added cross member to support lock from force Clevis Pin of Locking shut Lock Receiver Locking Cap...
- Page 5 SLAVE GATE MASTER GATE (first gate opener) (second gate opener) Lock and receiver must be level and aligned with opener. Receiver pin hole and lock slot must line up. Check alignment with pin out of receiver. Illustration E Remember to check the alignment and mark positions before drilling holes in fence post and gate.
- Page 6 (not provided) Wire Connection of the Lock Connect with JUJIANG Swing Gate Opener The electric lock can be wired to the swing gate opener control board directly, red wire connect with “LOCK NF” port, blue wire connect with “COM” port.
- Page 7 Connect with Other Manufacturers’ Swing Gate Opener With the the small control board DS-33A helping, the electric lock DS-02 also can be can be wired to other brands’ swing gate opener. The Automatic Electric Lock unlocks and locks automatically as an electronic gate is activated to open and close (depend on standard 12V/24V gate outputs).
- Page 8 When the delay time reaches, the relay is disconnected. HOW TO GET THE WARRANTY PLEASE LEAVE IMAGE OR VIDEO PROOFS AT THE TIME OF DELIVERY, then send the proof to JUJIANG Service Email: JUJIANGservice@outlook.com WITHIN 7 DAYS. (Note: Our customer service department cannot provide any guarantee without proof)
-
Page 9: Troubleshooting
Trouble Shooting Feedback & Review Your comments and suggestions are important to us as they help us provide the best possible service. should you have any need to contact us, the info below will help you get in touch: INSTALL ATION STEPS CONTACT US Kindly include your Product Model, Purchasing Date &...
Need help?
Do you have a question about the DS-02 and is the answer not in the manual?
