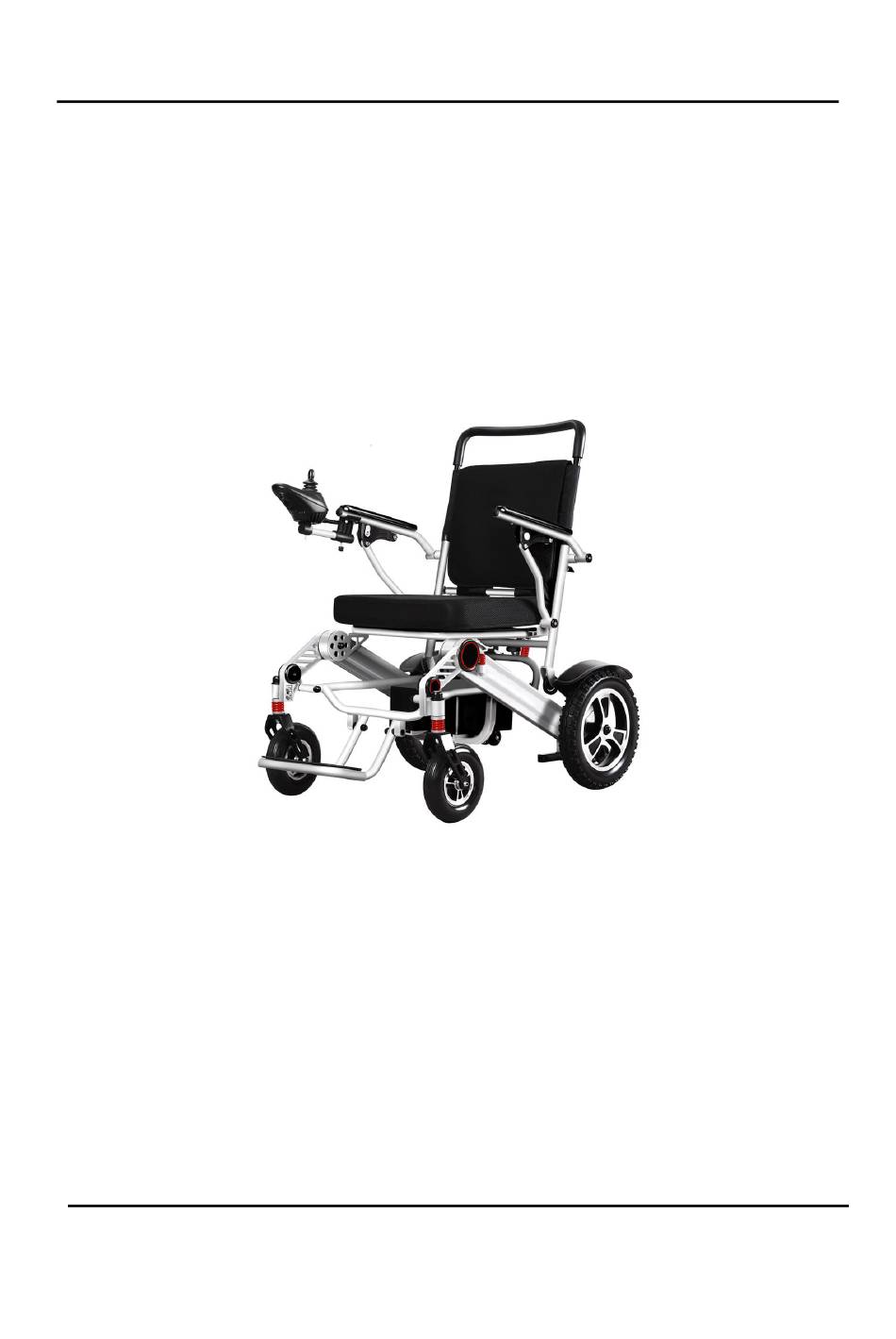

- Page 1 Easy AUTO Fold Lite User Manual BEFORE using this product, read this manual carefully and save it for future reference.
-
Page 2: Table Of Contents
Contents Introduction………………………………………………..1 Quick reference Gide..............2 Specification…………………………………………....4 Practice before operation…………………………………..5 Safety instruction………………………………………..…..7 Terminology…………………………………………..…..11 Joystick controller operation ……………………………..12 Rear wheel clutch fork…………………………..……..17 Fold and unfold your wheelchair………………… ……..18-19 Adjust the controller and armrest.……………………..…..20 Remove the battery……………………………………..…..21 Battery application……………………………………...…..21-23... -
Page 3: Introduction
Introduction Welcome aboard your new power wheelchair. This model has been designed with your practical needs in mind, equipped with modern high-tech electronics and special features for the most comfortable ride. This manual contains important information regarding the safe use of the power wheelchair. -
Page 4: Quick Reference Gide
Easy AUTO Fold Lite 1. Footrest 2. Battery 3. Charging port 4. Joystick controller 5. Armrest 6. Handlebar 7. Rear wheel 8. Motor 9. Front wheel Quick Reference Guide 1， Remove the wheelchair and spare parts from its packaging. - Page 5 2， Install the controller to the right or left hand armrest of the driver. 3， Use the controller or remote control to unfold the wheelchair.
-
Page 6: Specification
Specification Model name Easy AUTO Fold Lite Whole product size (unfolded) 43*24.8*37.7 inch Whole product size (folded) 24*13.3*30.7 inch Net weight (with battery) 62.3lbs（battery / 4.4lbs） Front wheel 8×2 inch PU solid Rear wheel 12.5×2.3 inch Rubber pneumatic Weight capacity... -
Page 7: Practice Before Operation
Failure to follow the instructions below may result in serious injury or damage to the electric wheelchair. Practice before use. Before venturing onto the roads, find an open area such as a park and ask a friend to accompany you until you have mastered the power chair’s operation. - Page 8 Stop, forward, and reverse operations. Simply push the joystick gently in the direction you wish to move in. First, practice moving forward. Be sure to set the speed to the lowest shift. After you have accomplished moving forwards, practise an "S" turn. When you can confidently perform these man-oeuvres, try reversing.
-
Page 9: Safety Instruction
In the event of one of the following errors, immediately turn off the electric wheelchair’s power supply: 1、Sudden movement 2、Operation direction is not controlled 3、Brake failure Safety instructions Do not carry passengers. Do not drive across a slope. Do not drive under the influence of alcohol. Do not tailgate another vehicle. - Page 10 Do not operate the power wheelchair without a driver. Do not drive the power wheelchair on the main roads – the footpath must be used. Do not change driving direction or reverse before the power wheelchair has completely stopped. Always engage a slow speed when going down gradients (move the joystick to the central position) Always use the safety belt.
- Page 11 Make sure there obstacles behind when braking; We recommend that the speed is the lowest when reversing. Avoid emergency braking, irregular shaking or emergency turning. Keep your arms on or inside the armrest and keep your feet on the footrest. Do not climb curbs that are more than 5 mm high.
- Page 12 Do not cross a gap that is more than 10 cm wide. Precautions when driving on slopes: Driving on a slope is much more dangerous than driving on a flat surface. Please note the following as falling or losing control will result in serious harm to users and others.
-
Page 13: Terminology
Do not drive on soft, uneven or unprotected roads such as grass and gravel. Slow your speed when going downhill. It takes longer to stop the wheelchair when braking downhill. Do not exit the wheelchair if facing up or down a slope. Stop the wheelchair before getting on and Terminology Joystick: The device used to "move"... -
Page 14: Joystick Controller Operation
Drive wheel: The main wheels that move the power chair. Caster wheels: The front wheels. WARNING Do not disassemble the motor as this may result in severe damage or malfunction. Joystick controller operation Assemble the controller 1、Install the controller on the controller connection. 2、Adjust the controller connection tube to the appropriate length, then tighten the plum nut. - Page 15 When operating the wheelchair, ensure that the control system is safe and reliable. Operating environment Do not keep the control system and its components in a humid environment for long periods of time. If food or drink is spilled on the control system, it should be cleaned immediately.
- Page 16 On/off button and power display The on / off button provides power to the electronic components of the control system to provide power to the wheelchair motor. In an emergency, you can use the on / off button to stop the wheelchair. The power display shows the current battery power of the wheelchair.
- Page 17 Speed display (S1-S5) This display indicates the wheelchair setting. With a total of five settings, S1 is the lowest speed, and S5 is the highest. Horn Press the horn to sound an alert. Deceleration button This button reduces the speed setting gear and turns the corresponding speed indicator lights off.
- Page 18 Controller status indication Error indication Malfunction Solution All LED lights The power is off or in Check if the power plug is are off, with no standby, and the power disconnected. sound cord is in poor contact. All LED lights The power supply is are on turned on and the...
-
Page 19: Rear Wheel Clutch Fork
Nine long after The controller is faulty Replace the controller two short sounds Motor clutch fork When the wheelchair is in the electric operation state (power mode), only the controller can be used to move the wheelchair. The wheelchair cannot be pushed by hand, and this will prevent the wheels from rolling. Manual operation can be triggered by flicking the “motor clutch fork”... -
Page 20: Fold And Unfold Your Wheelchair
ATTENTION： It is advisable to keep the wheelchair in the electric operation state. The role of the clutch device is only to allow the wheelchair to be pushed manually in crowded places. Folding and unfolding your wheelchair Controller operation instructions: After the power is turned on, the speed Slow down button indicator will stop flashing and press... - Page 21 Remote control operation instructions: After the power is turned on, press After the power is turned on, press this button after the speed indicator this button after the speed indicator stops flashing, and the wheelchair stops flashing, and the wheelchair will automatically unfold will automatically fold Power...
-
Page 22: Adjust The Controller And Armrest
Adjust the controller You can install the controller on the left as needed, remove the controller bracket and install it on the left. Armrest Press the button on the underside of the armrests to loosen them. -
Page 23: Remove The Battery
Remove the battery Step 1：Pull out the power plug. Step 2: Hold down the locking catch to disengage the battery from the frame and pull out the battery compartment. Battery use The electric wheelchair uses a 24 voltage battery. It is a good idea to carry a replacement 24V13AH battery, in case you need to charge the one in use. - Page 24 Battery charge and discharge In order to maximize the efficiency of your wheelchair battery, you should: 1．Fully charge your battery during initial use. 2．Start slowly when using the wheelchair in your home or on the driveway. 3 ． Give your battery charge 4-6 hours, and then re-operate the wheelchair.
- Page 25 wheelchairs and other mobile vehicles. Overall, maintenance-free, fully enclosed lead-acid batteries are safe, green and environmentally friendly, such as aircraft, buses and trains. We recommend that you contact the public transport department for packaging and shipping according to special performance. Used batteries should be carefully discarded according to your local council’s regulations.
