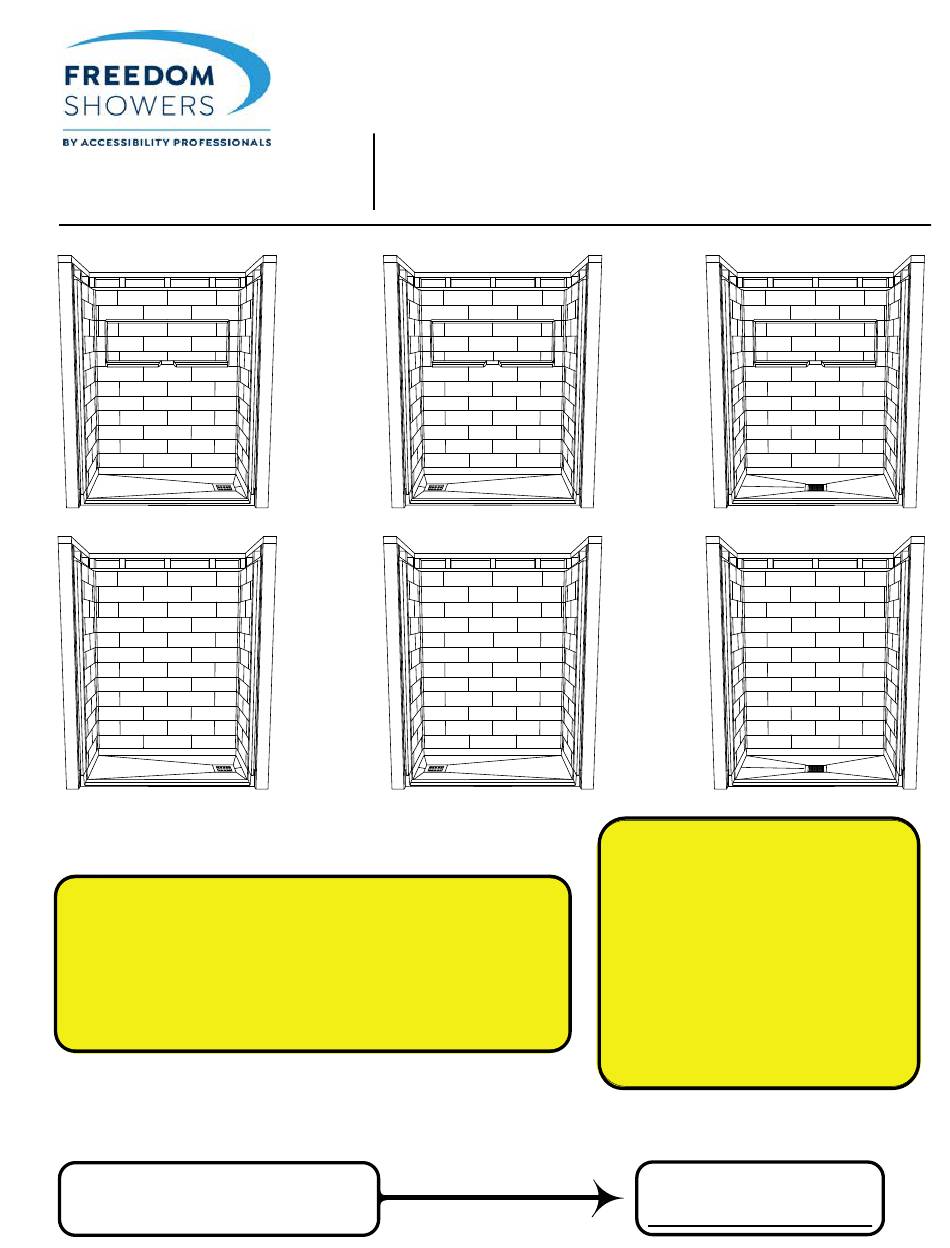

INSTALLATION INSTRUCTIONS
Prior to installation the shower must be checked thoroughly for
defects. In the unlikly event that the product has a defect, it must
not be installed. The manufacturer will not be held responsible for
cost of removal or replacement of a shower and or walls or any
other costs incurred as a result of the shower having a defect if the
defect is identifiable prior to installation.
INSTALLATION OF THE SHOWER WILL BE TREATED AS
ACCEPTANCE OF QUALITY.
Read all instructions carefully before proceeding.
Record the serial number
IMPORTANT
•
FOR SHOWER WALLS INSTALLATION
It is installers responsibillity to ensure
proper installation, a trouble-free
water evacuation, and a total water
tightness.
CHECK THAT SHOWER DRAINS
PROPERLY. IF IN DOUBT, CONTACT
YOUR SUPPLIER.
Drillings, and perforations are not
covered by the warranty. They are
under installers responsibility.
The floor structure must be strong
enough to support the weight of the
shower unit in use.
SAVE THIS GUIDE FOR FUTURE REFERENCE.
Serial number:
Advertisement
Summary of Contents for Freedom Showers APX6036BFK3R
- Page 1 INSTALLATION INSTRUCTIONS FOR SHOWER WALLS INSTALLATION It is installers responsibillity to ensure proper installation, a trouble-free water evacuation, and a total water tightness. Prior to installation the shower must be checked thoroughly for CHECK THAT SHOWER DRAINS defects. In the unlikly event that the product has a defect, it must PROPERLY.
- Page 3 TOOLS REQUIRED 3' - 6' Levels Plumb bob Pencil Electric drill 12” Plumbers Level Utility knife 100% silicone adhesive Square Phillips screwdriver Security equipment Measuring tape Flathead screwdriver Plumbers grease Wood shims Hole saw Recommended for un-level sub floor of more than 1/8” Thin Set Mortar ⅛"...
-
Page 4: You Begin
BEFORE YOU BEGIN FINAL VISUAL INSPECTION A. Before Starting make sure to have all parts and components, Note: Not doing so could void your warranty refer to page 2. Prior to completing the installation, perform a visual inspec- tion. If defects are visible, INTERRUPT THE INSTALLATION and communicate with our customer service: 877-947-7769. - Page 5 A. Build a structure based on the dimensions in the chart below. IF STRUCTURE IS ALREADY BUILT CHECK THAT IT RESPECTS THE DIMENSIONS BELOW. Top view of structure Modelo Between APX6032BFKTL xxxxxx 33" min. 15" 8 1/2" 60"- 60 1/4" Between xxxxxx 33"...
- Page 6 10" 10" Left or right drain C. Cut out an approximate 10" x 10" opening around the drain center outlined by measurements C and D. See images to the right and the chart on step 1.a. (on page 5. We recommend that a plumber completes the drain pipe connection. 10"...
- Page 7 Dry fit the base using a 3’ level along all sides as shown. Check and adjust level side to side and front to back. Use 12” plumbers level to check the fall or slope to the drain from all sides as shown in A Base can be shimmed up to 1/8”.
- Page 8 Use 3 tubes of 100% silicone adhesive in a squared pattern as shown. The adhesive should bee applied in a height that ensures contact with the base as it sets in place which means each bead should be 3/4” or greater. E.
- Page 9 G. Cut the drain pipe even with the top of the rubber gasket using an inside cutting tool. H. Using plumbers grease, lubricate the inside of the rubber gasket and slide over the drain pipe with bevel edge facing up. Push down until it sets itself.
- Page 10 Insert the bottom back wall (#2) on the deck of the base. Use the key to find ideal position. Level vertically. Add shims as needed. Wall Plumb the lower back wall, shim if necessary. Overhang for watertightness. Base B. Add shims as needed. D 3/8"...
- Page 11 Insert the upper back wall (#3) on the top of the lower back wall (#2) aligning the attachment system between the two walls. Level vertically. Add shims as needed. NOTE: The surface of the top wall and the bottom wall should be aligned at the same level.
- Page 12 A. Use a wood block or stud on each side to secure the upper back wall (#3) to the the lower back wall (#2). screws and a screwdriver.
- Page 13 Make sure the rim of the base is clean. Temporarly dry fit the side walls (#4) and (#5) pushing back into the back wall channel. 2" 2" (51 mm) (51 mm) Wall Side wall Overhang for watertightness. Base Verify the side walls are aligned with the front of the base.
- Page 14 Remove the side wall from the valve side of the shower Back wall Top view Valve center Pre-drill the walls for faucets. Measure the distance between the front face of the back wall to the center of the faucet. Then measure the distance from the top of the base deck to the center of the faucet.
- Page 15 Make sure the rim of the base is clean. Using 100% silicone, caulk interior channel of side wall vertical seam. On the shower base, apply silicone caulking to the flat surface absent the drain trough at the front edge of the base to prevent water migration outside the shower enclosure.
- Page 16 Add shims as needed. Drill the flange and screw with the screws and a screwdriver. Cut shim excess. Cut shim excess. Do not over tighten.
- Page 17 Exterior caulking of the seams is optional, done at owners preference. If you want to apply caulking to these seams, follow instructions below. Quick tip Apply masking tape on both sides of the joint where you will run a bead of silicone. Apply the silicone, smooth with a wet finger then remove the masking tape.
- Page 18 Make cutout in upper back panel if a window is present. MEASURE CUTOUT CAREFULLY. CUTOUT PIECE MAY BE USED AS FILLER AROUND THE WINDOW. FINISH AS PREFERED, OR PURCHASE AVAILABLE 3” FLANGE TRIM KIT. Measure window opening size minus window trim. Remove all window trim.
- Page 19 Maintenance tips Follow these general use and maintenanc any that come wi roducts and yo l l i warded with years of great service. Clean regularly with a non-abrasive cleaning spray or cream based cleansing agent. Never use tile or grout cleaner as they are not adequate for these products and could damage the unit.
-
Page 20: Useful Links
USEFUL LINKS LINK to Inspire Shower Installation video: https://youtu.be/IXIYrixNNoI LINK to Collapsible Water Retainer Installation video: https://youtu.be/1LNQjWteJcw LIMITED WARRANTY 877-947-7769 For warranty inquiries call: WWW.FREEDOMSHOWERS.COM T. 1-877-947-7769 REV: 2024-03-0 4 1 10043246-ENG...
