GENERAL INFORMATION
This instruction sheet contains information on how to install the Tenor Dimmable Sconce. This series comes in many variations. Please refer to the box
or product label for the specific model number. A key is provided on page 2.
Save these instructions for future use and reference. An improper installation voids the warranty. Carefully inspect the light(s) for damage. Installed
products cannot be returned.
If you experience any problems with your light(s), contact your dealer or Robern directly.
Limited Warranty - One Year Term
© 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376
www.robern.com

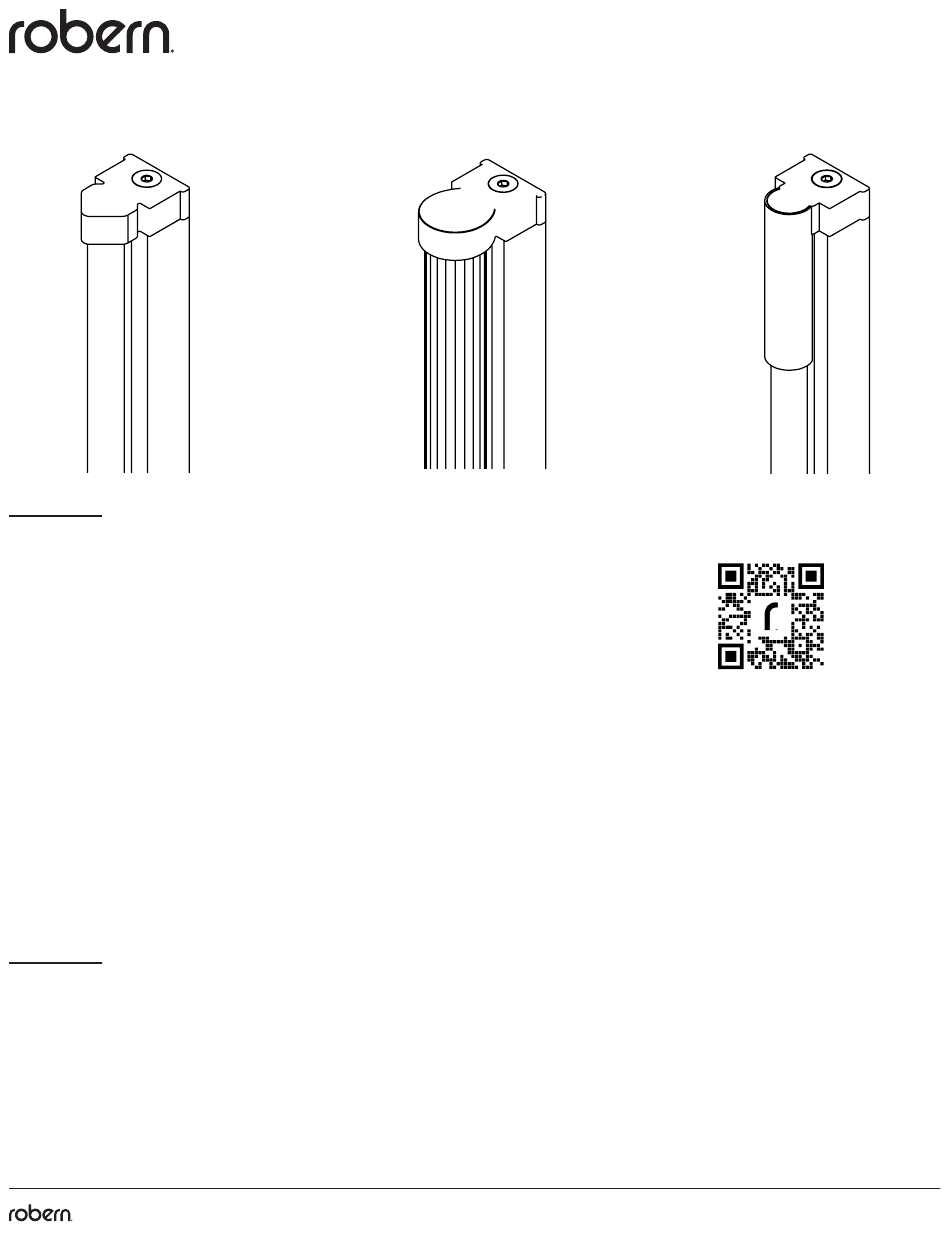

TENOR
Important safety instructions - Save these instructions
Fluted
1
DIMMABLE SCONCE
™
Installation Instructions
Suitable for damp locations
Scan the QR code
to see the entire
Tenor Series
of lights.
Use the camera app on your
mobile device to look at this and
other QR codes. This will allow
you to quickly access web pages
and other relevant documents.
Part no. 209-1451 || 05-OCTOBER-2023
Round
Tenor™ Dimmable Sconce
Advertisement
Table of Contents
Summary of Contents for Robern TENOR Diamond
-
Page 1: Table Of Contents
Save these instructions for future use and reference. An improper installation voids the warranty. Carefully inspect the light(s) for damage. Installed products cannot be returned. If you experience any problems with your light(s), contact your dealer or Robern directly. Limited Warranty — One Year Term ©... -
Page 2: Dimmer Recommendations / Model Numbers
For on/off (non-dimming) operation a standard wall switch may be substituted in place of the dimmer. MODEL NUMBERS Use the chart below to learn how to read your light model number. Consult the Robern Price Book for a complete list of model numbers. Example Model:... -
Page 3: Tools Needed / Parts
(1) 203-1682 5/32" Allen Key (4) SS344 #8 X 3/8" Screw (2) 210-1864 Bracket (2) 211-1464 Wall Mount © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Tenor™ Dimmable Sconce... -
Page 4: Notes
This installation may require the assistance of more than one person depending on your Light configuration. DANGER - RISK OF SHOCK - DISCONNECT POWER BEFORE INSTALLATION © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com... -
Page 5: Electrical Enclosure - Rough-In
3. Bring AC power connections to rough-in according to electrical diagram on page 6. Furring Strips 11" = (279mm) 2" = 51mm) © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Tenor™ Dimmable Sconce... -
Page 6: Electrical Enclosure - Wiring Ac Connections
FIELD CONNECTION DIMMER* BLACK NEUTRAL/WHITE WHITE GROUND * Make proper connections according to the dimmer GROUND manufacturer's instructions © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Tenor™ Dimmable Sconce... -
Page 7: Electrical Enclosure - Lighting Cable Connections
ENCLOSURE LIGHTING CABLE ELECTRICAL ELECTRICAL ENCLOSURE ENCLOSURE LIGHT LIGHT LIGHTING CABLE WIRING EXAMPLE FOR A MULTIPLE LIGHT ARRAY © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Tenor™ Dimmable Sconce... -
Page 8: Sconce Rough-In & Wall Prep
2" = (50mm) JLA30xx = 28-7/8" (733mm) ø1" = JLA36xx = 34-7/8" (886mm) (25mm) JLA40xx = 38-1/4" (971mm) © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Tenor™ Dimmable Sconce... - Page 9 3. Route lighting cable [219-1717] between the slot in wall and your electrical enclosure rough-in. Lighting Cable Lighting Cable © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Tenor™ Dimmable Sconce...
-
Page 10: Tenor Sconce - Installation
4. Remove the glass diffuser by sliding it out of the other endcap.Repeat steps 1-2 for the other endcap. 5. Repeat steps 2-3 for the opposite endcap. 6. Store your endcaps screws and glass diffuser in a safe location. © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com... - Page 11 3. Align the grooves with the lower bracket and slide the sconce down onto lower bracket. 4. Re-install the endcaps and glass diffuser by reversing steps 2-5 on page 10. © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. 209-1451 || 05-OCTOBER-2023 800.877.2376...
-
Page 12: Electrical Enclosure - Installation & Final Assembly
5. Place electrical enclosure into rough opening and secure to the wall using the provided #8 x 2-1/2" screws [203-1001]. 6. Installation is complete. Field Wire © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 12 12 800.877.2376... -
Page 13: Use & Maintenance
When cleaning, spray the cloth, not the light fixture or surround surfaces. Do not use abrasive cleansers on any part of the light fixture. No Ammonia Sans Ammoniac Sin Amoniaco No Vinegar Sans Vinaigre Sin Vinagre © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Tenor™ Dimmable Sconce... -
Page 14: Warranty
Robern in writing within one (1) year from the date of delivery. Robern is not responsible for installation costs. The warranty is void in the event the product is damaged in transit, or if damage or failure is caused by abuse, misuse, abnormal usage, faulty installation, damage in an accident, improper maintenance, or any repairs other than those authorized by Robern. - Page 15 Robern. distribuidor o con Robern. Garantie limitée - Durée d'un an Garantía limitada: un año © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com...
- Page 16 Use la tabla a continuación para aprender a leer su número de modelo modèle de votre lampe. Consultez le catalogue de prix Robern pour de luz. Consulte el Libro de precios de Robern para obtener una lista une liste complète des numéros de modèle.
- Page 17 (2) 210-1864 Support / Soporte (2) 211-1464 Monter / Montar © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Applique Dimmable Tenor™ / Aplique Regulable Tenor™...
- Page 18 DESCONECTE LA L'ALIMENTATION AVANT ALIMENTACIÓN ANTES DE L'INSTALLATION LA INSTALACIÓN © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Applique Dimmable Tenor™ / Aplique Regulable Tenor™...
- Page 19 Bande de fourrure/Tira 11" = de enrasado (279mm) 2" = 51mm) © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Applique Dimmable Tenor™ / Aplique Regulable Tenor™...
- Page 20 * Realice las conexiones adecuadas de acuerdo con las instrucciones del fabricante del atenuador © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com...
- Page 21 Câble d'éclairage/Cable de iluminación Exemple de câblage pour un réseau multi-lumières/Ejemplo de cableado para conjunto de luces múltiples © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com...
- Page 22 JLA36xx = 34-7/8" (886mm) JLA40xx = 38-1/4" (971mm) ø1" = (25mm) © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Applique Dimmable Tenor™ / Aplique Regulable Tenor™...
- Page 23 Lighting Cable Lighting Cable © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com Applique Dimmable Tenor™ / Aplique Regulable Tenor™...
- Page 24 6. Guarde los tornillos de las tapas de los extremos y el difusor de vidrio en un lugar seguro. 6. Rangez vos vis d'embouts et votre diffuseur en verre dans un endroit sûr. © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 800.877.2376 www.robern.com...
- Page 25 4. Vuelva a instalar las tapas de los extremos y el difusor de vidrio à 5 à la page 10. invirtiendo los pasos 2 a 5 en la página 10. © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 11 11 800.877.2376...
- Page 26 #8 x 2-1/2" suministrados [203-1001]. 6. L'installation est terminée. 6. La instalación está completa. Field Wire © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 12 12 800.877.2376 www.robern.com...
- Page 27 Sans Ammoniac Sin Amoniaco No Vinegar Sans Vinaigre Sin Vinagre © 2023 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° 209-1451 || 05-OCTOBER-2023 13 13 800.877.2376 www.robern.com Applique Dimmable Tenor™ / Aplique Regulable Tenor™...
- Page 28 Robern por escrito par écrit dans un délai d'un (1) an suivant la date de livraison. Robern en menos de un (1) año a partir de la fecha de entrega. Robern no n'est pas responsable des frais d'installation. La garantie est annulée se hace responsable de los costos de instalación.
