Summary of Contents for Anzzi RH-AZ1076PSS

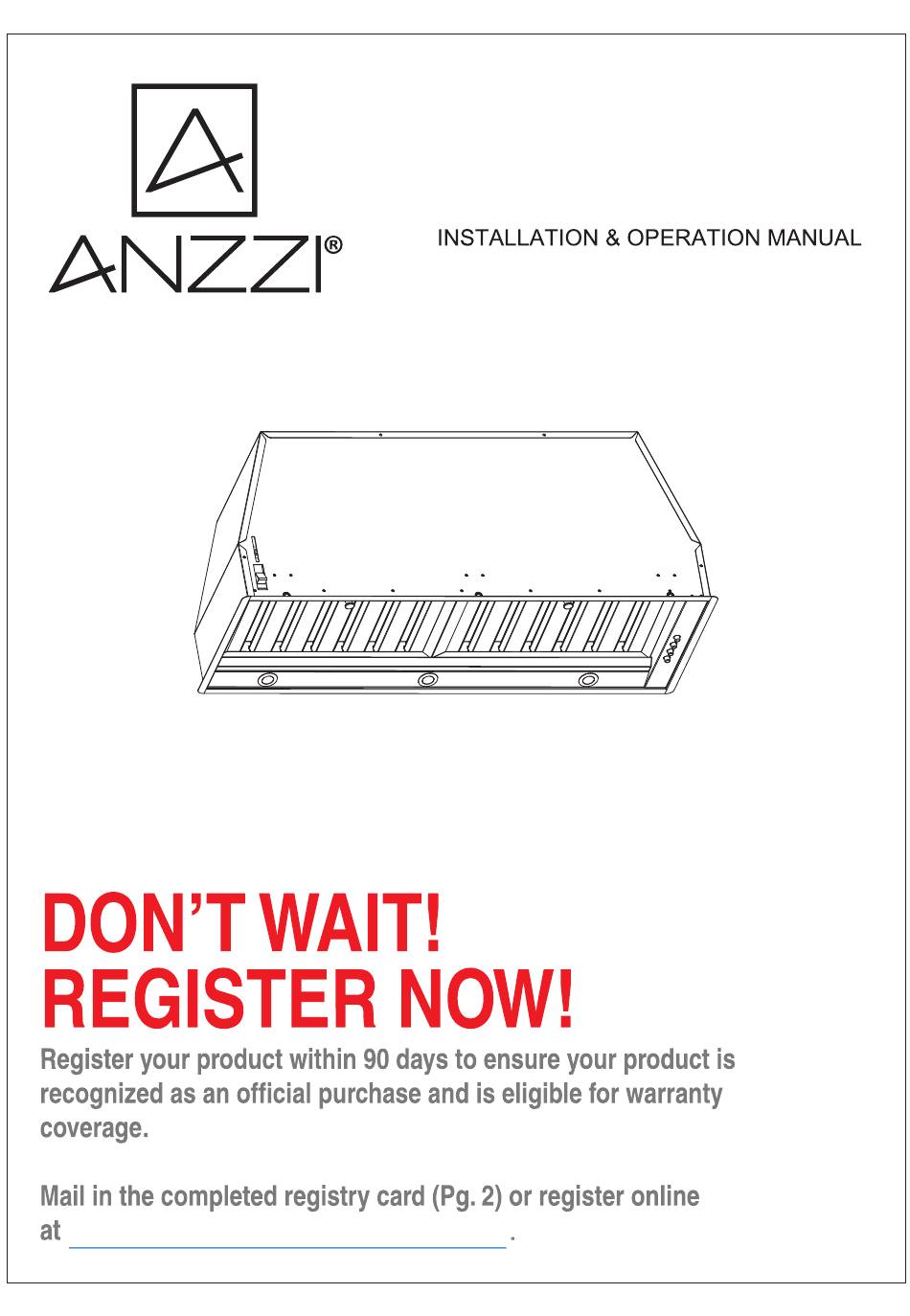

- Page 1 ITEM: RH-AZ1076PSS RH-AZ1085PSS ANZZI RANGE HOOD V1.1 02/19/2024 https://register.anzzihome.com/register/ V 1.1-This version supersedes all previous versions as of 02/19/2024...
- Page 2 IMPORTANT: Warranty will not be recognized unless product is registered. We offer two options to register your product. https://register.anzzihome.com/register/ Register online at or Scan the QR code below. Registering online is fast, secure, and ensures we receive your information. Complete, cut out, and mail the registration card below. Returning this registration card will ensure your product's warranty and allow us to process any warranty claims.
- Page 3 PRODUCT SIZE CHART 5.9" 5.9" (150 mm) (150 mm) RH-AZ1076PSS RH-AZ1085PSS COMPONENTS [ 01 ] [ 02 ] [ 03 ] [ 04 ] [ 05 ] Description Qty. PART Range Hood Metal Adapter Damper Flaps #7 x 0.98 " Screw #4 x 0.31 "...
- Page 4 SAFETY PRECAUTIONS ! WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. Always turn hood ON when cooking at high heat or when flambeing food (i.e.
- Page 5 ! WARNING lmproper grounding can result in a risk of electric This appliance must be grounded. ln the event of shock. Consult a qualified electrician if the an electrical short-circuit, grounding reduces the grounding instructions are not completely risk of electric shock by providing an escape wire understood, or if doubt exists as to whether the for the electric current.
-
Page 6: Tools And Materials
NOTICE Deep fat fryer must be continuously monitored during use: overheated oil can burst into flame. The hood should not be used by children or Always disconnect the power source before persons not instructed in its correct use. working on the range hood. Children don't recognize the risks of electrical appliances. -
Page 7: Installation
NOTE: Fig 1 Ducting is not provided with your ANZZI range hood. It’s recommended to use solid ducting made of galvanized steel or another appropriate rigid metal ducting whenever possible for the lowest noise and highest flow. - Page 8 INSTALLATION Step 2 Cut an 29.1"x10.5" opening for RH-AZ1076PSS, 32.7"x10.5" opening for RH-AZ1085PSS on the top board where the Range Hood [01] is installed as Fig 2.a shows. Make sure the thickness of the top board is no less than 0.8". (Fig 2.a) Remove the baffles from the Range Hood [01] by pushing the handles until the handles’...
- Page 9 INSTALLATION Step 3 ductwork Duct tape Install both Damper Flaps [03] inside the duct outlet, making sure the pins are on top. (Fig 3) Install Metal Adapter [02] to the duct outlet and secure it with #4 x 0.31 " Screws [05] . Secure your ducting connection to the duct outlet using Duct pin on top tape to hold it in place.
- Page 10 INSTALLATION Ductless installation The installation shown above is specifically for a duct connection. For a non-duct installation, please call our customer support line 305-614-4070 to purchase the necessary non-duct recirculation filters. Attach them to the sides of blower by aligning lock slots and rotating until filters lock into place.
-
Page 11: Cleaning And Maintenance
OPERATING INSTRUCTIONS ! WARNING This RANGE HOOD must be properly installed before it is used. Low Speed OPERATION OF CONTROLS Mid Speed Press one of the button to turn the range hood on/off High Speed and adjust the air flow level. Press to turn the LED lights on/off. -
Page 12: Troubleshooting
CLEANING AND MAINTENANCE STAINLESS STEEL CLEANING • Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent. • Always clean in the direction of original polish lines. • Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely. •... -
Page 13: Circuit Diagram
CIRCUIT DIAGRAM BLUE GREEN BLACK GRAY WHITE YELLOW WHITE LAMP BLACK BLACK GREEN WHITE 120 VAC, 60Hz PG.13...
