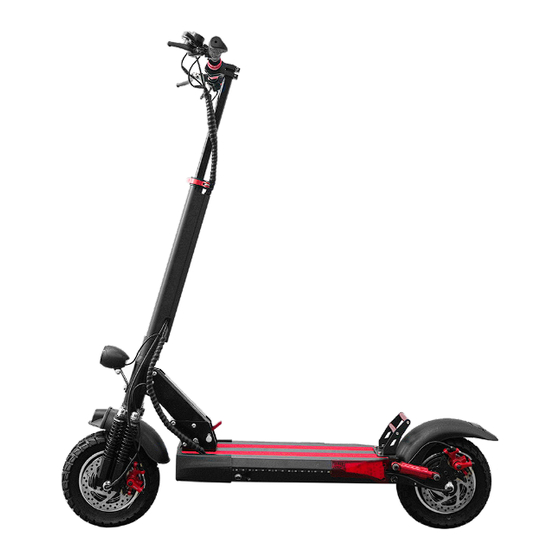

- Page 1 Warning: Please read all safety and assembly instructions in this manual before using. The laws for use in Australian states and territories will vary and need to be adhered to. Always wear safety and protective equipment before riding. DASH 55 E-SCOOTER NAV-ESCOT850...
-
Page 2: Safety Warnings
SAFETY WARNINGS 1. General Safety: • Please note that this electric scooter is not a toy. It is designed for responsible use. • Before using this scooter, ensure to check and adhere to your local laws regarding e-scooter usage and registration in Australia, as regulations may vary across different states/territories. - Page 3 SAFETY WARNINGS continued... • Abide by all traffic laws and signs. • Maintain a safe speed, adapting to traffic and weather conditions. • Use both hands to steer and keep both feet on the scooter. • Parking Safely: • Park the scooter in designated areas to avoid blocking pedestrian paths or doorways.
-
Page 4: What's In The Box
WHAT’S IN THE BOX • Electric Scooter • Power adaptor • User manual • Warranty card... - Page 5 OVERVIEW Accelerator Power button Rear brake lever Gear LCD Display Speed Mode button Range Battery level Handlebar metal valve Front brake lever Light switch Telescopic stem Stem clamp Eco/Turbo switch Single/Dual switch Left-Right Headlight indicator Horn Folding lever Rear fender Dual front Handle suspension...
- Page 6 OVERVIEW continued... Power button: • Press and hold for 3 seconds to turn power on/off. • Press once to switch speed levels. Mode button: • Press to switch gears between L1, L2 and L3. Speed Gear Speed Range 0 - 10 km/h 10 - 15 km/h 15 - 20 km/h Eco/Turbo switch:...
- Page 7 SETTING UP WARNING: This scooter weighs 26 kg. Take it off the box with the help of a second person using correct heavy lifting techniques. When removing, take caution not to damage any external cables. Gently remove the scooter from the box and place it on the ground.
-
Page 8: Charging The Battery
CHARGING THE BATTERY WARNING: • Do not charge indoors. • Power off the scooter before charging. • Only use the supplied charger to prevent damage to the battery and components. • Allow time for the battery to cool after use and before charging. - Page 9 CHARGING continued... Charging tips: • Charge the battery after each use to avoid damage and maintain performance for longer. • Charge the scooter at storage temperature or in a moderate environment to ensure battery performance and lifespan. Avoid extreme hot or cold temperatures. •...
- Page 10 CHARGING continued... How to charge: 1. Open the charge port cover. 2. Insert the charge plug. The indicator on the charger will light up green. 3. Plug the AC plug to a wall outlet; indicator will turn red. Once the battery is full charged, the light will turn green.
- Page 11 OPERATIONS Adjust the handlebar height: 1. Pull out the stem clamp to loosen the lock. 2. Adjust the height of the telescopic stem. 3. Push in the stem clamp to lock. Riding: 1. Press and hold the Power button for 3 seconds to turn on the scooter and check the battery level.
- Page 12 OPERATIONS continued... WARNING: • Do not put your foot on the folding lever while riding. • Do not use the rear fender as foot brake. • Do not press the throttle when walking with the scooter. • Avoid contacting obstacles with the tyre/wheel. •...
- Page 13 OPERATIONS continued... Tips for good riding habits: • Riding at a moderate speed can maximize range and conserve energy. • Riding aggressively reduces scooter range and efficiency, whereas smoother and more controlled riding helps conserve battery power. • Riding on flat, smooth surfaces uses less energy than hilly or rough terrain.
- Page 14 OPERATIONS continued... Folding/Unfolding: 1. Make sure the scooter is switched off. 2. To fold the device, hold the stem, pull the orange pin underneath the folding lever, and turn the pin clockwise to allow the folding lever to be pushed down. 3.
- Page 15 OPERATIONS continued... Unlock the maximum speed limit: WARNING: By default, the maximum speed is set to 20 km/h. Unlocking the maximum speed comes with inherent risks and potential consequences, so it’s important to be aware of the following before making any changes: •...
- Page 16 OPERATIONS continued... If you choose to proceed with unlocking your electric scooter’s maximum speed, please do so responsibly and at your own risk. Be fully aware of the potential dangers and ensure you are complying with all applicable laws and regulations.
-
Page 17: Maintenance
MAINTENANCE • Ensure the scooter is turned off before cleaning. • Do not use a pressure washer on any part of the scooter. • Wipe the scooter with a damp cloth to remove dirt and debris. Cleaning the battery helps maintain heat dissipation and prevents corrosion. - Page 18 E-SCOOTER GUIDELINES - BY STATE Common riding rules for all states: • Single person use, have 1 or more wheels • Max weight 60kg unladen(except for TAS 45kg, WA 25kg) • AS approved helmet • 16 years + (except for SA, NT18+) •...
-
Page 19: Specifications
SPECIFICATIONS Item Parameter Product Unfolded (LxWxH) 125*60*117 cm Folded (LxWxH) 122*43*25 cm Weight (Net) 26 kg Rider Max. Payload 120 kg Required height 1.5 - 2 m Machine Drive System Front and rear motors Max. Speed 20 km/h Typical Range 50-55 km Operating -10°... - Page 20 Thank you for your purchase! Laser Corporation is 100% Australian owned & operated. To get the most out of your product please read the user manual carefully and keep for future use. For specific information relating to your product such as Spare Parts, FAQs, Warranty claims, and more, please scan the following QR code:...
