Summary of Contents for Scanstrut S721

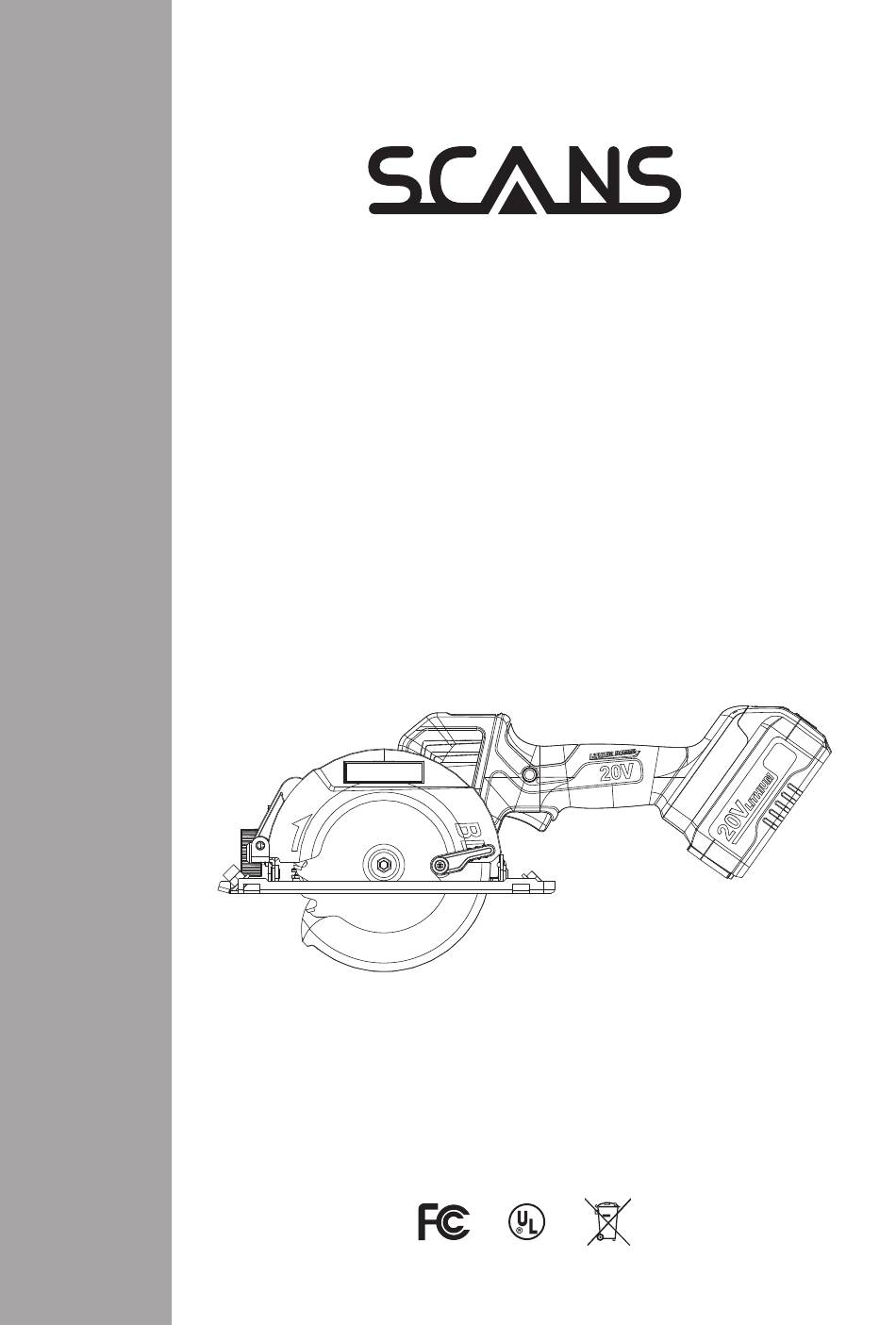

- Page 1 CORDLESS CIRCULAR SAW S721 User Manual Web：www.scans-tools .com...
-
Page 2: Table Of Contents
Contents Before Use ..........................1 About the Product ......................... 2 1. Product overview ......................2 1.1 Main parts ......................3 1.2 Technical data ...................... 3 2. Operation ........................4 General Power Tool Safety Warnings ................8 1. Power tool safety warning ..................8 2. -
Page 3: Before Use
Before Use For safe and reliable operation and optimum performance, this appliance must be operated, installed and maintained in accordance with these instructions. Please read these instructions thoroughly and gain a full understanding of the requirements, features and operation of your new appliance before attempting installation and operation. -
Page 4: About The Product
About the Product 1. Product overview... -
Page 5: Main Parts
Spindle lock button Depth adjustment lever Blade bolt Outer flange Saw blade Inner flange Battery pack Not all the accessories illustrated or described are included in standard delivery. 1.2 Specification Model S721 S721-1 Voltage MAX. MAX. No-load speed 7000rpm 7000rpm Blade 145mm 145mm Inner Dia. - Page 6 2. Operating NOTE: Before using the tool, read 100% the instruction book carefully. Warning: Do not release the handle until the saw blade comes to complete stop and do not touch saw blade while the saw blade is running. Intended use: The tool is intended for ripping and cross-cutting wood and other materials in straight cutting lines, while resting...
- Page 7 Assemble and disassemble saw blade (see Fig. B) (1) Note: To lock or loosen the saw blade bolt, press the spindle locking button. (2) Warning: Be sure to disconnect the power supply before replacing the saw blade! Safety switch and on / off trigger (see Fig.
- Page 8 (5) Adjust the cutting depth (see Fig. E1, E2)
- Page 9 (6) Adjust the cutting angle (see Fig F) Note: The cutting line of the saw blade is aligned with the 45 ° cutting mark. (7) Open hole on the wood board (see Fig. G1, G2)
-
Page 10: Power Tool Safety Warning
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tools. - Page 11 Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
-
Page 12: Machine-Specific Safety Warnings
2. Machine-specific safety warnings A workpiece clamped with clamping devices or in a vice is held more securely than by hand. Hold the machine only by the insulated gripping surfaces, when performing an operation where the cutting tool may run into hidden wiring. Contact with a "live"... -
Page 13: Precautions For Use
Precautions for Use If your power tool becomes too hot, please run your circular saw no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Protect saw blades against impact and shock. Cutting with extreme force can significantly reduces the performance capability of the tool and reduces the service life of the saw blade. - Page 14 Symbols Read the manual. Warning In-door, don't get drench in the rain. Do dispose in water. Do dispose in fire. Wear protective face mask. Wear safety glasses. Wear ear protector. Battery contains lithium. Do not dispose battery into household waste. Charge the battery under the environment of temperature from 32℉...
-
Page 15: Maintain Tools With Care
Maintain Tools with Care Remove the battery before carrying out any adjustment, servicing or maintenance. Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and if damaged, have repaired by authorized service facility. Your power tool requires no additional lubrication or maintenance. -
Page 16: Troubleshooting
TROUBLESHOOTING 1, Tool will not start when operating the on/off trigger. a) Battery pack not plugged in. Check to make sure battery pack is connected well into a working outlet. b) Battery pack damage. Remove the battery pack and replace it by qualified repairing professional. 2, Cutting depth is less than that is set a) Sawdust accumulated at the rear of the base. -
Page 17: Environment Protection
Environment Protection Disposal Collect the damaged machine and parts, and packaging materials for recycle. Plastic parts are marked for the convenience of recollection. -
Page 18: About The Charger
About the Charger 1. Charger overview 1.1 Main parts ① Charger ② Charger Light 1.2 Specification Rated input voltage 100-240V~50/60Hz Output voltage Charge current Rated power lnput Battery Li-Ion Protection level Weight 0.3kg It is better to purchase spare parts from the same power tool shop. Check the attached package to get more application instruction and help. -
Page 19: Charger Safety Warnings
2. Charger safety warnings Symbols General Safety Warnings WARNING! Read the manual. Read all safety warnings and all instructions. Failure follow warnings and instructions may result in Warning electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. -
Page 20: Operation
3. Operation be damaged and needs to be tested for repair. Attention: Read the manual carefully before using the tool. Indicator status light on/light off/flashing description 1. Charge Warning: The charger and battery Red light —— charging pack are designed to fit together. Do not use other chargers to charge the Red light flashing battery pack or use this charger to charge... - Page 21 Note: a successful repaired battery pack before charging or cleaning. can continue to be used, but it is not expected to perform as well as a normal 4. Remove/install the battery pack battery pack. Find the battery pack lock buttons on both sides of the battery pack.
-
Page 22: Hazardous Substance
Hazardous Substance Hazardous Substance Part Name Cr(VI) PBDE Housing Switch Charger Battery Motor Copper Costing Part Drill Head Chuck / Other Fixer Other Parts : The content of the hazardous substance in all materials of the component is below the limit specified by GB/T 26572 . : The hazardous substance, at least in a material of the component, exceeds the limit specified by GB/T 26572. -
Page 23: Contact Us
Contact Us If you encounter any problems when using our products, please feel free to contact us through the following methods or scan the QR code to get a quick response and a satisfactory solution. Amazon Platform: “Contact Seller” Official Website: https://www.scans-tools.com/ Email Address: scans@afterservice.vip Get 24/7 Customer Service &... - Page 24 Suzhou ZhaoCheng lithium Technology Co.,Ltd. Adress: No.59,Jinsigang Road,wuzhong district, Suzhou City, Jiangsu Province Zip code: 215124 Tel: 400-606-1889 Fax: 0512-66058867 Web: www.scans-tools.com...
