Ronix 8630 User Manual

Cordless led work light 20v
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CORDLESS LED WORK LIGHT 20V
8630
www.ronixtools.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8630 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ronix 8630

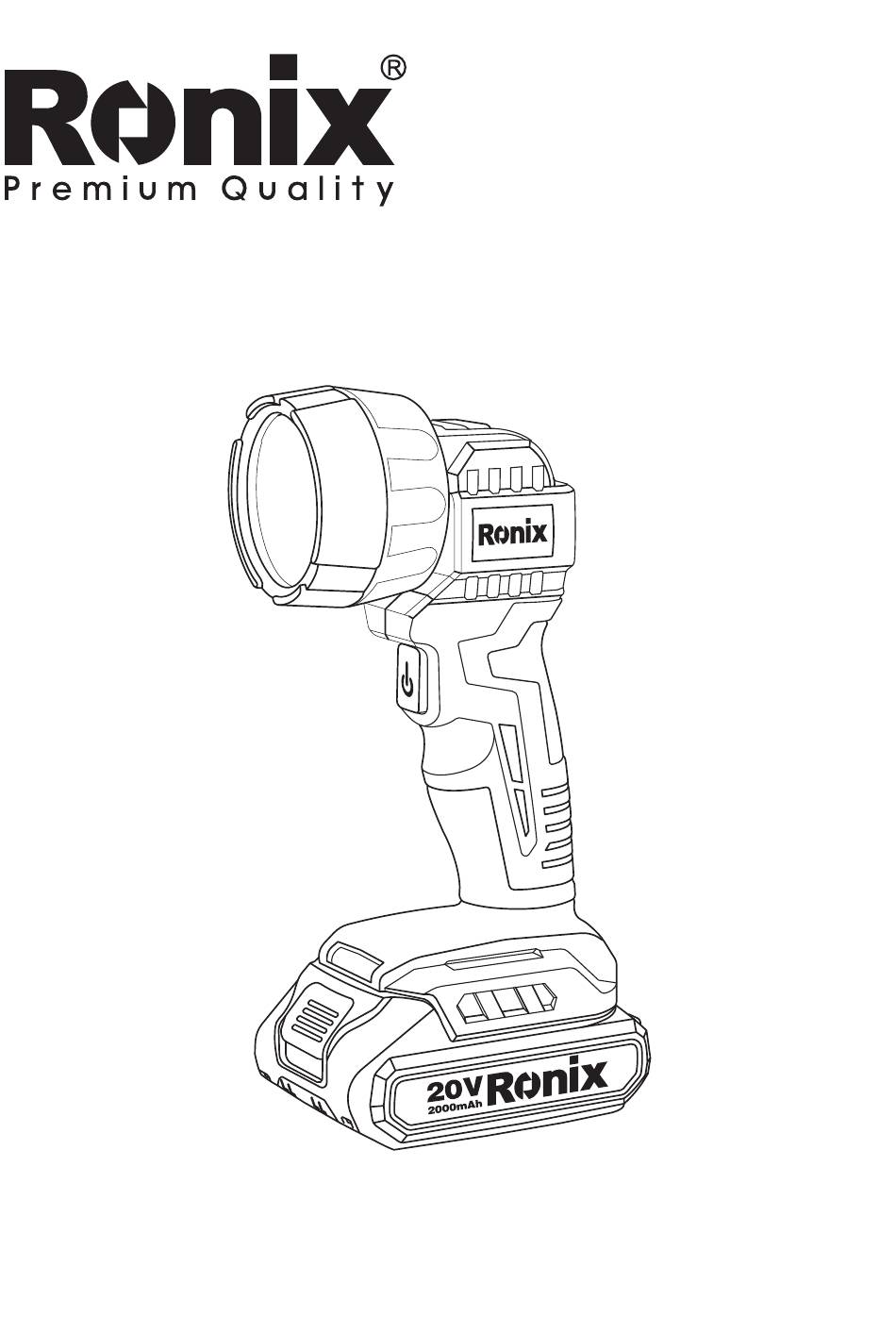

  • Page 1 CORDLESS LED WORK LIGHT 20V 8630 www.ronixtools.com...

  • Page 3: Technical Specification

    TECHNICAL SPECIFICATION 8630 Model Light Type High Brightness Led Lamp Power Battery 2000mAh/20V Flux 250lm Illumination Range >100m 6500K Rotation Angle 90° Runtime Charging Time 60 min Degree Of Protection IP54 Weight 0.8Kg Dimension 207.3x119.32x73.5mm 1pc 2.0Ah Battery Include 1pc 2.0A Charger...

  • Page 4: Part List

    PART LIST ON/OFF Switch Soft Grip Rubber Handle Release Button SYMBOLS The following show the symbols used for the equipment. Be sure that you understand their meaning before use. Read instruction manual. Do not touch the bulb which is hot in use or immediately after CORDLESS LED WORK LIGHT 20V...

  • Page 5: Important Safety Instructions

    Putting on light. You may get burnt. IMPORTANT SAFETY INSTRUCTIONS WARNING! When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following. READ ALL INSTRUCTIONS 1- Read this instruction manual and the charger instruction manual carefully before use.

  • Page 6: Installing Or Removing Battery Cartridge

    cartridge from the tool. 9- Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F). 10- Do not give the tool a shock by dropping, striking, etc. 11- Do not expose the light to eyes continuously. It may hurt them. 12- Do not cover or clog the lit tool with cloth or carton, etc.
  • Page 7 Push the switch to light up the bulb. To turn off, push the switch again. The following tables indicate the operating time on a single charge. Model Voltage Battery Operating Capacity Time 8630 2000mAh Approx 720 min Fig.2 USER MANUAL...

  • Page 8: Maintenance

    HEAD ANGLE (FIG. 2) The head angle can be adjusted in four stages. Adjust as desired. ASSEMBLY REPLACING BULB (FIG. 3 & 4) CAUTION! The bulb is very hot immediately after operation. Wait until the bulb cools off before attempting to replace it. First, turn the ring counterclockwise and remove the reflector.
