Summary of Contents for Dignity Lifts XL1

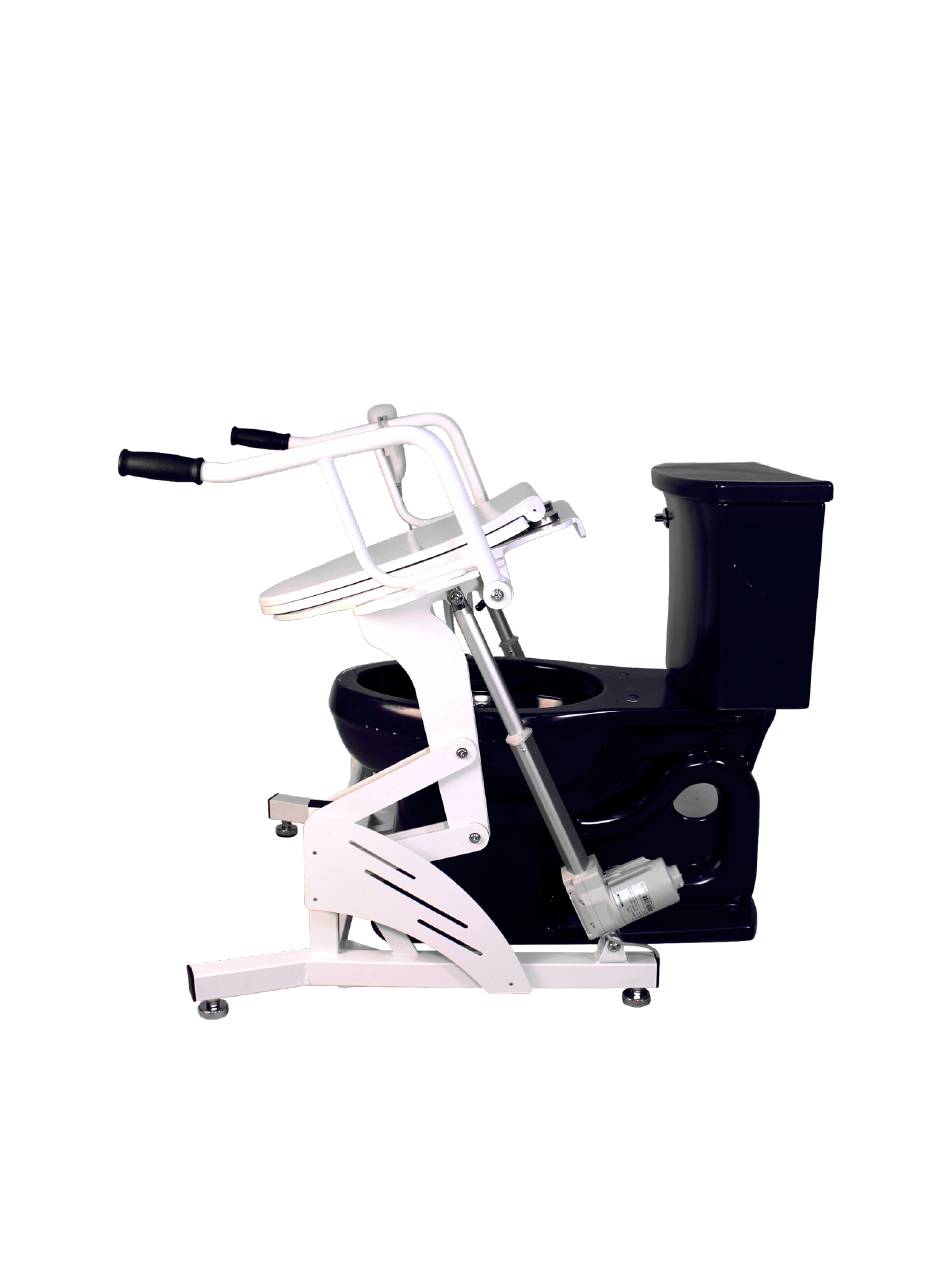

- Page 1 Dignity Lifts XL1 Bariatric Toilet Lift Owner’s Manual DignityLifts.com – (248)-602-0932...
-
Page 2: Product Packing
Thank You Thank you for purchasing a Dignity Lifts toilet lift. Please read this manual carefully for proper installation. Also, you can find installation videos for all of our products at DignityLifts.com. Often, the videos describe things more completely than this manual has space for, so we suggest that if you get stuck, to watch our installation videos. -
Page 4: Safety Warnings
Toilet Lifts are best for people who can stand, but lack the ability to stand up from a low squat. Dignity Lifts manufacturer products that help them get back to their feet safely. If the user of this lift cannot stand on their own, please consult with an Occupational Therapist before proceeding. - Page 5 Product Dimensions (metric in mm)
-
Page 6: Technical Specifications
Technical Specifications Product Name： Bariatric Lift XL1 Manufacturer： Dignity Lifts Size： 28” Long x 30” Wide x 30” Tall Product Surface： Powder Coated Steel Power： 120V AC Drive method： Dual Electric Actuators Load Capacity： 650 pounds Lifting Angle： 0~22° Net Weight： 70 lbs., 83 lbs. in box Power：... - Page 7 Installation Guide 1.Feet installation First, take the toilet chair out of the carton and prepare 4 Install the four feet in the holes on feet. the bottom of the lift. Adjust the height of the feet to position the lift just above the Screw-in the feet.
- Page 8 Installation Guide 2、 Armrest Installation（一） Install the arm rests / hand rails Install the white plastic washer. Install handrails. (note: the left and Install handrails.(note: the left and right sides are different) right sides are different)
- Page 9 Fast Installation Guide 3、Armrest Installation （二） Position the steel washer on the bolt. Iron Gasket Then put the plastic washer on the bolt. (The stepped side of the plastic gasket faces away from the head of the bolt) Install the armrest with the limiting knub below the lift’s deck and the white rubber bumper above the deck.
- Page 10 Installation Guide 4、Toilet seat cover If the user is below 450 lbs. you can install the plastic toilet seat. This is a “top mount” toilet seat. If the user is above 450 lbs, skip this step and only use the metal deck of the lift.
-
Page 11: How To Use
How to Use First：Connect the power cord to a power outlet Second ： Use of manual controller The user or their aid can raise and lower the lift with the up and down buttons. The lift will stop if the button is not held down. The lift will stop when it reaches the top or bottom of its range. - Page 12 Parts Diagram Questions? Tech Support: 248-602-0932...
