Dignity Lifts WL1 Owner's Manual

Bidet lift
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Dignity Lifts - Bidet Lift WL1
Owner's Manual / Installation Guide Version 1.0
www.DignityLifts.com
Ph: 1-248-602-0932
Model：WL1-2.0

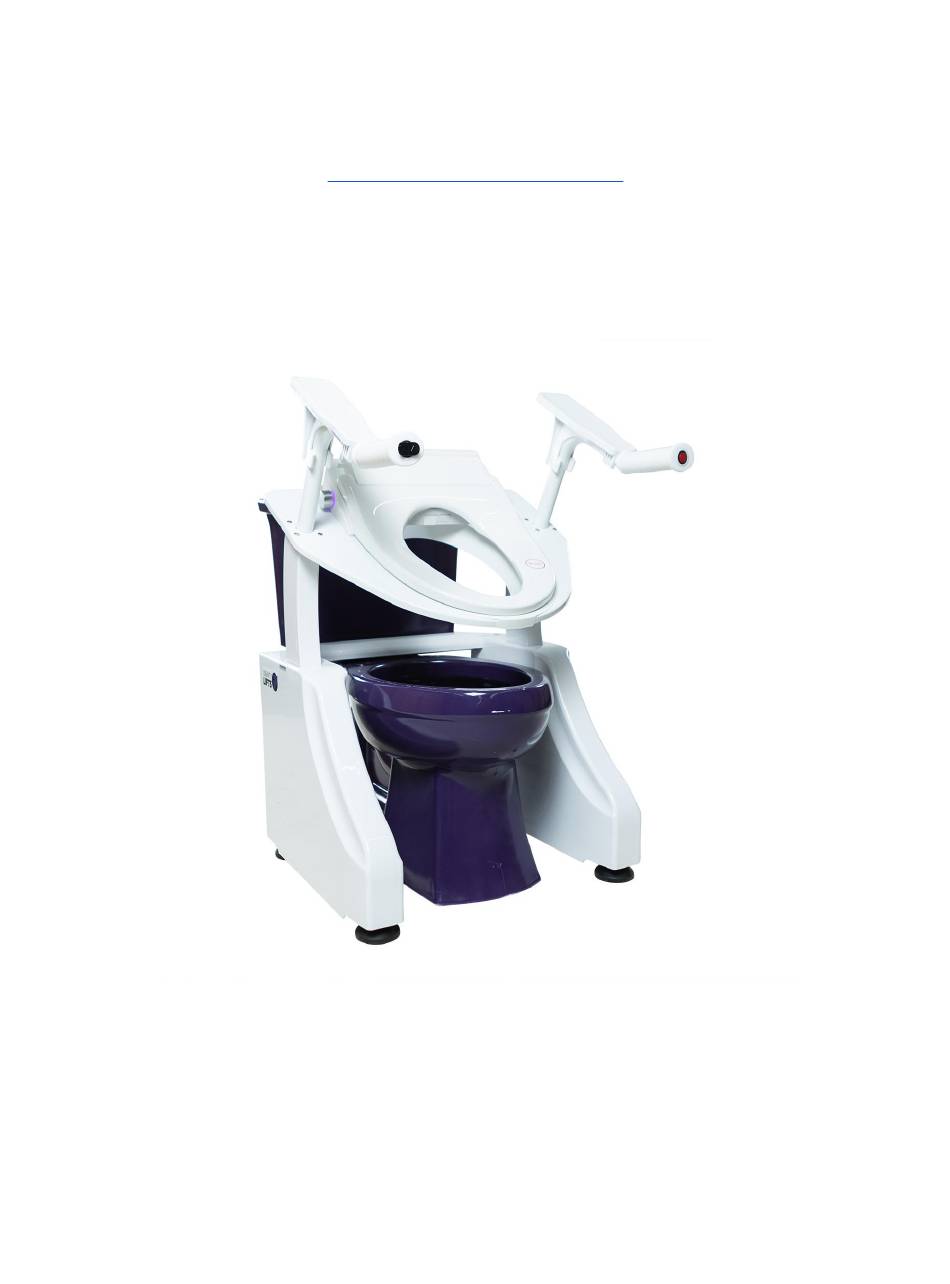

The WL1 toilet lift includes a lifting mechanism, a bidet with adjustable
temperature, spray location, and pressure. It also features a blow dryer, a
nightlight, and a warmed seat.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dignity Lifts WL1

  • Page 1 Owner’s Manual / Installation Guide Version 1.0 www.DignityLifts.com Ph: 1-248-602-0932 Model：WL1-2.0 The WL1 toilet lift includes a lifting mechanism, a bidet with adjustable temperature, spray location, and pressure. It also features a blow dryer, a nightlight, and a warmed seat.

  • Page 2: Table Of Contents

    Table of Contents Packaging and components Handlebar installation Remote control holster mounting Remove your toilet seat Adjust the supporting feet Attach the lift to the toilet Plumb the bidet How to use the bidet control knob How to use the remote for more features 10.

  • Page 3: Packaging And Components

    1. Packaging and components Open the package, check that all parts are present. If any parts are missing or damaged, please contact Dignity Lifts at DignityLifts.com or 248-602-0932. The package contains: Toilet lift body with attached bidet Right handlebar (has the lift switch)

  • Page 4: Handlebar Installation

    2 Handlebar installation ● Connect the electrical connectors first. The handlebar with the lift switch is positioned on the toilet user’s right-hand side, the other handrail is on the left. ● Connect the handrail to the post on the lift base. ●...

  • Page 5: Adjust The Supporting Feet

    5 Adjust the support feet The goal is to adjust the height of the lift so the seat stops just above the rim of your toilet. Your Dignity Lift does not need to rest on your toilet, it rests on its own four feet for extra stability. ●...
  • Page 6 6 Attaching your lift to the toilet Your lift is capable of supporting the weight of its user alone. It only attaches to the toilet so that the lift doesn’t get out of position. To position the lift to the toilet we use expanding rubber pins, you will install them in these steps.

  • Page 8: Plumb The Bidet

    7 Plumbing The Bidet The Bidet attaches to the water supply line that your toilet uses. Three parts are included to make this possible. A “Tee”, a water inlet hose, and the bidet lift. Installing this takes a moderate level of plumbing skill. ●...

  • Page 9: How To Use The Bidet Control Knob

    8 How To Use The Bidet Control Knob The control knob allows everyone fast access to the most needed hygiene features. It is easy to access and easy to use. Other, more advanced features and adjustments are available through the remote control. Note: the bidet will only work if a person is sitting on the seat.
  • Page 10 9 Instructions for using the remote control Stop Switch Tap the "Stop" button to stop all bidet functions. Power Button Push the “Power” button to power off the bidet. Even if the bidet is powered off, the lift and alarm will still work. Rear Wash Tap the "Rear"...
  • Page 11 While the bidet is washing, lightly press the "+" or "-" key to adjust the nozzle water pressure. While the blow dryer is running, lightly press the "+" or "-" button to adjust the drying air temperature. Warm water adjustment Tap the "Water Temp"...

  • Page 12: Cleaning And Maintenance

    10 Cleaning and maintenance 10.1 Cleaning your bidet lift Pull out the power plug first, and then clean the equipment with a mild, non-abrasive cleaner. If multiple people use the equipment, it is recommended to disinfect the equipment after each use; The equipment has a waterproof rating of IPX4, so you can use spray cleaners but you cannot immerse the entire lift in water.

  • Page 13: Notes And Precautions

    11 Notes and Precautions ● This product is only suitable for AC 120V / 60Hz power supply. ● Your electrical outlet should be permanently installed inside your bathroom, at least 8 inches above from the ground, and be a GFI outlet.

  • Page 14: Technical Specifications

    12 Technical Specifications Item Specification Rated Voltage and frequency AV120V 60Hz Seat lifting machine power 130W waterproof level IPX4 Use ambient temperature 35-120°F Water supply temperature 35-120°F Water supply pressure 0.07 - 0.7MPa Hot water temperature 90-104°F Hot water heating power 1250W Heating seat surface temperature 97-108°F Seat heating power 50W Warm air temperature 100-120°F...

  • Page 15: Troubleshooting

    Short circuit Unplug the lift and try the breaker circuit with another device. If the circuit is working properly, contact Dignity Lifts tech support. Water comes out of the bidet Water pressure is too high. Tighten the water supply even when it is turned off.
  • Page 16 You must register your warranty within 90 days of your purchase. Warranty: The Dignity Lifts Warranty covers 3 years of parts and 90 days of parts and service. Details of the warranty are as follows. ● During the first 90 days of your ownership, Dignity Lifts will work with you and if necessary and possible a local appliance repair person to keep your Dignity Lift working properly.

This manual is also suitable for:

Wl1-2.0
