EVPoint EV22 Series User Manual

Ev smart charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

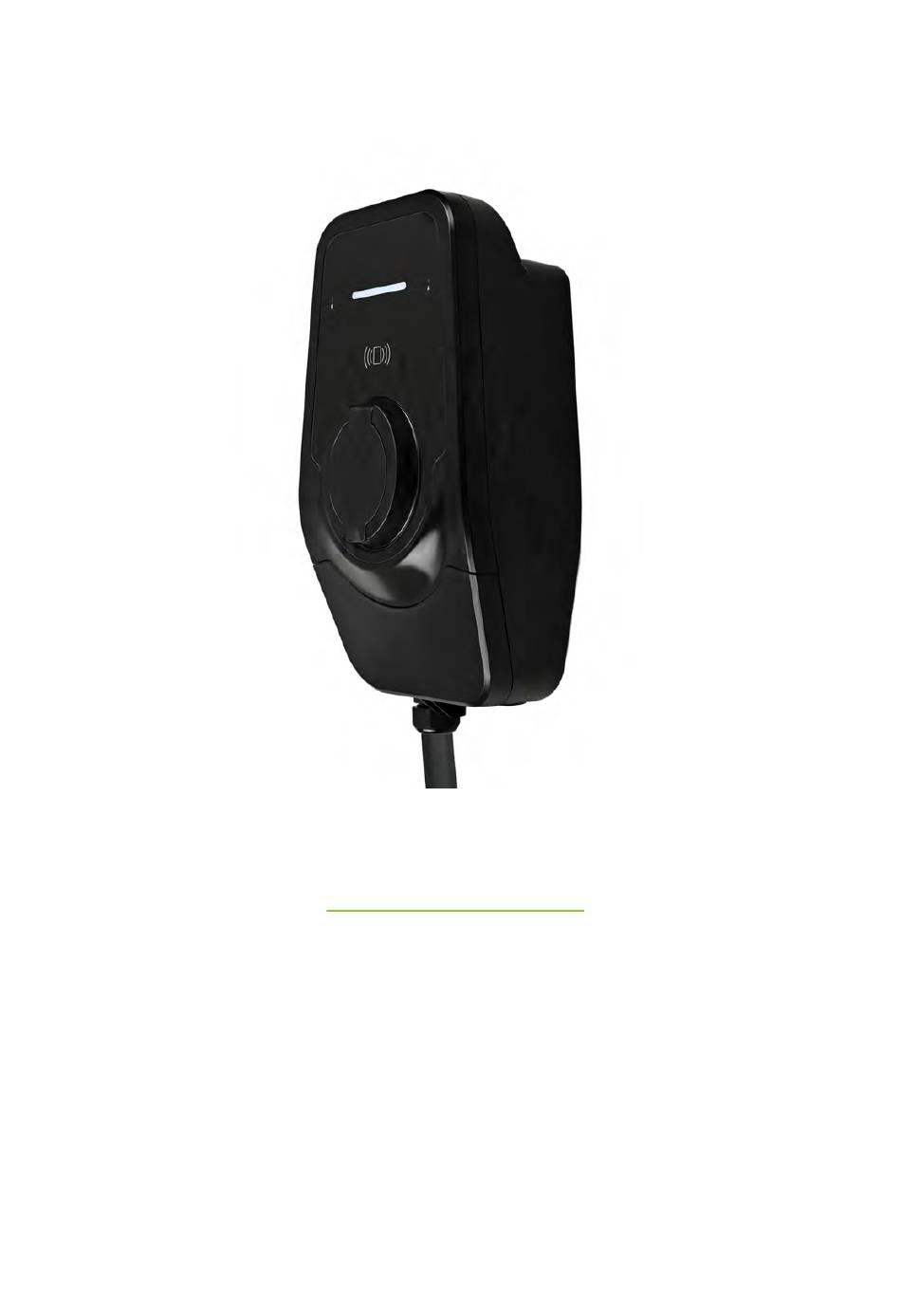

EV22 SERIES
EV Smart Charger - User Manual
page 1 of 49

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV22 Series and is the answer not in the manual?

Questions and answers

Related Manuals for EVPoint EV22 Series

Summary of Contents for EVPoint EV22 Series

  • Page 1 EV22 SERIES EV Smart Charger - User Manual page 1 of 49...

  • Page 2: Overview

    OVERVIEW The charger range are SMART AC chargers designed for residential and commercial installations (e.g., fleet buyers) that are available in single or three-phase options. They come ready out of the box and support a variety of additional features, such as LCD displays, sockets with actuator locks or tethered charging cables.

  • Page 3: Table Of Contents

    Table of Contents OVERVIEW ............................... 2 PRODUCT HIGHLIGHTS ..........................6 FEATURES AND SPECIFICATIONS ......................6 TECHNICAL SPECIFICATION ........................8 charger Wall Mounting Plate ........................10 What’s in the box ............................10 INSTALLATION GUIDE ..........................11 Before installation: Pre-requisites ....................11 1.2. Tools and materials ........................12 1.2.3.
  • Page 4 Active and Reactive energy pulse calibration outputs RGB LED bar NFC card reader UTP CAT5 power input Ethernet input cable gland Socket model technical drawing with dimensions. All units in mm. Grey area denotes the service cover. This acts as a modular design allowing for quick access to the power and data cable section without accessing the rest of the unit.
  • Page 5 power input output to EV cable gland cable gland Tethered model technical drawing with dimensions. All units in mm. Grey area denotes the service cover. Note the absence of a socket and the presence of a second power port for the tethered cable. page 5 of 49...

  • Page 6: Product Highlights

    PRODUCT HIGHLIGHTS • Easy to install and service • Multiple connectivity options • Compact and modular design allows for separate power/data connections • NFC-compatible access control • Full control with the Smart App (via local Wi-Fi) • BLE functionality (Wi-Fi access point provisioning function via mobile app) •...
  • Page 7 Access control As the charger range is intended for both residential and public applications, it has a number of access control functionalities, such as NFC (“smart card”) authorization, mobile app authorization, and full control by the OCPP server backend. Thus, a user can configure the access to their charger(s) from basic unrestricted, to higher levels of control, based on their application.

  • Page 8: Technical Specification

    TECHNICAL SPECIFICATION Main Features Power 7.4kW max 22kW max 230VAC, 50 Hz, 3 x 230 / 400VAC, 50 Hz, 3- Voltage 1-Phase Phase Current 1 x 32A max 3 x 32A max Power Level 6-32A (software control) Control Socket Type IEC 62196 Type 2 Standby <8 VA, 5.2 W...
  • Page 9 Reader Integrated NFC reader, 13.56 MHz, MIFARE compatible Authorization/ Status Android & IOS Indicator RGB horizontal bar light (9 states) Metering Internal: corresponds to accuracy class 2% External current monitoring via dedicated CT clamp device. CT Clamp Wired communication via RS-485 up to 30m. Measurement External MID Yes, on request.

  • Page 10: Charger Wall Mounting Plate

    charger Wall Mounting Plate punch-out opening for wall-side wiring Back of unit Unit resting on mounting plate (yellow) What’s in the box Quantity No Item charger 3(S/T)LC Rev 1.0 with installed wall mounting bracket NFC MIFARE card with printed CP credentials Cable gland AIO-CSM-30 Kinglok grommet –...

  • Page 11: Installation Guide

    INSTALLATION GUIDE 1. Before installation: Pre-requisites 1.1. Safety and precautions Intended use: This product is solely designed and approved for use as an Electric Vehicle Supply Equipment (EVSE), used to supply charging current to EVs and PHEVs that do not require ventilation.

  • Page 12: Tools And Materials

    1.2. Tools and materials 1.2.1. Tools • A set of Torx, Phillips, and Flathead screwdrivers with insulated handles, set of hex keys • Torque limited drill or cordless screwdriver, drill bits for masonry (8 mm) • Hammer drill and bits •...

  • Page 13: Electrical Wiring And Breaker Requirements

    1.2.4. Electrical wiring and breaker requirements 1.2.4.1. Calculating circuit voltage drop and sizing circuit wiring and breaker Installed length, m Voltage drop in copper conductor at 40A, VAC Area, mm 10.3 12.0 Note: Shaded areas indicate excessive voltage drop *recommended minimal conductor area for 16A charging ** recommended minimal conductor area for 32A charging Installed length, m Voltage drop in aluminium conductor at 40A, VAC...
  • Page 14 The tables above can be used to determine the approximate voltage drop at peak currents per phase. The installed length is the running distance from the source panel to the charger (the table takes into account resistance in both legs of the circuit). For single-phase chargers, the following table can be used to determine the maximum power an existing circuit can provide, if there is no provision for a new installation: Derating guideline for single-phase charger...
  • Page 15 Test load power, W 1000 2000 3000 4000 1000W 2000W 3000W 4000W Test load voltage drop, VAC Calculation of voltage drop at 40A based on test load of known power In circumstances where the supply installation is inadequate for the full charging output of the charger, refer to the derating guideline and set the maximum output current accordingly when comissioning a single phase charger.

  • Page 16: Installation: Mechanical

    2. Installation: Mechanical 2.1. Installing the mounting plate The charger comes with a mounting accessory to facilitate installation and servicing. The charger locks into the mounting bracket and is secured with a single screw, located under the service hatch. The bracket is wall-mounted via four anchor bolts provided in the kit. A drill template is available on the back of the quick installation manual, which can be used to correctly locate the holes for the anchoring bolts.

  • Page 17: Installation: Electrical

    3. Installation: Electrical Overall system wiring diagram: 3-phase with CT clamps Mounting and orientation of current transformers (CTs) on the incoming supply cables of the electrical mains installation. Observe arrow directions and line markings! page 17 of 49...
  • Page 18 Overall system wiring diagram: 1-phase with CT clamp Mounting and orientation of current transformers (CTs) on the incoming supply cables of the electrical mains installation. Observe arrow directions and line markings! page 18 of 49...
  • Page 19 Overall system wiring diagram: 1-phase with MID meter Wiring diagram for the EASTRON SDM230 Modbus V2 Observe the direction of power line wiring and the pinout for the RS-485 communication bus (G=GND). Improper connection may result in serious damage and/or injury hazards! page 19 of 49...
  • Page 20 Overall system wiring diagram: 3-phase with MID meter Wiring diagram for the EASTRON SDM630 Modbus V2 Observe the direction of power line wiring and the pinout for the RS-485 communication bus (G=GND). Improper connection may result in serious damage and/or injury hazards! page 20 of 49...
  • Page 21 Combined Ethernet and RS-485 cable pinout for CT clamp connection In installations without RS-485 peripherals (CT clamps or energy meter) and with Ethernet connectivity, a standard Ethernet patch cable can be used to connect the charger and a router. For installations with 485 communication, the wiring connects to the charger via the same RJ- 45 port on the device by means of 4 unoccupied connections (2 twisted pairs) on the connector.

  • Page 22: Charger Wiring Schemes

    3.1. charger wiring scheme The power and signal conductors can be connected to the device after the charger body has been mounted to the wall and the cable glands have been installed. The conductors are pulled through the gland with enough slack to make the connections without strain. The charger uses lever terminal blocks for all connections except for the output PE terminal for tethered models, which requires a round cable terminal lug.

  • Page 23: Tethered

    • Earth sense connection (for diagnostic use only, not configured in installations) 3.1.2. Tethered RJ-45 Communication port SIM Card Cradle Earth Sense Connection Tethered charger models need the following setup: • Communication cable (Ethernet and/or RS-485 connection) – to RJ-45 Port •...

  • Page 24: Installation: Rs-485 Peripherals (Ct Clamp/E-Meter)

    3.2. Installation: RS-485 peripherals (CT clamp/E-meter) The charger series 3SLC/3TLC support peripheral devices on an RS-485 bus (wired twisted pair connection extending up to 30m). Currently supported devices are CT clamps and Eastron MID meters ("Modbus V2" series, #230 for single-phase and #630 for three-phase). The charger supports one device on the RS-485 bus per unit.

  • Page 25: Installation: Commissioning

    Installation: Commissioning 3.3. Only commission the charger after all electrical and mechanical prerequisites have been fulfilled. Before switching on the power to the charger circuit, ensure that all electrical connections have been made securely and that no conductors remain exposed or touching. Ensure that the two sections of the device have been firmly secured with the mounting bolts.

  • Page 26: Accessing The Web Client And Configuration

    3.3.2. Accessing the web client (web UI) and configuration The charger has a backend that is accessible via a web interface. The web client can be accessed from any HTML browser on a Wi-Fi enabled device, such as a smartphone, tablet, or laptop.
  • Page 27 This will afford the main page of the EVSE web client - Device Status and Control – and a navigation bar on the left: All pages feature “Restart” and “Refresh” buttons to power cycle the device or request the page again “Device status”...
  • Page 28 Network Configuration has important settings that are to be configured when deploying the charger, such as the internet network interface and possible fallback (secondary) interfaces: Enable – the charger is available for plug-in charging when offline without authorization by card or app Disable –...
  • Page 29 Further configuration: All settings after the "Network Configuration" tab in the web UI require an administrator password to be accessed and set. The "admin" password can be found on the factory NFC card provided with the charger. The devices comes preconfigured with default settings and parameters, some of which may have to be modified based on user requirements and installation specifics.
  • Page 30 Firmware update: manually enter an update address and perform an upgrade (see below) Return the charger’s firmware to factory mode Change the Scarab's network credentials (web client access) You can change the “admin” password form here The “Update” section allows the configurator to set a firmware update via an Internet address pointing to a firmware update package.
  • Page 31 To add or remove NFC access cards, open the “NFC Configuration” tab. Here, the charger can be set into a “Learn” mode via the “ADD NEW” button, whereby tapping an access card on the reader section of the device will cause it to be entered and memorized. Listed cards can be deleted from the "REMOVE"...
  • Page 32 The charger comes with a preconfigured backend server address and UID, which can be found and, if necessary, changed, in the “Backend Configuration” tab: Current server address and UID UID and server web address may be changed in accordance to the OCPP provider Note: changing the UID does NOT change the device serial #, as that is hardwired In the "Date &...
  • Page 33 All charger models with socket connections come equipped with an electromechanical lock mechanism and the "Locker Configuration" tab is available for the lock status and settings: Diagnostic locker information (internal use) Used to manually lock or unlock the connector (e.g., to secure a charging cable) Used to disable the lock feature for testing or other purposes...
  • Page 34 To set-up RS-485 peripherals, such as CT clamps or energy meters, and to correctly set the SCARAB's power configuration use the "Configuration of external devices" tab: For CT use only: main fuse setting should equal the overall installation ampacity as dictated by the MCB's current rating Required: defines the phase configuration of the device.
  • Page 35 The “Charge Point Diagnostics” tab contains useful troubleshooting information: RTM: internal diagnostic RTM error code: a.k.a. vendor Ensure that OPB and PRT values error code. Can be used to are “1”, otherwise contact troubleshoot faults, see manufacturer appendix Network information - used to troubleshoot connection issues between the charger and the OCPP backend and/or Internet...

  • Page 36: Installation: Troubleshooting

    3.4. Installation: Troubleshooting 3.4.1. Verifying charger functionality: At power on, the charger has default settings and configuration, which allow it to work as a basic charger in the offline state. It is possible to verify its basic functionality by plugging in an EV and observing that the charger starts a charging session. The web client main page can be used to verify that the charger is properly measuring electrical values and is online and connected to an OCPP backend.

  • Page 37: Hardware Reset

    3.4.3. Hardware reset The configurator may determine that a factory reset of the device is necessary. A factory reset returns the device to its original software at the point of manufacture. Any firmware updates are not rolled back. The hardware reset button is located in a recessed hole between the SIM card cradle and the RJ-45 connector as indicated in the diagram below.

  • Page 38: Maintenance, Decommissioning, And Disposal

    4. Maintenance, decommissioning, and disposal The charger is designed to be maintenance-free during its lifetime. It is not indented to be repaired or serviced by the end user and any defects or issues should be addressed to the installers and manufacturer technicians. The charger should be regularly cleaned with a dry or damp cloth by wiping the surfaces.

  • Page 39: Appendix I: Error State Description With Error Codes And Light Indication Explained

    5. Appendix I: Light state description with error codes and light indication explained charger RGB Light Status Indicators Online Offline Status Description Illumination Illumination Device is available to start a charging session. In the online state, it is connected to the OCPP Available backend.
  • Page 40 Temperature Current Limit Thresholds The charger monitors its internal temperature at two locations. If the temperature exceeds values considered to be dangerous to the electronics and safety, the charger will first limit its maximum charging current to lower its power dissipation. If the temperature still increases beyond that set-point (79°C), the charger will stop the session and enter a “Fault”...
  • Page 41 VendorID1 : EVSE Limits EVSE Limits are generated by the charger to define the maximum permissible charging current. The device will offer charging current based on the lowest-value limit. 3-phase models have global current limits (i.e., the currents offered on the three phases are always identical).
  • Page 42 VendorID2 :RTM Errors RTM errors are generated by the charger when an error occurs and the charging is stopped. They can be found as “RTM err code” in the Diagnostics tab of the web client. Code Name Description Detailed Description This error code is sent when the AC RCD protection is EVSE_FAULT_ triggered.
  • Page 43 EVSE_FAULT_ Undervoltage This error code is sent when the power supply voltage 0x2000 UNDERVOLTAGE error drops by more than 10% of nominal The charger is designed to automatically recover from noncritical faults. This is an auto-recovery flag, sent EVSE_FAULTS_ together with another fault flag to indicate that the Auto 0x4000 AUTO_RECOVER...
  • Page 44 Software reset due to Reset triggered by a critical error in the CPU (stack CC_RST_PANIC exception/pan overflow, memory corruption, etc.). Reset (software or Reset triggered by the watchdog timer due to a CC_RST_INT_WDT hardware) due timeout at an interrupt. to interrupt watchdog Reset due to Reset triggered by the watchdog timer due to a...

  • Page 45: Appendix Ii: Ocpp And Manufacturer Configuration Keys

    6. Appendix II: OCPP and Manufacturer Configuration Keys Custom Configuration Key In use Example Value Description When offline, the device can be set to allow automatic authorization of any "unknown" identifiers that AllowOfflineTxForUnknownId TRUE cannot be explicitly authorized by Local Authorization List or Authorization Cache entries.
  • Page 46 set to "0" is +-10% of the nominal supply (207- 253VAC). Values of 1-23 are allowed, which expand both lower and upper threshold by the respective amount in VAC. The number of OCPP configuration keys that can GetConfigurationMaxKeys be acquired from a single get configuration command.
  • Page 47 diagnostic network data logs are sent via OCPP enable,08:00,1 Defines the first standard c_ChargeOffPeriod1 1:00 period for offline charging enable,16:00,2 Defines the second standard c_ChargeOffPeriod2 2:00 period for offline charging Defines the maximum value for the randomized delay c_MaxStartDelay functionality for offline charging Defines whether the built- c_LockerDisengage...

  • Page 48: Appendix Iii: Installing/Removing The Service Hatch

    7. Appendix III: Installing/Removing the service hatch 1. Ensure that the panel captive screw is fully retracted into the hatch body. 2. Place the cover on the main body by first guiding the upper rim and hooks into the charger 3.
  • Page 49 charger 3 Quick Installation Guide Overall electrical wiring diagr CT connec Tools Materials • Conductors (insulated single-core or • A set of Torx, Phillips, and flathead screwdrivers with insulated handles stranded), conduit e-downs • Torque limited drill or cordless • Signal cables (UTP5 cable) •...
