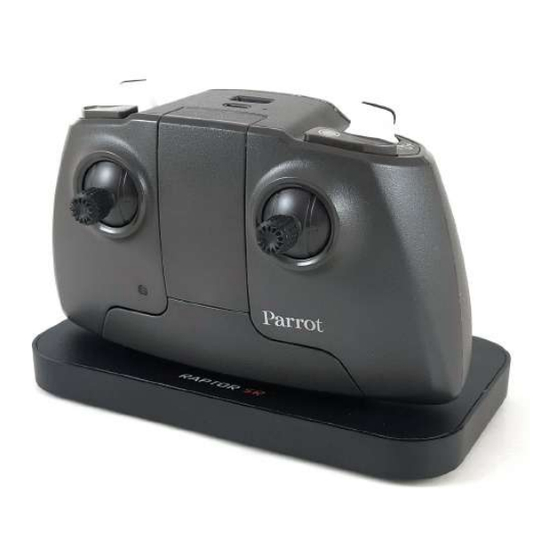

Thank you for purchasing the

designed for

ANAFI/USA with the SKYCONTROLLER 3 (MPP3)!

Installing the 4Hawks Raptor antenna requires to modify the controller by removing the factory antenna modules out from it,

and connecting the antenna cables to the transmitter's PCB.

Please note! The installation will involve both opening the controller housing and drilling three holes on its top panel (needed

for inserting the antenna cables and fixing the antenna).

Before modifying, read this pictorial installation guide, and make sure you have the right tools and time to convert.

Let's start!

STEP 1

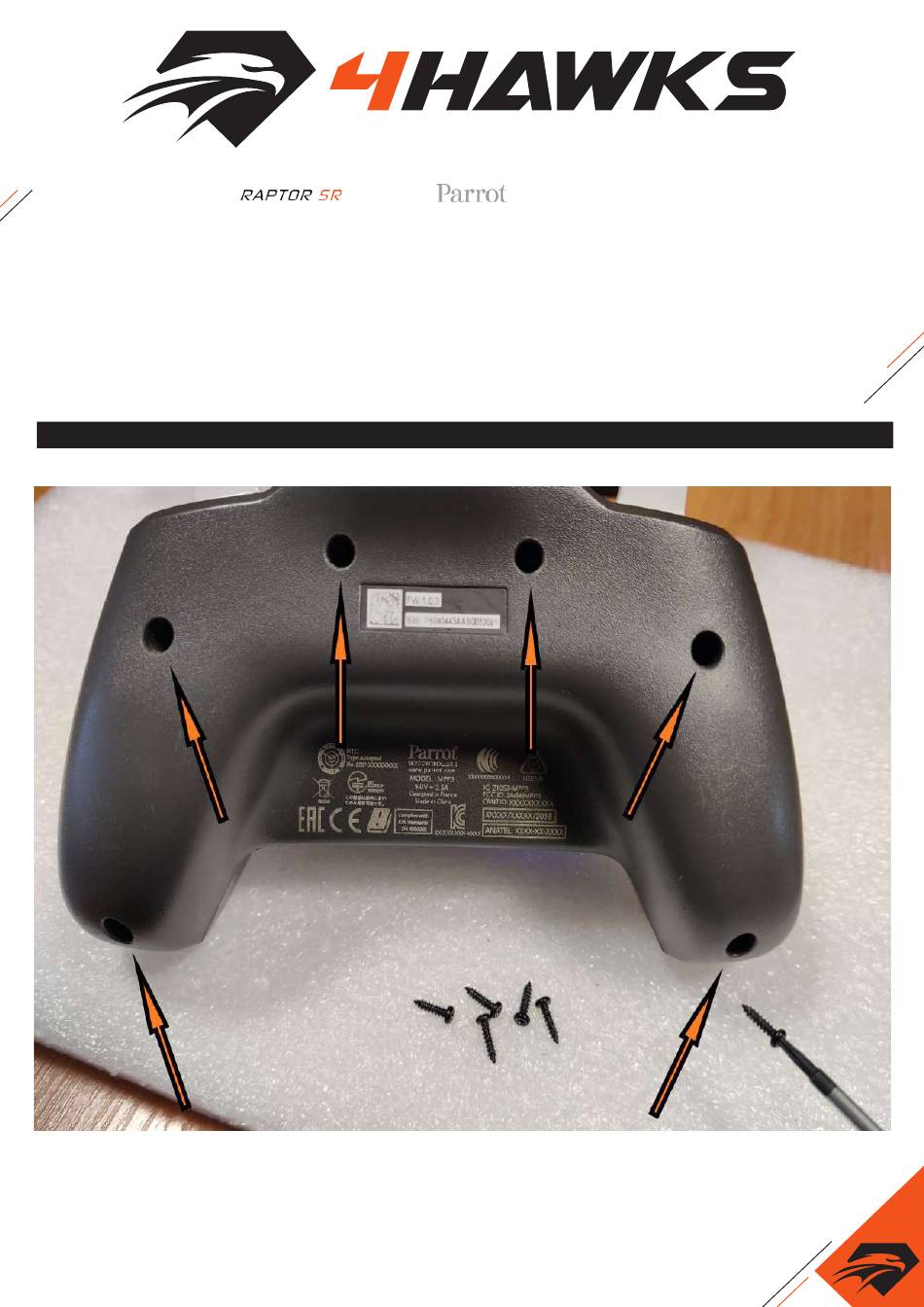

Remove the 6 screws securing the back cover of the controller.

Need help?

Do you have a question about the RAPTOR SR and is the answer not in the manual?

Questions and answers
