Suzhou Astroasis Vision Technology Co., Ltd.
Ver 1.1

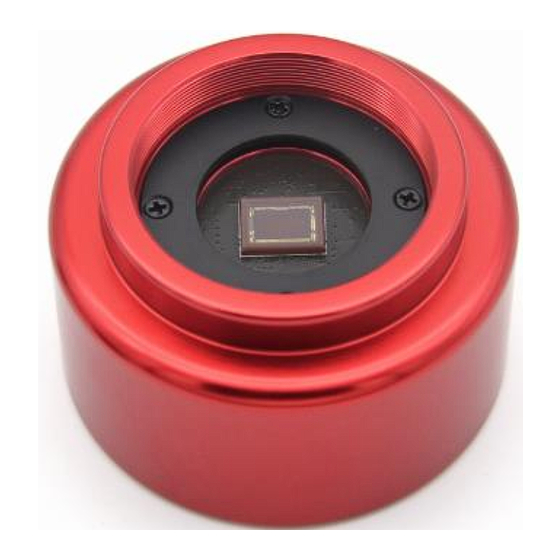

Oasis Planetary Camera
User Manual
Version 1.1
2023.09.05
Suzhou Astroasis Vision Technology Co., Ltd.
https://www.astroasis.com/en
We dedicated to providing high quality products and services for amateurs of astronomical observation
and photograph
Advertisement
Table of Contents
Related Manuals for Astroasis Oasis
Summary of Contents for Astroasis Oasis
- Page 1 Suzhou Astroasis Vision Technology Co., Ltd. Ver 1.1 Oasis Planetary Camera User Manual Version 1.1 2023.09.05 Suzhou Astroasis Vision Technology Co., Ltd. https://www.astroasis.com/en We dedicated to providing high quality products and services for amateurs of astronomical observation and photograph...
-
Page 2: Table Of Contents
4. Appearance and interface ............................6 5. Software installation and usage ..........................8 5.1. Software installation ............................8 5.2. Using Oasis Camera via Sharpcap ........................ 8 5.3. Using Oasis Camera via ASCOM interface ....................10 Copyright 2023 Suzhou Astroasis Vision Technology, Inc. All Rights Reserved. -
Page 3: Production Introduction
Suzhou Astroasis Vision Technology Co., Ltd. Ver 1.1 1. Production introduction Oasis Planetary Camera series are designed and developed with the goal of making it easier and more comfortable for users to take stunning astrophotography pictures. Our planetary cameras have the following features: 1、... -
Page 4: Specifications
M42x0.75 female Converter M42-1.25 inch converter Back-focus length 12.5mm Focal-plane adjustment Rear focal-plane adjustment Others Memory 256MB DDR3 Protection glass AR protection glass Software interface ASCOM and SDK Third-party software SharpCap Copyright 2023 Suzhou Astroasis Vision Technology, Inc. All Rights Reserved. -
Page 5: Oasis 415M
M42x0.75 female Converter M42-1.25 inch converter Back-focus length 12.5mm Focal-plane adjustment Rear focal-plane adjustment Others Memory 256MB DDR3 Protection glass AR protection glass Software interface ASCOM and SDK Third-party software SharpCap Copyright 2023 Suzhou Astroasis Vision Technology, Inc. All Rights Reserved. -
Page 6: Packing List
Description The camera body contains modules such as image sensor, circuit Camera Body boards, and focal plane adjustment module etc. USB 3.0 cable for data communication between Oasis camera and USB 3.0 Cable computers M42-1.25” Converter Convert M42x0.75 female thread to 1.25 inch interface... -
Page 7: Appearance And Interface
Suzhou Astroasis Vision Technology Co., Ltd. Ver 1.1 4. Appearance and interface Oasis planetary camera series has the same appearance and interface, as shown in Figures 4-1 and 4- Figure 4-1 Figure 4-2 Copyright 2023 Suzhou Astroasis Vision Technology, Inc. All Rights Reserved. - Page 8 Suzhou Astroasis Vision Technology Co., Ltd. Ver 1.1 The dimension diagrams are shown as Figure 4-3. Figure 4-3 Copyright 2023 Suzhou Astroasis Vision Technology, Inc. All Rights Reserved.
-
Page 9: Software Installation And Usage
1、 You do not need to install ASCOM Platform again on your computer if you have already installed this software. 2、 Oasis Camera can be used in two ways. One is to directly call the Oasis Camera SDK through software such as SharpCap. This method is mainly used for planetary photography, which can obtain a high frame rate when capturing. - Page 10 Click the connected camera in the menu and the real time images will be displayed. In the "Camera Control Panel" on the right, you can set parameters such as exposure time and gain of the camera, as shown in Figure 5-2. Figure 5-2 Copyright 2023 Suzhou Astroasis Vision Technology, Inc. All Rights Reserved.
-
Page 11: Using Oasis Camera Via Ascom Interface
Oasis Camera can also be used via ASCOM interface. Take NINA as an example, connect Oasis Camera to the computer through a USB 3.0 (or USB 2.0) cable, open NINA, enter the Equipment->Camera tab, and select "Astroasis Oasis Camera (ASCOM)"... - Page 12 Take SGP (Sequence Generator Pro) as an example, connect Oasis Camera to the computer through a USB 3.0 (or USB 2.0) cable, open SGP, enter the Sequence dialog, and select "Astroasis Oasis Camera" in the camera selection drop-down menu, as shown in Figure 5-6.
- Page 13 Now you can use the camera to capture frames. You can also click the Settings button to set the camera parameters, as shown in Figure 5-7. Figure 5-7 For detailed instructions on how to use NINA or SGP, please refer to their user manuals. Copyright 2023 Suzhou Astroasis Vision Technology, Inc. All Rights Reserved.
