Summary of Contents for Metra Electronics RACK 1708

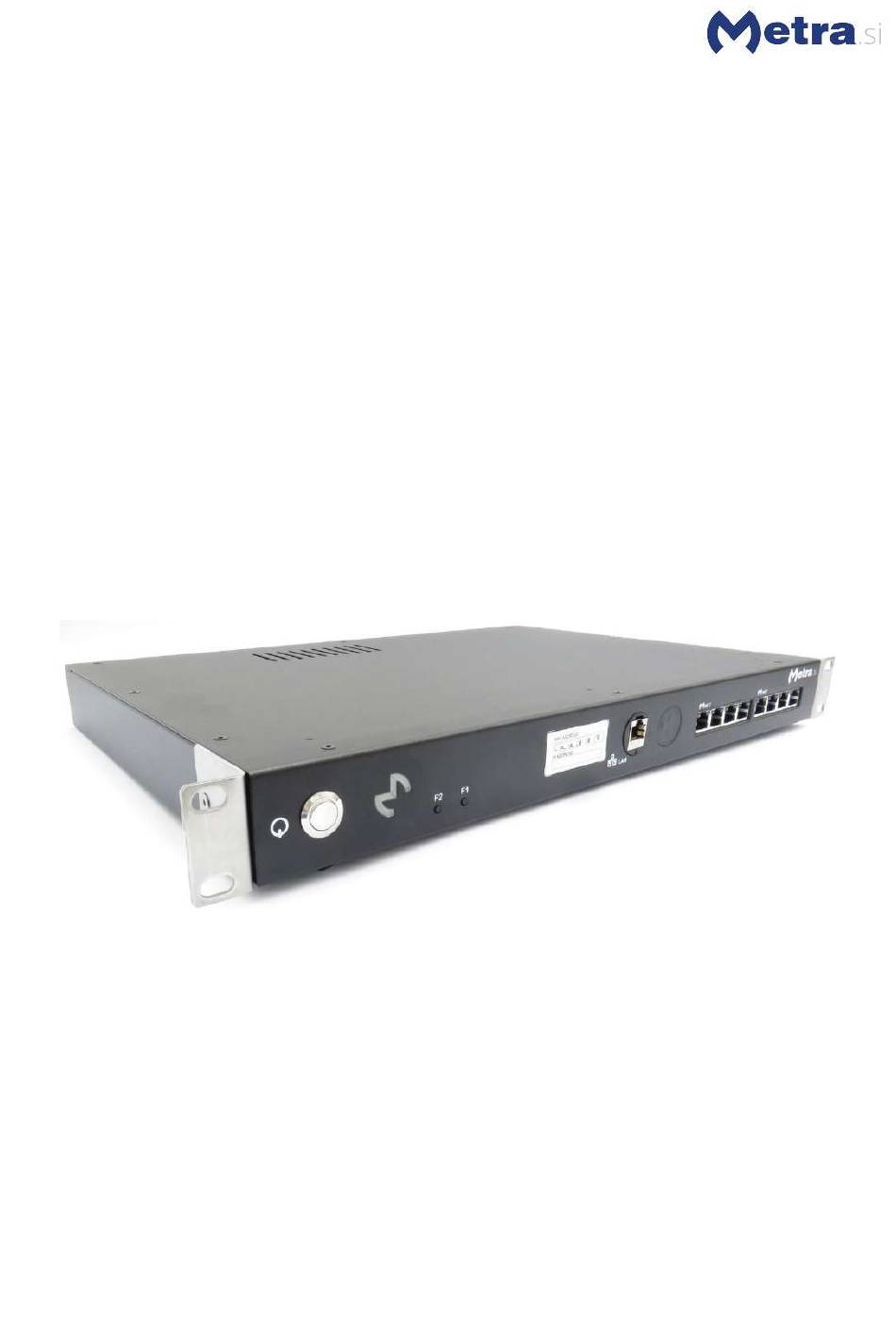

- Page 1 smarter locking Metra RACK Technical Manual...
-
Page 2: Table Of Contents
Metra RACK – Technical Manual smarter locking TABLE OF CONTENTS REGULATORY INFORMATION ......................3 PRODUCT DESCRIPTION ........................4 ACCESS RESTRICTIONS ........................4 COMPONENTS AND CONNECTIONS ....................5 INSTALLATION ..........................5 5.1. Mechanical installation ......................5 5.2. Electric installation ........................6 CONNECTIONS AND SWITCHES ...................... -
Page 3: Regulatory Information
Metra RACK – Technical Manual smarter locking REGULATORY INFORMATION Manufacturer: Metra inženiring d.o.o. phone: +386 1 56 10 740 IOC Trzin fax: +386 1 56 10 744 Špruha 19 web: www.metra.si SI-1236 Trzin, Slovenia Trade Mark Metra MEW System Model/Type ref.: Metra RACK Part Number 1708... -
Page 4: Product Description
Metra RACK – Technical Manual smarter locking PRODUCT DESCRIPTION “Metra Rack” is a device that incorporates multiple MetraNET Network components into one housing. It is a protocol converter/link between a MetraNET Network (CAN) and a computer LAN network (TCP/IP). It enables communication between MetraNET devices distributed over up to 8 trunk lines and “Metra Server Software”... -
Page 5: Components And Connections
Metra RACK – Technical Manual smarter locking COMPONENTS AND CONNECTIONS description description LAN (TCP/IP) port Programmable pushbuttons F1 and F2 Metra NET (CAN) ports 100 – 240 VAC fused socket Main Power switch Blind – for future use Power indicating LED Metra sign INSTALLATION 5.1. -
Page 6: Electric Installation
Metra RACK – Technical Manual smarter locking 5.2. Electric installation To connect “Metra Rack” to (100-240VAC) power source standard cable with IEC C13 connector is supplied in the package. When changing a fuse, always use high braking capacity fuse, F2H250 Fast - 2 A - High braking capacity - 250 V Spare fuse is available in fuse holder. -
Page 7: Power Switch
Metra RACK – Technical Manual smarter locking 6.2. Power switch Power switch to turn “Metra Rack” power ON or OFF. Beside the Power switch button there is LED Metra Sign, which indicates Power ON when Steady BLUE. METRA NET AND LAN CONNECTION ... -
Page 8: Optional "Real Time Clock" Module Installation
Metra RACK – Technical Manual smarter locking OPTIONAL “REAL TIME CLOCK” MODULE INSTALLATION Before opening “Metra Rack” make sure that appliance is turned off (blue Metra sign is off) and main power cord is disconnected from the socket. Step 1: unscrew all 10 screws at the top of the “Metra Rack”. -
Page 9: Star Topology - Using Metra Rack
Metra RACK – Technical Manual smarter locking 9.1. Star Topology – using Metra Rack Metra Rack is used to translate signals between computer LAN network and Metra NET Network. Metra Rack with installed Metra Repeaters 8 distributes this signal to up to eight parallel Metra NET trunk lines. -
Page 10: Technical Data
Metra RACK – Technical Manual smarter locking TECHNICAL DATA Operating voltage 100-240 V~ (±10%) Frequency 50/60 Hz Operating current Typ. 0,15 A Fuse F2H250; 5 x 20 mm Power consumption Typ. 13W; Max. 100 W Operating temperature range 0 to +50 °C Operating relative humidity range 10% to 80% (non-condensing) Visual signalization... - Page 11 Metra Rack - Internal wiring scheme Appendix 1 AC 230 V Metra Network Controller Switching Power Supply Metra Real-Time Clock Metra Metra Repeater 4 Repeater 4 1 - AC power cables 2 - DC power cables 3 - Metra Net (CAN) cable 4 - LAN cable ©...
