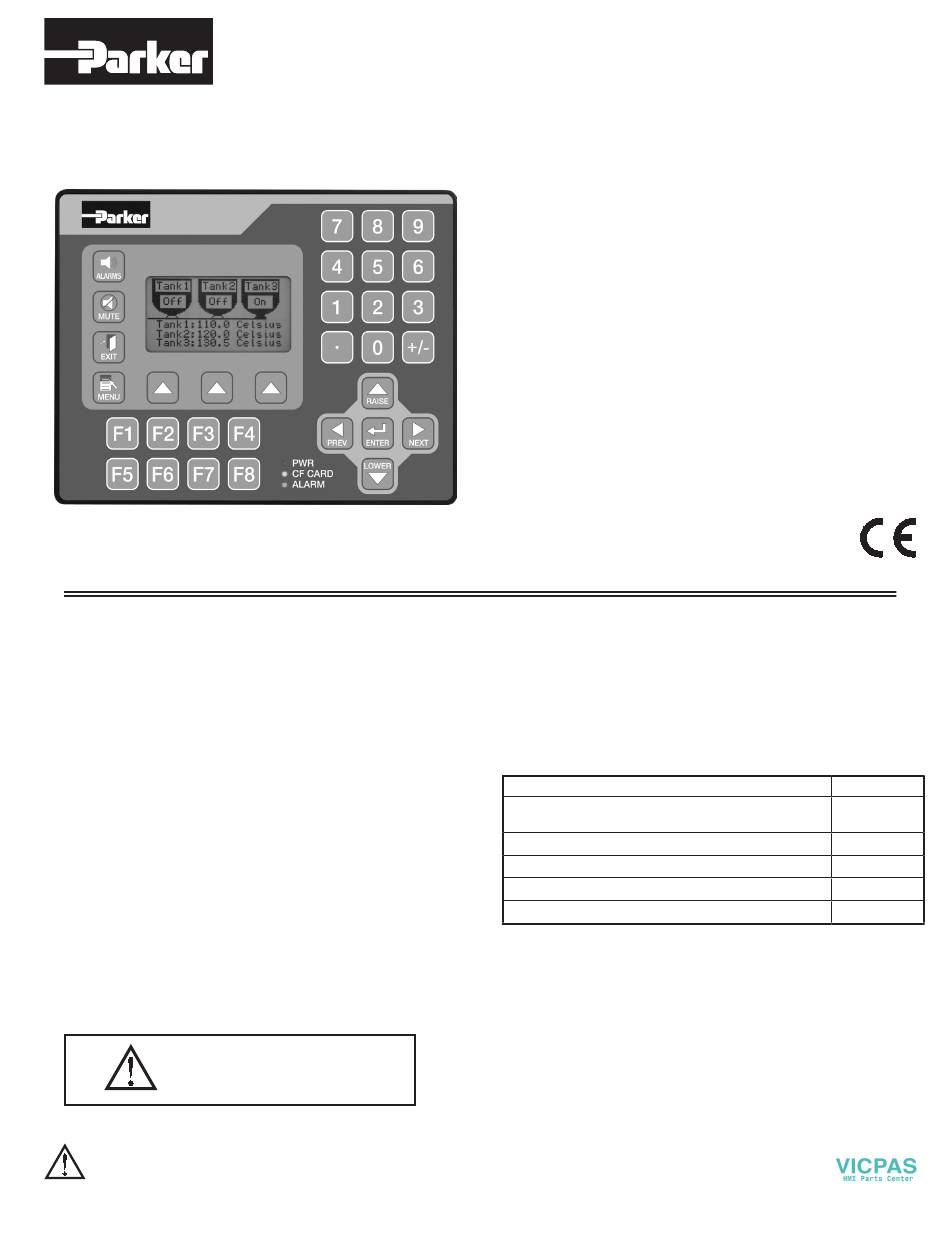

MODEL TS8003 - GRAPHIC LCD OPERATOR INTERFACE TERMINALS
GENERAL DESCRIPTION
The TS8003 Operator Interface Terminal combines unique capabilities
normally expected from high-end units with a very affordable price. It is built
around a high performance core with integrated functionality.
The TS8003 is able to communicate with many different types of hardware
using high-speed RS232/422/485 communications ports and Ethernet 10 Base
T/100 Base-TX communications. In addition, the TS8003 features USB for fast
downloads of configuration files and access to trending and data logging. A
CompactFlash socket is provided so that Flash cards can be used to collect your
trending and data logging information as well as to store larger configuration files.
In addition to accessing and controlling of external resources, the TS8003
allows a user to easily view and enter information. The unit uses a Liquid
Crystal Display (LCD) module, which is easily readable in both indoor and
outdoor applications. Users can enter data through the front panel 32-button
keypad that has user identifiable keys.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
Read complete instructions prior to installation
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2/CLASS II, DIVISION 2/CLASS III, DIVISION 2
CAUTION: Risk of Danger.
and operation of the unit.
 CONFIGURED USING DSI8000 SOFTWARE
 UP TO 5 RS-232/422/485 COMMUNICATIONS PORTS
(2 RS-232 AND 1 RS-422/485 ON BOARD, 1 RS-232 AND 1
RS422/485 ON OPTIONAL COMMUNICATIONS CARD)
 10 BASE T/100 BASE-TX ETHERNET PORT TO NETWORK
UNITS AND HOST WEB PAGES
 USB PORT TO DOWNLOAD THE UNIT'S CONFIGURATION
FROM A PC OR FOR DATA TRANSFERS TO A PC
 UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE
MEMORY (4 MBYTE FLASH)
®
 COMPACTFLASH SOCKET TO INCREASE MEMORY CAPACITY
 3.2-INCH 128X64 PIXEL LCD WITH YELLOW LED BACKLIGHT,
ABLE TO SUPPORT TEXT AND SIMPLE GRAPHICS
 OUTDOOR UNIT WITH UV RATED OVERLAY AVAILABLE
 32 BUTTON KEYPAD WITH USER IDENTIFIABLE KEYS,
NAVIGATIONAL KEYS, NUMERIC KEYS, KEYS FOR ON-SCREEN
MENUS, AND OTHER VARIOUS KEYS.
 THREE FRONT PANEL LEDS
 POWER UNIT FROM 24 VDC ±20% SUPPLY
CONTENTS OF PACKAGE
- TS8003 Operator Interface.
- Panel gasket.
- Two user legendable key sheets.
- Template for panel cutout.
- Hardware packet for mounting unit into panel.
- Terminal Block for connecting power.
ORDERING INFORMATION
DESCRIPTION
Operator Interface for indoor applications only, textured finish
with embossed keys
CANopen Option Card
Profibus DP Option Card
DeviceNet Option Card
FireWire Option Card
CompactFlash is a registered trademark of CompactFlash Association.
1
Bulletin HP471055U003
Issue 1.0
Drawing No. LP0874X
Effective 10/11
PART NUMBER
TS8003/00/00
8000/CB/00/00
8000/PB/00/00
8000/DN/00/00
8000/FA/00/00
