WAC ELC703 Series Installation Instructions

Product model:
This installation manual is applicable to the ELC703- * series, ELC705- * series, and ELC710- * series of LED outdoor
hard strip lights, where "*" includes information on different powers, control systems, light angles, color temperatures, and
appearance colors of the lighting fixtures.
Installation Precautions:
1. Please read through the Instructions before installation.
2. The product should be installed by a professional electrician.
3. Make sure the power supply is cut off before installation and maintenance, to avoid the risk of electric shock.
4. Before installing the lighting fixtures, please confirm that the installation surface is firm and reliable to prevent the
fixtures from falling.
5. Please keep this Instruction properly for future reference.
Installation method and steps：

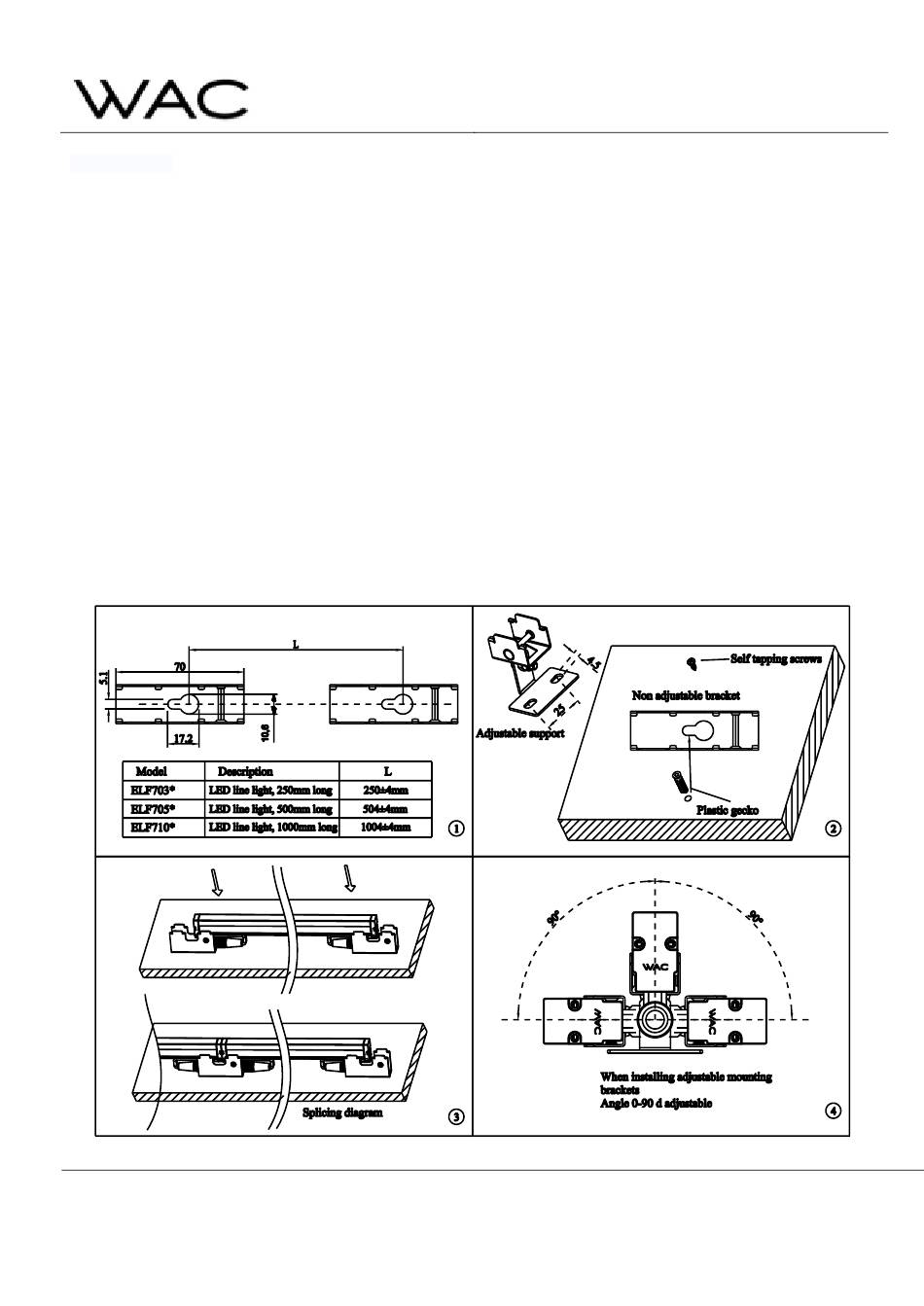

1. Select the installation location of the lighting fixture, drill holes according to the position of the stainless steel bracket,
install plastic geckos, and lock the installation bracket with self tapping screws; (The bracket needs to be purchased
separately) There are two options for the bracket, one is adjustable and the other is not adjustable.
2. ELC705 and ELC710 series lamps have two installation brackets (ELC703 single bracket), and the fixing hole distance
of the bracket refers to Figure 1 (self tapping screws and plastic gecko provided by the construction party) .
3. Insert the lamp into the installation bracket (refer to Figure 3), and if the lamp needs to be spliced (refer to Figure 4) .
4. The power cord of the lighting fixture is distinguished by the direction of the input and output terminals. Please wire
according to the instructions on the label on the wire (as shown in Figure 5) .
Licensed by "WAC" trademark holder - WAC LIGHTING, USA
Chinese Marketing Headquarters :
Address :
China factory :
Address :
WAC Lighting (Shanghai) Co, Ltd.
14,Lane 299, Bi Sheng Road, Shanghai 201204,China
Manufactured WAC Lighting (Dongguan) Co, Ltd.
390, Qingfeng Road, Qingxi Town, Dngguan, Guangdong. Postal code: 523653
Installation Instructions
Model: ELC703-*、ELC705-*、ELC710-*
1 / 3
