Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
‰
WARNING! Disconnect from air supply before changing the blade or file, servicing or performing maintenance.
‰
Maintain the tool in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Use in suitable clean and tidy work area, free from unrelated materials. Ensure that there is adequate lighting.
9
WARNING! Always wear approved eye or face and hand protection when operating the saw.
‰
Remove ill fitting clothing. Remove ties, loose jewellery and contain and/or tie back long hair.
9
Wear appropriate protective clothing and keep hands and body clear of working parts.
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Keep children and unauthorised persons away from work area.
9
DO NOT use blades or files that are cracked or deformed.
8
Ensure that blades and files are clamped tightly to the airtool.
9
Check moving parts alignment on a regular basis.
9
Ensure workpiece is secure before operating the saw. Never hold a workpiece by hand. Use a vice or clamps.
9
WARNING! Ensure correct air pressure is maintained and not exceeded. Recommended pressure is 90psi.
‰
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.
9
Prolonged exposure to vibration from this tool poses a health risk. It is the employer's/owner's responsibility to correctly assess the
9
hazard and issue guidelines for safe periods of use and offer suitable protective equipment.
DO NOT use any power source except an air compressor.
9
DO NOT operate the tool near any inflammable substance or on any container that has held an inflammable substance.
8
DO NOT use tool for a task it is not designed to perform.
8
DO NOT operate tool if any parts are damaged or missing as this may cause failure and/or personal injury.
8
DO NOT carry the tool by the hose, or yank the hose from the air supply.
8
DO NOT operate tool when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT carry the tool with your finger on the trigger.
8
DO NOT direct air from the air hose at yourself or others.
8
When not in use disconnect from air supply and store in a safe, dry, childproof location.
9

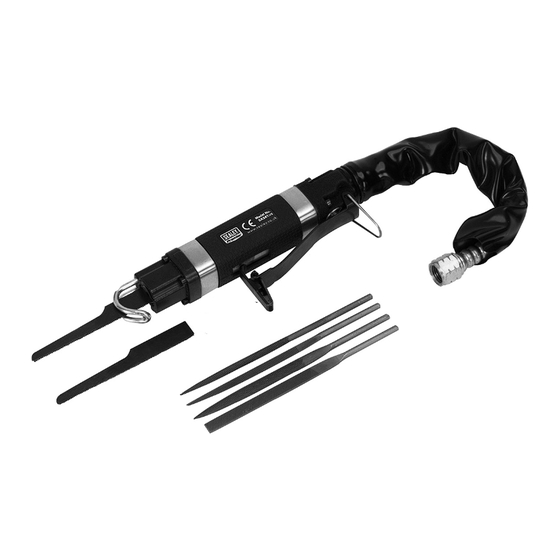

2. INTRODUCTION
Suitable for a variety of bodyshop applications particularly where space is limited. Use as a cutting saw for panels or a file for
deburring and shaping metalwork. Fitted with safety trigger device. Supplied with a starter pack of blades and files.
3. SPECIFICATION
Model No.: ............................................................. SA347.V2
Free Speed: ............................................................ 7500spm
Stroke: ........................................................................ 5.5mm
Maximum Cutting Capacity: ...............1.2mm (Steel & Aluminium)
Air Consumption: ........................................................... 4cfm
Operating Pressure: ...................................................... 90psi
Noise Power:.......................................................... 89.0dB(A)
Noise Pressure: ........................................................ 78dB(A)
Vibration: .................................................................. 12.2m/s²
Uncertainty: .............................................................. 1.85m/s²
Air Inlet Size: .............................................................1/4"BSP
Consumable Parts: SA347.NF5 - Replacement Needle File Set
© Jack Sealey Limited
RECIPROCATING MINI AIR SAW/NEEDLE
FILE
MODEL NO:
Wear a mask
Wear protective
gloves
Original Language Version
SA347.V2
Wear ear
protection
SA347.V2 Issue 1 04/03/22
