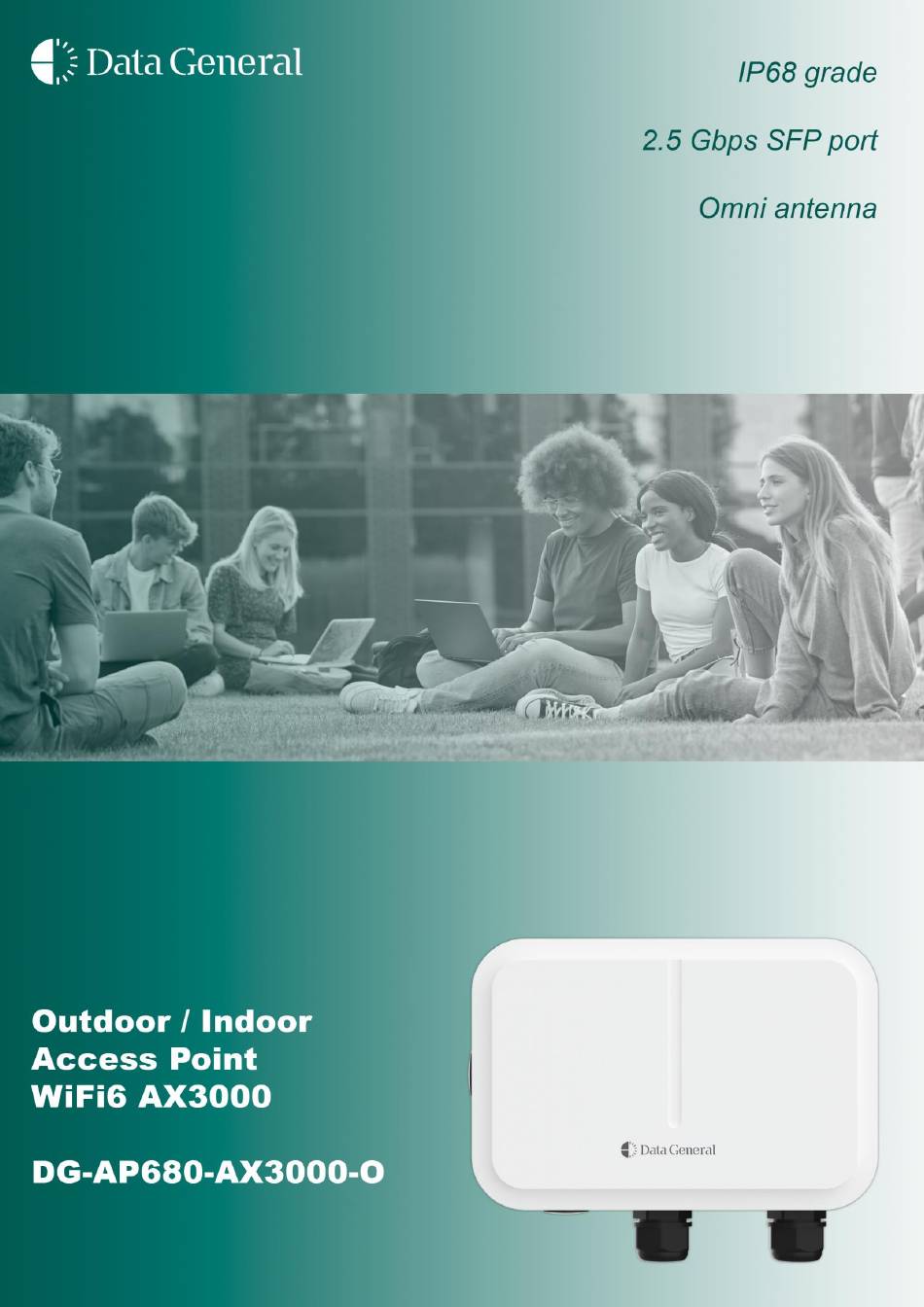

Data General DG-AP680-AX3000-0 Manual

Outdoor / indoor access point wifi6 ax3000
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-AP680-AX3000-0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Data General DG-AP680-AX3000-0

  • Page 2: Product Overview

    1. Product Overview The DG-AP680-AX3000-O is a Wi-Fi 6 wireless access point that delivers dual radios, high performance, and enterprise-grade encryption. Its hybrid cloud management mode and high-density access design allow the DG-AP680-AX3000-O to be flexibly deployed in high-quality outdoor network scenarios, including outdoor hotspots such as parks and streets in smart cities, sports field scenarios in the education industry, and scenarios related to energy and rail transportation industry.
  • Page 3 and stability ⚫ Packet-based power control technology and high-performance power design, saving energy while providing high-speed wireless access service Flexible Networking ⚫ Local and cloud management modes, and intelligent wireless network optimization, reducing TCO and maximizing ROI ⚫ Access through optical and Ethernet cables for flexible networking and high-speed backhaul over 2.5 Gbps optical links ⚫...
  • Page 4 Higher Education Sports Field You can cheer and show support for sports events on the spots field, and share moments in real time on social media. High-speed mobile Wi-Fi allows you to leave real-time memories.

  • Page 5: Product Features

    The DG-AP680-AX3000-O stands out with its exceptional wireless network security, RF control, mobile access, QoS guarantee, and seamless roaming. With Data General's wireless access controller (AC), it enables wireless user data forwarding, security, and access control to cope with diverse service needs.
  • Page 6 Wireless Network Visualization The overview function module of WIS provides a comprehensive view of the network running status from the perspective of overview, experience, users, devices, and environment. The network running information includes the following items: ⚫ Network basic information: device stability, device health, user stability, network signal coverage, and network association.

  • Page 7: Hardware Specifications

    Intelligent Network Diagnosis With WIS, wireless network diagnosis and health index assessment can be completed in just one click, providing test results for each item. The health index provided by WIS enables you to rapidly assess the state of your live network. WIS can locate faulty areas, APs, and STAs, and provides potential risks and corresponding optimization suggestions.
  • Page 8 Hardware DG-AP680-AX3000-O Specifications Cyclic Delay/Shift Diversity (CDD/CSD) Maximum Ratio Combining (MRC) Space-Time Block Coding (STBC) Low-Density Parity Check (LDPC) Transmit beam-forming (TxBF) Two spatial streams Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams Channels: Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz Combined peak data rate: 1.732 Gbps Radio 2 –...
  • Page 9 Hardware DG-AP680-AX3000-O Specifications Transmit beam-forming (TxBF) WPA3 Wi-Fi 2.4 GHz: two built-in omnidirectional antennas, the max. antenna gain is 4 dBi. 5 GHz: two built-in omnidirectional antennas, the max. antenna gain is 6 dBi. Antenna Bluetooth One integrated vertically polarized omnidirectional antenna, the max. antenna gain is 5 dBi.
  • Page 10 Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements. The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Data General reserves the right of interpretation. Radio Frequency DG-AP680-AX3000-O...
  • Page 11 Radio Frequency DG-AP680-AX3000-O Performance Frequency Band and Max. Transmit Power Max. Receive Sensitivity Data Rate Protocol per Transmit Chain per Receive Chain 24 Mbps 23 dBm –74 dBm 36 Mbps 23 dBm –72 dBm 54 Mbps 20 dBm –67 dBm MCS0 25 dBm –84 dBm...

  • Page 12: Software Specifications

    Radio Frequency DG-AP680-AX3000-O Performance Frequency Band and Max. Transmit Power Max. Receive Sensitivity Data Rate Protocol per Transmit Chain per Receive Chain MCS11 18 dBm –43 dBm Software Specifications Basic Functions Basic Function DG-AP680-AX3000-O Applicable software RGOS11.9(6)W2B4 or higher version WLAN Max.
  • Page 13 Basic Function DG-AP680-AX3000-O Remote Authentication Dial-In User Service (RADIUS) PSK and web authentication Authentication and QR code-based guest authentication, SMS authentication, and MAC address encryption bypass (MAB) authentication Data encryption: WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES) Data frame filtering Allowlist, static blocklist, and dynamic blocklist Rogue device discovery Optimization of rogue AP containment for all STA types...
  • Page 14 Fat, Fit, and cloud console port or Telnet mode. modes When the AP works in cloud mode, it can be managed through Data General Cloud. Value-added Software The following value-added software functions can be achieved with the WIS solution (used with iData-WIS and wireless controller).
  • Page 15 Value-added DG-AP680-AX3000-O Software Intelligent O&M Network operation analysis, such as device stability and signal coverage Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters Experience...

  • Page 16: Regulatory Compliance

    Value-added DG-AP680-AX3000-O Software Customized portal Customized Portal authentication page for mobile phones and PCs SMS gateway Interconnection with SMS gateways of GUODULINK and Alibaba Cloud Platform Capabilities Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities Big data capabilities Spark-based big data computing capabilities Data warehouse building based on Hive, and data model conversion,...
  • Page 17 7. Antenna Pattern Plots Horizontal Planes (Top View) The following figures show the azimuth antenna pattern at 2.4 GHz and 5 GHz radios. Vertical Planes (Side View, AP Facing Down) The following figures shows the elevation antenna pattern at 2.4 GHz and 5 GHz radios. Note: Operating frequency bands are country-specific.

  • Page 18: Ordering Information

    8. Ordering Information Model Description Wi-Fi 6 (802.11ax-compliant) outdoor high-density wireless access point Dual radios, four spatial streams, peak data rate of 2.976 Gbps Radio 1: 2.4 GHz: two spatial streams, 2x2 MU-MIMO, peak data rate of 574 Mbps Radio 2: 5 GHz: two spatial streams, 2x2 MU-MIMO, peak data rate of 2.4 Gbps DG-AP680-AX3000- 802.11a/b/g/n/ac/ax, switching between Fat, Fit, and cloud modes, and...

  • Page 19: Warranty

    Note: The warranty terms are subject to the terms of different countries and distributors. 11. More Information For more information about Data General, visit the official Data General website or contact your local sales agency: ⚫ Data General official website: https://www.datageneral.pro/...
