MSG LOGIC BOOM Operator's Manual

Control system for spraying boom height
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

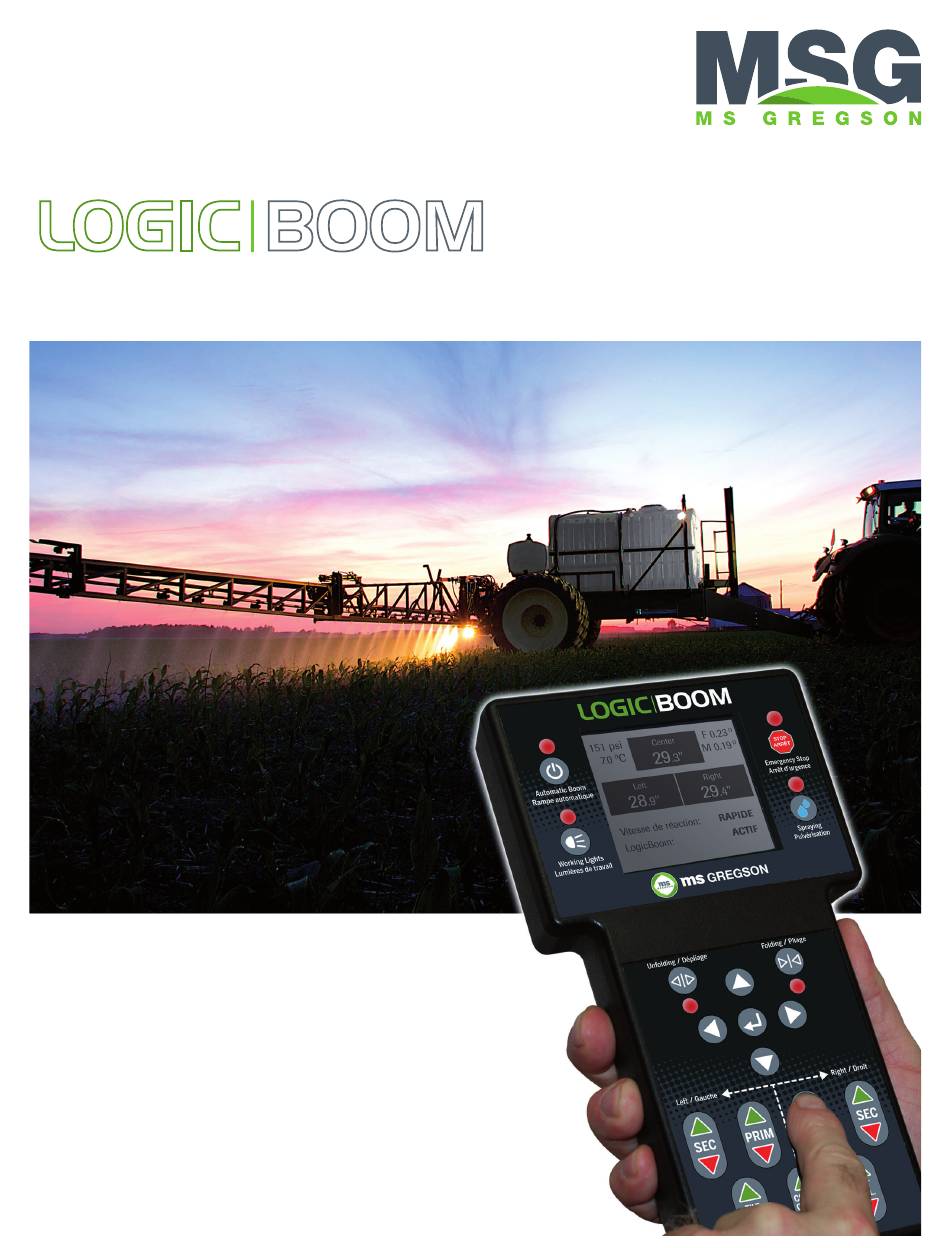

Operator's manual
LOGIC
Control System for Spraying Boom Height
LOGIC
Operator's manual N
A120-0023A (REV 3)
0
Effective November 2017
MS Gregson Inc.
4300, Vachon St., Drummondville, Qc, Canada, J2B 6V4
Tel.: 819 474-1910 • Fax: 819 474-5317
info@msgregson.com • www.msgregson.com
BOOM
CONTROL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOGIC BOOM and is the answer not in the manual?

Questions and answers

Summary of Contents for MSG LOGIC BOOM

  • Page 1 Operator’s manual LOGIC BOOM Control System for Spraying Boom Height LOGIC CONTROL Operator’s manual N A120-0023A (REV 3) Effective November 2017 MS Gregson Inc. 4300, Vachon St., Drummondville, Qc, Canada, J2B 6V4 Tel.: 819 474-1910 • Fax: 819 474-5317 info@msgregson.com • www.msgregson.com...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Information on the system A word from MS Gregson .............4 Information ................24 Description ................4 SD memory card Warranty Preparing the SD memory card ........25 Limited warranty ..............5 Updating the system ........... 25-26 Exclusions of warranty ............5 Bootloader update ............27-28 Execution of repairs within Console update ..............28 the warranty period .............5 Power update ..............29 Limitation of liability ............5 Configuration importation ..........30 Configuration exportation ..........31 Safety Description of safety symbols .

  • Page 4: A Word From Ms Gregson

    INTRODUCTION Congratulations on your purchase of an MS Gregson system for boom height control for agricultural sprayer. This equipment is manufactured with top quality components and is engineered using the latest technology to provide outstan- ding efficiency, now and for the years to come. This manual is designed to help you in the operation of your new equipment. Please take the time to read this manual com- pletely before using your new equipment. A perfect understanding or this manual will ensure that you receive the maximum benefit from your equipment. Any negligence in this regard may result in injury or property damage. Each new operator must have received the required training before operating an agricultural sprayer and must have read this operator’s manual. This manual should be considered an integral part of the sprayer and must accompany it upon resale and be stored in the record holder provided for this purpose on the sprayer. MS Gregson Inc. 4300, Vachon St., Drummondville, Qc, Canada, J2B 6V4 Tel.: 819 474-1910 • Fax: 819 474-5317 info@msgregson.com • www.msgregson.com Description The MS Gregson system for boom height control is designed especially for agricultural sprayers. This system is upgradable and options may be added. The system is efficient and easy to work with at the same time. When designing this control system, special attention was taken to ensure that it would be easy to understand, easy to configure, easy to operate, easy to maintain and easy to troubleshoot, all at once. The base system includes manual controls for the boom sections and tilts, automatic folding and unfolding of the boom, display of hydraulic oil pressure and temperature, control of working lights, control of spraying (run/hold). It also includes a diagnostics section and many more features. The Logic Boom option includes all above features and also allows to automatically control tilt cylinders and center section cylin- der to keep the boom at the desired height while spraying. The self-levelling option may be added to the Logic Boom to control boom center section inclination. If there is an inclination difference between the center section and the ground caused by spraying on a slope or by folding a boom section, the system automatically realign the boom center with the ground.

  • Page 5: Warranty

    WARRANTY Limited warranty: The boom height control systems manufactured by MS Gregson Inc. are warranted, to the original purchaser, to be free from defects in materials and workmanship for a period of 1 year. Normal use conditions, according to the instructions in this manual, apply. This limited warranty is subject to the exclusions listed below, is calculated from the date of delivery to the original pur- chaser, and applies to the original components only. Parts replaced under this warranty will assume the remainder of the corres- ponding part’s warranty period. Upon confirmation of the warranty claim, MS Gregson will, at its discretion, repair or replace the defective part. This does not imply any right to compensation for any type of direct or indirect damage. Exclusions of warranty: - Routine adjustments and normal maintenance items such as lubricants, hoses, O-rings, fuses and seals. - Repairs required as a result of collision, accident, bumping, misuse, modifications made to the equipment without authorization, lack of required maintenance, use contrary to the instructions included in this manual or to the common sense. - Repairs required as a result of freezing or exposition to corrosive products. - Repairs required as a result of voltage fluctuations of the electric supply. - Damage to crop due to wrong configuration or incorrect use of the equipment. - Damage to crop due to components failure and/or accident. - Additional charge resulting from stoppage for repair or other reason. - Transportation and/or travelling. - Any parts which are subject to wear during normal use. - Any parts which are deemed faulty due to negligence or carelessness during use. Execution of repairs within the warranty period: In order to obtain warranty service on items warranted by MS Gregson Inc. within the warranty period, you must show to your dealer a proof of purchase. If the equipment is permanently installed, the dealer will carry out repairs on the spot. The dealer has the responsibility to carry out repairs within the warranty period. Repairs will be done at the dealer’s repair-shop for mobile equipment or at your site upon dealer’s choice; the purchaser has the responsibility to bring his equipment to his dealer’s repair- shop. The parts replaced under warranty become the property of MS Gregson Inc. Limitation of liability: MS Gregson Inc. liability for special, incidental, or consequential damages is expressly disclaimed. In no event shall MS Gregson Inc. liability exceed the purchase price of the product in question. THE WARRANTY CONTAINED HEREIN IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. MS Gregson Inc. does not authorize any other party, including authorized MS dealers, to make any representation or promise on behalf of MS Gregson Inc. or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of MS Gregson products conforms to local codes. While MS Gregson Inc. attempts to...

  • Page 6: Safety

    SAFETY Description of safety symbols The «DANGER» symbol is used to outline a situation where danger is imminent and DANGER must be strictly avoided. Failure to comply would result in serious damage to equip- ment, personal injury or even death. The «WARNING» symbol describes the potential for danger or improper set up and WARNING that should be avoided. Failure to comply could result in serious damage to equip- ment, personal injury or even death. The «CAUTION» symbol indicates the potential for a dangerous situation that can be avoided. Failure to take notice could result in potential equipment damage and/or CAUTION minor to moderate personal injury. Carefully read and follow the instructions or recommendations provided in each paragraph segment under the headings of «DANGER» « WARNING» and « CAUTION». In each case the paragraphs provide important information that should be to read. It is recommended that, after reading this information sheet, a copy is kept as a future reference or for other operators to read. The « Prohibited » symbol signifies something « that should not be done ». As a PROHIBITED general indication, the following symbol will be used in this operator’s manual sheet to outline a prohibited action or procedure. The « Mandatory » symbol signifies something « that must be done ». As a general MANDATORY indication, the following symbol will be used in this operator’s manual to outline a mandatory action or procedure. Indicates that machine or property damage could result if instructions are not IMPORTANT followed. Warning Always be sure that all persons stand clear. Never allow persons or animals near the sprayer when the Logic Boom is enabled, booms may move up or down at any moment. Never stand under or pass over booms, even if the hydraulic system is not powered. Always disable the Logic Boom before doing any service or maintenance. Disable the Logic Boom each time you leave the operator’s seat...

  • Page 7: Caution

    SAFETY Caution Wear appropriate protective equipment when working on the hydraulic system. Never attempt to service or maintain the hydraulic system with the equipment running. Make sure that hydraulic system has been previously depressurized. If the equipment has run before work is performed or before disconnecting hydraulic hoses, be aware that the hydraulic fluid may be extremely hot and under high pressure. Precautions must be taken. When servicing the hydraulic system, always take precautions to prevent dust, foreign material or contaminants from being introduced into the hydraulic system. Install supports under the boom sections before depressurizing the hydraulic system for service or maintenance. Boosting of a dead battery: DANGER Before boosting, disconnect power from the boom control system. Also disconnect all other electronic console or equipment.

  • Page 8: Installation

    INSTALLATION Installation of the console The console has to be installed in the tractor cab. The easiest way to install the support is to use the levered suction cup and fix the support in a cab window or on a flat and smooth surface. If ever you have to use another tractor to tow your sprayer, the console support will be easily transferred from one tractor to the other. If it is not possible to use the suction cup, unscrew the cup from the adjustable foot (figure 1 & 2) and screw the foot to the desired place in the tractor cab. Figure 2 Figure 1 Electric power connections Bring the extremity of the sprayer power harness into the tractor cab. 1- A 3 ft power connection cable is supplied with the console (figure 3). 2- Connect the big grey connector to the grey connector of the power harness (figure 4). 3- At the other end of the 3 ft cable, connect the 3 pin AMP connector to an accessory outlet. Accessory outlet must be able to supply up to 20 amperes (figure 5). Figure 3 If your tractor does not have an accessory outlet available, a supply kit that replaces the standard 3 ft cable is available and includes: all necessary wires and connectors, a 40 amp. breaker and a solenoid relay with connection wire to accessory switch, option number PA01102. Figure 4 Figure 5 Console connections 1- Connect the console plug to the small receptacle of the power harness. Push until it clicks in. (figure 6) 2- If you want to use the spraying run/hold button on the console, connect the console run/hold receptacle to the spraying rate controller. (figure 7) Figure 6 Figure 7...

  • Page 9: Console

    CONSOLE Display screen, communicates information to user. 2- Automatic Boom button, used to enable/disable/pause Logic Boom function (option). 3- Automatic Boom LED (light-emitting diode), lit when Logic Boom is active, flashing when Logic Boom is in pause. 4- Working Lights button, used to turn on and turn off the working lights (option). 5- Working Lights LED, lit when the working lights are turned on. 6- Emergency Stop button, used to stop all functions at once in case of emergency. Emergency Stop LED, lit when emergency stop button has been used. 8- Spraying button, used to start or stop spraying if the console connector has been connected to rate controller. 9- Spraying LED, lit when spraying button has been activated. 10- Unfolding button, used to start the automatic boom unfolding function. 11- Unfolding LED, lit while automatic boom unfolding is active. 12- Folding button, used to start the automatic boom folding function. 13- Folding LED, lit while automatic boom folding is active. 14- (Up Arrow), used to navigate in menus and to increase values. 15- (Left Arrow), used to navigate in menus. 16- (Right Arrow), used to navigate in menus and to enable/disable automatic leveling (option). 17- (Down Arrow), used to navigate in menus and to decrease values. 18- (Enter), used to navigate in menus and to confirm functions and actions. 19- Left Secondary Boom, used to manually fold (up arrow) or unfold (down arrow) the left secondary boom section. 20- Left Primary Boom, used to manually fold (up arrow) or unfold (down arrow) the left primary boom section. 21- Right Primary Boom, used to manually fold (up arrow) or unfold (down arrow) the right primary boom section. 22- Right Secondary Boom, used to manually fold (up arrow) or unfold (down arrow) the right secondary boom section.

  • Page 10: Initial Start Up

    INITIAL START UP After console has been installed and connected, and sprayer has been hydraulically connected, the control system is ready to be started. Dealer’s Name First step will be the console configuration. For this step, start the tractor motor or turn the switch to accessory position. WELCOME TO THE SYSTEM When the system is powered, the console «beeps» and then displays, MS Control for 10 seconds, a screen like this: (figure 8) Console Prog. Upper rectangle: Dealer’s name A0.4 A0.8 Middle rectangle: the message «WELCOME TO THE SYSTEM» followed, on the third line, by the type of system: Figure 8 • «MS Control» means that the base system, with manual controls, has been installed. • «LogicBoom» means that in addition to the base system, the Logic Boom option has been installed. • «LogicBoom+» means that in addition to the base system, the Logic Boom By starting this system, you confirm that you option and also the Automatic Levelling option have been installed.

  • Page 11: Console Configuration

    INITIAL START UP Console configuration Temperature = If «Console configuration» is not highlighted, use the up arrow to highlight it, Contrast = 62% then press Enter. Console will display: (figure 13) Backlight = On Language = English All present settings are displayed: Reverse = Off Temperature: units used to display temperature measurements, °F or °C. Measure = Imperial Contrast: difference between characters and back screen, 0% to 100%. Backlight: lighting of the back screen, On or Off. Language: display language, Français, English or Español. Reverse: inversion of characters and back screen colors, On or Off. Figure 13 Measure: units used for height measurements, Imperial (inch) or Metric (cm). To change one or many of those settings, highlight the setting to be changed, using the up arrow or down arrow, then press Enter. You will enter the chosen Temperature setting menu. (figure 14 & 15) Use up or down arrows to select desired setting or to increase or decrease the value. For numeric values, value changes of 1 unit each time the arrow is pres- sed. If arrow button is maintained, value will change slowly in the beginning, and then faster and faster. When desired setting has been set, press Enter to exit that setting menu and go Figure 14 back to console configuration menu.

  • Page 12: Operation Configuration

    INITIAL START UP Operation configuration Console configuration Use down arrow to highlight «OPERATION», then press Enter to enter operation Operation configuration menu. (figure 16) SD memory card Information All present settings are displayed: (figure 17) Diagnostics Min. pressure: minimum hydraulic pressure for the control system, in psi. Typically, this pressure should be adjusted at 1/3 of the pressure shown on the console when cylinders are at rest. Figure 16 Automatic unfolding: the way that the boom will unfold when the automa- tic unfolding function is used. With Simultaneous unfolding selected, primary sections AND secondary sections will unfold at the same time. With Sequential unfolding selected, the primary sections will unfold first, and only after that, Min. pressure the secondary sections will unfold. Do not use simultaneous unfolding for boom exceeding 100 ft. Automatic unfolding Simultaneous unfolding Boom unfolding height Boom unfolding height: height of the boom at the end of automatic unfol-...

  • Page 13: Work Screens

    INITIAL START UP Use up arrow to highlight «WORK MODE». In future use of the system, if there are no changes needed in configuration, you will go directly from the welcome screen to the work mode screen. (figure 10) WORK MODE Press Enter to enter work mode screen. CONFIGURATION At this moment, the tractor has to be running and the hydraulic outlet for the boom has to be activated. If the hydraulic outlet is not activated or if the hydrau- lic pressure at this outlet is lower than the one set in Min. pressure of the Ope- ration configuration, an audible alarm will be heard and the screen will display the message “Hydraulic pressure too low. Check hydraulic outlet”. Activate the Figure 10 hydraulic outlet or press the left arrow to go back to the main screen in order to stop the alarm. While the alarm is on, no cylinder works, in order to protect the sprayer against loss or lack of hydraulic pressure. Check hydraulic connections or adjust the Min. pressure of the Operation configuration in accordance to the 2675 psi pressure available at your hydraulic outlet. When the problem has been solved, go into WORK MODE. Work screen MS Control Three different versions of screen could be seen, according to the options added or not. Figure 18 Screen for base version, with manual controls. Screen displays hydraulic oil pressure and temperature. (figure 18) Screen for version with Logic Boom option. Screen displays hydraulic oil 2675 psi...

  • Page 14: Hydraulic Flow Adjustment

    INITIAL START UP Oil flow adjustment for the booms For adequate operation, it is necessary to adjust the hydraulic flow of the tractor. The hydraulic distributor (hydraulic block) oil flow must be adjusted to 5 gpm. To do this, complete the following steps: IMPORTANT ! The oil distributor feeding the hydraulic block must be adjustable. If this is not the case, check with the tractor manufacturer that the flow is between 4 and 6 gpm and do not complete the following steps. 1. Take the 5 gpm hydraulic velocity fuse with BLACK anti-dust caps and connect it between the #2 distributor of the tractor and the boom function’s hydraulic block (figure 21). It is recommended to use the #2 distributor to feed the hydraulic block.

  • Page 15: Hydraulic System Purge

    INITIAL START UP 6. Continue to increase very slowly the flow until the pressure drops suddenly to 0 psi and the error message “hydraulic pressure too low” appears (figure 23). In addition to the message, there will be an alarm that will sound. (Do not increase the hydraulic flow from now on). The flow has now reached 5 gpm. On the majority of tractors, the triggering of the circuit Hydraulic pressure too low. Check velocity fuse will happen when the indicated pressure is at about 180 psi. hydraulic outlet. 7. If the flow is disturbed during operation or if there is a change in tractor, follow these steps again. 8. Remove the velocity fuse installed in step 1. Figure 23 Additional notes on hydraulic oil supply: - Hydraulic oil flow must be controlled by the tractor. Installation of an external valve to control the flow would result in overheating of hydraulic oil. - Use of hydraulic oil other than the one recommended by the tractor manufacturer could cause overheating of hydraulic oil. - A worn distributor or worn outlet coupler would create more restriction to the passage of oil, causing a higher return pressure and producing more heat. - A dirty hydraulic oil filter causes overheating of the oil. - When manufactured, the sprayer’s hydraulic manifold has been adjusted for open circuit tractors. That setting work as well with closed circuit tractors as with open circuit ones. Do not modify manifold adjustments before contacting the manufacturer. Hydraulic system purge Before using the system for the first time, you must make sure that there is no air in the hydraulic circuit. The following procedure explains how to purge the system. Purge the system before using your sprayer for the first time, at the beginning of each spraying season and also after maintenance or repair works have been performed on the sprayer hydraulic system.

  • Page 16: Working With The Control System

    WORKING WITH THE CONTROL SYSTEM It is strongly recommended that you practice before using your sprayer in the field. Dealer’s Name Choose a place with enough space and where you will not risk damaging your crop. If you want to practice spraying at the same time, fill the tank with water WELCOME TO THE SYSTEM only. MS Control Console Prog. A0.4 A0.8 Going to the field When the tractor is started, the console “beeps” and then displays, for Figure 8 10 seconds, the welcome message: (figure 8) After 10 seconds, the welcome message disappears and is replaced by the responsibility message (figure 9): Press Enter to go to the main screen. By starting this system, you confirm that you (figure 10) have read the safety instructions described in While the main screen is displayed, the system is locked, nothing works. It is...
  • Page 17 WORKING WITH THE CONTROL SYSTEM «Confirm» is highlighted by default. Confirmation is asked in case the button had been accidentally pressed. 2675 psi If you change your mind and want to cancel the function, press the down arrow 87 °F to highlight «Cancel» and then press Enter and the console will go back to the work mode screen. Unfolding in progress, please remain If you still want to use the automatic unfolding function, press Enter to confirm. motionless The LED under the Unfolding button will light and the console will display: (figure 25) During the automatic unfolding, check on both sides to be sure that Figure 25 there are no persons, animals, fences, trees or other obstacles and always be ready to press the “Emergency Stop” button. DANGER The system will first lift a little the tilt cylinders (on some models), then lift the center section of the boom, then unfold primary AND secondary sections at the same time if simultaneous unfolding has been selected in Operation confi- guration OR unfold primary sections and then secondary sections if sequential Emergency stop unfolding has been selected, and will finally lower the center. Press enter to exit When the unfolding operation is completed, the console will automatically go back to the work mode screen.

  • Page 18: Manual Boom Height Control

    WORKING WITH THE CONTROL SYSTEM Manual boom height control LogicBoom All systems, including those with the Logic Boom option, may be manually controlled. 24" Use the bottom row buttons to control the boom height: CENTER buttons to rise (green) or lower (red) the center section. Left Right Left TILT buttons to rise (green) or lower (red) the left section. Right TILT buttons to rise (green) or lower (red) the right section. Automatic boom height control (option) Figure 27 This section applies only to sprayers equipped with the Logic Boom option. LogicBoom To start the automatic boom height control function, press the “Automatic Boom” button.

  • Page 19: Pause

    WORKING WITH THE CONTROL SYSTEM At any moment, you can stop the procedure by pressing the “Automatic Boom” button. The console will go back to the work screen. Confirm When you are satisfied with the boom height and the sections to be automatically activation of controlled, press Enter. LogicBoom at 24" The console will ask for a confirmation: (figure 29) «Cancel» is highlighted by default. If you want to cancel the function, press Enter and Confirm the console will go back to the work screen. Cancel If you want to confirm the function, press the up arrow to highlight «Confirm» and then press Enter. The Automatic Boom LED will light and the console will go back to the work screen, but Figure 29 with the Logic Boom function activated. (figure 30) Center, Left and Right sections rectangles are blue, meaning that all those sections are automatically controlled. Present height of each section is displayed. If one or two sections are not automatically controlled, the corresponding rectangles will be white 2675 psi...

  • Page 20: Extra Ultrasound Sensors (Option)

    WORKING WITH THE CONTROL SYSTEM Extra ultrasound sensors (option) This section applies only to sprayers equipped with the Logic Boom option that also have the 2 extra ultrasound sensors option. On sprayers equipped with five ultrasound sensors instead of three, two sensors are installed on the left boom section and two on the right section. In order to protect the boom, the system does not make a mathematical ave- rage of the readings of the 2 sensors installed on the same section. It displays and reacts to the closest distance amongst the 2 readings. If a sensor reads 25 inches and the other reads 30 inches, the console displays 25 inches and the automatic boom height control uses 25 inches as the height of that section. Automatic boom leveling (option) This section applies only to sprayers equipped with the Automatic Leveling option. (figure 20) 2675 psi F 0.3 M -0.2 Center The boom is mounted on a pivot and tends to stay horizontal, but the sprayer 27"...

  • Page 21: Automatic Boom Folding

    WORKING WITH THE CONTROL SYSTEM When leveling cylinders are blocked, they are not blocked at 100%. If the boom suffers an impact, cylinders slip to protect the boom structure. Align- 2675 psi F -4.3 ment is then readjusted, if necessary. M -4.2 Center 27" As long as the Automatic Leveling is enabled, the console beeps every 30 Left Right seconds as a reminder. When work on the side of the slope is finished, press...

  • Page 22: Going Out Of The Field

    WORKING WITH THE CONTROL SYSTEM «Confirm» is highlighted by default. Confirmation is asked in case the button had been accidentally pressed. 2675 psi If you change your mind and want to cancel the function, press the down arrow 87 °F to highlight «Cancel» and then press Enter and the console will go back to the work mode screen. Folding in progress, If you still want to use the automatic folding function, press Enter to confirm. please remain motionless The LED under the Folding button will light and the console will display: (figure 34) During the automatic folding, check on both sides to be sure that there are no persons, animals, fences, trees or other obstacles Figure 34 and always be ready to press the «Emergency Stop» button. DANGER The system folds the boom like this: - Lifts completely the center section of the boom. - Folds both secondary sections at the same time. - Lifts completely both tilts at the same time. - Lowers both tilts to the right height at the same time. Emergency stop - Folds both primary sections at the same time. Press enter to exit - Lowers the centre section of the boom.

  • Page 23: Spraying

    WORKING WITH THE CONTROL SYSTEM Spraying If your console has been connected to the spraying rate controller, you can turn on and turn off spraying by pressing the “ Spraying” button. The LED over the button indicates that spraying is turned off. Hydraulic oil temperature Hydraulic oil temperature is displayed in the top left corner. If, while you are working, oil temperature reaches 90°C (194°F), a warning message appears on the screen with an audible signal and a note is written in the system log. The system notes the number of times 90°C was reached or exceeded and the maximum temperature reached. If temperature reaches 95°C (203°F), the system enters Shutdown mode. A warning message appears on the screen with an audible alarm. All functions are stopped and nothing can work in order to protect the system and also the tractor. Stop all hydrau- lic functions and let the hydraulic oil cool before restarting hydraulic functions.

  • Page 24: Information On The System

    INFORMATION ON THE SYSTEM After the responsibility message when the system is powered, or after pressing the left arrow from the work screen, the console displays the main screen. (figure 10) WORK MODE If you want to have information on your system, that information is available in the configuration menu. CONFIGURATION To go into configuration menu, use the down arrow to highlight «CONFIGURATION». (figure 11) After «CONFIGURATION» has been highlighted, press Enter and configuration Figure 10 menu will be displayed: (figure 12) Use the down arrow to highlight «Information». (figure 35) Press Enter to display information screen: (figure 36) WORK MODE Information content will be displayed: Line 1: the name of the dealer who sold the sprayer CONFIGURATION Line 2: the date at which the system was powered for the first time Line 3: the serial number of the sprayer Line 4: the total time the system has been powered Line 5: the number of times that the hydraulic oil temperature has reached or exceeded 90°C (194°F) Figure 11 Line 6: the maximum temperature reached the last 5 times that temperature has reached or exceeded 90°C (194°F) Line 7: the program version installed in the console Line 8: the program version installed in the control system Console configuration Lines 9 and 10: options that have been installed or not: Logic Boom followed by Operation number 0 means Logic Boom not installed, followed by number 3 means Logic SD memory card Boom installed with 3 ultrasound sensors and followed by number 5 means Information Logic Boom installed with 5 sensors. Hydraulic brake installed: Yes or No. Auto-...

  • Page 25: Sd Memory Card

    SD MEMORY CARD If your system needs to be updated or when you want to add features that became available for your system, communication with the system is pos- sible by using an SD card. When you bought your sprayer, you received an SD memory card that contains a copy of the programs installed in your boom control system. The SD memory card is stored in the control box behind the sprayer in order to be always available to technicians called for service or maintenance. Before updating the system, you have to prepare the SD card. Figure 37 Preparing the SD memory card Insert the sprayer’s SD card into an SD card port on the computer or use an SD-USB adaptor to plug the SD card to a USB port. (figure 37) Open the SD card. 4 files are present on the card. The names of the files look like these: CON-A1-2.mgu (Console program). Figure 38 CON-BT3.mgu (Bootloader program) MSG1A1.XML (Configuration program). PWR-A1-1 Msg1A103.mgu (Power control program). Check the file(s) that you received by e-mail or that you downloaded. On the SD card, replace the file(s) by the new corresponding version(s). Example 1: you receive a new file for update named PWR-A1-2 Msg1A103. mgu. According to its file name, it’s a power control program. Copy the file Figure 39 PWR-A1-2 Msg1A103.mgu and paste it on the SD card. Delete the old file...
  • Page 26 SD MEMORY CARD If more than one file need to be updated, proceed in the following order: 1- Bootloader update (file name beginning by CON-B...) 2- Console update (file name beginning by CON-A…) 3- Power update (file name beginning by PWR…) WORK MODE 4- Configuration update (file name beginning by MSG…) CONFIGURATION It is not necessary to have the sprayer run for updating. Just start the motor or turn the switch to accessory position. After the responsibility message, the console displays the main screen. (figure 10) Figure 10 The SD memory card menu, used for updates, is in the configuration menu. To go into configuration menu, use the down arrow to highlight «CONFIGURA- TION». (figure 11) WORK MODE After «CONFIGURATION» has been highlighted, press Enter and configuration menu will be displayed: (figure 12) CONFIGURATION Use the down arrow to highlight «SD memory card». (figure 42) Figure 11 Console configuration Operation SD memory card Information Diagnostics Figure 12 Console configuration Operation SD memory card...

  • Page 27: Bootloader Update

    SD MEMORY CARD Press Enter to display SD memory card menu. (figure 43) Console update Bootloader update Power update Configuration export If you do not need to update the bootloader program (if you do not have to Configuration import Bootloader update update a file beginning by CON-B…), skip this section and go to Console update section. If you need to update the bootloader program (if you need to update a file beginning by CON-B…), use down arrow to highlight «Bootloa- der update». Press Enter to access bootloader update. (figure 44) Figure 43 If you forgot to insert the SD card, console will display: (figure 45) Read previous section «Updating the system» to learn how to insert the SD card or press the left arrow to cancel. Console update When the SD card is present, the console displays: (figure 46) Power update Configuration export Configuration import...

  • Page 28: Console Update

    SD MEMORY CARD While the system installs the new version, the screen displays (figure 48) When the update is finished, the console displays the welcome message for 10 Bootloader update seconds, and then displays the responsibility message. Press Enter to go to main screen. If you had only the bootloader program to update, update is finished. Slightly push Sending Data on the SD card to unlock, remove it and store it. Put back the dust protection plug. If you have other programs to update, once again highlight «CONFIGURATION» then press Enter and highlight «SD memory card» and then press Enter. Console update Figure 48 If you do not need to update the console program (if you do not have to update a file beginning by CON-A…), skip this section and go to Power update section. If you need...

  • Page 29: Power Update

    SD MEMORY CARD Power update Console update If you do not need to update the power program (if you do not have to update Power update a file beginning by PWR…), skip this section and go to Configuration import Configuration export section. Configuration import Bootloader update If you need to update the power program (if you need to update a file beginning by PWR…), press the down arrow to highlight «Power update». Press Enter to access power update. (figure 52) If you forgot to insert the SD card, console will display: (figure 45) Figure 52 Read previous section “Updating the system” to learn how to insert the SD card or press the left arrow to cancel. Insert an SD card When the SD card is present, the console displays: (figure 53) with update file Press the left arrow if you want to cancel or the right arrow if you want to...

  • Page 30: Configuration Importation

    SD MEMORY CARD Configuration importation Console update If you need to import the configuration program (if you need to update a file Power update beginning by MSG…), press the down arrow to highlight «Configuration im- Configuration export port». Press Enter to access Configuration importation. (figure 56) Configuration import Bootloader update If you forgot to insert the SD card, console will display: (figure 45) Read previous section Updating the system to learn how to insert the SD card or press the left arrow to cancel. Figure 56 When the SD card is present, the console displays: (figure 57) When the reading is finished, the console displays: (figure 58) Insert an SD card Press Enter to exit Configuration importation. with update file Press Left to cancel Figure 45 Reading Figure 57 Press Enter...

  • Page 31: Configuration Exportation

    SD MEMORY CARD Configuration exportation If there is something going wrong with your system and the manufacturer asks you to send the configuration file by e-mail, you will need to export configura- tion. Make sure the SD card is not “locked for writing”. If the card is locked, unlock it. (figure 59) Insert the SD memory card into the console. Read previous section «Updating the system» to learn how to insert the SD card. Figure 59 Press the down arrow to highlight «Configuration export». Press Enter to access Configuration exportation. (figure 60) Console update After one second or two, exportation is finished and the console displays: Power update (figure 58) Configuration export Configuration import Bootloader update Press Enter to exit Configuration exportation. Slightly push on the SD card to unlock, remove it and store it in its case. Put back the dust protection plug. Figure 60 To send the file by e-mail, plug the SD memory card to a computer as specified in the section «Preparing the SD memory card». The file you have to send is the file named MSG1A1.XML (Configuration program). Attach that file to your e-mail and send it to the address you were told. Press Enter to continue Figure 58...

  • Page 32: Trouble Shooting

    TROUBLE SHOOTING Diagnostics Inputs The console can be used for trouble shooting. The complete diagnostics sec- Outputs tion of the system is dedicated for assistance to users and technicians in fin- Buttons ding the origin of problems. Joystick For an overview of what you can do with this section, read the example that Water Relay Piezo follows the «diagnostics» section. To go into diagnostics section from the main screen, highlight «CONFIGURA- TION» then press Enter. Figure 61 Highlight «Diagnostics» and press Enter. (figure 61) Inputs 26" 27" 28" You can see the readings of all sensors installed on your system. 26" 30" 180 psi 28.9 °C Highlight “Inputs”, then press Enter to open Inputs screen. (figure 62) F 0.95° M -1.73° In this screen, you can see the readings of all sensors, even the 2 extra ultra- sound sensors (option). In the work screen, only the nearest reading is seen when 2 sensors are installed on the same boom side. Figure 62 Up to 4 digital sensors could be added to the system. The 4 squares down the screen would show the state (On or Off) of those sensors. Full square means On, empty square means Off.

  • Page 33: Outputs Table

    TROUBLE SHOOTING Outputs table Identification Description DMP (LED17) Dump valve DIR (LED15) Directional valve Prim. Left Sect. (LED13) Left primary section valve Prim. Right Sect. (LED11) Right primary section valve Sec. Left Sect. (LED9) Left secondary section valve Sec. Right Sect. (LED7) Right secondary section valve Center (LED20) Center section valve Brake (LED3) Brake valve (not used) Left Tilt Series (LED4) Left tilt solenoid valve (Logic Boom option) Left Tilt Up (LED6) Left tilt proportional valve, up (Logic Boom option) Left Tilt Down (LED8) Left tilt proportional valve, down (Logic Boom option) Right Tilt Series (LED10) Right tilt solenoid valve (Logic Boom option) Right Tilt Up (LED12) Right tilt proportional valve, up (Logic Boom option) Right Tilt Down (LED14) Right tilt proportional valve, down (Logic Boom option) BAL (LED27) Balance proportional valve (Automatic levelling option) Auto Level Series (LED16) Automatic levelling solenoid valve (Automatic levelling option) Auto Level L (LED19) Automatic levelling left proportional valve (Automatic levelling option) Auto Level R (LED21) Automatic levelling right proportional valve (Automatic levelling option) Lights Relay (LED22)
  • Page 34 TROUBLE SHOOTING Using the up or down arrows, you can turn on and turn off the valve. When you turn on the valve, check if corresponding LED lights in the Left Tilt Down (LED8) control box. Always turn off the valve before exiting. Press Enter or Left arrow to exit. For more information on what you can do with this section, read the example that follows the “diagnostics” section. Figure 65 If you want to test a proportional valve, highlight the valve and press Enter. Screen will be like this: (figure 65) Pressing Enter alternates highlighted zone between state and percentage. Up and down arrows change On/Off state, and also increase and decrease the opening percentage of the valve. When you turn on the valve, check if corresponding LED lights in the control box. With the valve turned on, if you slowly increase percentage, you will have the impression that at 2% the LED is totally lit. Human eye does not really see the difference between 2% and 100%. Always turn off the valve before exiting. Because Enter is used to alternate highlighted zone, press the Left arrow to exit. For more information on what you can do with this section, read the example that follows the “diagnostics” section.

  • Page 35: Functions Tables

    TROUBLE SHOOTING Functions tables In each function or cylinder movement, 2 valves or more need to be activated. The following tables show, for each movement, which valves must be activated and in which order. Do not forget that after each test, all valves must be turned off. IMPORTANT NOTE: When turning on valves, cylinders and boom sections may move. CAUTION Base model (MS Control), for all boom models except 120 ft Fusion boom Function First step Second step Third step Rise center Turn On DMP (LED17) Turn On Center (LED20) Lower center Turn On DMP (LED17) Turn On DIR (LED15) Turn On Center (LED20) Fold left primary Turn On DMP (LED17) Turn On Prim. Left (LED13) Unfold left primary Turn On DMP (LED17) Turn On DIR (LED15) Turn On Prim. Left (LED13) Fold right primary Turn On DMP (LED17) Turn On Prim. Right (LED11) Unfold right primary Turn On DMP (LED17) Turn On DIR (LED15) Turn On Prim. Right (LED11) Fold left secondary Turn On DMP (LED17) Turn On Sec. Left (LED9) Unfold left secondary Turn On DMP (LED17) Turn On DIR (LED15) Turn On Sec. Left (LED9)
  • Page 36 TROUBLE SHOOTING Model with the option automatic boom height control (Logic Boom), for all boom models except 120 ft Fusion boom Function First step Second step Third step Fourth step Rise center Turn On DMP (LED17) Turn On Center (LED20) Lower center Turn On DMP (LED17) Turn On DIR (LED15) Turn On Center (LED20) Fold left primary Turn On DMP (LED17) Turn On Prim. Left (LED13) Unfold left primary Turn On DMP (LED17) Turn On DIR (LED15) Turn On Prim. Left (LED13) Fold right primary Turn On DMP (LED17) Turn On Prim. Right (LED11) Unfold right primary Turn On DMP (LED17) Turn On DIR (LED15) Turn On Prim. Right (LED11) Fold left secondary Turn On DMP (LED17) Turn On Sec. Left (LED9) Unfold left secondary Turn On DMP (LED17) Turn On DIR (LED15) Turn On Sec. Left (LED9) Fold right secondary Turn On DMP (LED17) Turn On Sec. Right (LED7) Unfold right secondary Turn On DMP (LED17) Turn On DIR (LED15) Turn On Sec. Right (LED7) Rise left tilt...
  • Page 37 TROUBLE SHOOTING Model with the options automatic boom height control and automatic levelling (Logic Boom+), for all boom models except 120 ft Fusion boom Function First step Second step Third step Fourth step Fifth step Sixth step Rise center Turn On DMP Turn On Center (LED17) (LED20) Lower center Turn On DMP Turn On DIR Turn On Center (LED17) (LED15) (LED20) Fold left primary Turn On DMP Turn On Prim. Left (LED17) (LED13) Unfold left primary Turn On DMP Turn On DIR Turn On Prim. (LED17) (LED15) Left (LED13) Fold right primary Turn On DMP Turn On Prim. Right (LED17) (LED11) Unfold right Turn On DMP Turn On DIR...
  • Page 38 TROUBLE SHOOTING Model with the options automatic boom height control and automatic levelling (Logic Boom+), for 120 ft Fusion boom Function First step Second step Third step Fourth step Fifth step Sixth step Rise center Turn On DMP Turn On Center (LED17) (LED20) Lower center Turn On DMP Turn On DIR Turn On Center (LED17) (LED15) (LED20) Fold left primary Turn On DMP Turn On DIR Turn On Prim. (LED17) (LED15) Left (LED13) Unfold left primary Turn On DMP Turn On Prim. Left (LED17) (LED13) Fold right primary Turn On DMP Turn On DIR Turn On Prim. (LED17) (LED15) Right (LED11) Unfold right Turn On DMP...

  • Page 39: Buttons

    TROUBLE SHOOTING Buttons Buttons section allows manual testing of buttons. To enter Buttons section, highlight “Buttons”, then press and maintain Enter. (figure 66) The square representing the Enter button is lit (full square), proving that the button works. Maintaining Enter button is the only way to test it. Release it now. The next time you press the Enter button, you will exit the Buttons screen. Figure 66 Each button is represented in the diagram, even the buttons that you do not see on the console. You can test the buttons you want. When you press a but- ton, the corresponding square should light. If the square does not light, the button is defective. Press Enter to exit.

  • Page 40: Water Relay

    TROUBLE SHOOTING When you press a button beside a LED, the corresponding square lights and the LED should light. If the square lights but not the LED, the LED is defective. Water Relay To exit the LED section, press Enter. Water Relay Water Relay allows testing of the relay inside the console in case the «Spraying» function was not working. Highlight «Water Relay», and then press Enter. (figure 69) Figure 69 Use the up or down arrows to turn on and turn off the relay. MP-15953 Nicolas Péloquin - MS Gregson Martin Plourde M.P. 819 474-2569 819 474-4459 Autocollants LED Turn off and press Enter to exit.

  • Page 41: Example Of Trouble Shooting

    TROUBLE SHOOTING Example of trouble shooting For this example, we will suppose that the problem is that the centre part of the boom refuses to move. All other cylinders are moving normally. The problem could be caused by the console buttons, by the control board, by a valve cable, by a valve coil, by a valve or by a cylinder. Instead of replacing all parts that could be defective until it works, you will try to find exactly which part is defective, and then replace the right part. 1- First, test the console buttons. From the main screen, go into Configuration, then into Diagnostics and then into Buttons. Press CENTER buttons, up and down. If corresponding squares do not light, buttons are defective, have the console repaired. If squares light, buttons are working properly, go to the next step. 2- We will now have to go behind the sprayer. Unscrew a little the 2 knobs of the console holder and slide the console out of its holder. Disconnect the console plug and go behind the sprayer, near the control box. Disconnect the cable from outlet #1 (first one from the left) and plug in its place the console plug. You will now be able to control the system from behind the sprayer. Do not forget to plug back the cable that was in outlet #1 when you bring back the console inside the tractor cab. 3- Open the control box. In the upper left corner, LED5 is already lit, proving that the system is powered. More on the right, LED18 is flashing, proving that the console is communicating with the control box. 4- Refer to Function tables in the previous Outputs section. According to the tables, when raising the center, LED17 and LED20 should light, and when lowering, LED17, LED15 and LED20 should light. 5- As Dump valve LED17 and Directional valve LED15 are used for many other functions that are working normally, we already know that those valves are working normally. But function for Center valve LED20 could be defective. 6- Push CENTER UP button and check if LED17 and LED20 light on. Push also CENTER DOWN button and check for LED17, LED15 and LED20. If one of the LED does not light when it should, the control board is defective. Have the control box repaired. If the LED light like they should, the control box is correct, we now know that the problem is at the outlet of the control box. 7- Because the Dump valve and the Directional valve are used in other functions that run normally, we know that those valves are working correctly. But Center valve has to be checked. 8- Referring to drawings in the manual, Center valve is identified and is the valve #C4. Manually activate Center valve LED20 according to instructions of previous Outputs section or ask somebody to press and maintain the CENTER UP or CENTER DOWN button.

  • Page 42: Menus Table

    MENUS TABLE...

  • Page 43: Problem Solution

    LOGIC BOOM PROBLEM SOLUTION For MS GREGSON’S boom control system LOGIC CONTROL Effective November 2017. MS Gregson Inc. 4300, Vachon, Drummondville, Qc, Canada, J2B 6V4 Tel.: 819-474-1910 • Fax: 819-474-5317 info@msgregson.com • www.msgregson.com...
  • Page 45 TABLE OF CONTENTS SECTION A : Console screen ..............46 - 48 SECTION B : Manual unfolding ..............49 - 52 SECTION C : Automatic unfolding ............. 53 - 55 SECTION D : Manual folding ..............56 - 58 SECTION E : Automatic folding ..............

  • Page 46: Console Screen

    SECTION A - CONSOLE SCREEN (A1) CONSOLE SCREEN Is something Start the tractor. Is the tractor running? displayed? Is screen displaying Go behind the sprayer and open correctly? the control box. Is mist in the screen? Let the console dry. Avoid rain.
  • Page 47 SECTION A - CONSOLE SCREEN (A2) Page A1 Page A1 Page A1 Find rectangular connector #1. Does screen turn on System is not correctly Disconnect the cable. Measure and off during powered. Measure voltage at voltage between pin #4, red (+) operation? inlet grey connector and go and pin #2 black (-).
  • Page 48 SECTION A - CONSOLE SCREEN (A3) Page A2 Memory is overloaded. Does the turning Is the control box Disconnect power for Start up circle appear during continually powered 10 seconds and reconnect. work or at even if the tractor Install a switch or start up? is stopped? accessory relay.

  • Page 49: Manual Unfolding

    SECTION B - MANUAL UNFOLDING (B1) MANUAL UNFOLDING Check hydraulic supply. Check Nothing Do cylinders move, for inverted hoses, disconnected or nothing happens? hoses or oil outlet defective or activated in reverse position. Cylinders move Do the boom center and tilts only go down? Are there secondary Check the sections supports.
  • Page 50 SECTION B - MANUAL UNFOLDING (B2) Page B1 With the console, go in Is it a 120 ft Does a primary section Configuration/Diagnostics/ Fusion boom? refuse to unfold? Inputs. Look at the 4 squares down the screen. Is a square lit? The limit switch for end of course is stuck or defective.
  • Page 51 SECTION B - MANUAL UNFOLDING (B3) Page B2 Is the speed of a Stuck restrictor. cylinder much too fast, Go to section J. but not everytime? Is the speed of a Dirt in a restrictor. cylinder much too slow, Go to section K. but not everytime? Refer to operator’s manual, trouble shooting section.
  • Page 52 SECTION B - MANUAL UNFOLDING (B4) Page B3 Is it a 3-sections boom on which sequence for Problem not listed. unfolding secondary and Contact the manufacturer. tertiary sections is not good? Is the sprayer on a slope? Is the problem solved? Try on a level surface.

  • Page 53: Automatic Unfolding

    SECTION C - AUTOMATIC UNFOLDING (C1) AUTOMATIC UNFOLDING Has manual unfolding Test manual unfolding first. been tested? Does manual unfolding Solve manual unfolding first. works correctly? Does the tractor’s Does a boom section Adjust motor speed as when motor run at the same unfold not completely? spraying.
  • Page 54 SECTION C - AUTOMATIC UNFOLDING (C2) Page C1 Page C1 Is the boom center at the right height at the end? While unfolding, does Check hydraulic flow, Adjust hydraulic pressure the outlet at 5 gpm. decrease? Problem not listed. Contact the manufacturer.
  • Page 55 SECTION C - AUTOMATIC UNFOLDING (C3) Page C2 Is there something under the central Remove, clean, tie. ultrasound sensor (grass, cable, etc.)? Use the console to adjust final height (Operation configuration).

  • Page 56: Manual Folding

    SECTION D - MANUAL FOLDING (D1) MANUAL FOLDING Chech hydraulic supply. Check for Nothing happens Do cylinders move or inverted hoses, disconnected hoses or nothing happens? oil outlet defective or activated in reverse position, Cylinders move Do the boom center and tilts only go down? Check the sections supports.
  • Page 57 SECTION D - MANUAL FOLDING (D2) Page D1 Is the speed of a Stuck restrictor. cylinder much too fast, Go to section J. but not everytime? Is the speed of a Dirt in a restrictor. cylinder much too slow, Go to section K. but not everytime? Refer to operator’s manual, Does only one cylinder...
  • Page 58 SECTION D - MANUAL FOLDING (D3) Page D2 Is it a 3-section boom on Problem not listed. which the sequence for folding Contact the manufacturer. secondary and tertiary sections is not good? Try on a level surface? Is the sprayer on a slope? Is the problem solved? Contact the manufacturer.

  • Page 59: Automatic Folding

    SECTION E - AUTOMATIC FOLDING (E1) AUTOMATIC FOLDING Has manual folding Test manual folding first. been tested? Does manual folding Solve manual folding first. works correctly? Does the tractor’s Does a boom section Adjust motor speed as when motor run at the same fold not completely? spraying.
  • Page 60 SECTION E - AUTOMATIC FOLDING (E2) Page E1 Page E1 While folding, does Check hydraulic flow. Adjust hydraulic pressure the outlet at 5 gpm. decrease? Adjust folding times (dealer). Page E3...
  • Page 61 SECTION E - AUTOMATIC FOLDING (E3) Page E2 Hydraulic flow is too high. Do primary sections Adjust at 5 gpm. refuse to fold? When primary sections hit their supports, rectangular steel tube should touch the vertical part of the support at the following height: Half-height for Novation 3/4-height for Fusion...
  • Page 62 SECTION E - AUTOMATIC FOLDING (E4) Page E3 When folding is Adjust the time for lower center finished, does the boom or lower tilts (dealer). rest heavily on its supports? Problem not listed. Contact the manufacturer.

  • Page 63: Logicboom

    SECTION F - LOGICBOOM (F1) LOGICBOOM With the console, go in Is the height measure Configuration/Console unit the good one? configuration/Measure. With the console, go in Is the height of all 3 Configuration/Diagnostics/ sensors displayed? Inputs. Is the height of all 3 Have the control box repaired.
  • Page 64 SECTION F - LOGICBOOM (F2) Page F1 Go on a flat surface and if possible, without vegetation. Measure distance Wrong between ground and the nozzle nearest Do displayed heights seem to the sensor. Compare with height correct or wrong? displayed for that sensor. If different, contact the dealer.
  • Page 65 SECTION F - LOGICBOOM (F3) Page F2 Page F2 Do one (or more) Hydraulic outlet has been section go completely disabled or a hose is down and refuse to disconnected. go back up? Check alignment of the sensors Does one section seem Are all sensors aligned with rows and spaces between lower than the others?
  • Page 66 SECTION F - LOGICBOOM (F4) Page F3 Does one (or more) Is nozzle bar Do nozzle spray right section go up as perfectly positionned? under the sensor? soon as spraying (rotation) begins? Turn and reposition the nozzle bar. Contact the manufacturer. Is the boom going Use the up arrow to increase Contact the manufacturer for modification...
  • Page 67 SECTION F - LOGICBOOM (F5) Page F4 Are all sensors perfectly aligned? Align the sensors. (all on rows or all between rows) Readjust like it was originally. Were the balance springs Gap of 1/8 to 1/4 inch tightened ? between nut and spring washer. Were the other reaction Is the boom stable? Try the other reaction speeds.
  • Page 68 SECTION F - LOGICBOOM (F6) Page F5 Has the other soil cover type (baresoil or Try the other soil cover type. Is the boom stable? vegetation) been tested? Is the sprayer equipped with the Are shocks Replace oily absorbers. auto-leveling absorbers oily? option? With the boom at mid-height and with...
  • Page 69 SECTION F - LOGICBOOM (F7) Page F6 Page F6 On the side that is easier to lift, a shock absorber is defective. Is required force equal for both sides? Remove absorbers and test. The one easy to strech is defective. Problem not listed.
  • Page 70 SECTION F - LOGICBOOM (F8) Page F7 Is the boom stable? Contact the manufacturer.

  • Page 71: Auto-Leveling

    SECTION G - AUTO-LEVELING (G1) AUTO-LEVELING Is the inclination of both With the console, go in sensors displayed? Configuration/Diagnostics/inputs Is the inclination of Have the control box repaired. both sensors displayed? Go to section I, Inclination meters Check installation of the sensors. Wrong Check if perfectly parallel with Do displayed angles seem...
  • Page 72 SECTION G - AUTO-LEVELING (G2) Page G1 Auto-leveling is not activa- On the console screen, Does the system ted. Press the right arrow to is the auto-leveling correct leveling? activate auto-leveling. rectangle dark? The system corrects only Is difference between when difference between both angles higher both angles is higher than 1°.
  • Page 73 SECTION G - AUTO-LEVELING (G3) Page G2 Page G2 A valve or a valve coil is not Are all necessary working properly. Refer to LEDs lit? operator’s manual, trouble shooting section. An example of trouble shooting shows how to use information from the console and control box in order to solve that kind of problems.
  • Page 74 SECTION G - AUTO-LEVELING (G4) Page G3 Is system correcting correctly? Contact the manufacturer.

  • Page 75: Ultrasound Sensors

    SECTION H - ULTRASOUND SENSORS (H1) ULTRASOUND SENSORS Wrong Is displayed height Wrong offset data. wrong or missing? Contact the dealer. Missing Switch connection with another sensor. Has missing reading The control box is defective. changed place? Have it repaired. Put back connectors in their proper place.
  • Page 76 SECTION H - ULTRASOUND SENSORS (H2) Page H1 Unscrew and disconnect the bigger connector from the sensor. Place it to have the groove at midnight (top). Are LEDs lit? Measure voltage between positive (top left) and negative (bottom right). Is 12 volts present? Replace the sensor For left or right sensors, follow cable to the next connector.
  • Page 77 SECTION H - ULTRASOUND SENSORS (H3) Page H2 Page H2 Measure voltage at control box connector: Center sensor: positive = pin #B (brown) negative = pin #C (blue) Other sensors: positive = pin #B (red) negative = pin #C (black) Repair or replace the cable.
  • Page 78 SECTION H - ULTRASOUND SENSORS (H4) Page H3 Page H3 Page H3 Is continuity good? Unscrew and disconnect the bigger connector from the sensor. Place it to have the groove at midnight (top). Measure continuity between signal connection (top right) and Repair or replace the cable.
  • Page 79 SECTION H - ULTRASOUND SENSORS (H5) Page H4 Is the programming Put back the plug present on programming plug. the sensor? The programming plug is not properly positionned. Remove it to reposition. With the LED window at 6hr (down), look for a little groove, bottom left of the program- ming connector.
  • Page 80 SECTION H - ULTRASOUND SENSORS (H6) Page H5 Is the LED now green? Replace the sensor.

  • Page 81: Inclination Meters

    SECTION I - INCLINATION METERS (I1) INCLINATION METERS Check, correct parallelism of Wrong Is displayed angle sensors with the frame and the wrong or missing? boom. Missing Temporarily, switch connection of the sensors (#1 and #2 on the side of the control box). Has missing reading Have the control box repaired.
  • Page 82 SECTION I - INCLINATION METERS (I2) Page I1 Check connection/contact of Is the green POWER LED lit on the sensor? grey wire on pin #A. Is connection perfect? Repair connection. Check connections of brown wire on pin #B and blue wire on pin #C.
  • Page 83 SECTION J - RESTRICTOR ADJUSTMENT (J1) This section applies only to directionnal restrictors installed in the hydraulic manifolds. It does not apply to fixed restrictors installed on lines or in manifolds. RESTRICTOR ADJUSTMENT A restrictor is too loose. Find the faulty restrictor by the function that is too fast: • Unfolding primary left: C6 • Unfolding primary right: C2...

  • Page 84: Restrictor Adjustment

    SECTION J - RESTRICTOR ADJUSTMENT (J2) Page J1 Page J1 To adjust a restrictor, proceed as follows: • Disconnect the hose • Unscrew the locking nut • Unscrew the elbow • Finish total unscrewing of the locking nut up to the elbow • Inspect and clean the restrictor • Make sure that manifold cavity is clean. • Insert the restrictor, with the slotted side visible • Screw the elbow until it pushes firmly against the restrictor • From that point, unscrew the elbow to align it. Unscrew at least 3/4 turn, nut not more than 1 3/4 turn. • Screw the locking nut • Plug back the hose • Purge air from hydraulic system...

  • Page 85: Problem Solution Chart

    SECTION K - DIRT IN RESTRICTOR (K1) DIRT IN RESTRICTOR Use the following table to find the faulty restrictor: Directionnal restrictors: • Unfolding primary left: C6 • Unfolding primary right: C2 • Unfolding secondary left: C7 • Unfolding secondary right: C1 • Folding primary left: C13 • Folding primary right: C9 • Folding secondary left: C14 • Folding secondary right: C8 • Lowering tilt left: TILT1 (LOGICBOOM) • Lowering tilt right: TILT2 (LOGICBOOM) Fixed restrictors: • Lowering or lifting center: C4 • Lowering or lifting tilt left C5 (manual controls)
  • Page 86 MS Gregson Inc 4300, Vachon st. Drummondville (Qc) Canada J2B 6V4 Tel.: 819 474-1910 Fax: 819 474-5317 info@msgregson.com www.msgregson.com A120-0023A (REV 3)
