Mec M50 Installation And Operation Manual

Smart lock

Advertisement

Quick Links

M50
Smart Lock
Installation and
Operation Manual
READ AND SAVE THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE
REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mec M50

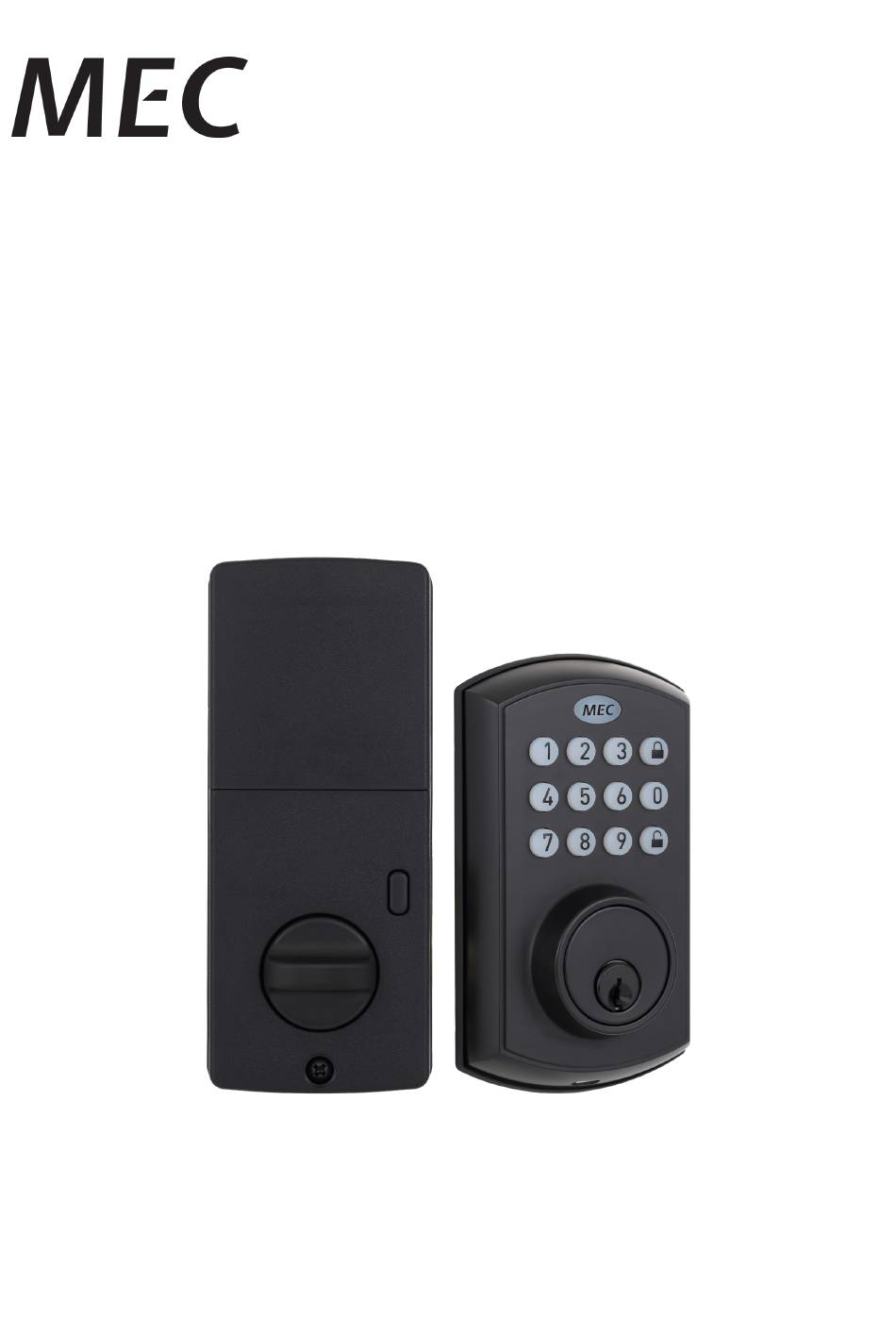

  • Page 1 Smart Lock Installation and Operation Manual READ AND SAVE THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE...
  • Page 2: Specifications

    Specifications Model No.: MED50MB Working voltage 4.8~6.4VDC Batteries 4 x AA (Not included) Working temperature -20�C~55�C (Not condensation) Door thickness 35~50mm Material Zinc alloy Colour Brushed nickel / matte black Unlock mechanism Key / password Quantity of passwords Relative humidity 20%~93% Lock Body Overview Battery cover...
  • Page 3: Components Overview

    Components Overview Front Body x 1 Front Rubber Pad x 1B Mounting Plate x 1 Back Body x 1 Deadbolt x 1 Strike Plate x 1 Key x 2 ST3.5*20 M4*30 M4*8 M4*25 x 5x x 2x...
  • Page 4 Installation Guide Battery Cover Mounting Plate ST3.5*20 Screw (Selective Assembly) Front Rubber Pad M4*8 Screws Front Body M4*25 M4*30 Screws Screws Deadbolt ST3.5*20 Screws...
  • Page 5 Adjustable Deadbolt Latch...
  • Page 6 IDENTIFY THE OPENING DIRECTION OF THE DOOR Check the door’s opening direction: if the front body is fastened on the left, it’s left opening, turn the toggle button to the L, and if it is fastened on the right, it’s r ight o pening, t urn the toggle button to the R.
  • Page 7 Installation Guide LEFT OPENING RIGHT OPENING 5.Identify the opening direction and adjust the key nail piece. Front Rubber Pad 6.Combine the front body with front rubber pad then fix it on the door. Deadbolt Latch Retracted Front Body Key Nail Piece 7.Make sure the key nail piece through the deadbolt, the cable through the door hole.
  • Page 8 ST3.5*20 Screw Make sure the cable through the door hold, the (Selective assembly) position near the mounting plate, then fix the front Mounting Plate body with 2 screws (M4*30), you can fix M4*30 Screw ST3.5*20 Screw selectively. Mounting Plate Cable Thumb Turn LEFT OPENING RIGHT OPENING...
  • Page 9: Finish Installation

    Battery M4*8 Screw M4*25 Screw Fix the back body to the mounting Place the batteries and make plate with three screws. sure the direction of the batteries is correct, then put in the battery cover. Bolt Rotate the thumb turn to test if The deadbolt latch can extend the lock work smoothly.
  • Page 10 Operation Instructions Light Indicator (6 digits)
  • Page 11: Reset Factory Settings

    Reset Factory Settings Stick the Reset Button with a needle for 3 seconds. The light indicator will turn greeen then red light flash 3 times, you will hear 1 long and 3 short beep. The lock will be default mode. All User Code will be deleted and the lock will unmute.
  • Page 12 02-50 Delete One Existng User Code Delete All User Codes Warning...
  • Page 13 The Auto-Lock function automatically re-lock your door after a set time 3-30 seconds after unlocking. (It’s 10 seconds by default) ou can “mute” or “unmute”your lock by entering the following (The feature is on by default): Note If the lock is muted you will not hear beeping during programming normal :...
  • Page 14: Customer Service

    Customer Service Australian Customer Service GAF Control (Sales) Pty Ltd P.O Box 19 Altona North, Victoria 3025 Phone: 1300 659 489 Hours: 9AM - 5PM (EST) Monday - Friday www.gafcontrol.com.au *This product may vary slightly to the product illustrated due to ongoing product development.
  • Page 15 Warranty Statement GAF Control (Sales) Pty Ltd provides a 12-MONTH WARRANTY for products purchased within Australia. Please refer to the terms and conditions of the warranty as stated below. The benefits of this warranty are provided in addition to other rights and remedies you may have under a law in relation to the goods and services to which this warranty relates.
  • Page 16 • 4. Installers license number and phone number (where Damage to property including furniture, carpets, walls, necessary) ceilings or any other event either directly or indirectly are excluded from warranty; 5. Your name, contact address, email, telephone and fax numbers •...
