Summary of Contents for iLC CX-1

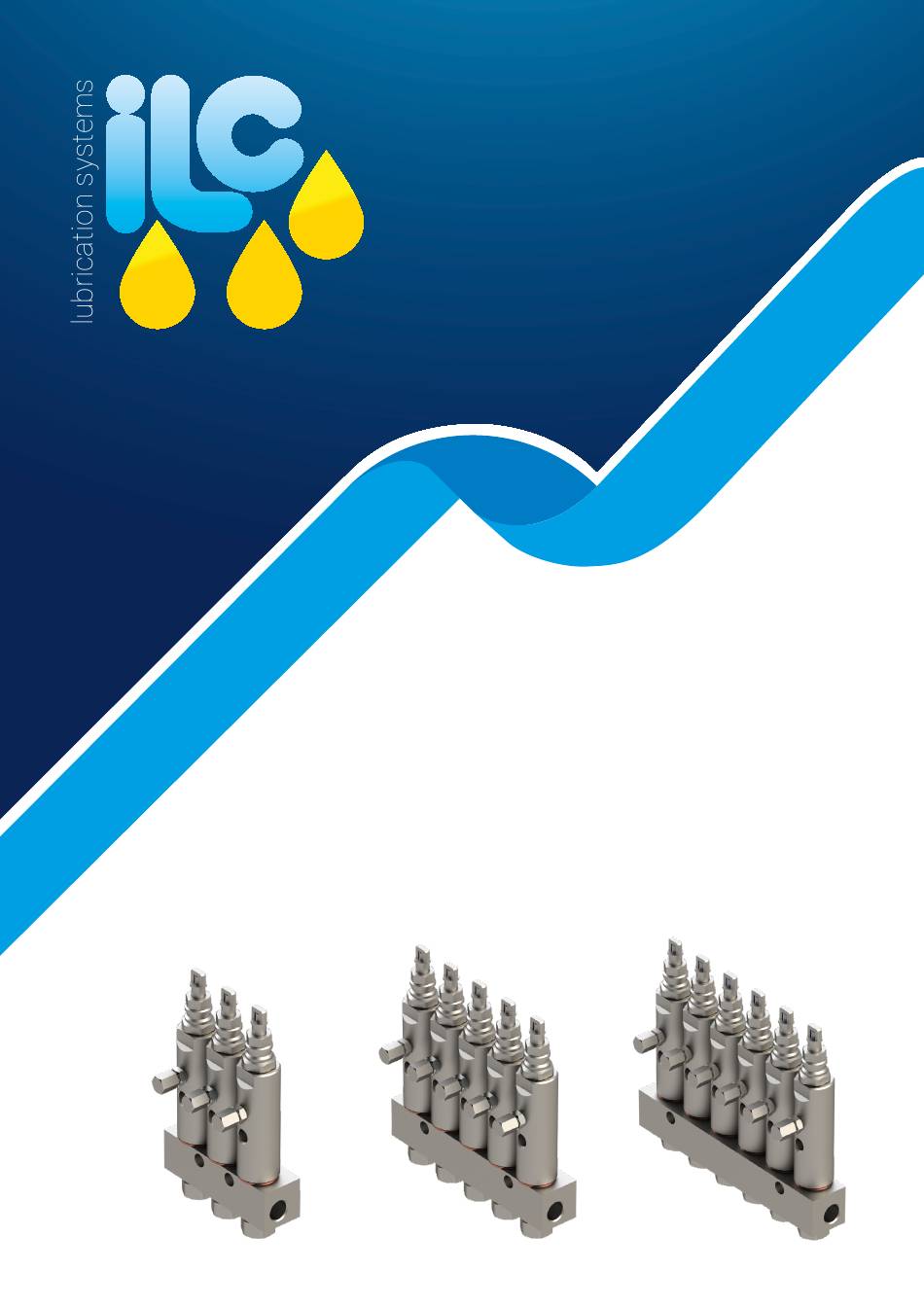

- Page 1 REV27012023 CX-1 VOLUMETRIC METERING VALVES FOR OIL AND GREASE OPERATION...
-
Page 2: Table Of Contents
Spare parts All ILC products must only be used for their intended purposes, as specified in this brochure and in all instructions. If the product is supplied together with user instructions, the user is required to read them and comply with them. Not all lubricants are suitable for centralised lubrication systems. -
Page 3: General Information
General information CX-1 metering valves are used in centralised lubrication single-line systems operating with oil or grease. They are installed on 1-to- 6-output distributor blocks: each single valve can be easily removed for inspection or replacement. Valves and distributor blocks are made of steel, with Viton seals, suitable for high temperature applications. -
Page 4: Operation
CX-1 Operation REV27012023 Operation STEP 1 - Main piston C is in its rest position. Metering chamber STEP 2 – The pressure on the lubricant moves main piston (B) is full of lubricant from the previous cycle. C so as to open the passage for conveying the lubricant above metering piston A. -
Page 5: Adjustment
CX-1 Adjustment REV27012023 Adjustment The flow rate of the valve is determined by adjusting nut D of about 1.31 cc / 0.080 cu. in. will be obtained. Beyond this which limits the stroke of metering piston A. To reach the position, the valve will not operate smoothly. -
Page 6: System Structure
CX-1 System structure REV27012023 Return to hydraulic line Lubricant Tank Hydraulic Oil Inlet Hydraulic Motor Solenoid valve Lubricant output Pressure Limiter Valve Pressure Reducing Valve Pressure gauge Release Valve Flow Rate Adjustment Valve End of line pressure switch I.L.C. srl - Via Garibaldi, 149 - 20155 Gorla Minore - Italy... -
Page 7: Valves For Distributor
01.190.5 01.190.6 Two outputs can be joined with the bridge joint on request. 09.600.6: in this case, the two outputs of the CX-1 valves will add up. I.L.C. srl - Via Garibaldi, 149 - 20155 Gorla Minore - Italy Phone +39 0331 601697 - Fax +39 0331 602001 - www.ilclube.com - info@ilclube.it... -
Page 8: Spare Parts
Flat gasket 12.8x5.9x3.16 fkm 80sh brown A70.093711 cx-1 injector valve pilot piston A70.093712 cx-1 injector valve metering piston A86.126164 Cylindrical spring for cx-1 valve grease A92.127229 Or 3037 9.19x2.62 Viton green 90 sh A70.078451 1/8 nptf straight grease nipple with protection A92.089018 4.5 sphere... - Page 9 I.L.C. srl - Via Garibaldi, 149 - 20155 Gorla Minore - Italy Phone +39 0331 601697 - Fax +39 0331 602001 - www.ilclube.com - info@ilclube.it MADE IN ITALY...
