Summary of Contents for welldana PRO

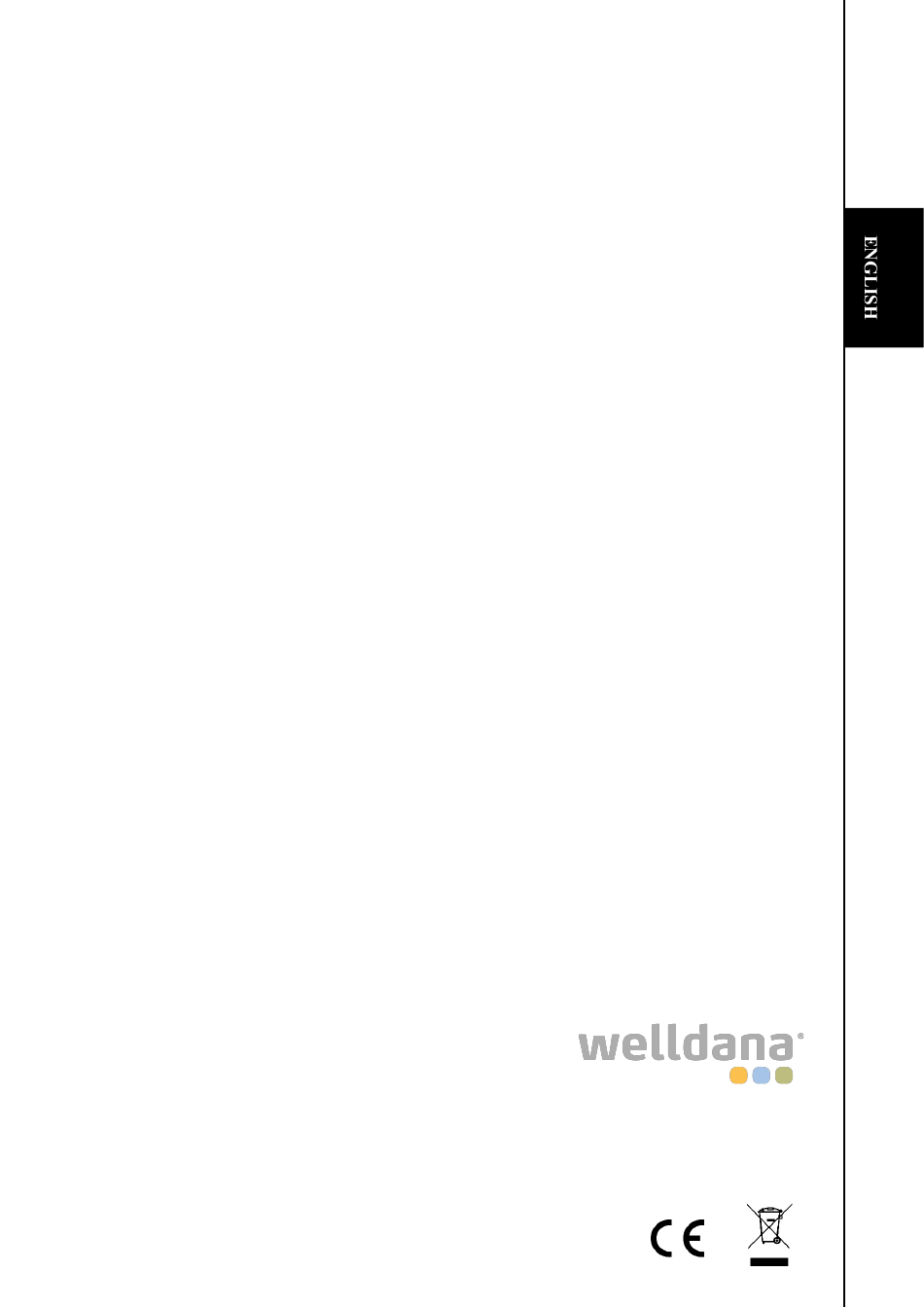

- Page 1 Instructions for use In-situ chlorine generator + pH regulation PAPI004253-M - Version 23.03...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ENGLISH 1. GENERAL DESCRIPTION ..............................3 1.1. Functions performed ............................3 1.2. DataSheet ................................3 1.2. Overview ................................4 1.3. Packing list ................................. 5 2. INSTALLATION ................................6 2.1. Important preliminary precautions ........................6 2.2. Installation diagram ............................7 3. -
Page 3: General Description
1. GENERAL DESCRIPTION 1.1. Functions performed Regulation of chlorine Chlorine production Model pH regulation production with ORP via electrolysis probe 1.2. DataSheet Model iPO 8 .iPO 12 .iPO 16 .iPO 23 .iPO 30 .iPO Product caracteristics Max production (L/h) Max production (g/h) Max production (kg/jour) 0,29 0,38... -
Page 4: Overview
1.2. Overview Poolsquad iPO FRONT SIDE BACK SIDE TOP VIEW ELECTRONIC UNIT BOTTOM VIEW : Softened water pump (left) and brine (right) : Salt sensor and cell supply wire : Salt/Temperature/ lack of water sensor : Softened water tank : Chlorine injection connection : Brine tank isolated from the salt tank : Electrolysis cell : Salt and brine tank... -
Page 5: Packing List
1.3. Packing list Fixation kit (Electronic unit fixation) Electronic unit iPO Reactor Injection inlet Water softener (option) Clamps saddle (kit) Calibration kit pH7/pH10 Bracket IPO connection kit... -
Page 6: Installation
2. INSTALLATION 2.1. Important preliminary precautions Before proceeding with the installation of the equipment, follow the following instructions: The production of the Poolsquad iPO must be adapted to the volume of the pool to be treated, to the frequentation of the pool, to the presence of any neighboring equipment (overflow, water mirror, slide, etc.), as well as to the weather conditions at the place of installation. -
Page 7: Installation Diagram
Key : ELEMENTS NON FOURNIS : : Reactor DUO model : white. : Electrical power supply : Electronic unit PRO model : white + black. : pH corrector cotainer : Filter with ballast : Copper wire : Peristaltic pump : Filter... -
Page 8: Electronic Unit
3. ELECTRONIC UNIT 3.1. Startup procedure The use of a softener is mandatory with the poolsquad IPO in order to avoid any premature deterioration of the electrolysis cells. The use of water of natural origin (rain, runoff, drilling) can degrade the performance of your device and damage it. -
Page 9: First Commissioning
3.2. First commissioning When switching on the electronics for the first time : 1) Carry out the following programming. Successive Possible settings Navigation menus Français English Deutsch Langues Español FRANCAIS Italiano Nederlander For each parameter, select a data item with the Portugués buttons, then confirm with the OK button. -
Page 10: Keypad
Direct access to the « » menu (press and hold). Parameters - Temp. Adjust → This command key is only present on the DUO and PRO models. Direct access to the « » menu (press and hold). pH Regulation - Calibration Selecting a value or data element. -
Page 12: Features
3.7. Features 3.7.1. Selecting the display language Menu Possible settings Default setting Français English Deutsch Parameters Français Español Languages Italiano Nederlander Portugués 3.7.2. Setting the date and time Menu Possible settings Default setting Parameters Day / Month / Year 01/01/year in progress Date XX/XX/XX Parameters... -
Page 13: Calibrating The Ph Probe
3.7.9. Calibrating the pH probe 1) Open the pH 7 and pH 10 calibration solutions (use only single-use calibration solutions). 2) Turn off the filtration (and therefore the electronics unit). 3) If the probe is already installed : a) Remove the probe from the probe holder, without disconnecting it. b) Remove the probe holder nut and replace it with the stopper supplied. -
Page 14: Selecting The Chlorinator Operating Mode
For UNO and DUO models : %. Electrolysis ORP probe, according to the ORP Mode For PRO model : ORP. setpoint and the ORP production setpoint. Deactivation of the chlorinator cell. → Le mode de fonctionnement sélectionné est visualisable à l’affichage initial («... -
Page 15: Calibration Of The Water Temperature Measurement
High Temp Temperature equal or higher than 45°C. Stopped Alarm * Modifiable value on the PRO model. 3.7.15. Calibration of the water temperature measurement → If the temperature sensor is disabled, the menu below does not appear. Menu Possible settings Default setting From - to + 5°C compared to the measurement displayed, in... -
Page 16: Setting The Orp Setpoint
Operation with a cover sensor : Boost mode cannot be switched on with the cover shut. If the cover is closed with Boost mode switched on, Boost mode automatically stops. Menu Possible settings Default setting Switching on Switching off Automatic as soon as the 12 h Electrolysis 24 h... -
Page 17: Water Manual Injection
3.7.20. Water manual injection Menu Functions Possible settings Default setting Instructions To start injecting : Confirm the duration setting. Priming (The peristaltic pump is running, water pump and a timer countdown is From 30 seconds Water injection in displayed in real time.) to 10 minutes, in the cell. -
Page 18: Electrolysis Test
3.7.23. Electrolysis test → This function is for use by professionals for maintenance operations on the equipment. Menu Navigation Electrolysis Electrolyse Test Electrolyse Test → Real-time timer countdown In Progress XXX s (Wait a few seconds) Electrolyse Test Success Electrolysis Electrolyse Test Electrolyse Test Cont. -
Page 19: Safety
3.8. Safety 3.8.1. Wintering mode Wintering mode is deactivated by default. Wintering mode can be activated in the alarm menu and allow to stop the chlorine production when the pool temperature drop below 15°C. When wintering mode is activated : o The message «... - Page 20 IMMEDIATE AUTOMATIC OPTION TO MESSAGE ACTION DEACTIVATE DISPLAYED/FAULT CAUSE CHECKS AND REMEDIES VIA THE MENU Stopping Stopping pH DETECTED « Parameters - production regulation » Alarms Check that : flow sensor connected electronics unit. the flow sensor is activated (« »...
- Page 21 IMMEDIATE AUTOMATIC OPTION TO ACTION DEACTIVATE MESSAGE VIA THE DISPLAYED/FAULT CAUSE CHECKS AND REMEDIES MENU Stopping Stopping pH DETECTED « production regulation Parameters » - Alarms Check that: - The softened water injection pump Insufficient amount working. of water in the - The salt/temperature reactor...
-
Page 22: Important Precautions Regarding The Peristaltic Pump
IMMEDIATE OPTION TO MESSAGE AUTOMATIC ACTION DEACTIVATE DISPLAYED/FAULT CAUSE CHECKS AND REMEDIES VIA THE MENU Stopping Stopping pH DETECTED « Parameters - production regulation » Alarms Low temperatrure in softened water Alarm Low Temp. the electrolysis cell injection pump is working. pH probe incorrectly Carry out a calibration of Info... -
Page 23: Data History
3.9. Data history Menu Sub-menu Content History Date of the last pH probe calibration pH calibration Filtration Duration of filtration pump operation the previous day Time D-1 Filtration History Average daily operating time of the filtration pump the previous week Filtration Average time W-1 Filtration... -
Page 24: Maintenance Advice (Monthly)
4.1. Maintenance advice (monthly) Water softener Check the water hardness at the output of the softener with an adequative test kit (not furnished) : the hardness must be inferior to 12°f. Electrodes When the equipment is stopped, there should be no whitish deposit on the electrodes. Check the condition of the lugs, studs and power cables. -
Page 25: Unwintering The Device
4.3. Unwintering the device 1) Replace the probes on the accessory holder/ clamp saddle. 2) Add salt in the reactor. 3) Open the water supply valve and wait for the system to fill. 4) Let the salt dissolve for 1 hour. 5) Switch on the electronic unit and select «... -
Page 26: Warranty
5. WARRANTY Before contacting your dealer, please have the following to hand: - your purchase invoice. - the serial no. of the electronics unit. - the installation date of the equipment. - the parameters of your pool (salinity, pH, chlorine levels, water temperature, stabiliser level, pool volume, daily filtration time, etc.) We have used every effort and all our technical experience to design this equipment.
