Summary of Contents for Forza FTP-BT20K220V-80B

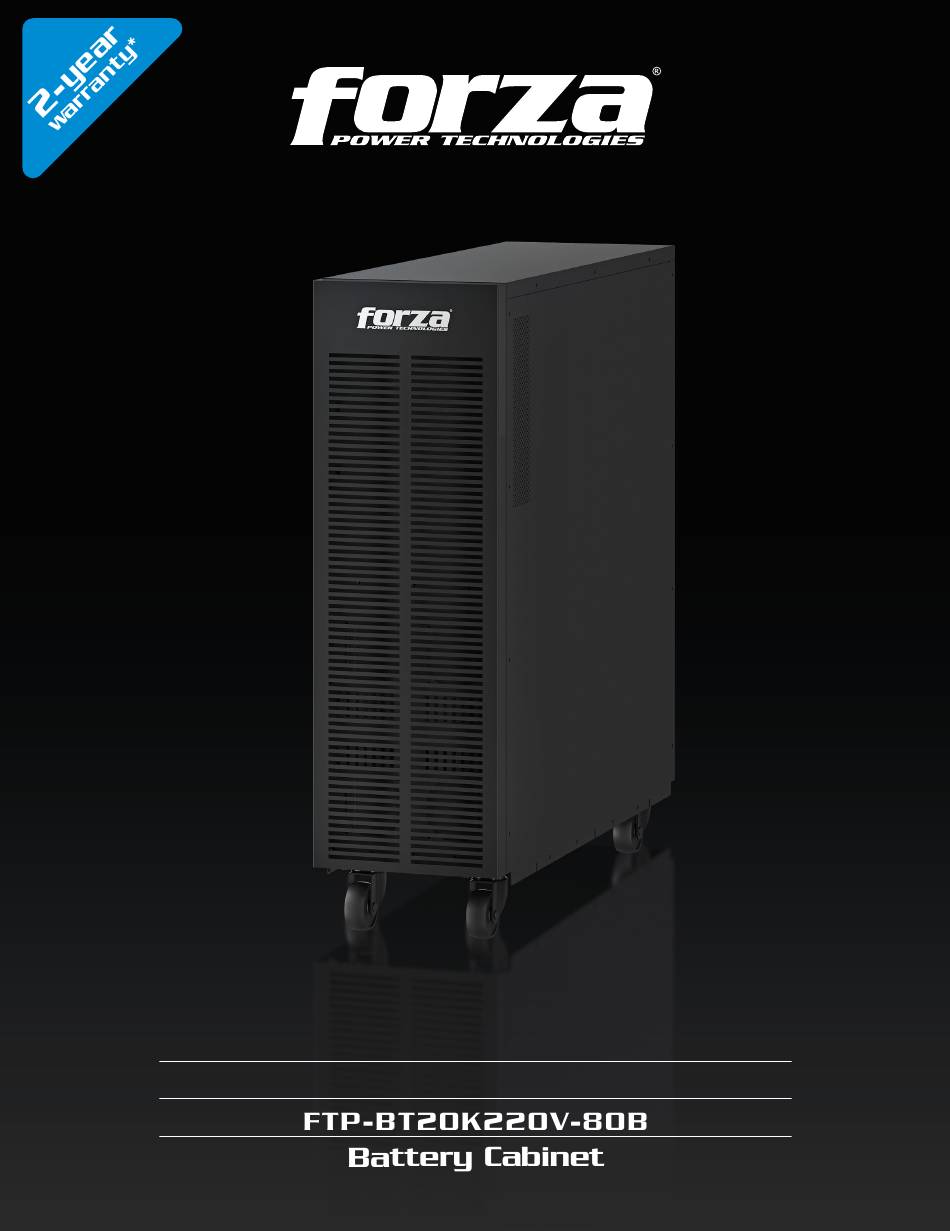

- Page 1 User Manual Installation of external battery bank...
- Page 2 Table of contents Battery Cabinet 1. Cabinet Overlook 1. Cabinet Overlook 2. Installation and operation • Dimension (D x W x H): 30.7 x 9.8 x 33 in • Net weight for empty cabinet: 562 lb 2.1. Mechanical Overview 2.2. Battery Requirements 2.3.
- Page 3 2.2. Battery Requirements 2.4. Battery Wiring • Lead-acid cell type and quantity: 12V 9.4Ah x 80 pieces • Maximum size for lead-acid battery (L x W x H): 2.6 x 3.9 x 6 in 2.3. Cable Specification Diagram 1. 10K UPS with battery bank connection ITEM DESCRIPTION CABLE LENGTH...
- Page 4 3. Installation Step 1: Remove the carton and foam. Step 2: Remove the fixing plates on the two Step 7: Install another 10-battery pack on the Step 8: Install another 10-battery pack on the top sides of the battery bank by removing all screws third layer (L3), as shown below.
- Page 5 • “Cable L=1100mm/BLUE” to #11 Step 15: Put top and side panels back in their original place, as shown below. Forza Power Technologies is a registered trademark. All rights reserved. ® All other brand names and logos are registered trademarks of their respective owners.
- Page 6 NOTES NOTES...
