Summary of Contents for iWave ULL Streamer

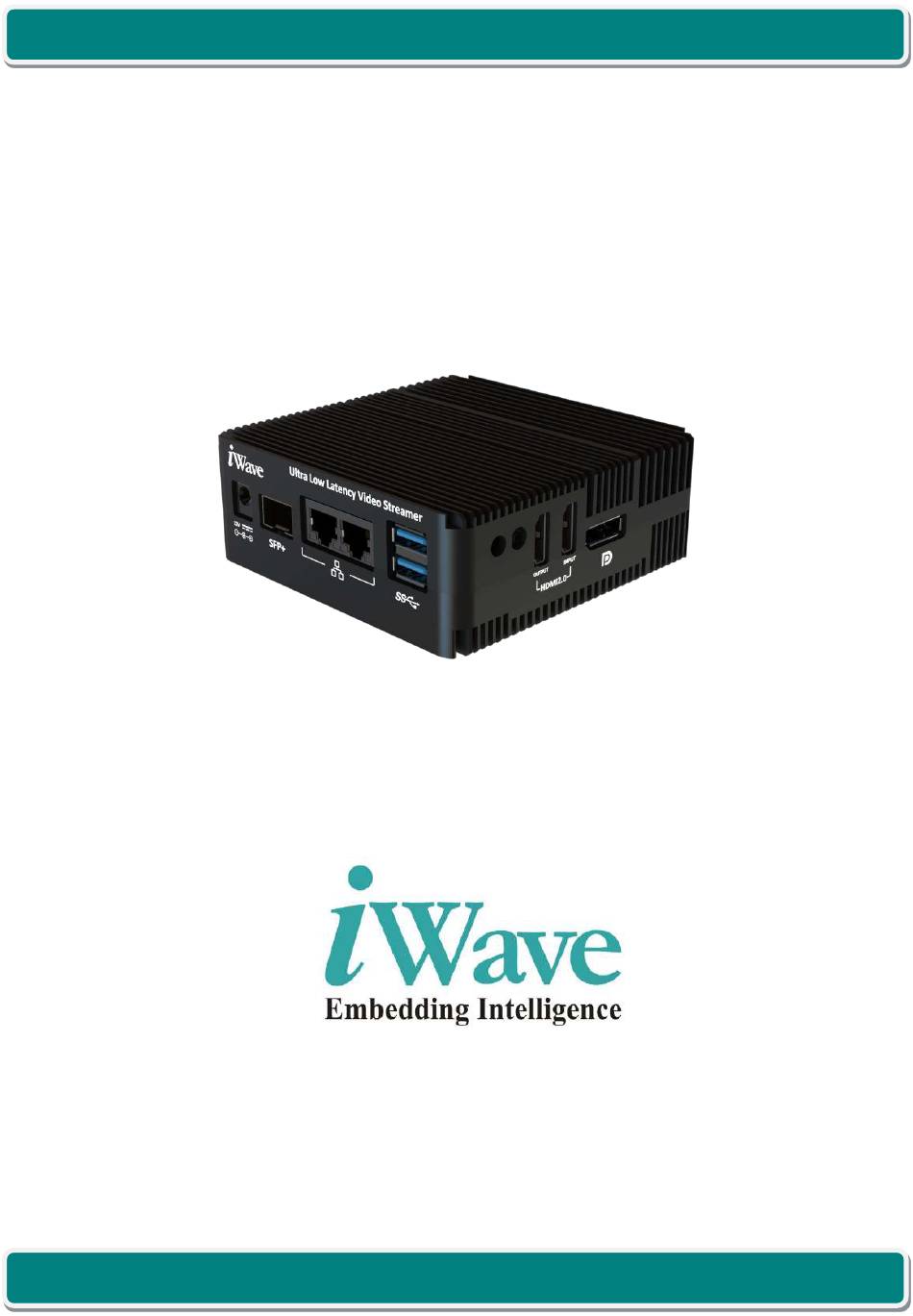

- Page 1 ULL Streamer User Guide ULL Streamer User Guide REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 1 of 35...
- Page 2 ULL Streamer User Guide Document Revision History Document Number ULL-Streamer-UserGuide-R2.0-REL1.1.pdf Revision Date Description 13 Feb 2024 Initial Release REL 1.0 iWave Systems Technologies Pvt. Ltd. Page 2 of 35...
-
Page 3: Table Of Contents
ULL Streamer User Guide Table of Contents INTRODUCTION ............................6 ..............................6 URPOSE AND SCOPE ..............................6 IST OF CRONYMS SUPPORTED FEATURES .......................... 7 CONFIGURATION AND USE CASES ....................... 9 .............................. 9 EVICE ONFIGURATION ..............................10 ESCALE ESOLUTION ................................. 11 STREAMING ........................ - Page 4 ULL Streamer User Guide ................................. 32 OWZA ERVER List of Figures ................................ 7 1: S IGURE UPPORTED FEATURES ................................7 IGURE INPUT RESOLUTION ................................8 IGURE OUTPUT RESOLUTION ..............................9 IGURE ENCODER DECODER SETUP ..................................10 5: H IGURE OME PAGE .............................
- Page 5 ULL Streamer User Guide ................................29 43 R IGURE ESTART BUTTON 1 ..........................30 44: SWU IGURE PDATE WEBSERVER WINDOW 3 ..........................30 IGURE SWUPDATE WEBSERVER WINDOW 2 ..........................31 46: SW U IGURE PDATE WEBSERVER WINDOW 3..........................31 47 : SW U...
-
Page 6: Introduction
ULL Streamer User Guide 1. INTRODUCTION Purpose and scope The purpose of this document is to help the user to configure and test ULL streamer. List of Acronyms The following acronyms will be used throughout this document. Acronyms Abbreviations UART... -
Page 7: Supported Features
ULL Streamer User Guide 2. SUPPORTED FEATURES Figure 1: Supported features ➢ Encoder and Decoder HEVC(H.265) / AVC(H.264) Encoder and Decoder ➢ Input/Output HDMI Input/Loop Out DP Output (Loop-Out won’t support) 2-channel stereo audio from HDMI-2.0 ➢ Protocol supported UDP, RTMP protocol ➢... -
Page 8: Figure 3: Output Resolution
Recording and decode prerecording video Support point to point low latency streaming below 100ms Support video encryption and decryption for UDP streaming Auto start last streaming/recording when reboot the ULL streamer Rescale the input resolution Firmware update OTA REL 1.0 iWave Systems Technologies Pvt. -
Page 9: Configuration And Use Cases
4. File decode Device Configuration Before using ULL Streamer user need to configure IP address to access that device. So first configure different static IP address for different device using below steps. Any device can be taken as encoder or decoder. -
Page 10: Rescale Resolution
ULL Streamer User Guide Figure 5: Home page • Select settings > Ethernet from home page • Select “PORT1” • Enter static IP address for port 1 (192.168.1.1 for encoder and 192.168.1.2 for decoder) • click “Save changes”. [Note: Static IP address should be different for different board with same network]... -
Page 11: Udp Streaming
ULL Streamer User Guide ➢ 3840x2160 Rescale the the input resolution to 3840x2160 Figure 7: Resolution setting Note : Once user configured the rescale output, it will show the previous selected option as default value in resolution setting page. UDP streaming Streaming over ethernet using UDP protocol Two methods are possible. -
Page 12: Udp Setup
ULL Streamer User Guide 3.3.2 UDP Setup Connect ULL streamer to HOST PC as in the set up Host PC , Encoder/Decoder should be in same network Figure 8 : Setup for UDP streaming with static IP Figure 9 : Setup for UDP streaming with Intranet •... -
Page 13: Port-2 Ip Address Settings For Encoder And Decoder
ULL Streamer User Guide ➢ http://192.168.1.2 for decoder In case of encoder or decoder below page will appear Figure 10: Home page 3.3.3 Port-2 IP address settings for Encoder and decoder • Select settings > Ethernet from home page •... -
Page 14: Streaming Out By Udp Encoder
ULL Streamer User Guide 3.3.4 Streaming out by UDP Encoder Follow the below given steps for streaming with UDP protocol. • Click Stream button from side menu • Click Encoder Figure 12 : Encoder • Click stream over ethernet Figure 13 : Stream over ethernet •... -
Page 15: Udp Decoder Capturing Udp Streams
ULL Streamer User Guide • Start the streaming by clicking “SUBMIT” button. Figure 14 : UDP Form • Now response page will appear based on success or failure. Please check “Response page” section for different response. • To receive and decode streaming video refer below section. -
Page 16: Figure 16: Decoder Page
ULL Streamer User Guide 3.3.5.1 UDP decoder and display Receive the streaming video, decode and display using HDMI or DP output • Click UDP decoder Figure 16: Decoder page • Enter IP Address of Encoder from which IP address using for streaming Ex: 192.168.2.1 [Port2 IP address of Encoder]... -
Page 17: Figure 18: Udp Data Indication
ULL Streamer User Guide • It will start display the streamed video and audio, if decoder device is receive the data. Which is indicated by streaming icon. If decoder is receive the data, it shows green otherwise yellow. • Also it will show the streaming information like width, height and framerate. -
Page 18: Rtmp Stream
ULL Streamer User Guide Figure 20: UDP record page • Now It will redirect to response page and it will show recording status (success or failure). Please check “Response page” section for different response. • It will start recording once decoder device is receive the data which is indicated by streaming icon in popup. -
Page 19: Rtmp Setup
ULL Streamer User Guide 3.4.2 RTMP Setup Figure 21 : RTMP Setup • Do the setup as given above and Power on the Encoder and Decoder • Port1 is used by browser and port2 is used for streaming • IP address for setup HOST PC –... -
Page 20: Streaming To Live Platform
ULL Streamer User Guide • It will automatically set the IP address based on MAC address. 3.4.4 Streaming to live platform Using this user can stream in Youtube or Wowza server. Before streaming, make sure that Youtube/wowza server is configured and got stream URL and stream Key. Refer steps given in streaming platform configuration to get stream key and URL. -
Page 21: Video Encoding And Recording
ULL Streamer User Guide • It will redirect to response page and it will show recording status (success or failure). Please check “Response page” section for different response. • Youtube or wowza will display the streamed video with audio. Figure 25: Stream over ethernet page Note : If video is not visible in Youtube, re verify whether URL and stream key is correct. -
Page 22: Video Record Setup
ULL Streamer User Guide 3.5.2 Video record Setup Figure 26 : Video recording setup • Connect USB device(Pendrive) to the ULL streamer for store recorded files • Do the setup as given above and Power on the Encoder • IP address for setup 1. -
Page 23: Figure 28: Stream Selection
ULL Streamer User Guide Figure 28: Stream selection • Click Video Record Figure 29: Encoder page • Enter file name with .mp4 extension • Enter bitrate. Recommended bitrate is 25000 • Select encoder and profile • Select control rate. Recommended control rate is Low latency •... -
Page 24: File Decode And Display
ULL Streamer User Guide • It will redirect to response page and it will show recording status (success or failure). Please check “Response page” section for different response. • It will start recording and store it in USB device •... -
Page 25: Decode File And Display
ULL Streamer User Guide 2. Decoder PORT 1 – 192.168.1.2 • On the host PC, run web browser 192.168.1.2 [IP address of decoder] Figure 32: Home page 3.6.3 Decode file and Display Decode and display the encoded file exist in pen drive. Only support mp4 files. -
Page 26: Response Page
ULL Streamer User Guide • Enter filename of video file which user need to display example.mp4 • Click “start” button Figure 35: File Decode form • It will redirect to response page and it will show display status (success or failure). Check “Response page”... -
Page 27: Figure 37: Response 2
ULL Streamer User Guide Figure 37: Response 2 3. Check the parameter This message indicates that some mismatch in entered parameters. For example if user given wrong URL, stream key, IP address etc. Please enter the valid parameters. Figure 38: Response 3 4. -
Page 28: Connection Status
ULL Streamer User Guide 5. UDP Decoder is processing This message indicates Decoder is waiting for UDP data from encoder Figure 40 : Response 5 3.8 Connection status This side bar shows the status of ethernet, USB, HDMI input and DP connection. -
Page 29: Restart System
If Display port connected it will show status as ”Connected”. Otherwise, it will show “Disconnected” Restart system User can restart the ULL streamer device using restart button which will be available in home page. Figure 43 Restart button REL 1.0 iWave Systems Technologies Pvt. -
Page 30: Firmware Update
ULL Streamer User Guide FIRMWARE UPDATE To update the binary to ULL streamer follow the below steps. • Copy the .swu binary file from deliverables folder to HOST PC. <Deliverables path>/Binary/HDMI-ULLStreamer_v1_1.swu • Run the localhost in host pc web browser to start the SWUpdate webserver. -
Page 31: Figure 46: Sw Update Webserver Window 2
• Follow the below option to update the SWUpdate image in webserver. Don’t power off the device during firmware update. Figure 46: SW Update webserver window 2 • Once extraction done it will reboot the ULL streamer. Figure 47 : SW Update webserver window 3 • Once reboot is done it will show normal window [figure: 44] •... -
Page 32: Streaming Platform Configurtion
ULL Streamer User Guide STREAMING PLATFORM CONFIGURTION To stream to different platform, need to do the stream configuration. 5.1 Youtube To find URL and stream key, refer below link https://docs.castr.com/en/articles/2291756-how-to-find-my-youtube-stream-key To stream with low latency, check stream latency in stream settings. -
Page 33: Figure 49 : Wowza Form
ULL Streamer User Guide Figure 49 : Wowza form page 1 • Encoder should be RTMP and rest of the things are default Figure 50: Wowza form page 2 • Select which resolution you want and make tick in the source security check box REL 1.0... -
Page 34: Figure 51 : Wowza Form
ULL Streamer User Guide Figure 51 : Wowza form page 4 • Click Next for 3 times to create live stream • Once created the page is look like below figure Figure 52:Wowza Streaming Page • If scroll down you can find RTMP URL and Stream key REL 1.0... -
Page 35: Figure 53 : Wowza Rtmp Url And Stream Key
ULL Streamer User Guide RTMP URL Stream key Figure 53 : Wowza RTMP URL and Stream key • To start wowza server, click start live stream button Note: Latency achieved with normal latency is 30 sec and with low latency not tested.
