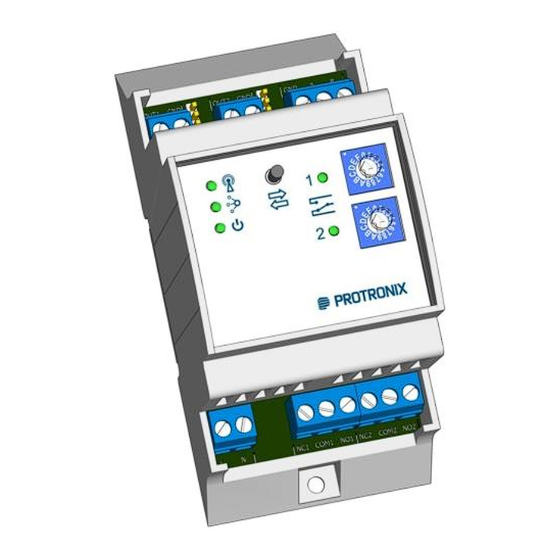

PROTRONIX NL-MRF-RX-CO2+RH User Manual

NL-MRF-RX-CO2+RH |
The receiver is used for receiving and
processing measured data from wireless air
quality sensors. One or more battery
powered air quality sensors can be paired
with the receiver.
Received data from sensors are converted to
two independent analog outputs (one for CO
and second for RH). Complete data from all
individual sensors are available via the RS485
serial line using the Modbus protocol. The
receiver also has a pair of relays with NO-C-
NC contact with the possibility of
independent setting of relay trigger level for
each monitored quantity by rotary selector.
Set of wireless sensors consists of at least one
or more battery powered wireless sensors
and one receiver.

wirelessly receives measured values
from up to 10 paired MRF sensors

2x analog voltage/current output

2x output relay, NO-C-NC contact
 easy installation on a DIN rail

does not require maintenance during
operation

long-term service life and stability
Description
The receiver in connection with wireless sensors is
used to control ventilation and heat recovery units.
Based on the current air quality, the receiver then
efficiently controls the ventilation systems.
Explanation of abbreviations and technical terms can
be found on our website in the
Protronix s.r.o., Pardubická 177, Chrudim 537 01, Czech Republic
.docx
um-nl-mrf-rx-co2+rh-en-v4-231030
Receiver for wireless CO
2
Glossary section.
/RH sensors
2
For information on the communication protocol, use
the document NL-MRF-RX-modbus-communication.
Technical data
Parameter
Power supply
Power consumption
1)
Voltage outputs
1)
Current outputs
Max. switching voltage
Max. switching current
CO relay hysteresis
2
RH relay hysteresis
Working humidity
non condensing
Working temperature
Storage temperature
Expected lifetime
Dimensions
1)
The desired type of analog output can be selected with
jumpers.
www.protronix.cz www.careforair.eu
User manual
Value Unit
230 V AC
max. 2 W
2x 0 - 10 V DC
2x 0 - 20 / 4 - 20 mA
250 V AC
16 A AC
100 ppm
5 % RH
0 – 95 % RH
0 to +50 °C
-20 to +60 °C
min. 10 years
110x62x53 mm
