Summary of Contents for Chord Electronics Alto

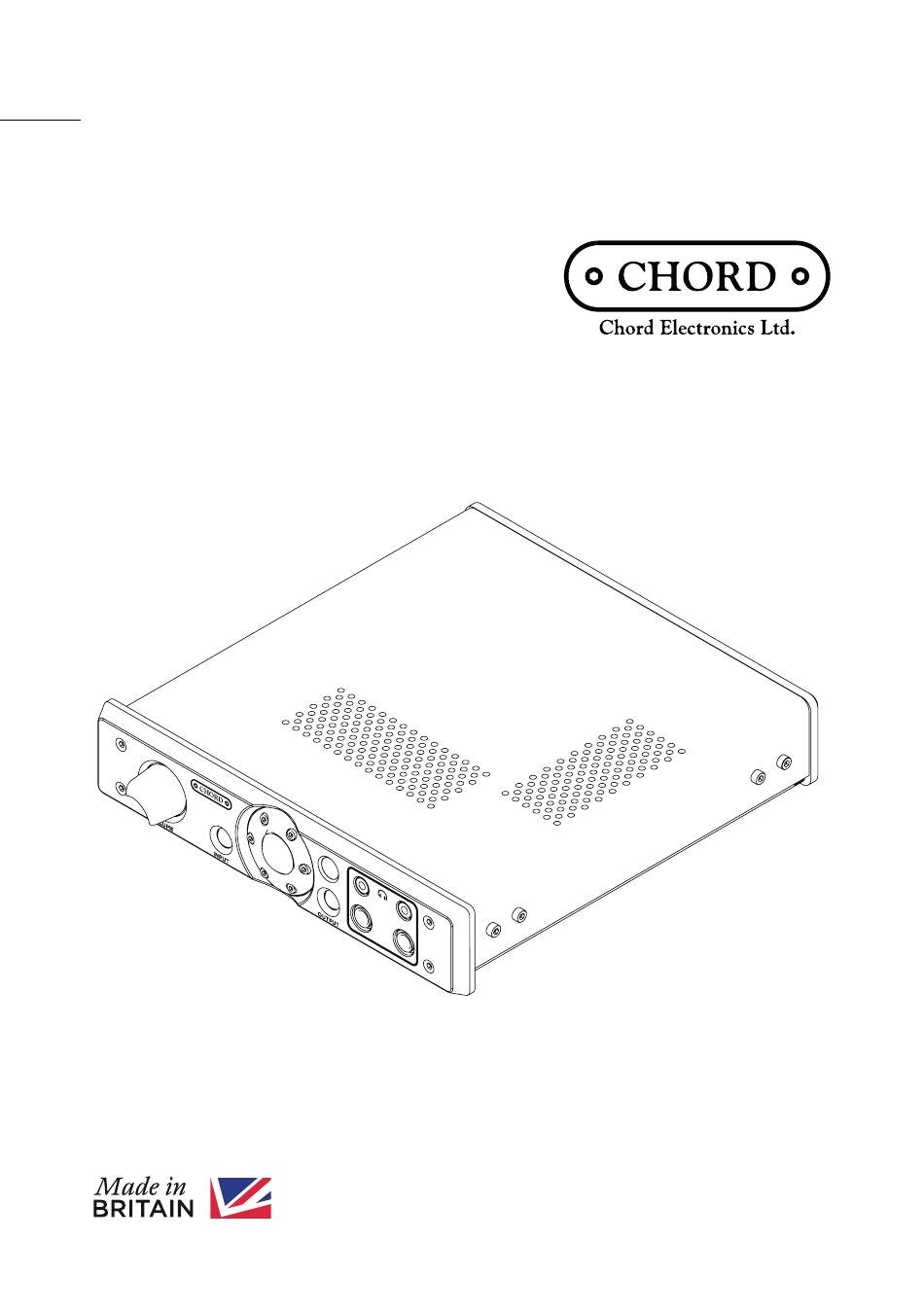

- Page 1 Chord Electronics The Pumphouse, Farleigh Lane, East Farleigh, Kent, Product Communication | English ME16 9NB. Great Britain. +44 (0) 1622 721 444 info@chordelectronics.co.uk chordelectronics.co.uk Alto Manual...
-
Page 2: Table Of Contents
Chord Electronics Alto | User manual Contents Introduction Support and warranty Connections and controls Operation Technical specifications... -
Page 3: Introduction
Doing so will void the warranty. • The device benefits from extensive casework ventilation, however, always ensure the Alto is used in a well-ventilated setting, away from direct sunlight and heat sources, and has sufficient space around... -
Page 4: Support And Warranty
At the point of sale, Chord Electronics Ltd. provides the Alto with a comprehensive three-year warranty, which covers defects in materials and workmanship through fair usage. The warranty is transferable with proof of purchase, however, the warranty on ex-demonstration units... -
Page 5: Connections And Controls
Output selector Headphone outputs: 2x 3.5 mm; 2x 6.35 mm (1/4 inch) *If you’re using Alto in a rackmountable system, the feet are removable for ease of use, unscrew to remove the feet. WARNING: Ensure all system devices are switched off and any volumes are set to zero before making... - Page 6 Alto | User manual 4.2 Remote control Power button Mute Volume control + Input cycle Input cycle Volume control - Input 1 Input 2 Output headphone Output XLR Output speaker 2x AAA batteries (batteries supplied) NOTE: Greyed buttons are not functional on Alto...
-
Page 7: Operation
XLR (blue). Alternatively use the remote control to select output: TP-01 for headphone, TP-02 for speaker and TP-03 for XLR. The Alto’s 2 x 6.35 mm (1/4 inch) and 2 x 3.5 mm headphone outputs can be used simultaneously with up to four pairs of headphones. - Page 8 Line level bypass allows the XLR outputs to bypass the volume control on the front of the unit. This allows you to connect another Alto in the chain or send the signal on further down the line to an alternative piece of equipment.
-
Page 9: Technical Specifications
Chord Electronics Alto | User manual 6 Technical specifications Please go to our website for the most recent specifications: www.chordelectronics.co.uk Dimensions 200 mm (W) x 44.45 mm (H) x 215 mm (D) Frequency response 6 Hz-60 kHz Output power (Speakers) 50 W into 4 Ω...
