Summary of Contents for RFID StationSeeker 3049E

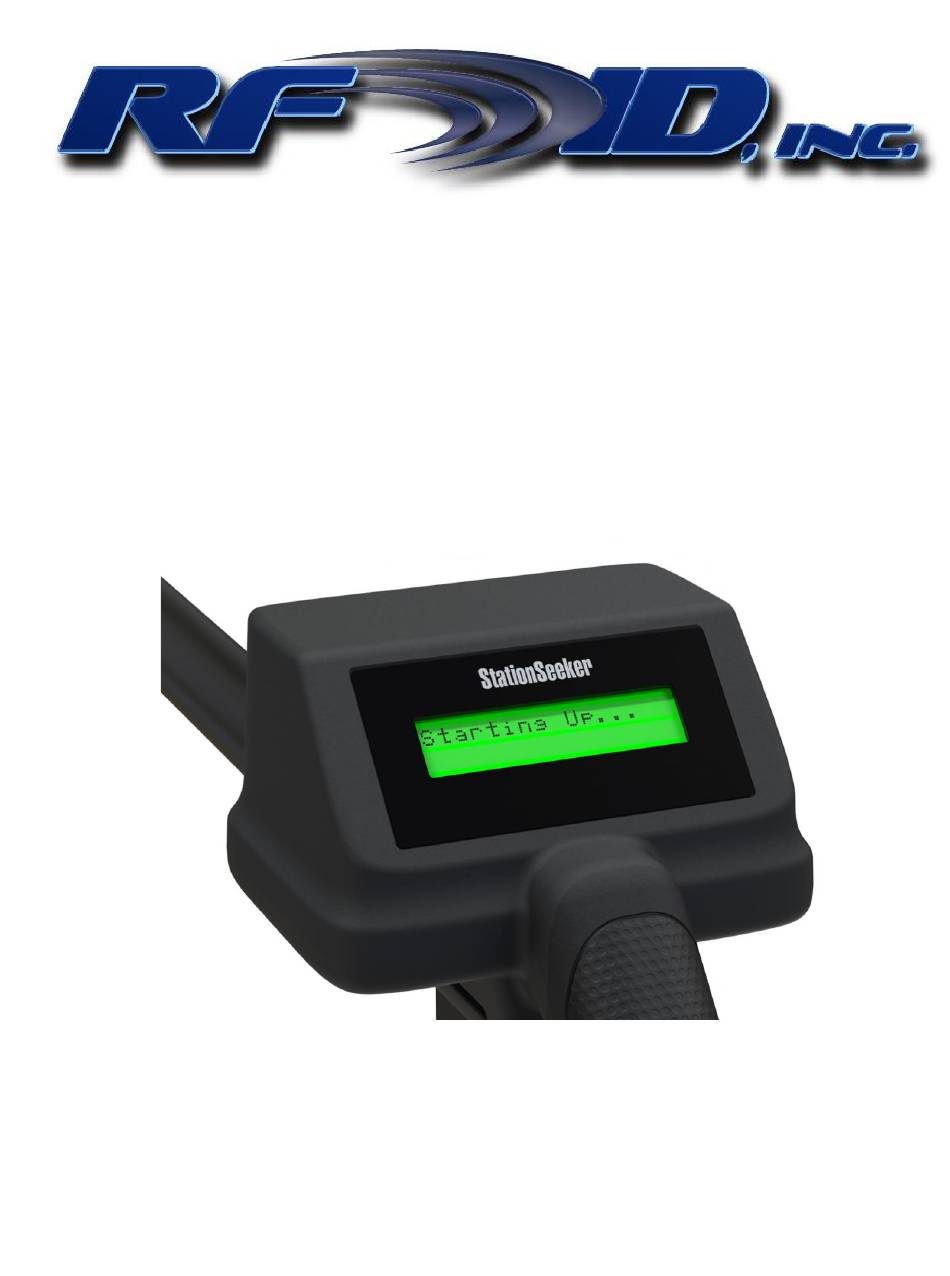

- Page 1 StationSeeker ™ Model 3049E - Owner’s Manual Bait Station Detector – RFID Reader...
-
Page 2: Table Of Contents
Rev 2.24 Table of Contents Quick Overview ............................3 Operating Unit Recommendations ......................3 System Startup Sequence .......................... 4 Error During Startup ..........................5 Unit Activation ............................5 Specifications ............................5 Warranty ..............................6 Part Numbers ............................. 6 How to Contact Us ............................ 6 StationSeeker™... -
Page 3: Quick Overview
LF Reader board for RFID transmitting and tag receiving. The unit uses the LCD and speaker to convey information to the operator about the RFID tag. When a tag is found, an audible alert is sounded. As the tag gets closer, the audible tone increases in pitch and signal strength indication on the LCD also increases. -
Page 4: System Startup Sequence
Rev 2.24 decrease the length of a pole extension 2” per notch as desired, then re-lock by twisting in the opposite direction: To maximize coverage and speed the antenna should be swept from side to side in an arc while moving forward or back approximately 8”... -
Page 5: Error During Startup
If everything tested okay, the unit goes to high power, and the LCD will display: The unit will now scan for RFID tags as long as the activation switch is pressed. Once an RFID tag is detected, the LCD will display: Specifications 43.0”... -
Page 6: Warranty
RFID, Inc. products are warranted against defects in materials and workmanship for one (1) year from date of shipment. RFID, Inc. shall, at its option, either repair or replace products that prove to be defective and are returned with freight prepaid to RFID, Inc.’s plant within the warranty period. The foregoing warranty shall not apply to defects resulting from abuse, misuse, accident, alteration, neglect or unauthorized repair or installation.
