Summary of Contents for Haier WL Stick Datalogger

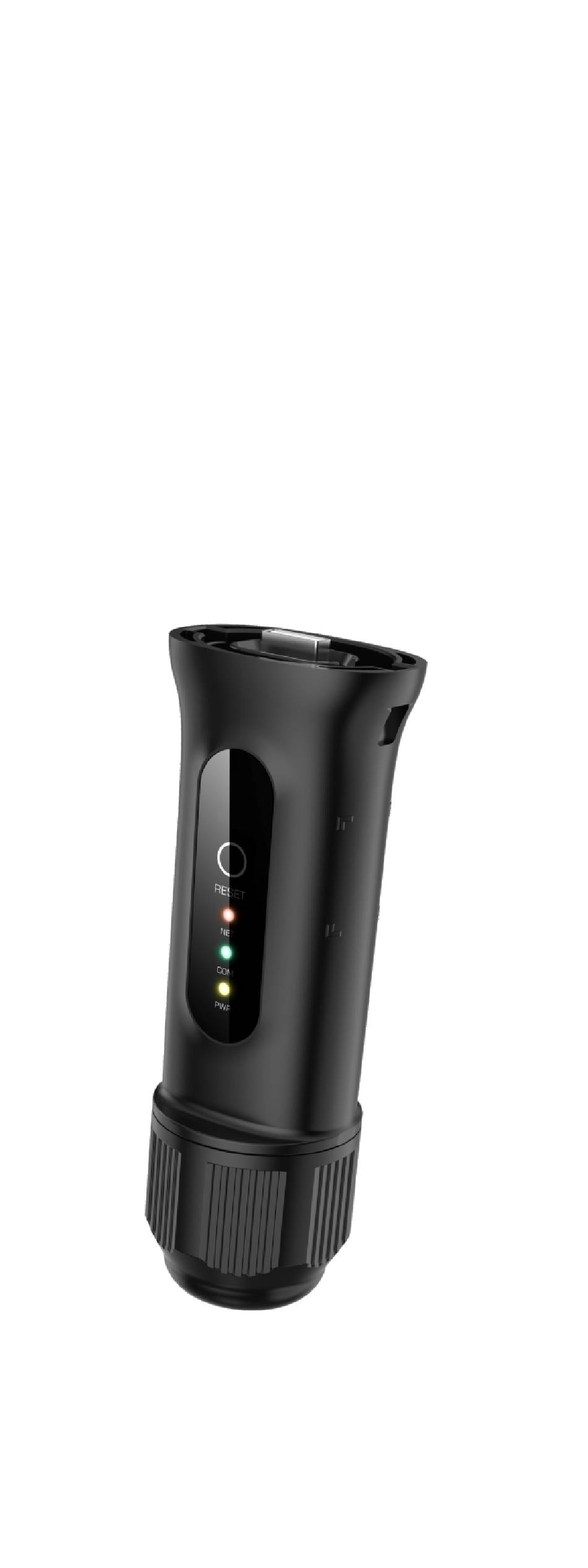

- Page 1 Quick Installation Manual WL Stick Datalogger Version 1.1, Release Date: 11,2023...
- Page 2 Install 1.1 Install the network cable Step1: Remove the “Plastic Nut”, “Thread Clamp Claw”, and “Sealing Ring” in turn. Step2: Pass the network cable plug through the “Plastic Nut”, “Thread Clamp Claw”, and “Sealing Ring” (with opening) in the direction as shown in the figure below. T o router Ethernet Port Thread...
-
Page 3: Install The Datalogger
1.2 Install the datalogger Connect the datalogger to the corresponding 4-pin COM port of the inverter. The following figure is for reference only. Please follow the instructions below: Match the joint Figure 1.3 Install the datalogger: Step 1: Press both sides of the protective cover and open the inverter USB port protective cover. - Page 4 1.3 Install with multiple inverters If you need to collect data from multiple inverters, please follow the inverter user manual to establish a communication connection with the inverter using the RS485 communication cable in a "hand in hand" manner..Inverter 1 Inverter 2 Inverter n...
-
Page 5: Led And Button
LED and Button LED Lights Status: Meanings Description indicators Status Trying to connect Flashing with server Shows the Internet connection Successfully Indicators status between connected (NET) the datalogger and the server. Abnormal connection Trying to connect Flashing with inverter Shows the Inverter COM Successfully connection... -
Page 6: Lan Configuration
LAN Configuration After the datalogger is connected to the router through the network cable,LAN Configuration is completed. Figure 3.1 NOTE WL Stick automatically obtains IP by default and and connects to the network. If the datalogger fails to connect to the network, please perform the following steps to set the IP address. - Page 7 Step 2: Enter 10.10.100.254 in the web browser, open the following configuration interface. Enter Username Admin and Password 123456789 Figure 3.3 Step 3: Select the “ WAN port setting ”and “ Static IP ”. Enter IP address, Subnet mask, Gateway address, DNS server address for network cable.
-
Page 8: Bluetooth Configuration
Bluetooth Configuration The configuration needs the installer to use the “Nahui Business” to create the plant and install the datalogger to inverter and distribute the network first, then transfer the plant information to the end user who used the “Nahui Energy” to scan the transfer QR code know all the information of inverter. - Page 9 Figure 4.2...
- Page 10 Figure 4.3 Figure 4.4 NOTE If your organization has already registered an account in the system, there is no need to register again. Please contact your organization's administrator to add you as a member in the system backend.
- Page 11 Step3: Installer to log in the APP Entering the account and password then check the “Privacy Policy" and "User Agreement", then click “Log In”. Figure 4.5...
- Page 12 Step4: Installer to create the Plant Click the “Plant” to enter the plant management module to “Add plant” and fill in the information to “Save”. Figure 4.6...
- Page 13 Figure 4.7...
- Page 14 Figure 4.8 NOTE When setting the plant time zone, please keep it consistent with the installed site of inverter.
- Page 15 2. Click the “Add device” to enter the device configuration webpage. Click the inverter icon below the “Add Manually” to choose the “Haier (H1PL,H3PH)” and add it, which will enter the Bluetooth distribution network.
- Page 16 Figure 4.10 Figure 4.11...
- Page 17 Figure 4.12 Figure 4.13...
- Page 18 Figure 4.14 Figure 4.15 Figure 4.16...
- Page 19 NOTE 1. Please ensure your phone has Bluetooth/GPS turned on and the APP has been authorized to use Bluetooth. 2. If the data logger was configured with a network before adding the inverter and setting parameters, you have to delete the datalogger in the App. After the inverter parameters setting is completed, distribute the network to the datalogger again.
- Page 20 Figure 4.18 Figure 4.19 NOTE If the owner doesn't have the Nahui Energy App: 1. You can be guided to register and download the APP. For details, please refer to "Steps 7 to 9". 2. When transferring the plant, if the user can not register or download Nahui Energy in time, please select "no account"...
- Page 21 Step7. Homeowner to register an account 1. Open the “Nahui Energy” to click “Sign Up” and enter the registration information that included Country and Email. 2.Check the Privary Policy and User Agreement and click the “Get Verification Code”. 3. Get the verification code in your e-mail and to fill it in. 4.
- Page 22 Figure 4.21 Figure 4.22 Figure 4.23...
- Page 23 Step8. Homeowner to Login to the APP 1. Click “Log In” and enter the login information that included Country and account password. Please select your region(country) correctly, and it cannot be changed after registration. 2. Check the Privary Policy and User Agreement and click the “Log In”...
- Page 24 Figure 4.25 Figure 4.26 NOTE Nahui Energy supports quick login to third-party app.(The iOS system can support the use of the Apple ID to log in.)
- Page 25 Step9. Homeowner to scan the QR code to complete handover 1. Click “Add Inverter” on the Welcome page. 2. Scan the QR Code generated by an installer with the scan icon in the top right corner of the page. 3. Click “Confirm add” to complete the inverter added, and then you can get the relevant status and data of the system in the Nahui Energy APP.
- Page 26 Figure 4.28 Figure 4.29...
- Page 27 Figure 4.30 NOTE Due to product upgrades and other factors, the content of this manual might change from time to time. Please take the actual product as standard and get latest manual from www.nahui-newenergy.com or sales. Unless otherwise agreed herein, this manual will only be used as guidance.
-
Page 28: Fcc Certification
FCC Certification This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 29 Contact Please get in touch with us by sending an e-mail to nahuiems@haier.com if you have any technical problems. Please provide the following information as well: Inverter SN Datalogger SN Problem Description Qingdao Nahui Energy Technology Co., LTD. Address:Room303,Entrance1,No.4Building, Lan Gu Entrepreneurship Center Phase 1,No.7,Keji Yilu Road,...
