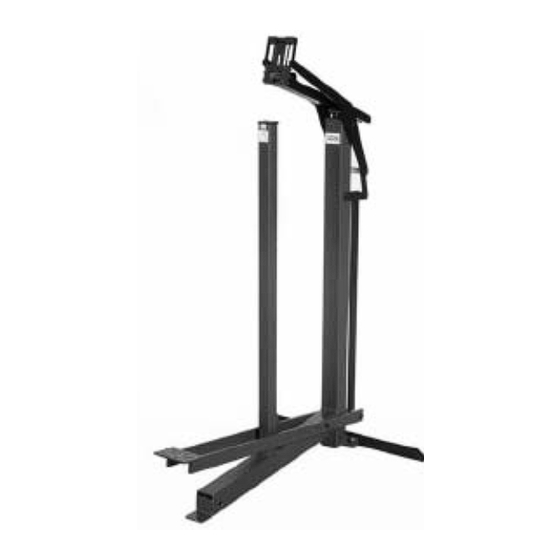

FOOT OPERATED TREADLE STAPLER
5-STAP-TS-35
MANUAL
WARNING
BEFORE OPERATING THIS STAPLER.
ALL
OPERATIORS SHOULD STUDY THIS MANUAL.
TO UNDERSTAND AND FOLLOW THE SAFETY
WARNINGS AND INSTRUCTIONS. KEEP THESE
INSTRUCTIONS WITH THE STAPLER FOR FUTURE
REFERENCE.
IF YOU HAVE ANY QUESTION,
CONTACT YOUR DISTRIBUTOR.
1
Advertisement
Related Manuals for Get Packed 5-STAP-TS-35
Summary of Contents for Get Packed 5-STAP-TS-35
- Page 1 FOOT OPERATED TREADLE STAPLER 5-STAP-TS-35 MANUAL WARNING BEFORE OPERATING THIS STAPLER. OPERATIORS SHOULD STUDY THIS MANUAL. TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE STAPLER FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTION, CONTACT YOUR DISTRIBUTOR.
- Page 2 TOOL SPECIFICATIONS MODEL OF TOOL:………………………………………… DIMENSIONS (LENGTH X HEIGHT X WIDTH)………….910MM X 600MM X 1245MM WEIGHT (WITHOUT FASTENERS)………………26.8 KGS STAPLES SPECIFICATION………………………..CROWN LENGTH 15MM, 18MM STAPLES CAPACITY………………………………200 PCS SAFETY INSTRUCTIONS READ THIS MANUAL AND UNDERSTAND ALL SAFETY INSTRUCTIONS BEFORE OPERATION THE TOOL. IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT OUR AUTHORIZED REPRESENTATIVES.
- Page 3 ASSEMBLY 1. FIND A SUITABLE PLACE. 2. OPEN THE PACKING AND STAND THE MACHINE UP. 3. USE 6 MM HEX. WRENCH AND 13 MM SPANNER TO ASSEMBLE THE BALANCER (049). 4. ASSEMBLE THE SPRING (038). OPERATING 1. PULL PUSHER (026) BACKWARDS UNTIL IT STOPS ON PUSHER PIVOTS (024).
- Page 4 CLEARING A JAM 1. PULL THE PUSHER (026) BACKWARDS. AND ROTATE INTO POSITION. THEN REMOVE THE REST OF THE STAPLES. 2. REMOVE COVER A (016) WITH 4 MM HEX.WRENCH. 3. CLEAR THE JAM. 4. ASSEMBLE COVER A (016). MAINTENANCE 1. KEEP THE MACHINE CLEARLY. 2.
