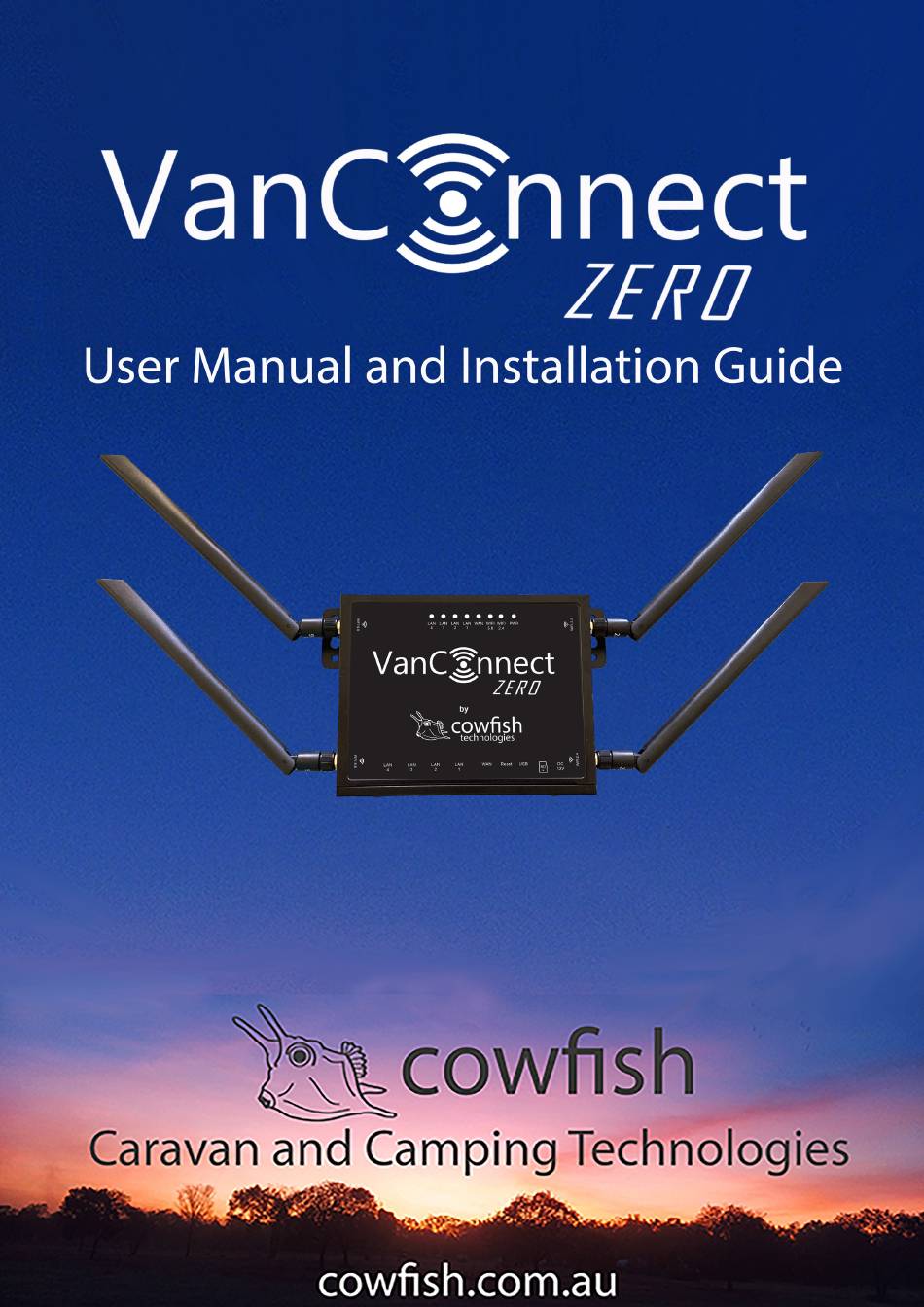

Summary of Contents for cowfish VanConnect ZERO
-
Page 2: Preface And Copyright
PREFACE AND COPYRIGHT Cowfish Technologies Pty Ltd reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revision V1.0 Cowfish Technologies and the Cowfish logo are trademarks or registered trademarks of Cowfish Technologies Pty Ltd in Australia. -
Page 3: Table Of Contents
Table of Contents PREFACE AND COPYRIGHT PACKAGE CONTENTS INTRODUCTION HARDWARE OVERVIEW INSTALLATION CONNECTING TO THE WIRELESS NETWORK ROUTER CONFIGURATION HOW TO USE AND CONNECT TO VANCONNECT MEDIA STORAGE ADVANCED SETTINGS TROUBLESHOOTING TECHNICAL SPECIFICATIONS PRODUCT WARRANTY Page 3... -
Page 4: Package Contents
PACKAGE CONTENTS VanConnect Zero unit Mounting Brackets (x2) Internal WiFi Antennas Power Cable (x4) Ethernet Cable Page 4... -
Page 5: Introduction
INTRODUCTION The VanConnect Zero, linked with the Starlink Integration Kit, gives you access to the internet across multiple device. The Zero is specifically designed for caravans and motorhomes and works on a standard 12 volt power connection. The VanConnect Zero is pre-configured to accept an internet connection through the Starlink Integration Kit. -
Page 6: Installation
VanConnect Zero is disconnected and powered off before performing the steps below. As the VanConnect Zero requires to be connected to the Starlink Integration Kit you will need to choose a location where you have adequate space to install both units. For details on the installation of the Starlink Integration Kit, please refer to the Starlink Integration Kit manual. - Page 7 “WiFi-2.4” and “WiFi-5.8” points. The “5G“ WiFi antennas have male connectors that connect to the female “WiFi-5.8” recepticles on the VanConnect Zero. The “2.4G“ WiFi antennas have female connectors that connect to the male “WiFi-2.4” recepticles on the VanConnect Zero.
- Page 8 Connect the power adapter to the DC power socket on the bottom panel of your VanConnect Zero. Plug the other end of the power adapter into a 12V wall outlet. Make sure the power button is in the “On” position.
-
Page 9: Connecting To The Wireless Network
CONNECTING TO THE WIRELESS NETWORK Connect via WiFi using the SSID (WiFi name) and password printed on the bottom of the VanConnect, or through Ethernet via one of the LAN ports on the back of your router. The default SSID of the device is “WIFI-XXXXXX” (XXXXXX are the last 6 digits of the MAC address, printed on the bottom of the device and the bottom of the packaging box). -
Page 10: Router Configuration
ROUTER CONFIGURATION To access the configuration utility, open a web browser such as Internet Explorer, Microsoft Edge or Google Chrome and enter the address of the router (http://192.168.1.1 by default). You will be presented with a login screen. The default login username is “root”, and the default login password is “admin”. - Page 11 Once you have successfully logged in, you will see the VanConnect home page. On this page you can view information about your Internet connection, the wireless/LAN status and system information. On the left hand side of the page you will find the VanConnect menu. Clicking on one of these menu icons will take you to the appropriate configuration section.
- Page 12 Set the wireless password The wireless password is not set by default. It is recommended that you change the wireless password for your network security. Click “Network” ᐅ “Wireless” to enter the wireless configuration page. You will see two WiFi networks: •...
- Page 13 You can change your network name under “Interface Configuration” ᐅ “General Setup”. Change the name to one of your choosing and select “Save”. NOTE: You should not give both WiFi networks the same name as they operate on different bands. To differentiate between the two networks, you could add a prefix to the end of the WiFi name, for instance “XXXX-2GHz”...
- Page 14 The next step is to configure your network encryption, cypher and key (password). Go to “Interface Configuration” ᐅ “Wireless Security”. The following encryption methods are available to you: • No Encryption: This is an open network where you have no password and anyone can connect to your network.
- Page 15 Cypher • CCMP (AES) is an algorithm that provides enhanced security, and is the preferred encryption algorithm supported by the WPA2 standard. CCMP (AES) is the recommended cypher setting for the VanConnect. • TKIP is an older wireless network technology encryption protocol. It was designed and implemented as a short-term fix for the security vulnerabilities and is used for older devices that only support WPA.
- Page 16 Change the administrator user name or password Select “System” ᐅ “Administration” to change the administrator password. Enter a new password and click “Save and Apply”, then choose “Exit” to return to the login page to verify whether the modification has been successful, and then re-enter the new password to log in.
- Page 17 Firmware update From time to time, firmware updates will be released on the Cowfish Technologies website (www.cowfish.com.au). Your current firmware version can be found on the VanConnect home screen when you log in to the router, or by navigating to “Status” ᐅ “Overview”.
- Page 18 Factory reset It is recommended to complete a factory reset if you have forgotten the administration password, if you are unable to log in to the device or if there are device configuration issues that you are unable to resolve. Method 1: After the device is powered on, use a toothpick or similar, and press the Reset button down and hold it for at least 6 seconds.
- Page 19 Set up Network Shares on the VanConnect Network shares have been set up on your router for your convenience. You do not have to make any alterations to this. However, if you would like to alter the network share settings, navigate to “Services”...
-
Page 20: How To Use And Connect To Vanconnect Media Storage
HOW TO USE AND CONNECT TO VANCONNECT MEDIA STORAGE This section is set out to assist you on how to view your stored files, images, music and movies from your USB drive, portable hard drive or SD card on the VanConnect and share them amongst your devices on the network. - Page 21 Map Network Drives in Windows On you PC open ‘file explorer’ Navigate to ‘Computer’ ᐅ ‘Map network drive’ Select any driver letter that you wish to be associated with your network drive. Page 21...
- Page 22 Zero internal storage: \\192.168.1.1\VanConnect\sda1 For USB drives: \\192.168.1.1\VanConnect\sda2 For SD cards: \\192.168.1.1\VanConnect\mmcblk0p1 NOTE: Internal storage of the VanConnect Zero is limited and should only be used to load OpenWRT applications onto the VanConnect Zero. Click Finish and your network drive has been created.
- Page 23 Access network files using an iPhone, iPad, Android phone or Android tablet (VLC player) You will be able to access the content from your USB drive and SD card that is connected to your VanConnect via any network sharing application available on iTunes or Google play.
- Page 24 For iPhones and iPads Ensure that your iPhone or iPad is connected to your VanConnect WiFi network. Open the VLC app and navigate to “network”. Select “VANCONNECT” under “File Servers” and then select “Connect” under “Connect to Server”. Page 24...
- Page 25 Select “VanConnect” and you will then find the mapped drives for your USB device and your SD card. USB drives are mapped as “sda2” SD cards are mapped as “mmcblk0p1” VLC will only show “sda2” and/or “mmcblk0p1” if a device (USB drive / SD card) has been connected to the VanConnect.
- Page 26 For Android phones and tablets Ensure that your Android phone or tablet is connected to your VanConnect WiFi network. Open the VLC app and navigate to “browse”. Select “VANCONNECT” under “Local Network”. Page 26...
- Page 27 Select “VanConnect” and you will then find the mapped drives for your USB device and your SD card. USB drives are mapped as “sda2” SD cards are mapped as “mmcblk0p1” VLC will only show “sda2” and/or “mmcblk0p1” if a device (USB drive / SD card) has been connected to the VanConnect.
-
Page 28: Advanced Settings
ADVANCED SETTINGS WARNING: these Advanced Settings allow you to make changes to the functionality of the VanConnect and should be approached with caution. Incorrect changes can impact the performance or security of the VanConnect and can even render the VanConnect inoperable. You should only make changes to these settings if you are sure of what you are doing. - Page 29 Firewall “Network” ᐅ “Firewall” The firewall creates zones over your network interfaces to control network traffic flow. Through the firewall page you can also set up port forwarding rules, traffic rules and custom rules. Port forwarding allows remote computers on the Internet to connect to a specific computer or service within the private LAN.
- Page 30 FREQUENTLY ASKED QUESTIONS What is the Web management IP address and default admin password? The router’s management IP address is 192.168.1.1, the default administrator user name is “root”, and the default password is “admin”. How do I restore the router to factory settings? When the system is in normal operation, press the router’s “Reset”...
-
Page 31: Troubleshooting
TROUBLESHOOTING I can’t connect to the WiFi. There are a couple of causes that may have made this happen. • The WiFi may have been accidently deleted during the set-up phase. You will need to do a factory reset. See factory reset section. •... - Page 32 My WiFi password is not being accepted. There are a couple of causes that may have made this happen. • Your WiFi password is case sensitive and must be a minimum of 8 characters. • You have entered in incorrect password when setting the WiFi password through the configuration utility.
-
Page 33: Technical Specifications
TECHNICAL SPECIFICATIONS 880MHz DDR2 256MB Protocols IEEE 802.11a IEEE 802.11ac IEEE 802.11b IEEE 802.11g IEEE 802.11n Working Channels 2.4GHz: 1-13 5.8GHz: 149, 153, 157, 161, 165 Working Frequency 2.4 GHz & 5.8 GHz Wireless Rate 2.4GHz: 400Mbps 5.8GHz: 867Mbps Encryption Type WPA2-PSK, WPA-PSK Antenna 5dBi... -
Page 34: Product Warranty
Warranty Period. If a defect appears in Cowfish’s manufacture or assembly of the goods before the end of the Warranty Period and Cowfish finds the goods to be defective in materials or workmanship, Cowfish will, in its sole discretion, either repair or replace the goods or the defective part of the goods free of charge, or provide a credit or exchange. - Page 35 30 days* from the date of delivery. If a purchaser receives a product that is damaged in transit from Cowfish, the purchaser should: Refuse to accept delivery of the product; Direct the courier to “Return goods to sender”;...
- Page 36 If such inspection and testing finds no defect in the goods, the customer must pay Cowfish’s usual costs of service work and testing. The customer must bear the cost of the transport of the goods to and from Cowfish or the authorised repair agent, and all insurance of the goods.
- Page 37 This page has intentionally been left blank Page 37...
