Summary of Contents for Foxola WS-21009

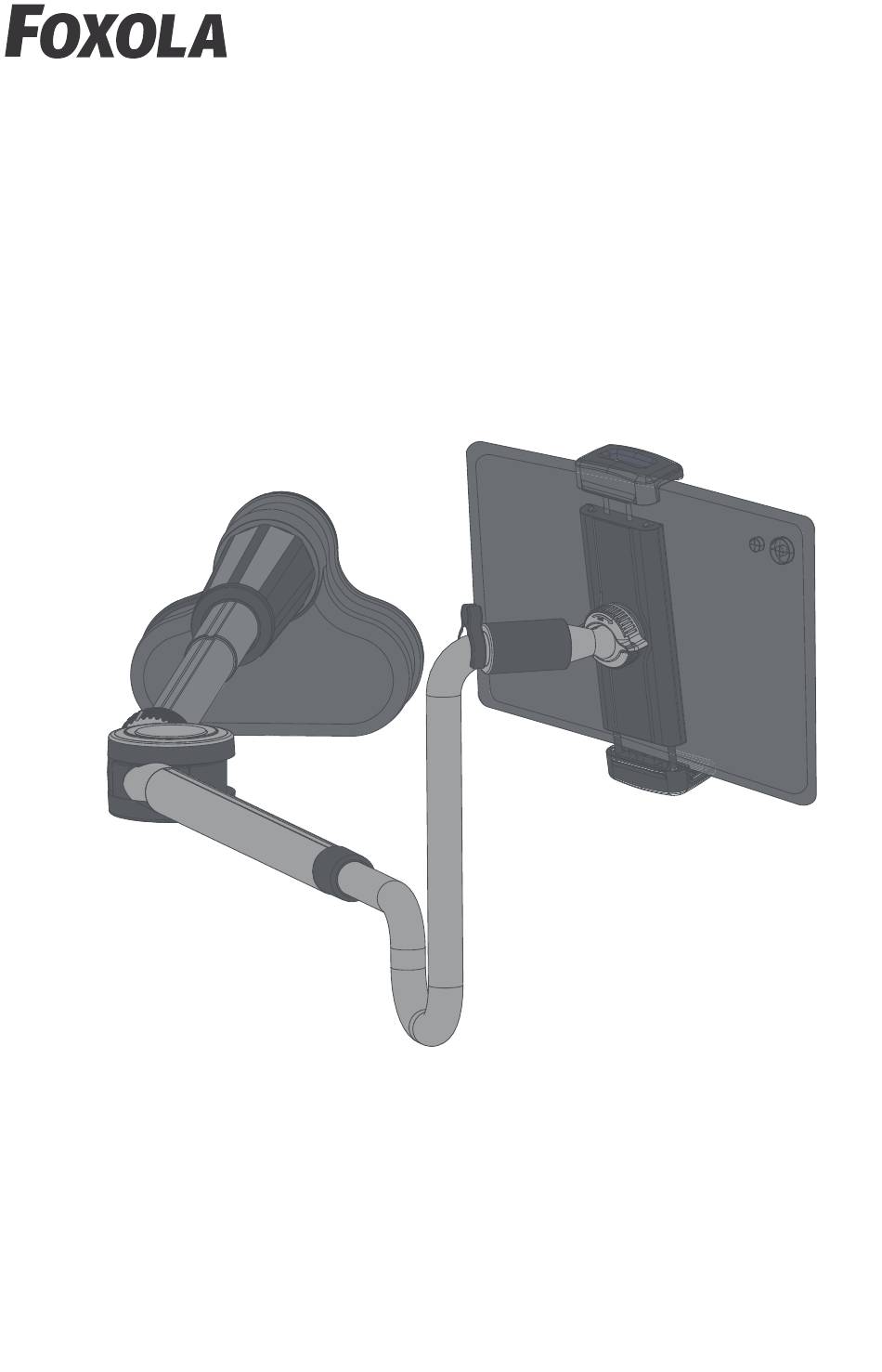

- Page 1 WS-21009 Lazy Bracket Operating Instruction...
-
Page 2: After Sales Service
------------------12-19 Italiano -------------------36-43 Français ------------------20-27 日本語 --------------------44-51 AFTER - SALES SERVICE if you encounter any problem wirh our products (such as broken),our after-sales team will always be a superman around you to help you INFO@FOXOLA - TECH.COM SupportEmail: PACKAGE CONTENTS... - Page 3 Appearance BUTTON Fixing clip Hose Thread lock Knob Extendable pole Universal ball Horizontal rotary screw Holder for mobile phone or tablet PC Circle button for Cable fix slot vertical adjustment...
- Page 4 Use Steps 1. Unscrew the thread 2. Loose the fixing clip, fix the lock to open it. bracket on the desktop or the head of the bed and tighten the thread lock.(Max thickness 60mm) Off Off 3. Pull the two-section extendable pole with your hands to adjust the height.
- Page 5 4. Loose the horizontal rotary screw, adjust the arm horizon- tally to a suitable position and tighten the horizontal rotary screw (the arm can be rotated for 360° horizon-tally). Off 5.When make adjustment upwards downwards,uplift the arm slightly at first,Then press the circle button to adjust in vertical.(There are around 15 gears in total, each of which is about 12°, it can be adjusted in vertical for 180°).
- Page 6 6.Adjust the shape of the hose to a most suitable angle and position. The hose can be The universal ball can deformed at will be adjusted at will 7.Open the bracket and fix the phone or tablet PC. Fix mobile phone/tablet in the middle of upper and lower handles(Please watch your hand for pinching).
- Page 7 253mm MAX Tips When you need to adjust the arm to upwards or downwards, please use your two hands to operate. 1. Do not directly press the circle button, so as to prevent the arm from falling down suddenly, which may damage personal belongings or hurt yourself (as shown in Figure 1).
- Page 8 10. The remote control (gift) can click on the mobile phone and tablet for a long distance to take pictures and videos, and can also click on TIKTOK, e-books, videos and other APPs BUTTON Remote control Precautions 1. Please handle carefully to prevent your hands from being caught when using it.
- Page 9 懒人支架说明书 材质： 128g铜版纸 打钉 尺寸： 100*150mm...
