Kockum Sonics BG 300 Operating And Installation Manual

Electronic Bell and Gong BG 300
Operating and installation manual
Electronic Bell and Gong
Ref. no. 20142020
General Information
According to the International Regulations for Preventing
Collisions at Sea 1972, Rule 33, vessels of 12m in length or
more shall be equipped with a bell, and vessels of 100m or
more shall, in addition, be provided with a gong with the tone
and sound which cannot be confused with that of the bell.
The device shall produce a sound pressure level of not less
than 110 dB at 1 metre. The electronic Bell & Gong system
is especially developed to meet these regulations.
The Bell and Gong sound emitters are identical and electro-
dynamic. They are, also, small and compact compared with
many other loudspeaker designs. The design is advantageous
from different aspects — not only the aesthetic.
By means of modern electronics, a power amplifier BG
300 supplies the sound emitters with the signal characters
stipulated by regulation for "ship aground" and "ship at
anchor". To emit the prescribed signal characters, the
Bell and Gong units are activated by buttons on the Signal
Activator TI65-M.
Operating
The Signal Activator TI65-M has 2 manual push buttons, each
for bell and gong, and one 3 way switch knob for automatic
activation of the repeating character shown to the right.
The switch knob has also an off function in the middle position.
Just turn the knob to desired character and the Electronic
Bell & Gong will start automatically.
By using the manual push buttons each Bell or Gong can
be operated.
Kockum Sonics AB
, Industrigatan 39, P.O. Box 1035, SE-212 10 Malmö, Sweden, Tel: +46 (0) 40 671 88 00
Fax: +46 (0) 40 21 65 13, e-mail: info@kockumsonics.com, www.kockumsonics.com
Power amplifier BG 300
Ref. no. 24801484

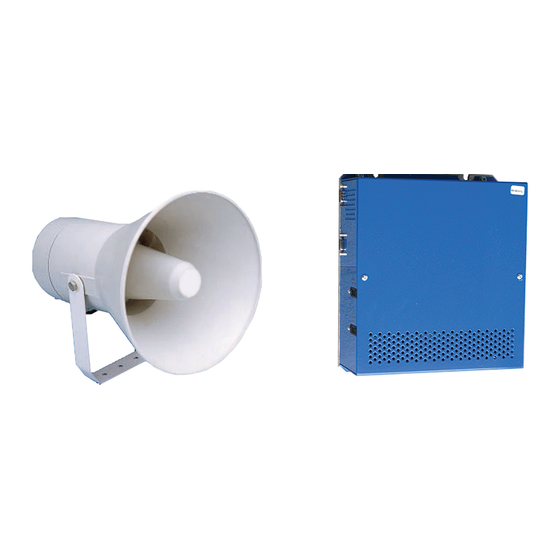

Power Amplifier BG 300
The power amplifier BG 300 is developed by using the latest
amplifier technology. The sound for bell and gong is recorded
and syntheized from real bell and gong instruments and has
a very authentic characteristic.
It only requires 24V DC (7A) and max outpower is 2 x 120W.
The Power Amplifier BG 300 is to be mounted indoors and
protected against water.

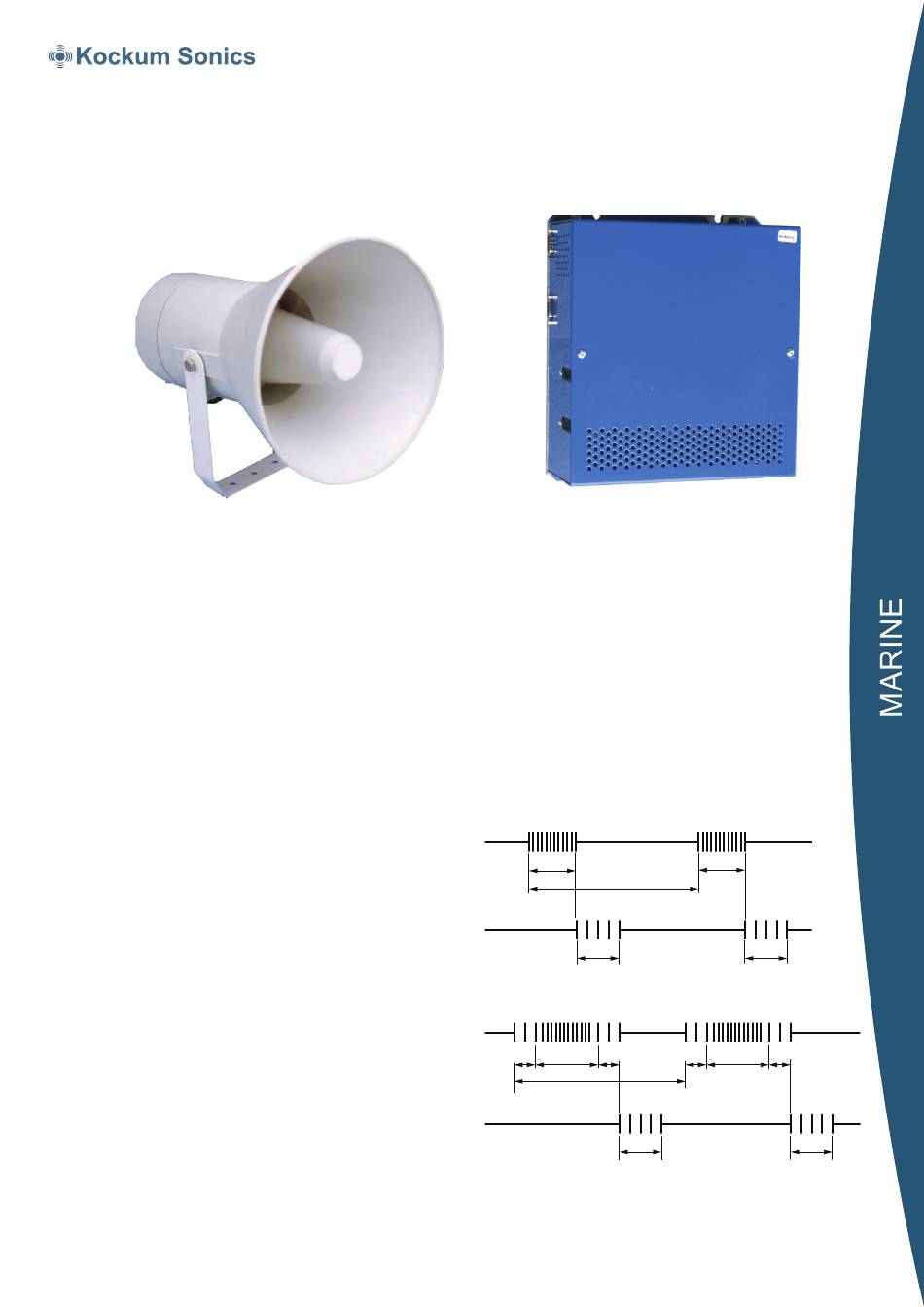

Repeating signal characters for ship at anchor
5 str/s
Bell
5 s
60 s
2 str/s
Gong
5 s
Repeating signal characters for ship aground
2 str/s 5 str/s 2 str/s
Bell
1,5 s 5 s 1,5 s
60 s
2 str/s
Gong
5 str/s
5 s
2 str/s
5 s
2 str/s 5 str/s 2 str/s
1,5 s 5 s 1,5 s
2 str/s
5 s 5 s
