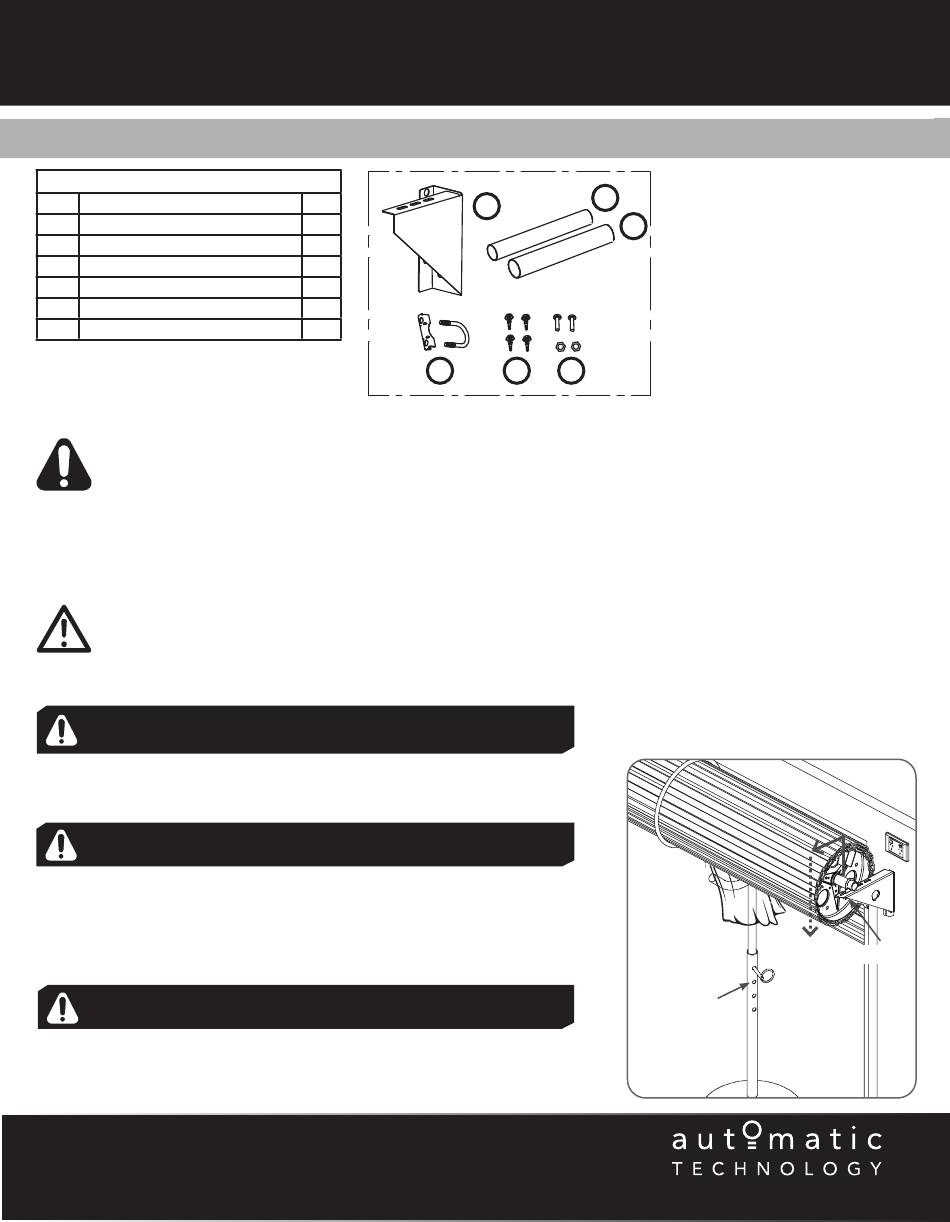

Automatic Technology 87618 Installation Instructions

EXTENSION KIT
ITEM DESCRIPTION
1 HANGER BRACKET
2 EXTENSION PIPE 1" OD
3 EXTENSION PIPE 1 / "
1
4
4 U BOLT AND SADDLE
5 HEX HEAD SELF TAPPING SCREWS
6 NUTS AND BOLTS
Please read these important safety rules
WARNING!
CAUTION:
Fall from ladder
WARNING! Do not allow persons around the door and prop. Serious personal
injury and/or property damage can result from failure to follow this warning.
1. Proping the Door:
a. At the end opposite to where the opener will be fitted, check that the U-bolt which
holds the door axle to the bracket is tightened securely.
WARNING! The U-bolt must be done up tightly to ensure the stored energy in
the springs cannot be unexpectedly released.
b. Open the door completely and tie rope around the door roll. Do not tie the rope too
tight as damage to the curtain may ensue. This will stop the door unrolling when
taken off the bracket
c. At the end where the opener is to be fitted, support the door with a door stand or
suitable prop. Place a towel between the door and the prop to protect the door from
damage.
WARNING! Make sure the prop is snug under the door and is stable.
2. Raising the Door:
a. When in position, remove the U-bolt (or bolts) and saddle from the door bracket.
b. Lift the door up and away from the wall until clear of the door bracket, before lowering
the door to rest on the door stand or prop.
Doc # 160428_00
Part # 87618
Released 11/05/20
Axle Extension Kit
Installation Instructions
QTY
1
1
1
1
4
2
• Place a 6 feet exclusion zone around area under the garage opening while installing door.
• DO NOT move under a door while it is on the door support (or lifting device).
• Follow the installation instructions.
• Fit door support (or lifting device) snugly under door before lifting.
• Ensure door support (or lifting device) is on flat ground.
• Ensure the door is immediately fastened to the bracket with the "U" Bolt.
• Ensure no-one walks under a door sitting on brackets.
• Keep the sheet door balanced. Sticking or binding doors must be repaired. Sheet doors, door springs,
brackets and their hardware are under extreme tension and can cause serious personal injury. Do not attempt
any sheet door adjustment. Do not use if repair or adjustment is needed. Only to be installed by professional
sheet door installer.
• Ensure ladder is the correct type for job.
• Ensure ladder is on flat ground.
• Ensure user has 3 points of contact while on ladder.
(Fig 1.1)
2
1
4 5 6
3
Towel
Lift door
up, away
from wall
Door stand
and down
or prop
onto prop
Fig. 1.1
U-bolts
