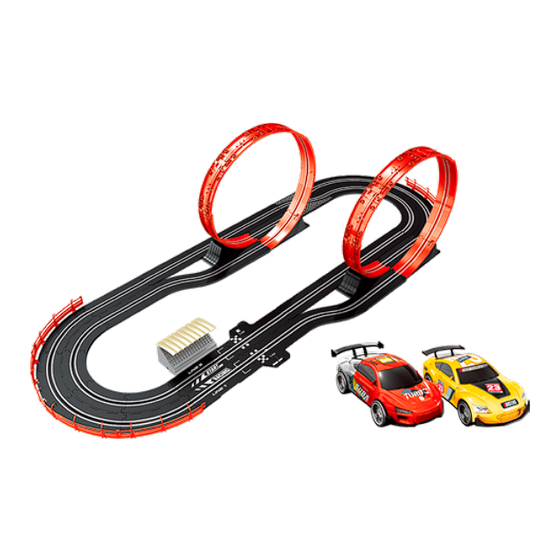

- Page 1 R/C SLOT CAR SET 1:43 SCALE USER MANUAL GT4350...
-
Page 2: Box Contents
BOX CONTENTS LOOP TRACK ASSEMBLY Join B & H tracks together, Join A & H tracks together, make sure that slide the grooves of A & B together. the tracks are connected together well. Connect A & B together and Fold the two pieces push the pieces inward. -
Page 3: Fitting Assembly
FITTING ASSEMBLY Set the clips to the side of the track and push them inwards until they are locked in place. Insert the flag poles into the holes of the clip. Insert the tracks together on a flat sur- face. Align the guardrail with the groove of the curved tracks... - Page 4 CAR ADJUSTMENT The brush located on the bottom of each car needs to be straight (fig 1.). If the brush has tangled, then stretch it out slightly so that it’s completely straight. Note: The left and right brush of each car should be separated from one another. If the brushes touch each other then the car will not operate correctly.
- Page 5 PRE-RACE PREPARATION When the cars are placed on top of the track, make sure the pillar on the bottom is placed in the grove of the track. Line 1 Line 2 Plug the power handles to the handle sockets on the power box.
-
Page 6: Battery Installation
BATTERY INSTALLATION 1. Remove the battery cover located on the bottom of the grand stand. 2. Insert 8 x AA (not included) batteries using the correct polarity. 3. Once the batteries have been inserted, place the battery cover back on. SAFETY &... -
Page 7: Troubleshooting
TROUBLESHOOTING Problem Solution Car Has • Check that the slot car set has the correct polarity for the batteries No Power and they are not flat. • Ensure the brushes underneath each car is making contact with the track. • Ensure the tracks are all tightly connected together as a break in the tracks will cause the slot car set to not work correctly. -
Page 8: Warranty Information
Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
